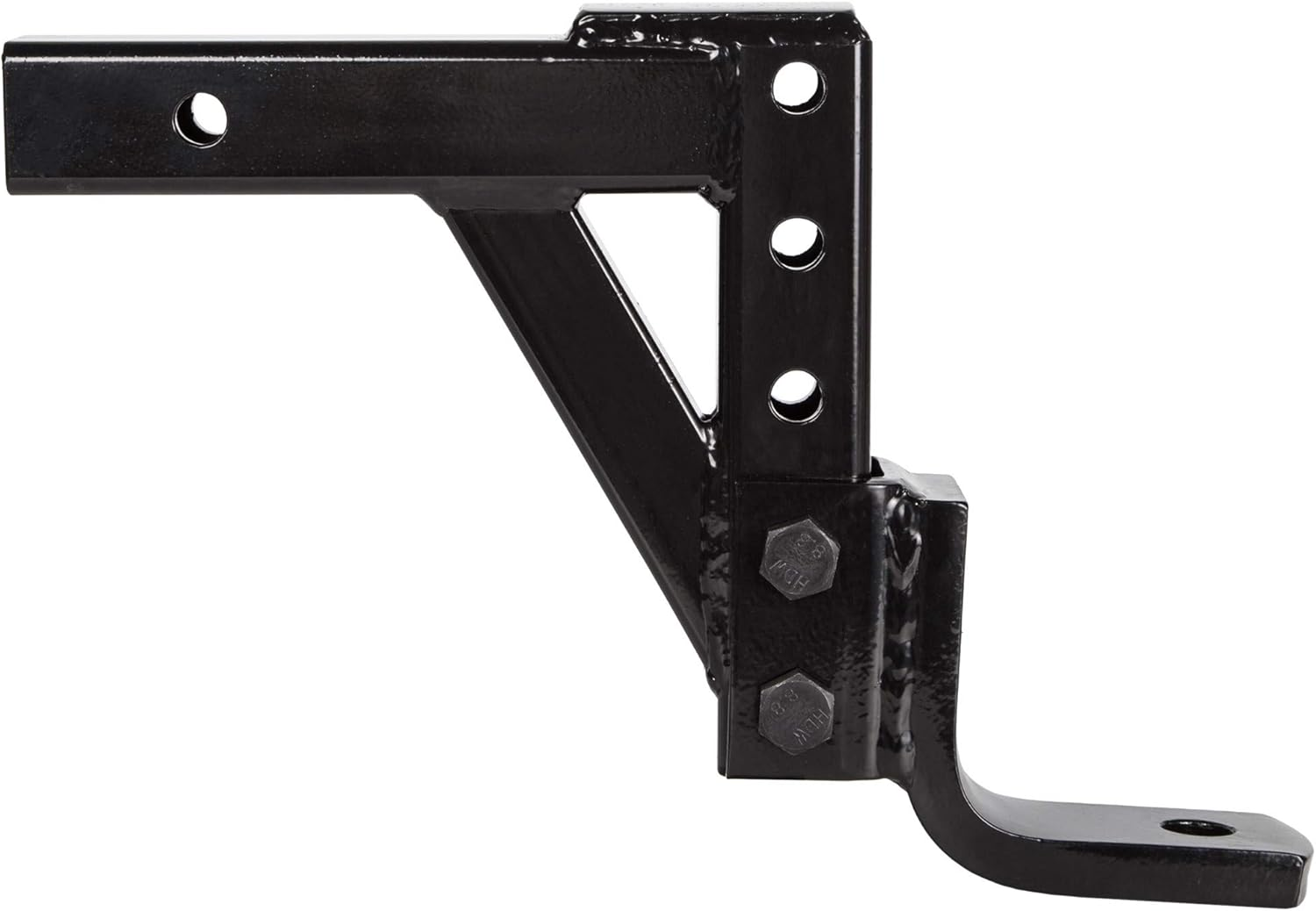

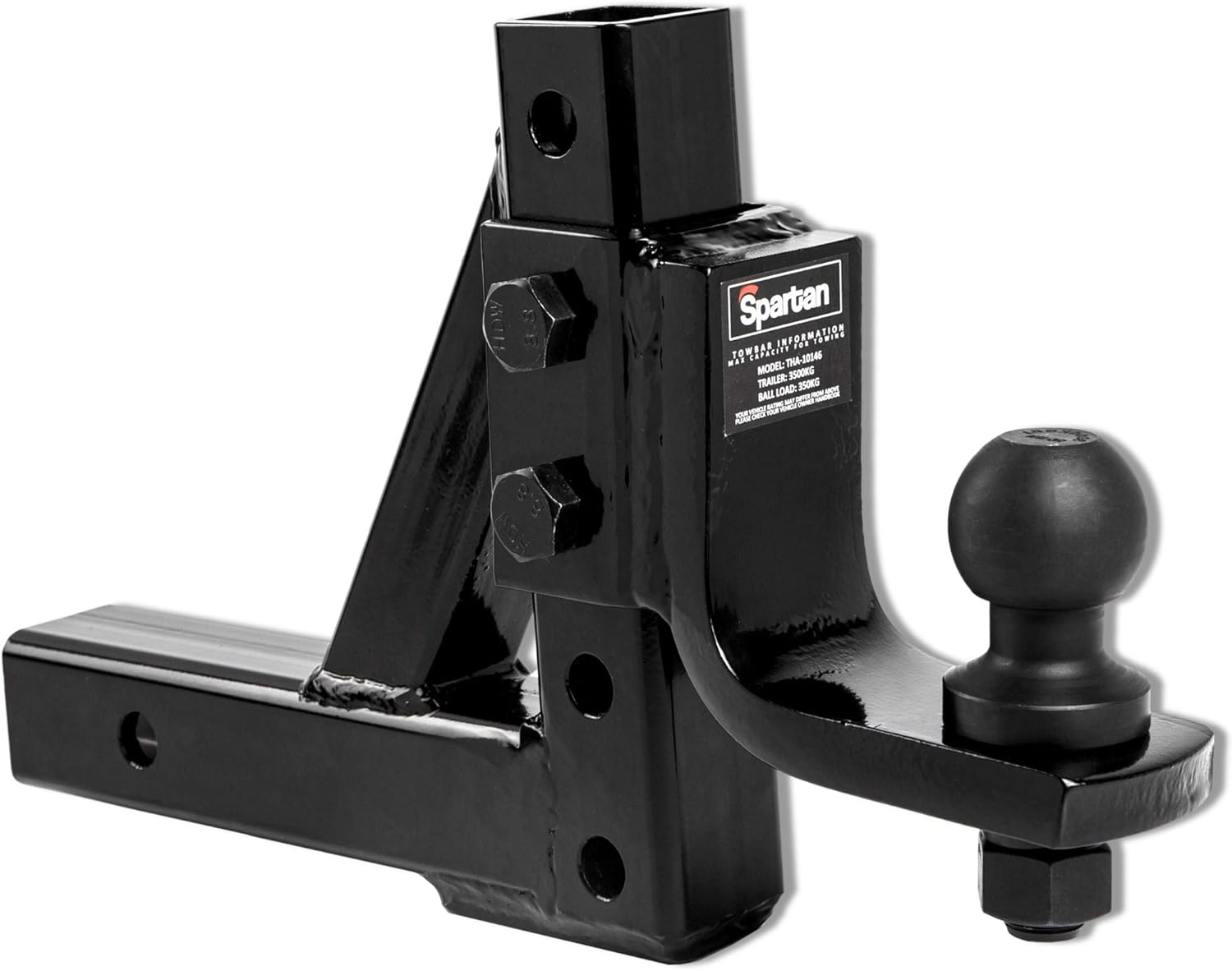

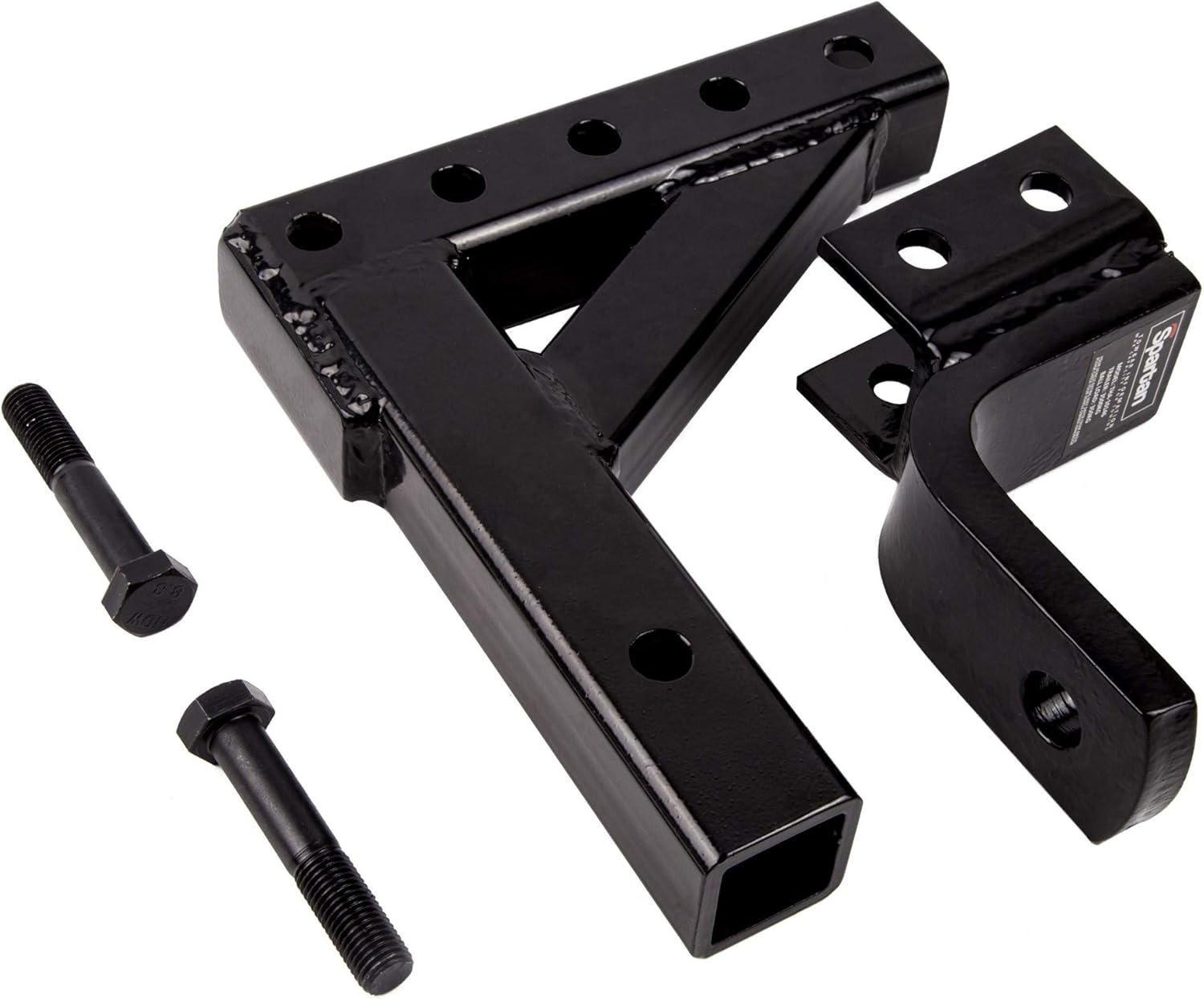

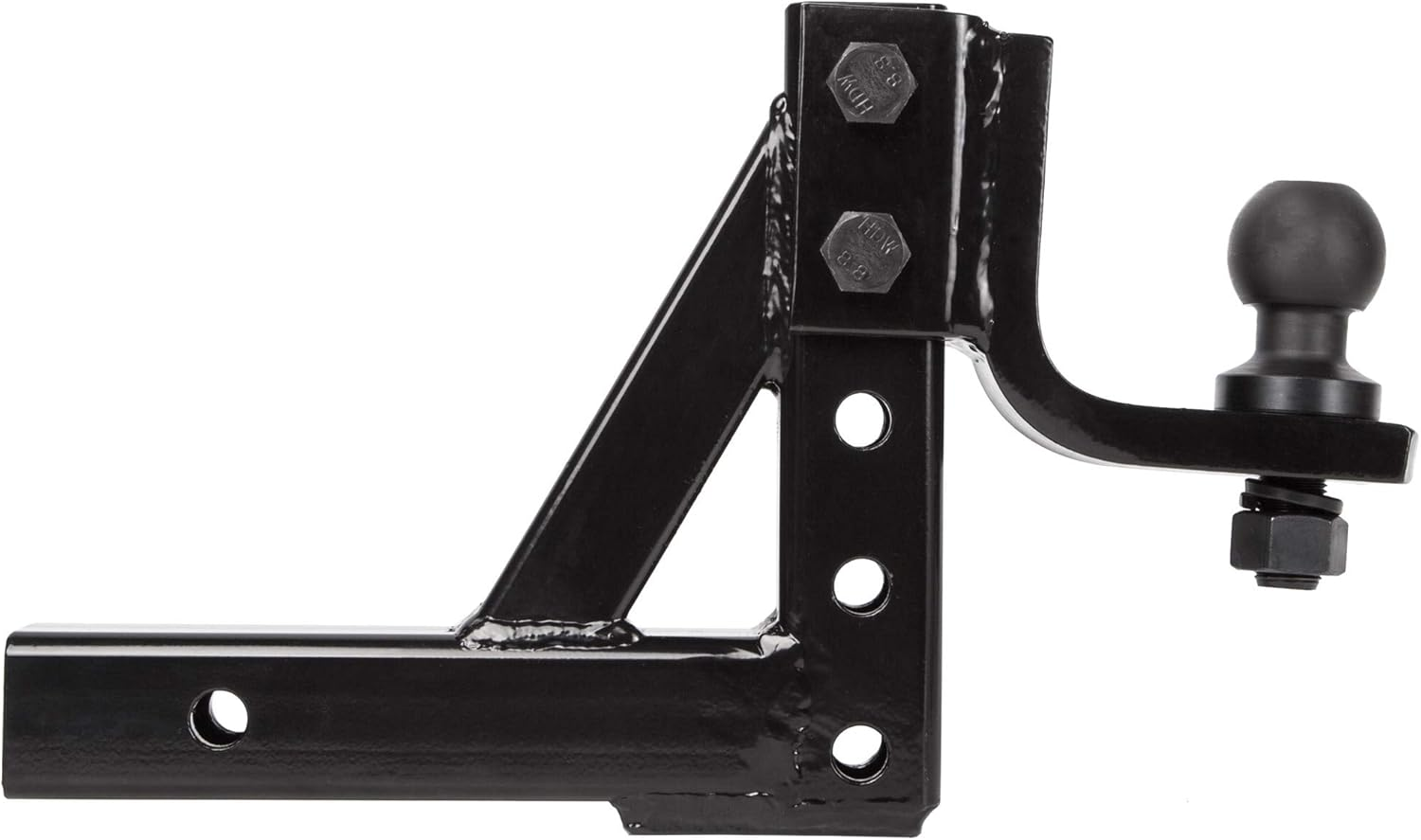

Spartan Adjustable Towbar Tow Bar Ball Mount Tongue Hitch Trailer Car 3500KG 50Mm Ball

Spartan Adjustable Towbar Tow Bar Ball Mount Tongue Hitch Trailer Car 3500KG 50Mm Ball

Brand: Spartan
4.9
A$111.65
Availability:
  • This item is currently not available

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • MAXIMUM G.T.W (GROSS TRAILER WEIGHT) = UP TO 7000LBS AND BALL LOAD = 650LBS
  • MAX. DROP = 232MM (SHOWN IN THE LAST PICTURE & MEASURED FROM TOP OF SHANK TO TOP OF BALL PLATFORM)
  • MAX. RISE = 200MM
  • LENGTH (HITCH HOLE TO BALL HOLE) = 305MM
  • DISTANCE BETWEEN HOLE CENTRES ON UPRIGHT = 37.5MM
  • End of shank to center of hitch pin hole = approx 70mm
  • End of shank to start of vertical adjustment bar = approx 225mm
  • End of shank to start of weld on support gusset = approx 145mm

Ball mounts connect your tow vehicle's hitch with the coupler on your trailer. To connect to the tow vehicle, the ball mount slides into the hitch's opening and is held in place with a pin and clip. The ball mount has a platform with a hole in it where a hitch ball is attached.

How to choose the correct ball mount

  • Determine how much weight capacity your ball mount should have
    • Make sure your ball mount fits your receiver and your trailer coupler
      • Determine the rise or drop needed to tow your trailer level
        • Decide whether you want these other features in your ball mount:
          • Adjustable ball mounts fit trailers of different coupler heights and sizes
            • Aluminum vs steel construction
              • Locks and locking ball mounts
                • Other special features

                  Description

                  Adjustable ball mount offers different positions to match the height of your application

                  Tow trailers of varying heights with the same vehicle

                  The channel-style mounting system is easy to adjust

                  Move ball mount up or down along channel.

                  Corrosion-resistant black powder coat finish.

                  COMPLIES WITH SAE J684/V-5 STANDARDS

                  Suit:

                  MOST 2" SQUARE RECEIVERS

                  Specifications:

                  With a 50mm diameter ball (fits any 2" receiver) With a 15mm pin

                  Reversible (ball can be fit on top or underneath)

                  Hitch : 300mm long

                  The width of the tongue is 65mm

                  The length of the square tube : 150mm

                  The pin hole to tow ball hole is 195mm

                  Powder coated finish & steel ball

                  Complies with Australian Standard AS 4177.1:2004

                  In the Box

                  1 X ADJUSTABLE TOWBAR WITH 2" DROP

                  1 X 50MM TOWBALL

                  1 X HITCH PIN LOCK

                  1 X BALL COVER

                  2 X BOLTS AND NUTS

                  2 X SECURITY KEYS

  • Manufacturer reference: Spartan
  • Brand: Spartan
  • Manufacturer Part Number: Spartan
  • Item Weight: 10 kg
  • Exterior: Black powder coat
  • Special Features: With a 50mm diameter ball (fits any 2" receiver), The pin hole to tow ball hole is 195mm, Hitch : 300mm long, Complies with Australian Standard AS 4177.1:2004, Powder coated finish & steel ball, The length of the square tube : 150mm, Reversible (ball can be fit on top or underneath), With a 15mm pin, The width of the tongue is 65mm
  • Package Dimensions: 30 x 27 x 9.5 cm; 10 kg
  • Manufacturer: Spartan
