The EPT USB-CPLD development system provides a flexible learning platform by combining a powerful Complex Programmable Logic Device with High Speed USB.

It is designed to provide an innovative method of developing and debugging programmable logic code.

It provides a high speed data transfer mechanism between any microcontroller (or any digital device) and a host PC.

The EPT USB-CPLD development system provides a convenient, user-friendly work flow by connecting seamlessly with Altera’s Quartus II software.

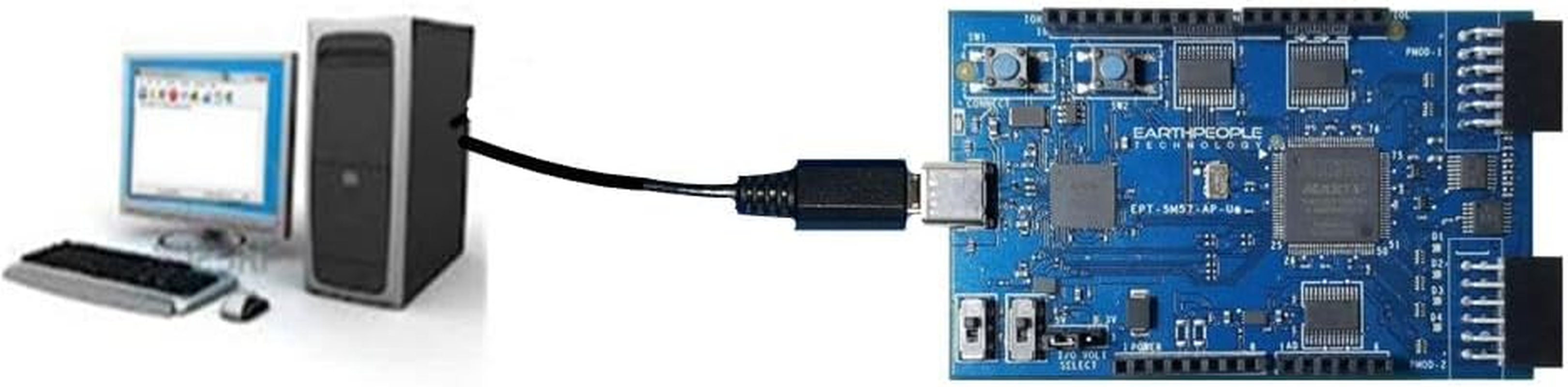

The user will develop the code in the Quartus environment on a Windows Personal Computer.

The programmable logic code is then loaded into the CPLD using only the Quartus Programmer software and a standard USB cable.

The programmer hardware is built in to the EPT-570-AP.

The ActiveHost API provides a highly configurable communications interface between CPLD and host PC.

It connects transparently to the Active Transfer Library running inthe CPLD code.

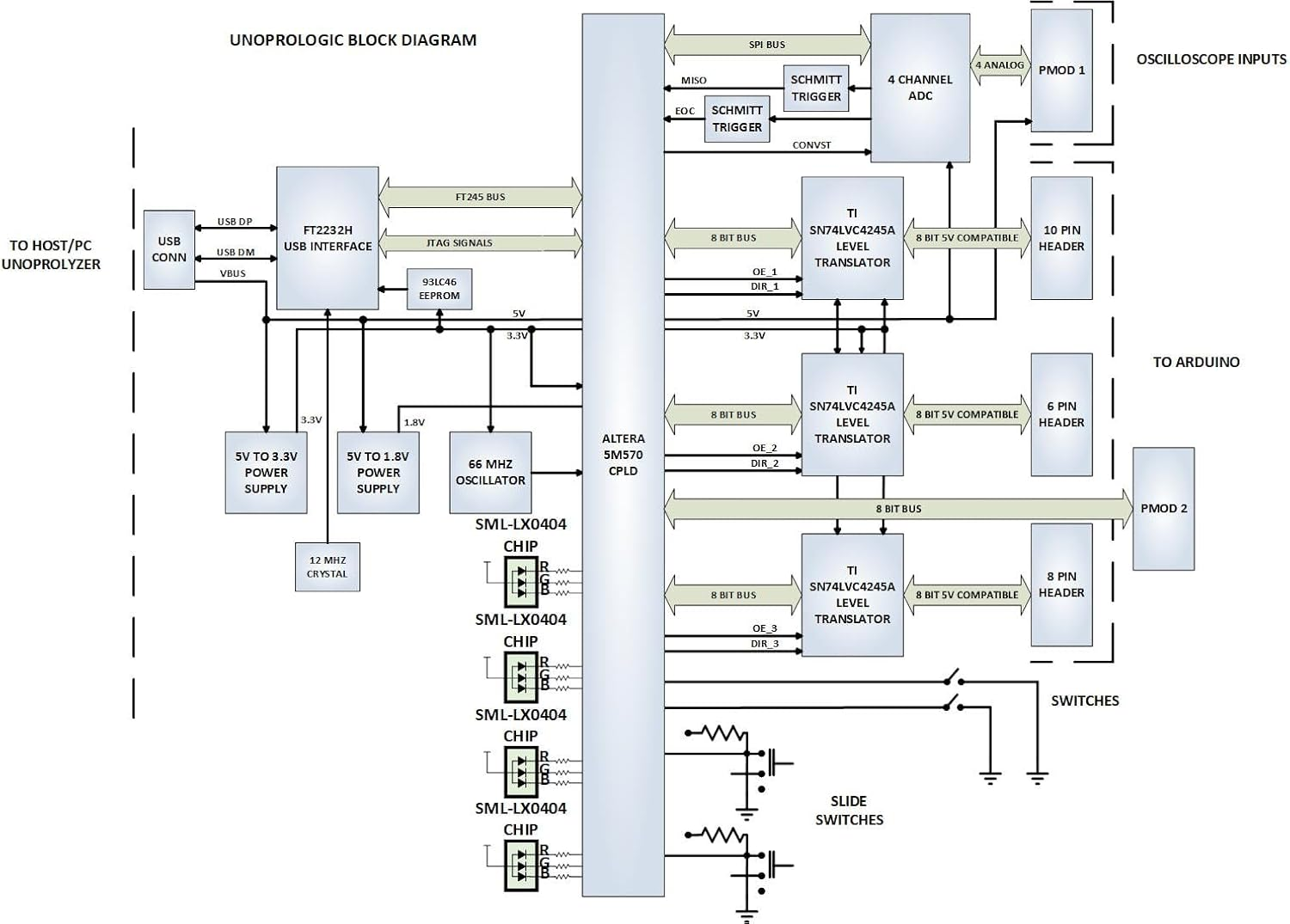

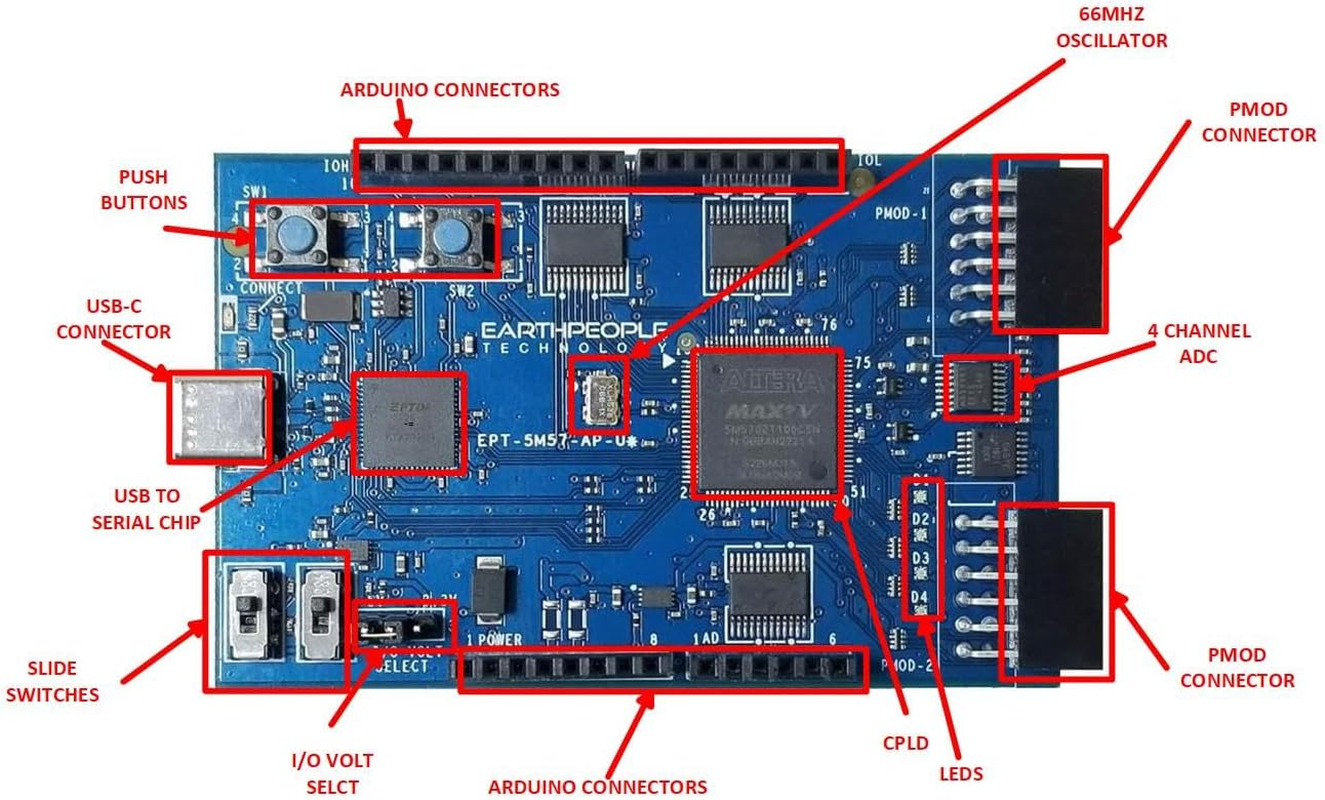

Altera 5M570 CPLD

24 Inputs/Outputs compatible with 5 Votls

Four Green LEDs

Two push button switches

4 Channel ADC with 300KS/s
