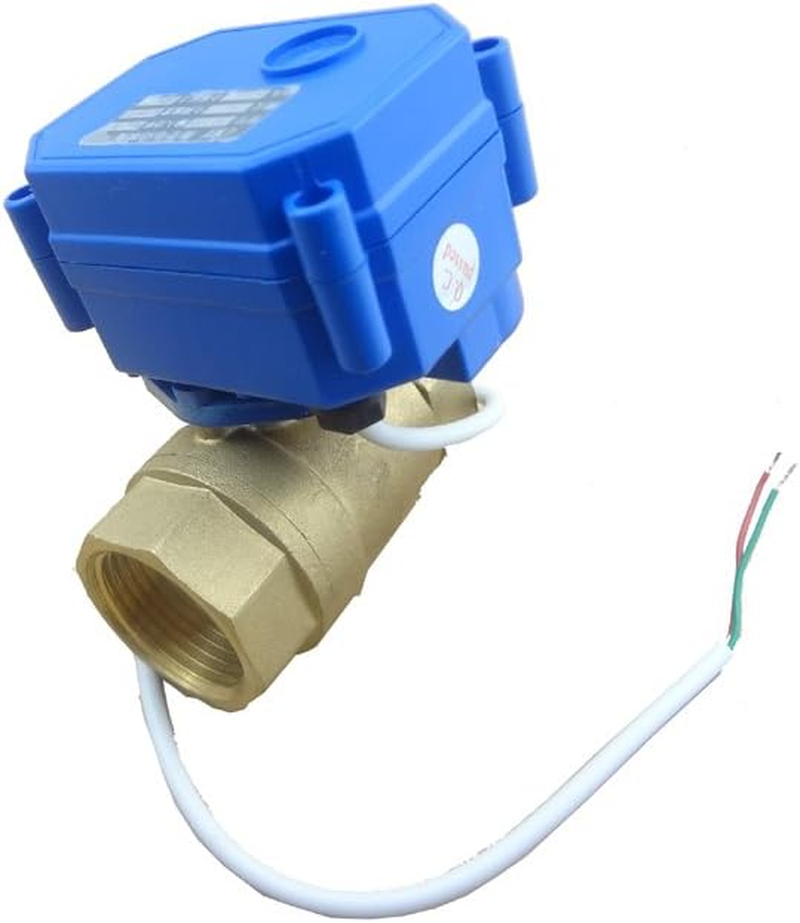

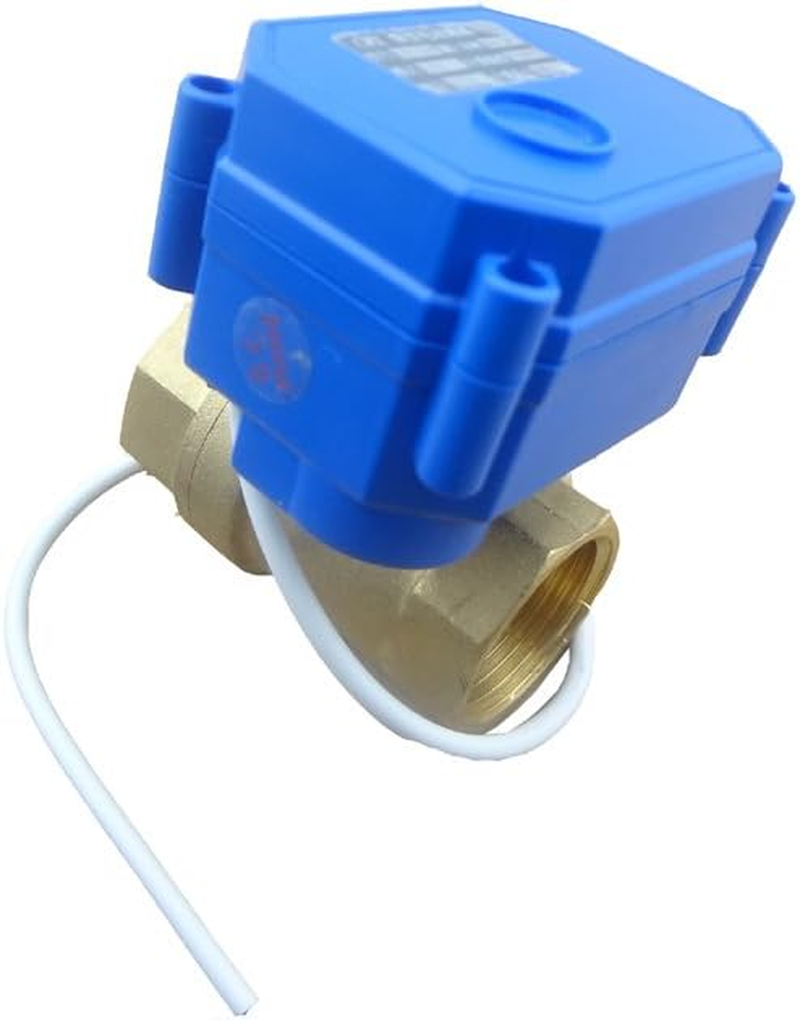

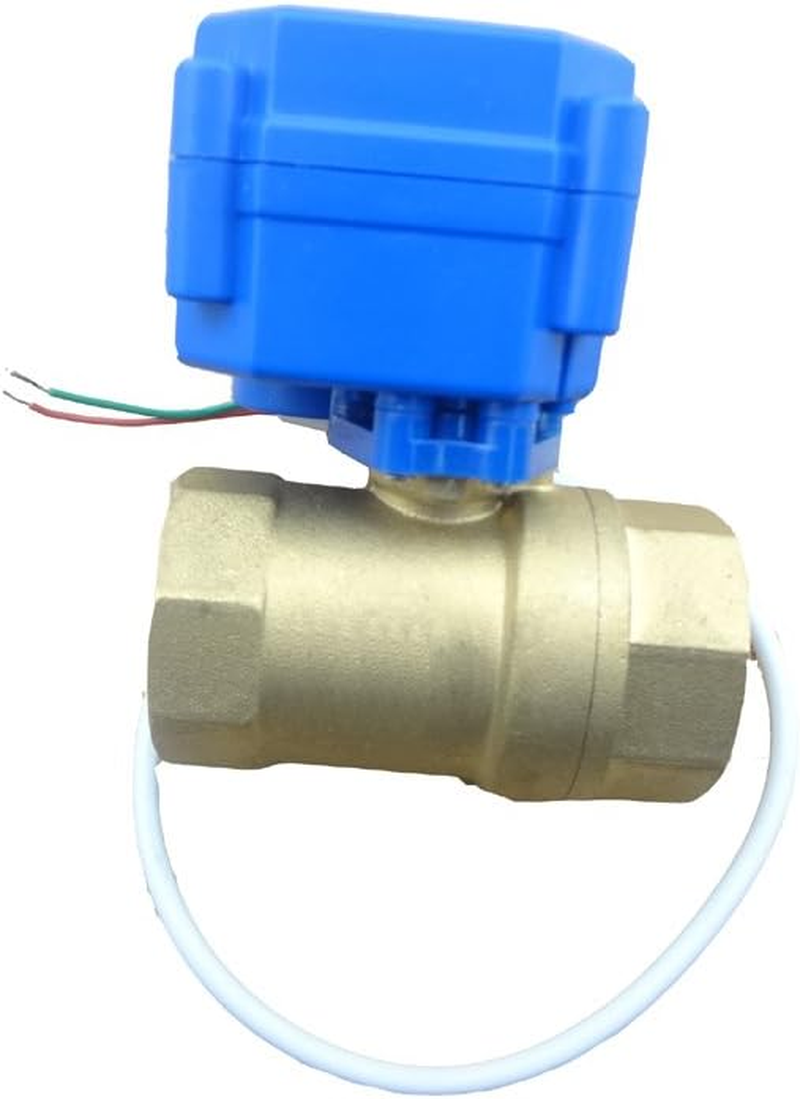

MISOL 1 Pcs of Motorized Ball Valve G3/4" DN20 (Reduce Port) / 12VDC / 2 Way/Electrical Valve
MISOL 1 Pcs of Motorized Ball Valve G3/4" DN20 (Reduce Port) / 12VDC / 2 Way/Electrical Valve
Brand: MISOL
A$56.20
- Thread size: DN20(G3/4", BSP), flow hole size: 15mm
- WIRE TYPE: CR01
- Pressure: 1.0MPA
- Features: 1).Smart shape, Perform reliably, large output torque, as long as 50000-100000 times. multi-angel assembling, convenience for all kinds of requirements. 2).Float ball design, no leak, most suitable for heavy dirt and long time no action. 3).The conditions that solenoid valve can not be worked. 4). Under the pressure between 1Mpa and 2Mpa, the working current is only 45mA to 100mA (it depend on the different type) 5). High protection class, can be worked in moist conditions.
- Application: 1.HVAC 2.Water treatment 3.Chemical process 4.Small equipment for automatic control 5.Replacing solenoid valve, particularly when solenoid cannot work reliably
Application:
1.HVAC
2.Water treatment
3.Chemical process
4.Small equipment for automatic control
5.Replacing solenoid valve, particularly when solenoid cannot work reliably
1).Smart shape, Perform reliably, large output torque, as long as 50000-100000 times. multi-angel assembling, convenience for all kinds of requirements.
2).Float ball design, no leak, most suitable for heavy dirt and long time no action.
3).The conditions that solenoid valve can not be worked.
4). Under the pressure between 1Mpa and 2Mpa, the working current is only 45mA to 100mA (it depend on the different type)
5). High protection class, can be worked in moist conditions.
Technical Parameter:
Nominal Size: DN20 (Reduce Port)
Pressure: 1.0MPa
Body: Brass ball valve
Medium temperature: -20 Enclosure: IP65
Work voltage: DV12V
Input power: MAX. 4W
Working current: 60-80mA
nominal torque: 2N*M
Open/Close time:5 second
Wire type: CR01
- Part Number: MS-MV-2-20-12V-R01-1
- Batteries Required?: No
- Manufacturer reference: MS-MV-2-20-12V-R01-1
- Item Package Quantity: 1
- Material: Brass
- Country of origin: China
- Certification: IP65, AS/NZS 476.2:2018
- Item Weight: 0.28 g
- Maximum Pressure: 10 Bars
- Batteries Included?: No
- Size: DN20
- Is discontinued by manufacturer: No
- Manufacturer: MISOL
