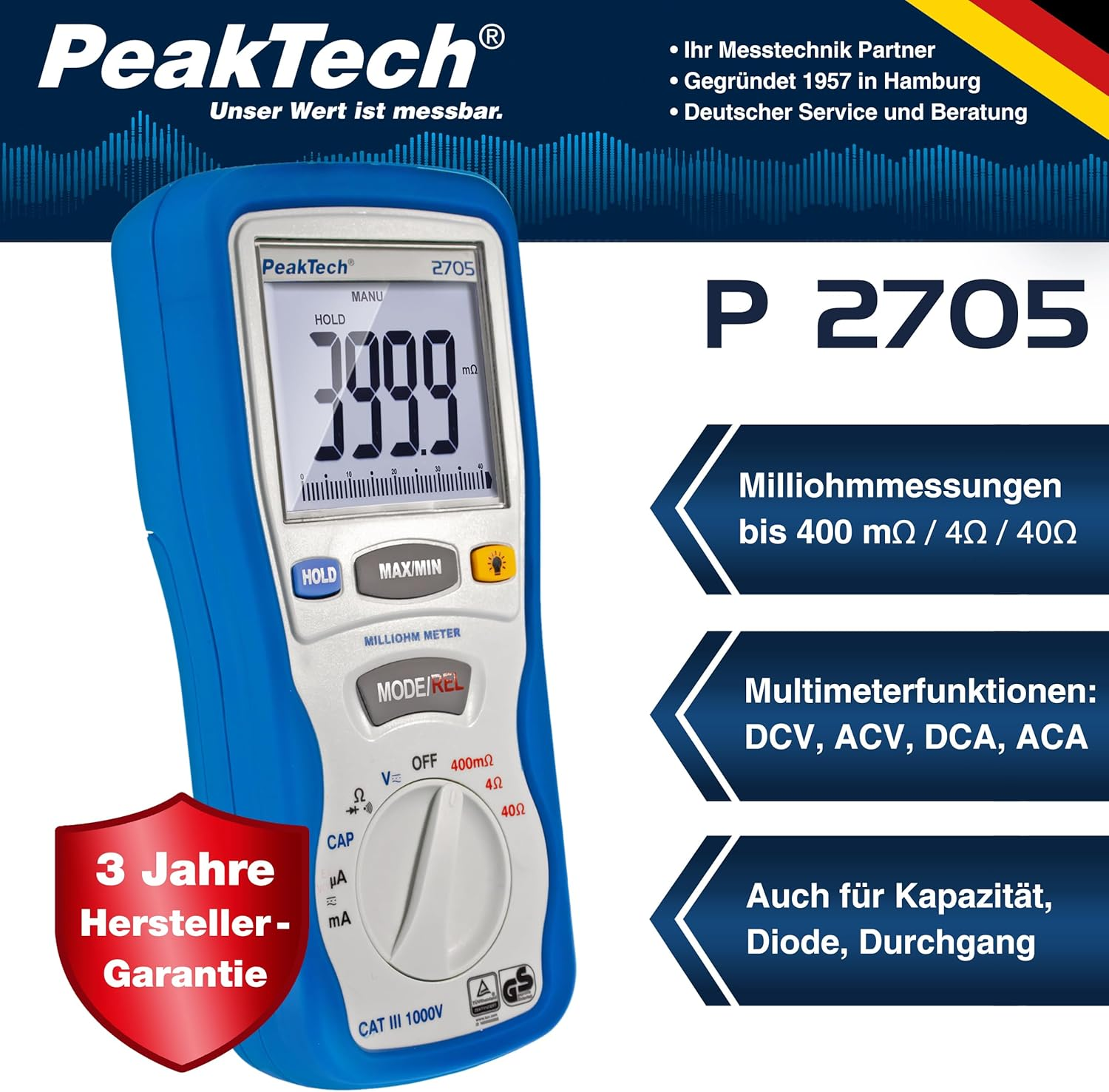

Digital milliohmmeter ~ 400 mΩ/4/40/Ω ~ 4000 counts

This milliohmmeter allows resistance measurements from 1 mΩ to 40 Ω. To determine the measured value, a constant current is applied to the measuring object and the voltage drop is determined. The following functions and uses are highlighted:

• Resistance measurements on motor coils, generators, transformers, circuits, e.g. parallel and secondary circuits, printed circuits and switches and relays
• Continuity tests on ring systems (ring bus) in household and industrial systems.
• Testing compression elements of overhead lines, testing and maintenance work on control cabinets and components such as fuses, connectors, contacts and binding elements.
• 3 ¾-digit LCD display (max. 4000) with backlight and 42-segment bar graphic.
• Battery status indicator.
• MIN/MAX and measurement value holding function.
• Relative value measurement function, automatic switch-off.
• Diode and continuity test function.

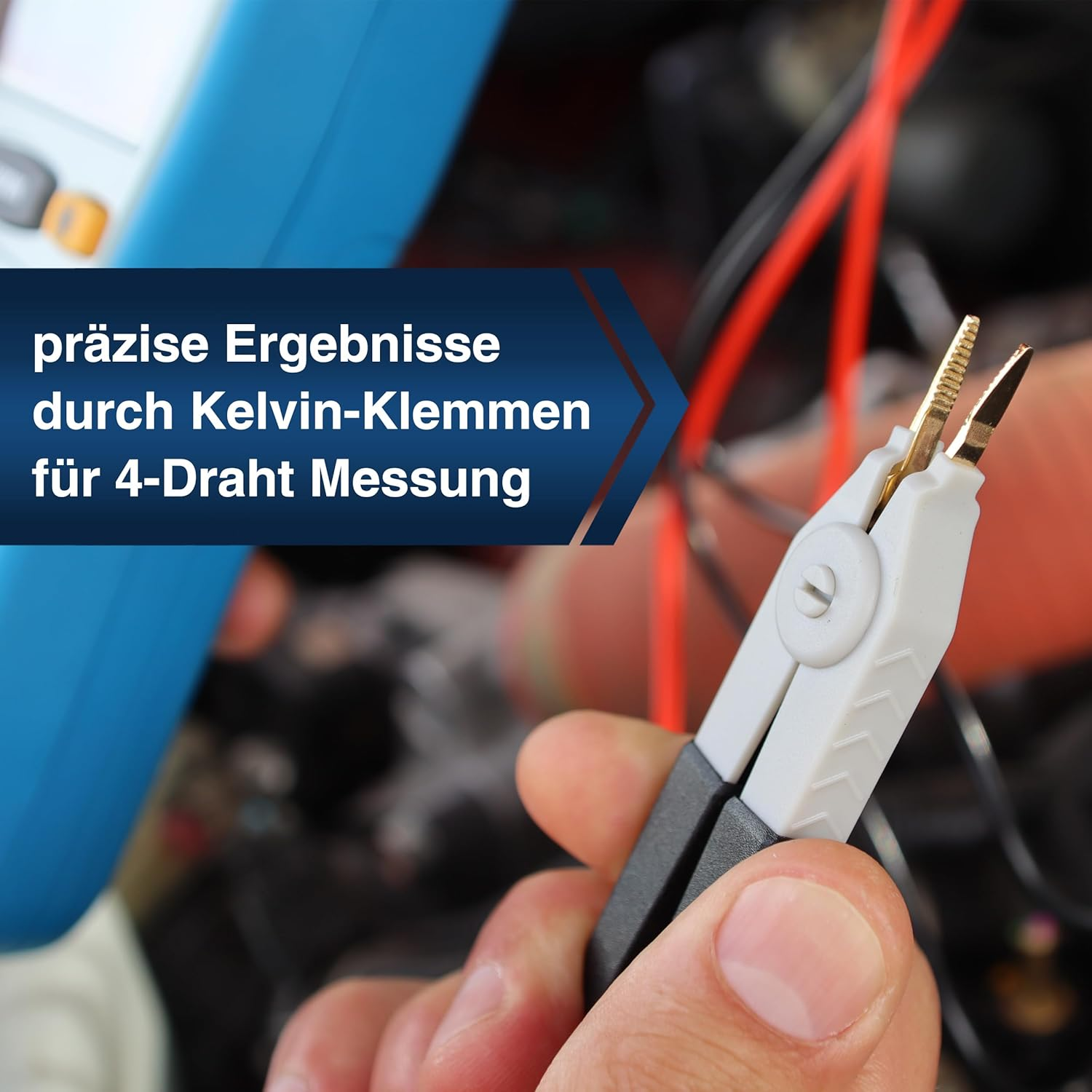

• Milliohm measurement with 4-pin Kelvin test leads.
• Safety: TÜV/GS, EN-61010-1; CAT III 1000 V.

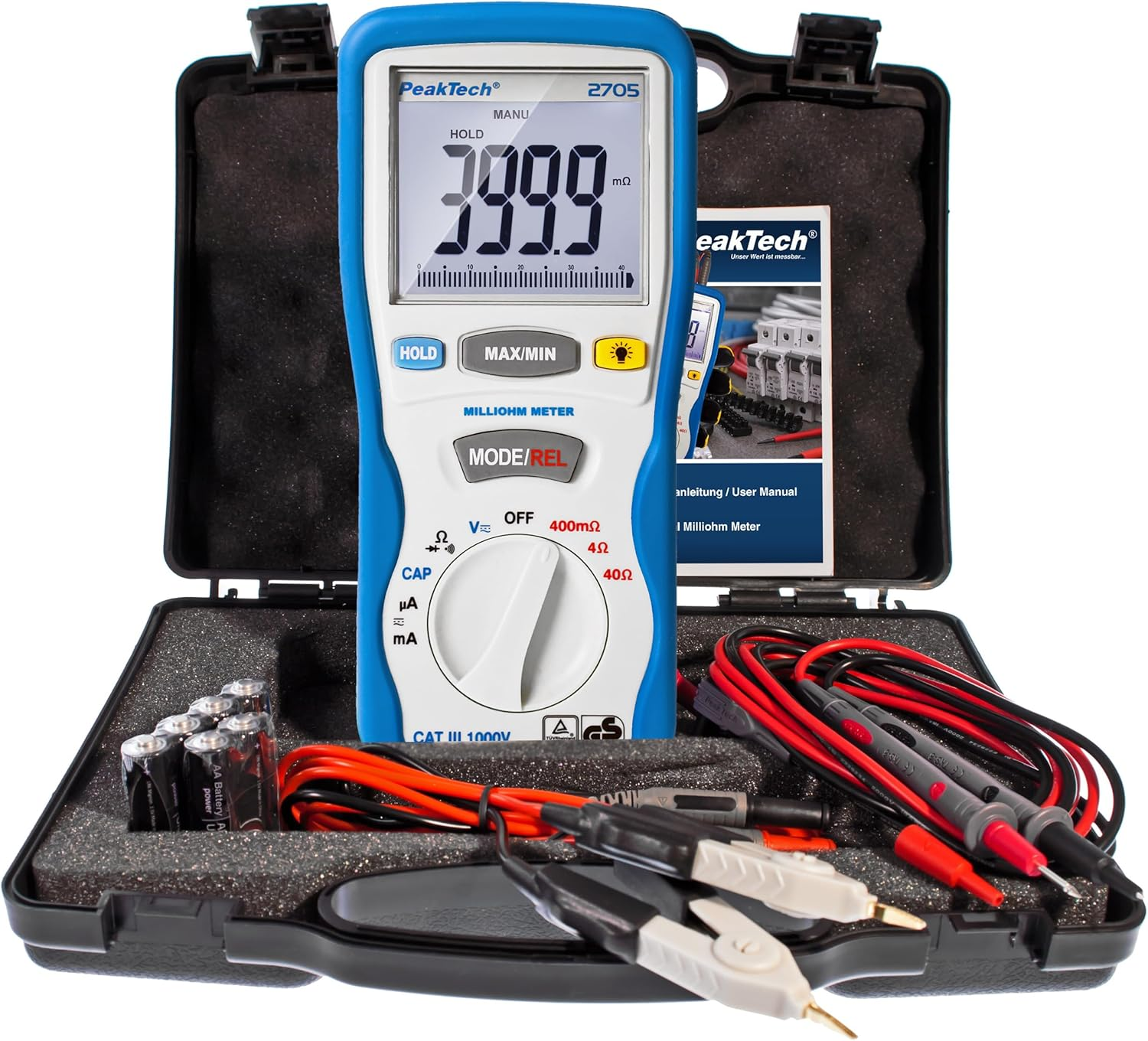

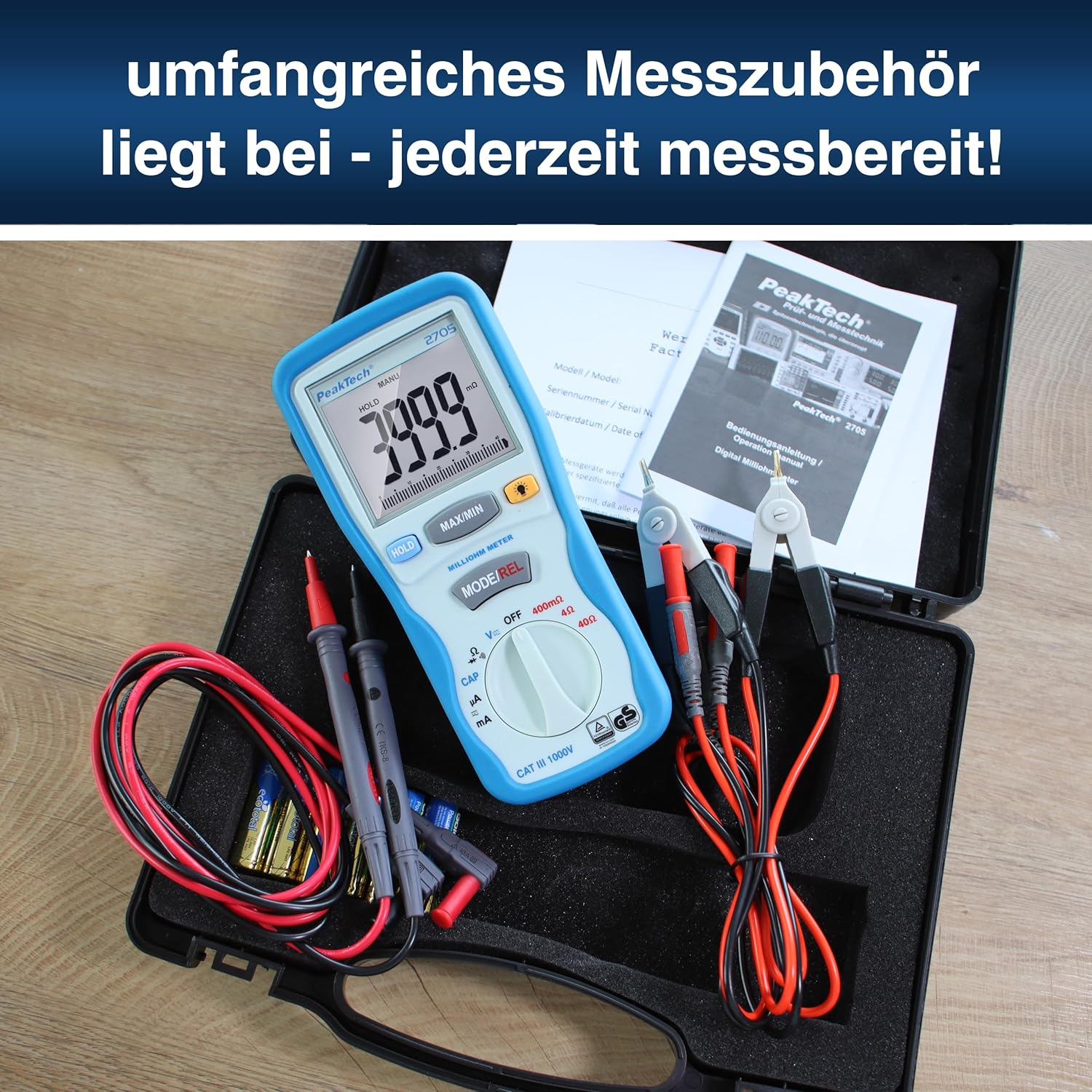

• Accessories: case, test leads with 2 mm tips, batteries, 4-pin Kelvin test leads and instruction manual

Milliohm measuring range: 400 mΩ/4/40 Ω - 0.1 mΩ; ± 1.0% + 10 digits.

Max. Test current: 200mA (400mΩ) / 20mA (4Ω) / 2mA (40Ω)

DC voltage: 400 mV/4/40/400/1000 V - 0.1 mV; ± 1.0% + 5 digits.

AC voltage: 400 mV/4/40/400/1000 V - 0.1 mV; ± 1.2% + 10 digits.

Resistance: 400 Ω/4/40/400 kΩ/4/40 MΩ/ - 0.1Ω/; ± 1.5% + 2 digits.

Capacity: 4/40/400nF/4/40/400µF/4/40mF - 1pf; 3.0% + 10 digits.

DC current: 400/4000 µA/40/400 mA - 0.1 µA; ± 1.5% + 5 digits.

AC current: 400/4000 µA/40/400 mA - 0.1 µA; ± 1.5% + 5 digits.

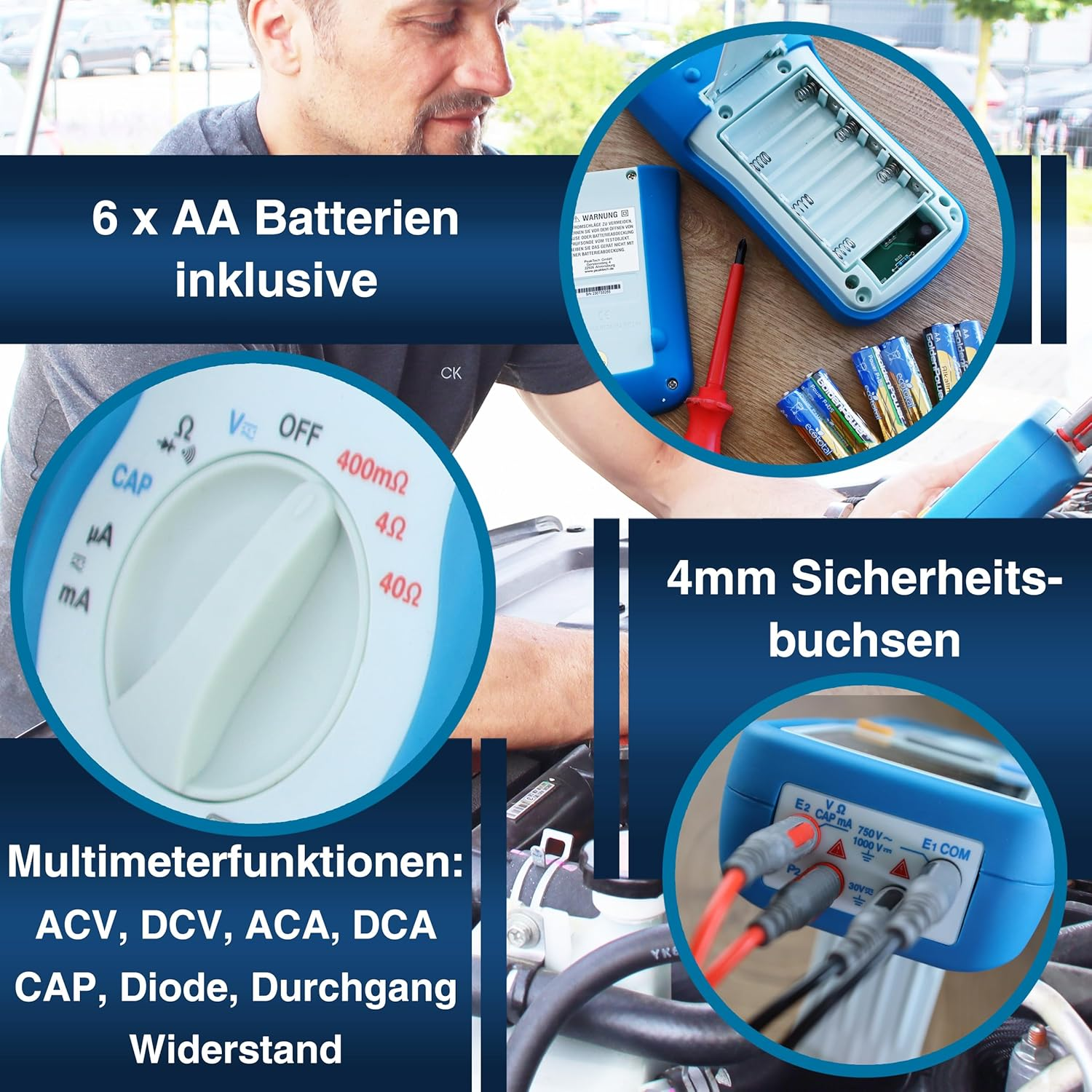

Operating voltage: 6 x 1.5 V AA (UM-3) batteries.

Dimensions (WxHxD): 92 x 200 x 50 mm

Weight: 700 g
