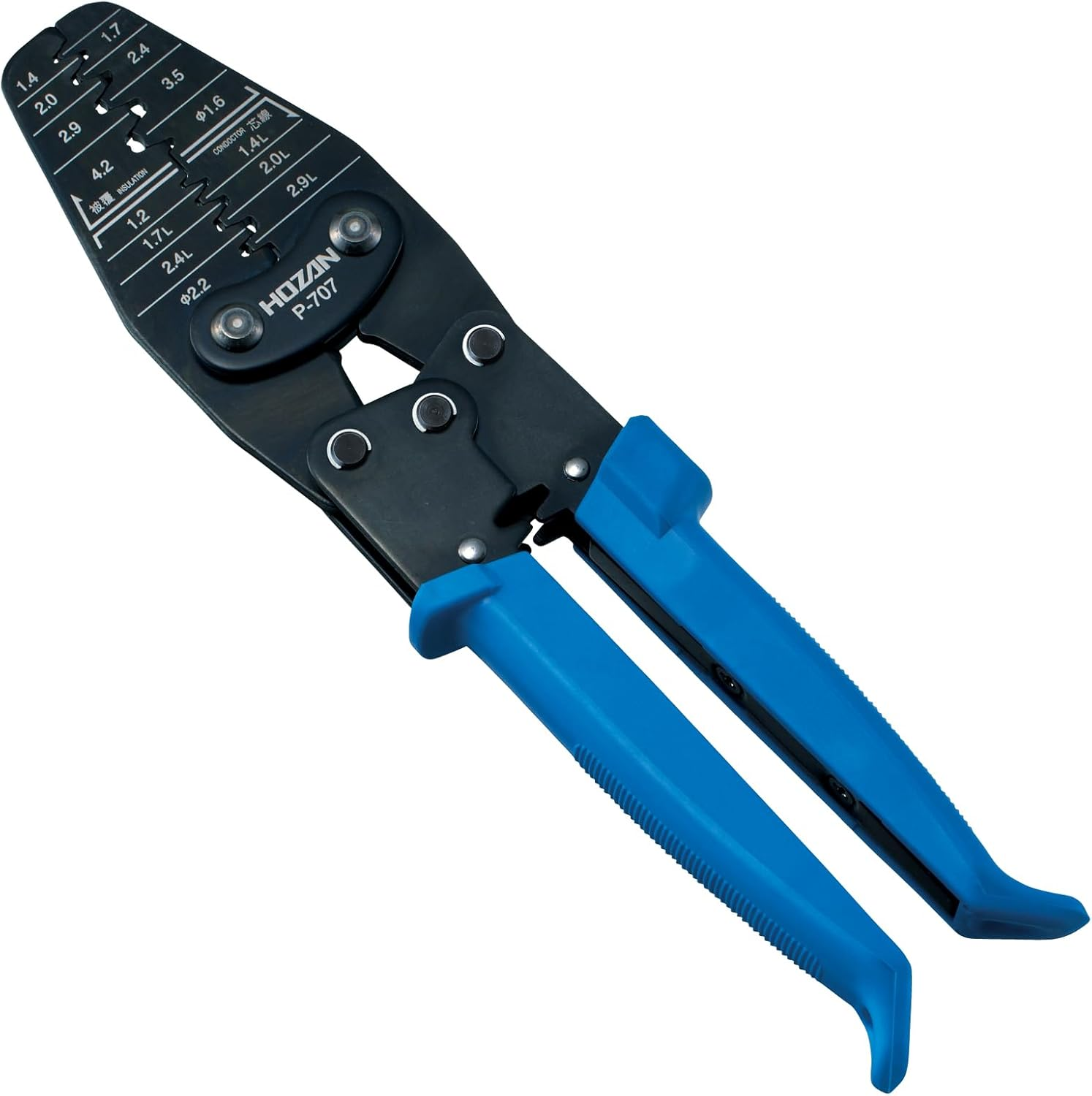

Hozan P-707 Crimping Tool (For Open Barrel Contacts) Crimping Pliers, 15 Types of Large and Small Dice, Compatible with a Wide Range of Terminals

Hozan P-707 Crimping Tool (For Open Barrel Contacts) Crimping Pliers, 15 Types of Large and Small Dice, Compatible with a Wide Range of Terminals

Brand: HOZAN
3.6
A$63.40
Availability:
  • In Stock

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • For open barrel terminals (open barrel contacts) 15 different large and small dice allow for a wide range of terminals from small to large
  • Toggle mechanism allows for more reliable crimping with a light force. (The dice part has a thin tiered finish. )

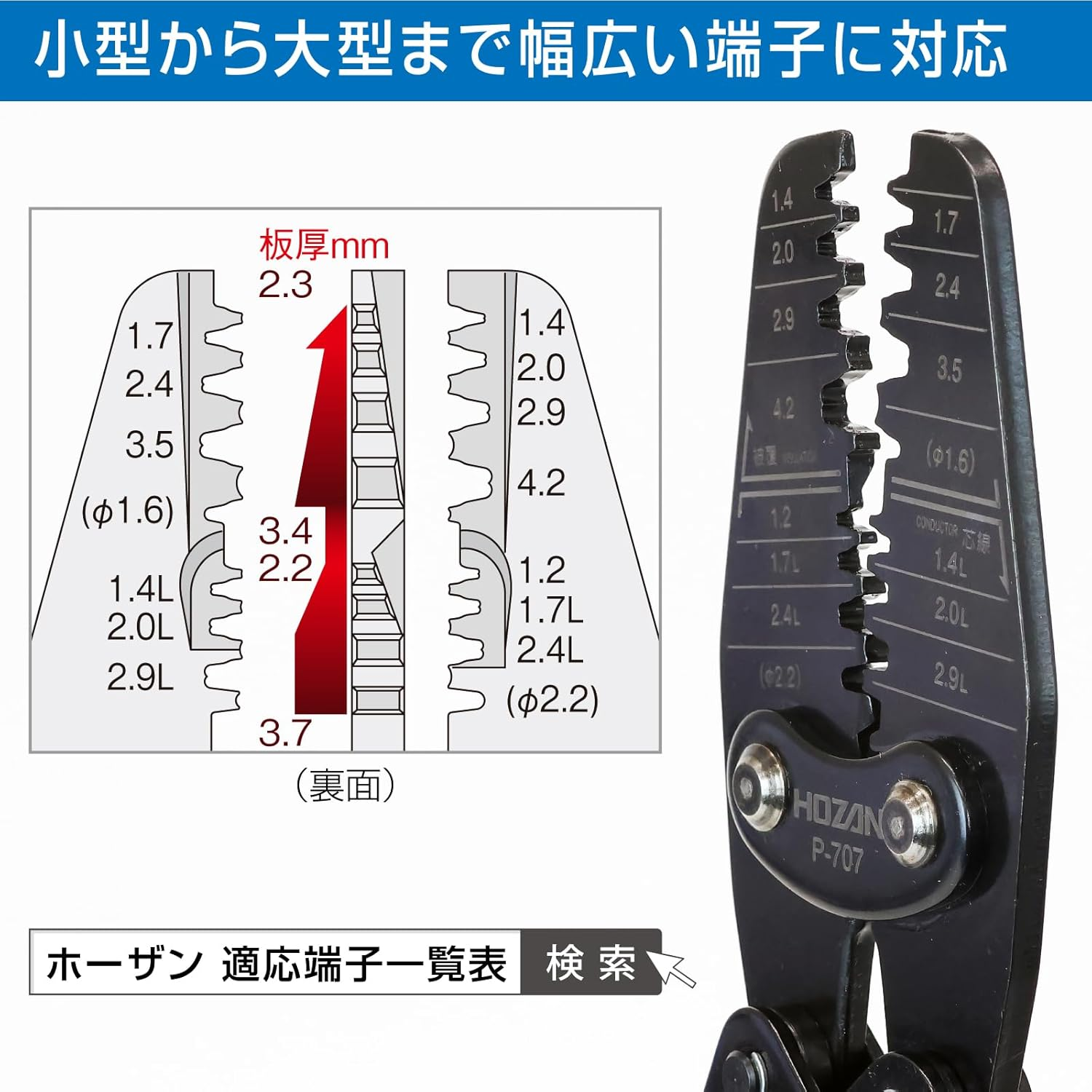

  • The dice shape can be changed gradually from the base to the tip of the plate thickness to 0.1 inch (3.7 mm) to 0.1 inch (2.2 mm), 0.1 inch (3.4 mm) to 0.09 inch (2.3 mm) to accommodate a wide range of terminals from small to large
  • Coated dice are compatible with circular crimping

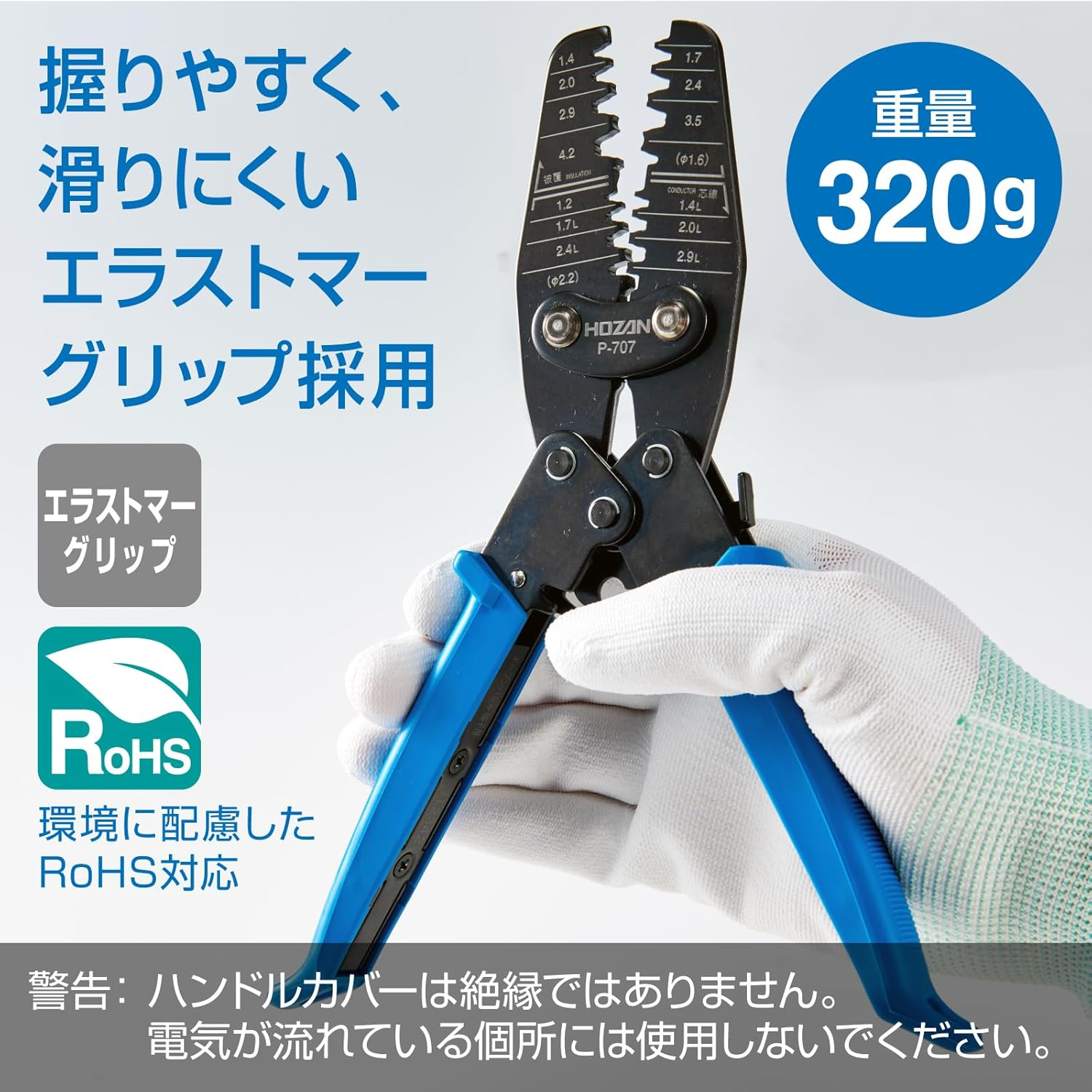

  • Comfortable and non-slip elastomer grip You will not feel tired even after working for a long time. In addition, it is environmentally friendly and RoHS compliant

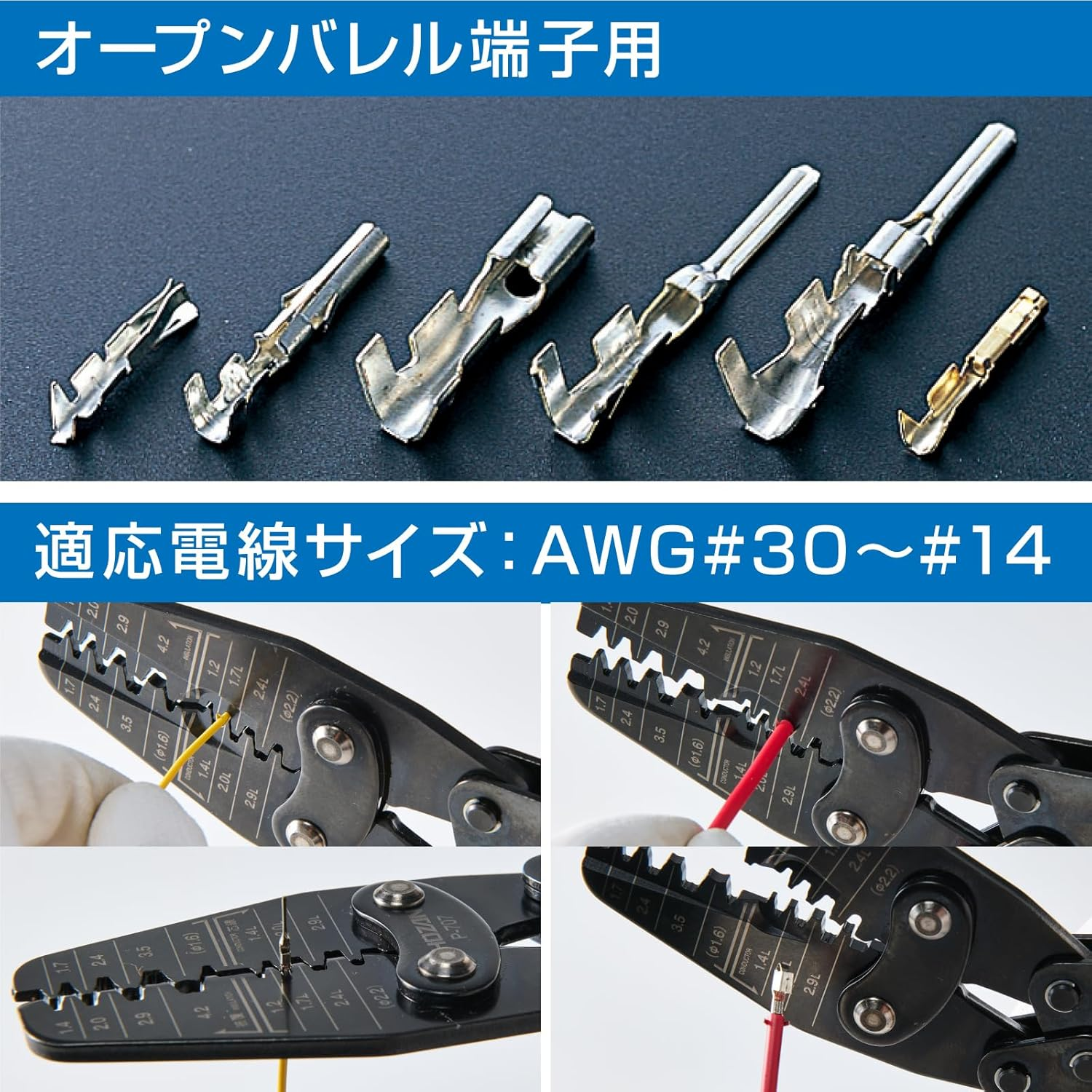

  • Compatible Wire Size: AWG #30 - #14 (0.05 - 2.0 sq); Total Length: 9.1 inches (230 mm); Weight: 11.1 oz (320 g); Uses: Electrical work, wiring work, electronic tools, mechanical repair, automobile maintenance, electrical appliances

For open barrel terminals (open barrel type contact). 15 different large and small dice allow for a wide range of terminals from small to large.
The toggle mechanism allows for more reliable crimping with light force. (The dice part has a thin tiered finish. )
The die shape can be changed gradually from the base to the tip of the plate thickness to 0.1 inch (3.7 mm) to 0.1 inch (2.2 mm), 0.1 inch (3.4 mm) to 0.09 inch (2.3 mm) to accommodate a wide range of terminals from small to large.
The dice for covering are also compatible with circular crimping.
Adopts an elastomer grip that is easy to grip and slip resistant. You will not feel tired even after working for a long time. In addition, it is environmentally friendly and RoHS compliant.
Compatible wire size: AWG #30 - #14 (0.05 - 2.0 sq); Total length: 9.1 inches (230 mm); Weight: 11.1 oz (320 g); Uses: Electrical work, wiring work, electronic tools, mechanical repair, automobile maintenance, electrical appliances

  • Item Model Number: P-707
  • Part Number: P-707
  • Style: For small to large terminals
  • Item Package Quantity: 1
  • Product dimensions: 25.3 x 10.69 x 2.79 cm; 320 Grams
  • Material: Rubber
  • Batteries Required?: No
  • Certification: RoHS
  • Item Weight: 320 g
  • Manufacturer: ホーザン(HOZAN)
  • Handle Material: Rubber
  • Batteries Included?: No
  • Usage: Electrical work, Wiring work, Electronic tools, Mechanical repair, Automobile maintenance, Electrical appliances
  • Number Of Pieces: 1
  • Is discontinued by manufacturer: No
  • Colour: Blue, Black
  • Style Name: For small to large terminals
  • Included Components: No
