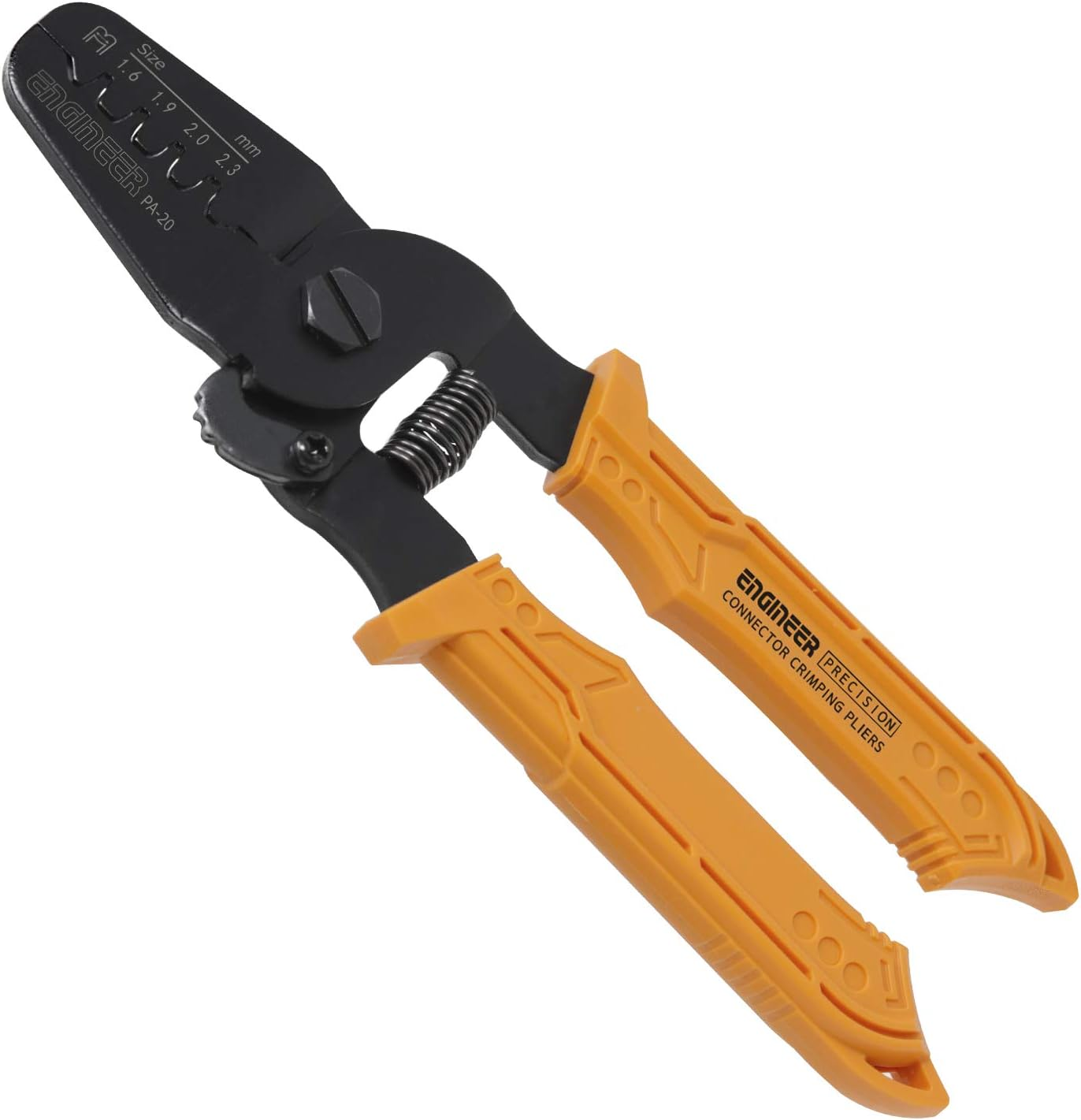

Engineer Inc 18-28AWG Universal Micro Connector Terminal Crimping Tool

Engineer Inc 18-28AWG Universal Micro Connector Terminal Crimping Tool

Brand: ENGINEER
5.0
A$65.10
Availability:
  • This item is currently not available

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

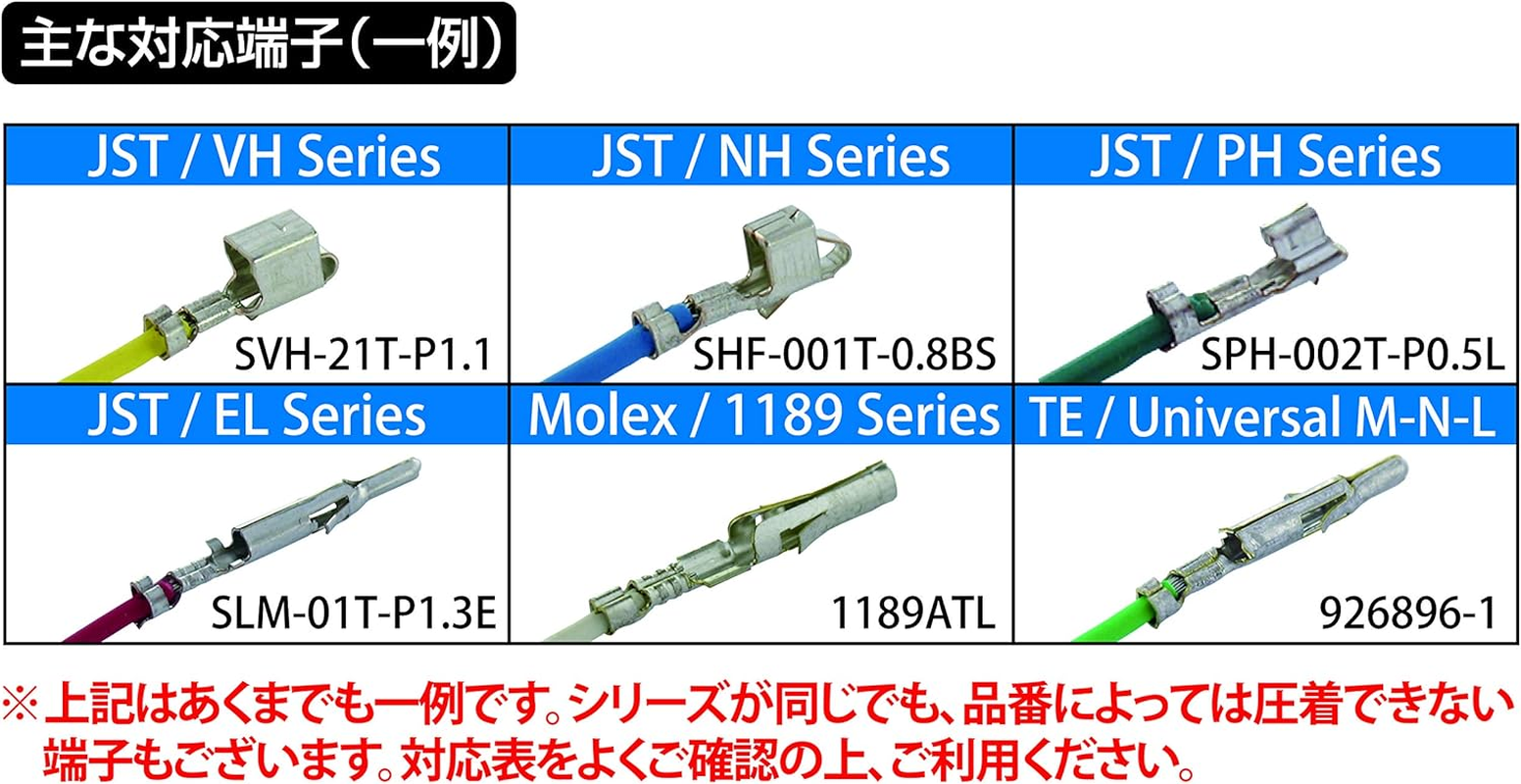

  • perfectly crimps pins such as JST XH, NH, VH series, MOLEX KK, Micro-Fit series, TE MATE-N-LOK, etc.
  • crimp AWG28~18 wires across 100 different pins (& D-SUB connector contacts) from the main crimp pin manufacturers
  • larger die thickness (2.5mm) - ideal for crimping connectors whose wire barrels (crimp lugs) are longer in length
  • capable of crimping 2.5mm to 5.0mm pitch connector pins (universal type)

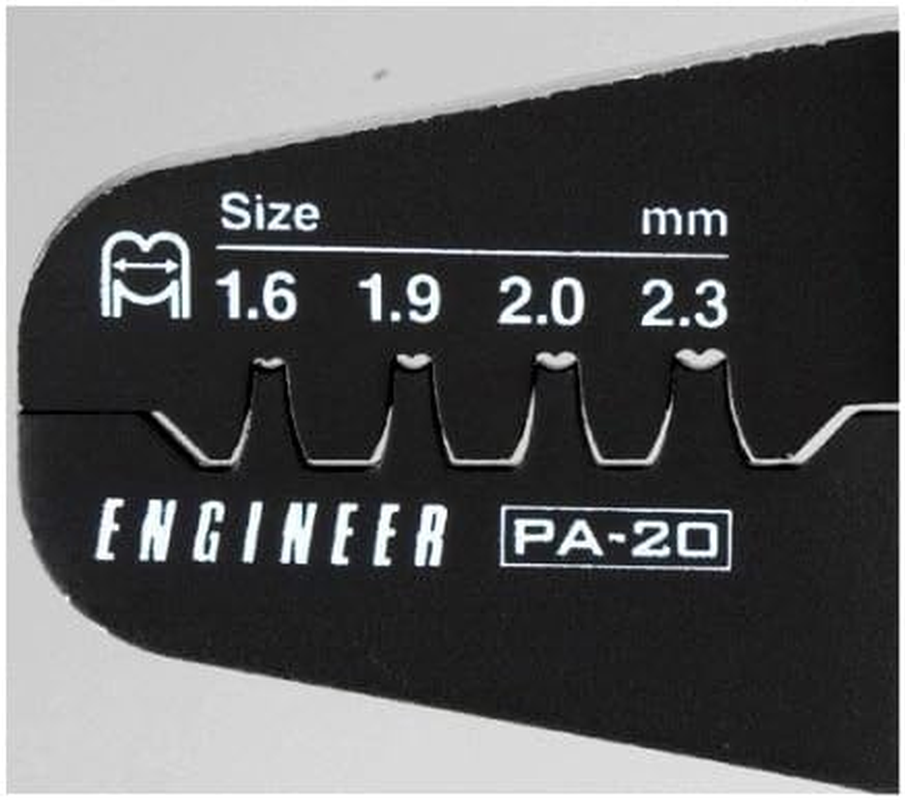

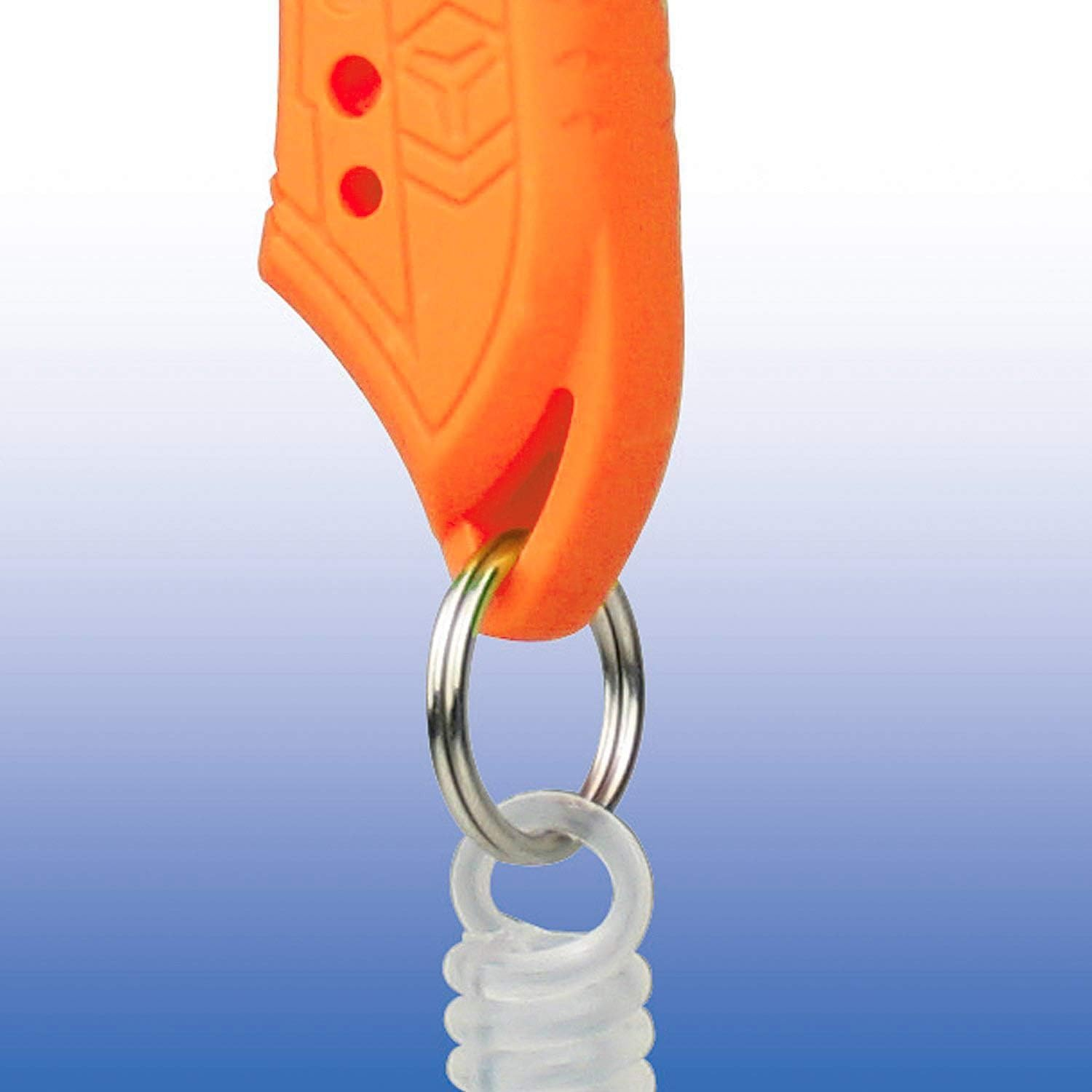

  • 4 different crimping die widths, 1.6mm, 1.9mm, 2.0mm & 2.3mm.professional results (& at a fraction of the price as charged by the Pin Vendors for their specific crimping tools).spring loaded handles for easy operation (handles latch shut for storage).oil-resistant TPR (thermoplastic rubber) grips for unmatched comfort (strap holes at end of handles).light & compact body for fatigue-free work -(original joint-screw by "ENGINEER" allows for quick & easy maintece).

Product Description

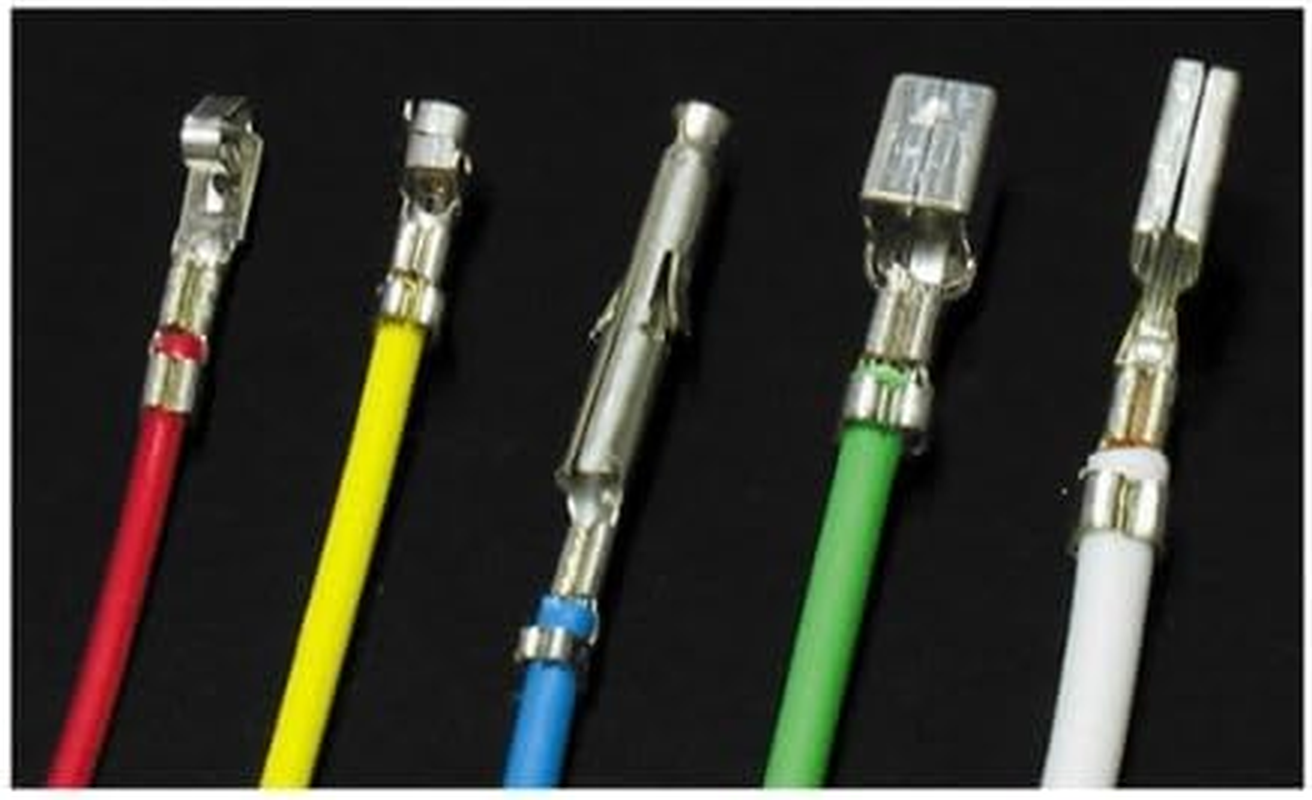

Super Precise Crimping Dies -- Open Barrel Contacts crimped in Tidy Finish!

Engineer Inc. launched the production and the supply of Multi-purpose Crimp/Stripping Tools in Japan in 1970s. They have been enjoying favorable reputations among professional workers in electronics and electric workshops until today.

The updated Precision Crimper series are featuring elaborately designed crimp dies, which offer you the uniform quality and the excellent finish of the crimped connectors. Nowadays, the products are also demanded well by individuals enthusiastic about personal hobby, PC, RC model, robotics, etc.

This product can crimp the part of conductor and the part of insulation separately. The conductor is crimped firmly and the insulation is crimped softly owing to the gripping force adjusted freely.

Features

Prework

First align the edge of both barrels in parallel or slightly open while pressing them with the pliers jaws.

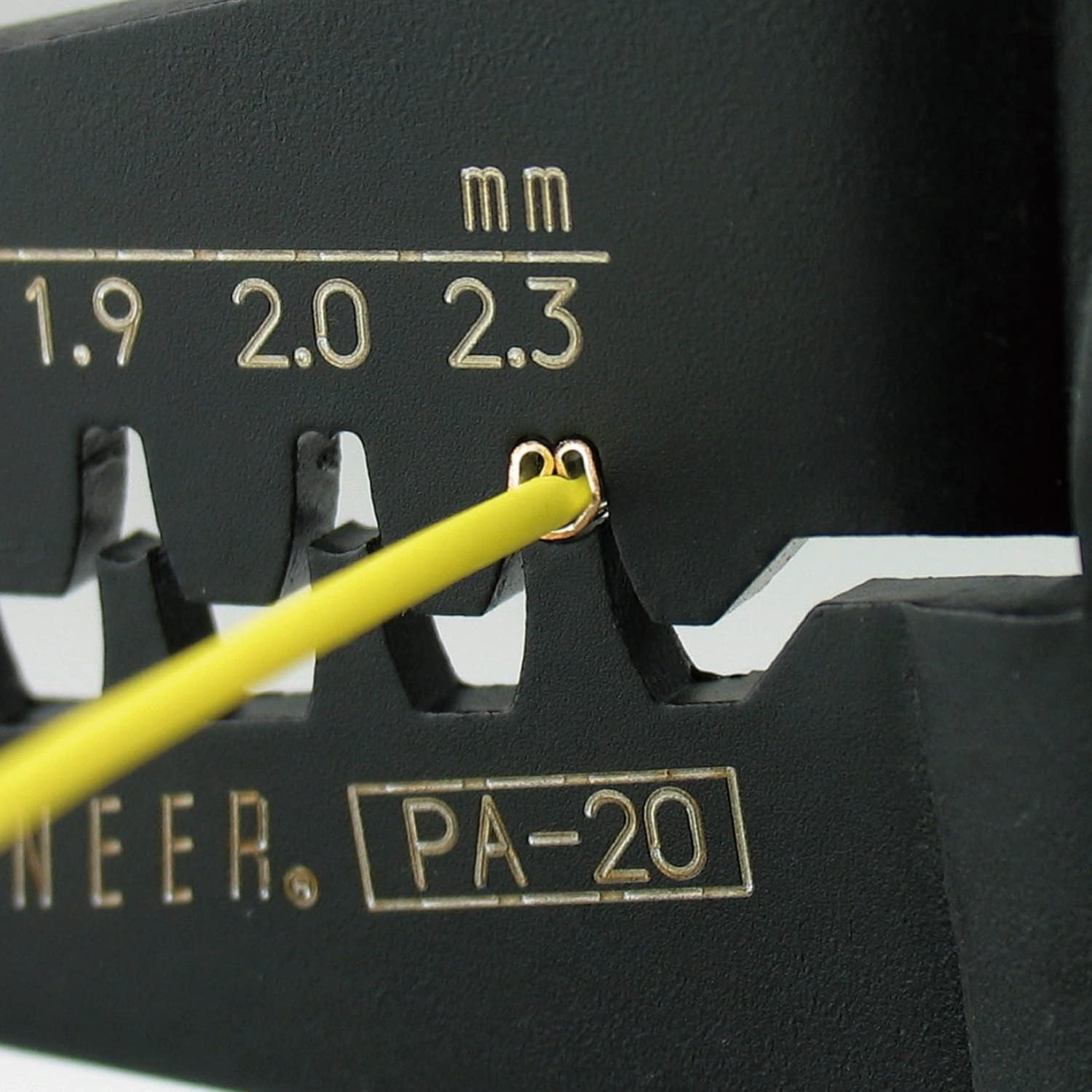

Conductor Crimp

The wire conductor can be crimped securely.

Insulation Crimp

Elaborately-designed crimping dies - Curl up the insulation barrels very tidily.

* Make sure that the handles are not squeezed in excess, which may tear the insulation.

2.5mm Thicker Crimp Dies

PA-20 features 2.5mm-thick dies. It works with a lengthy wire lug (barrel) as well as a tiny lug.

Specifications

  • Item Model Number: PA-20
  • Part Number: PA-20
  • Style: 2) For small and medium terminals
  • Power Source: No
  • Item Package Quantity: 1
  • Pattern: Single Item
  • Product dimensions: 17.5 x 5.7 x 1.2 cm; 137 Grams
  • Material: Body: High carbon steel (S55C); Grip: Elastomer
  • Batteries Required?: No
  • Item Weight: 137 g
  • Handle Material: Thermoplastic Elastomer (TPE)
  • Batteries Included?: No
  • Manufacturer: Engineer Inc
  • Is discontinued by manufacturer: No
  • Colour: Red
  • Style Name: 2) For small and medium terminals
  • Included Components: 1 x Engineer Inc 18-28AWG Universal Micro Connector Terminal Crimping Tool
