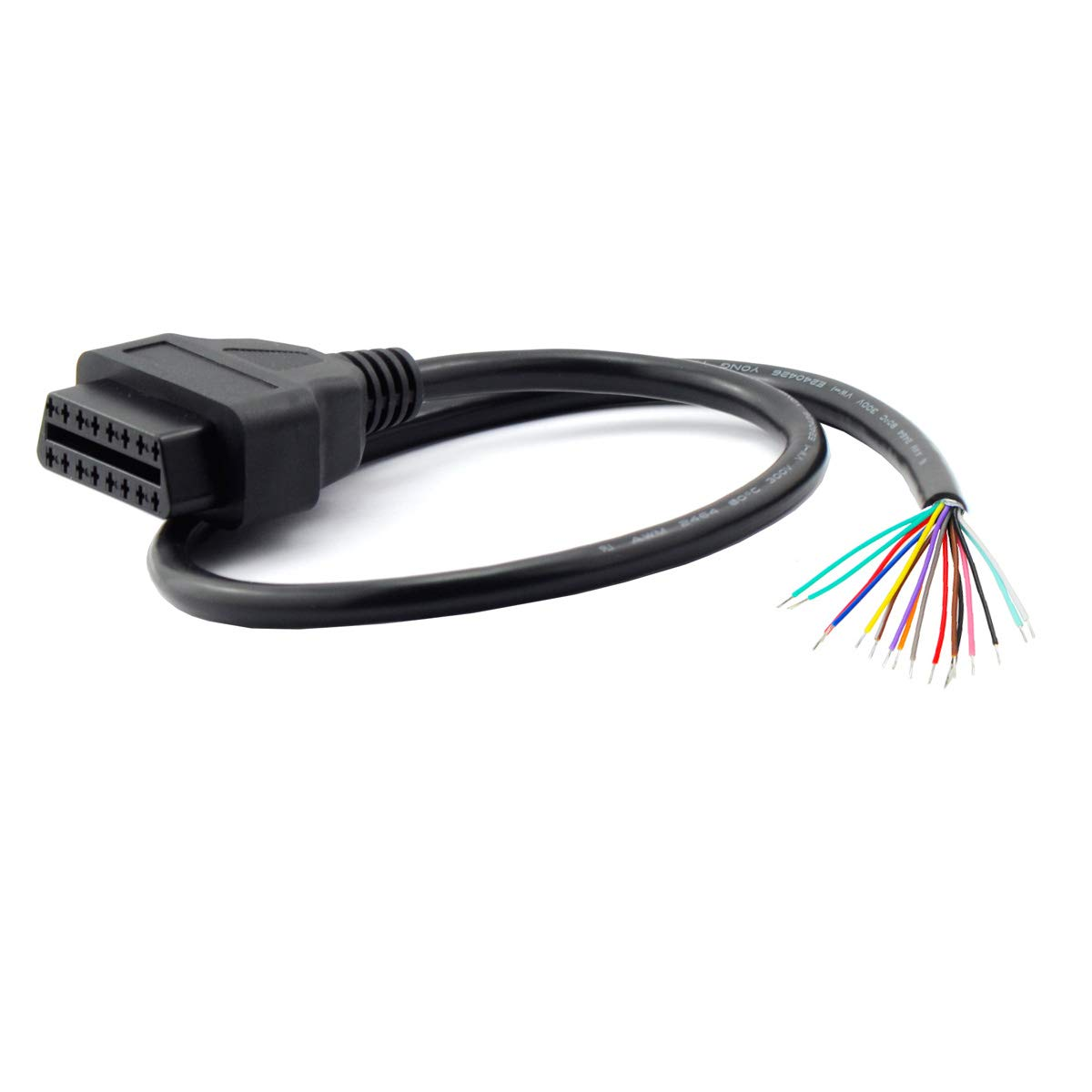

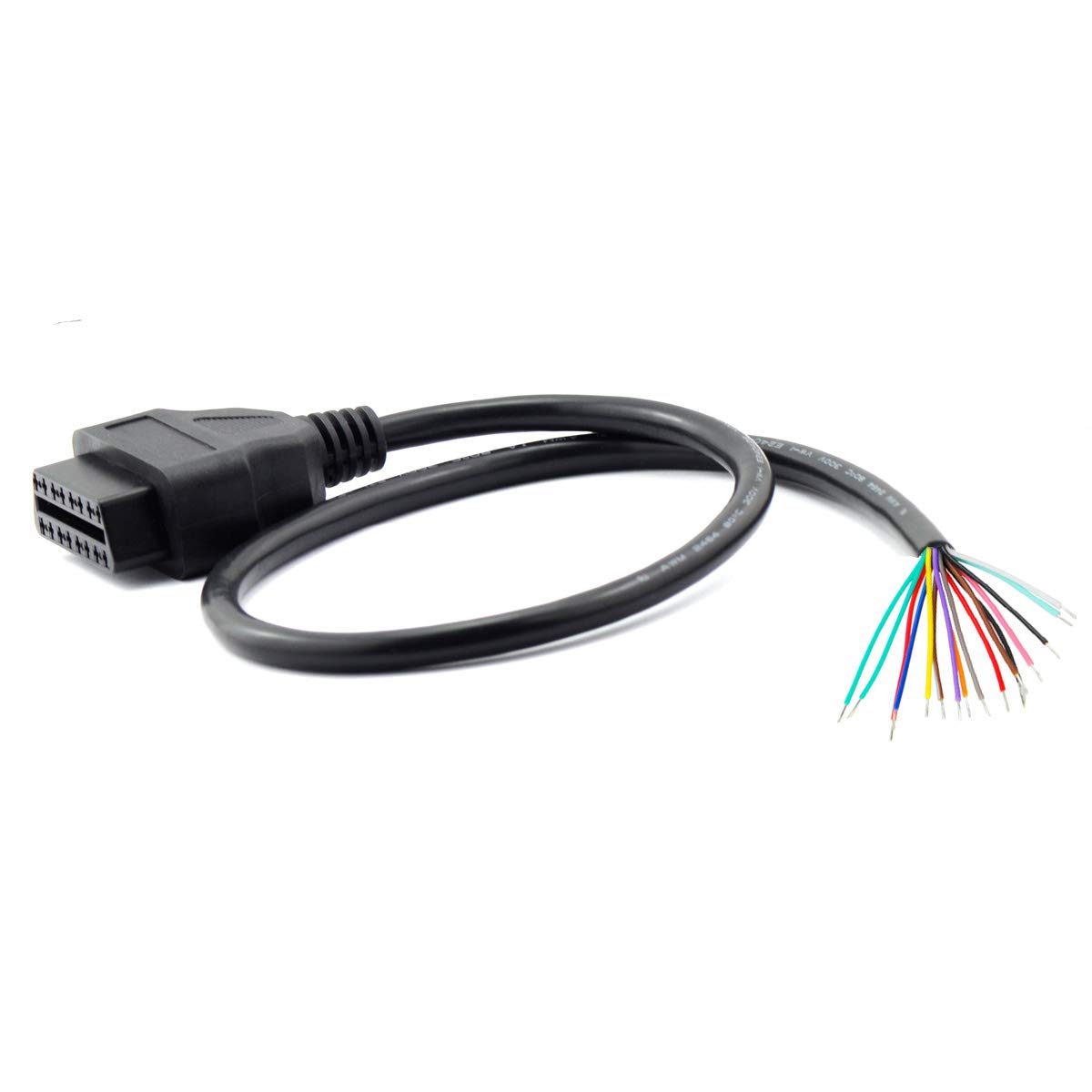

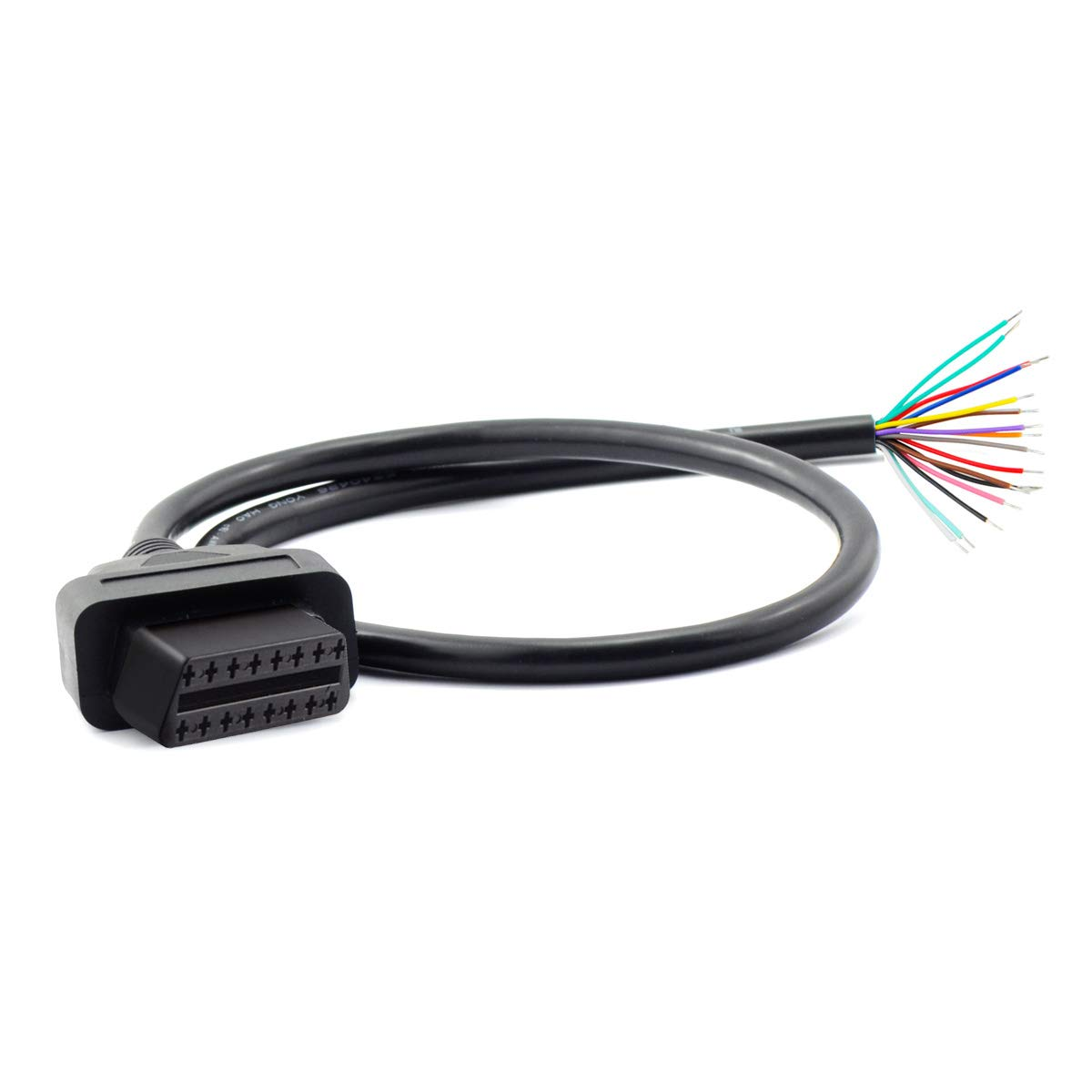

"16 Pin J1962 OBD2 OBD-II female Connector to Open Plug Wire, OBD Diagnostic Extension Cable Pigtail for DIY (60cm / 24'')
This is a female plug end that will connect to an OBD II in a car or DIY any projects

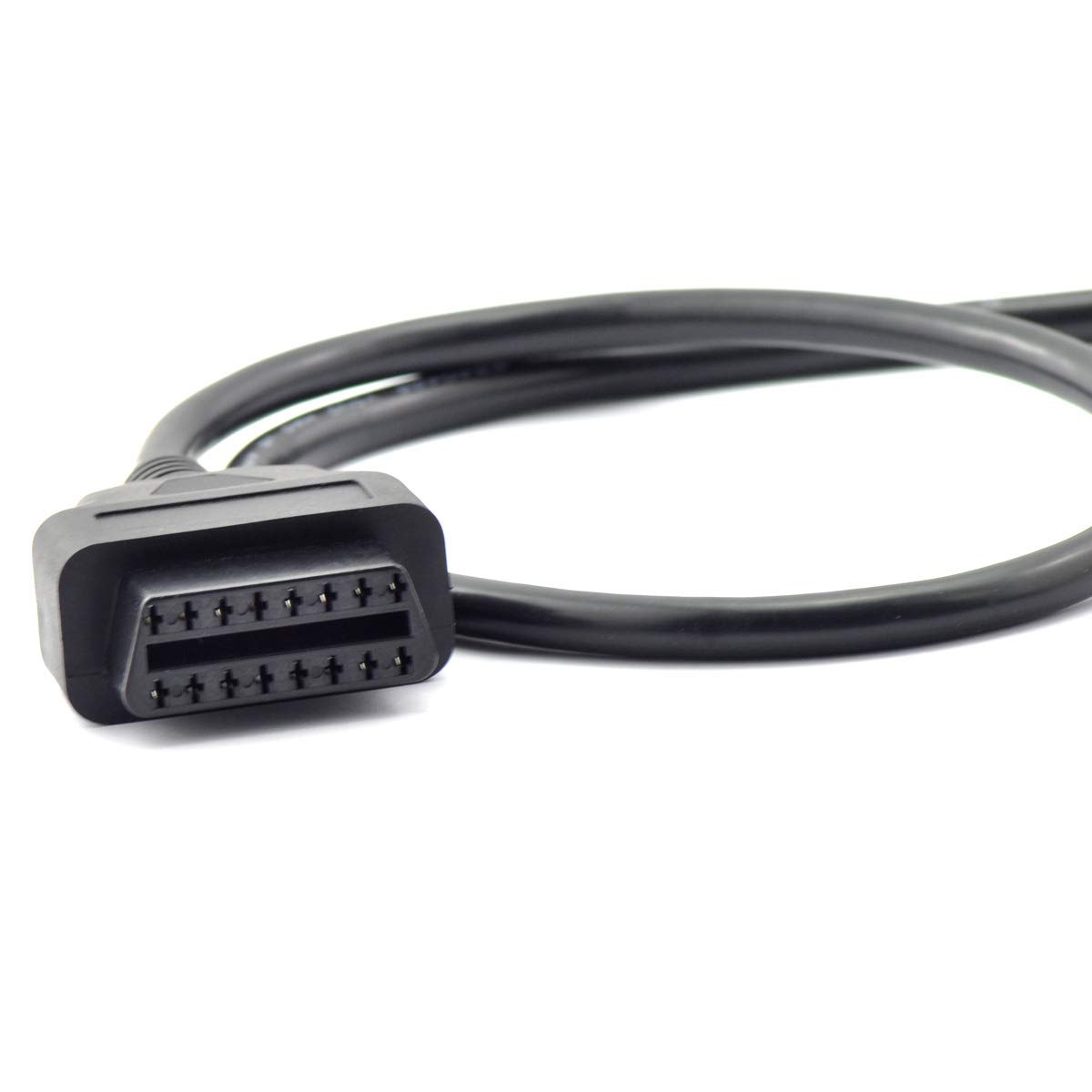

Connection: 16 Pin OBDII J1962 female Connector, Open Plug Wire.
All 16 Pins Connected

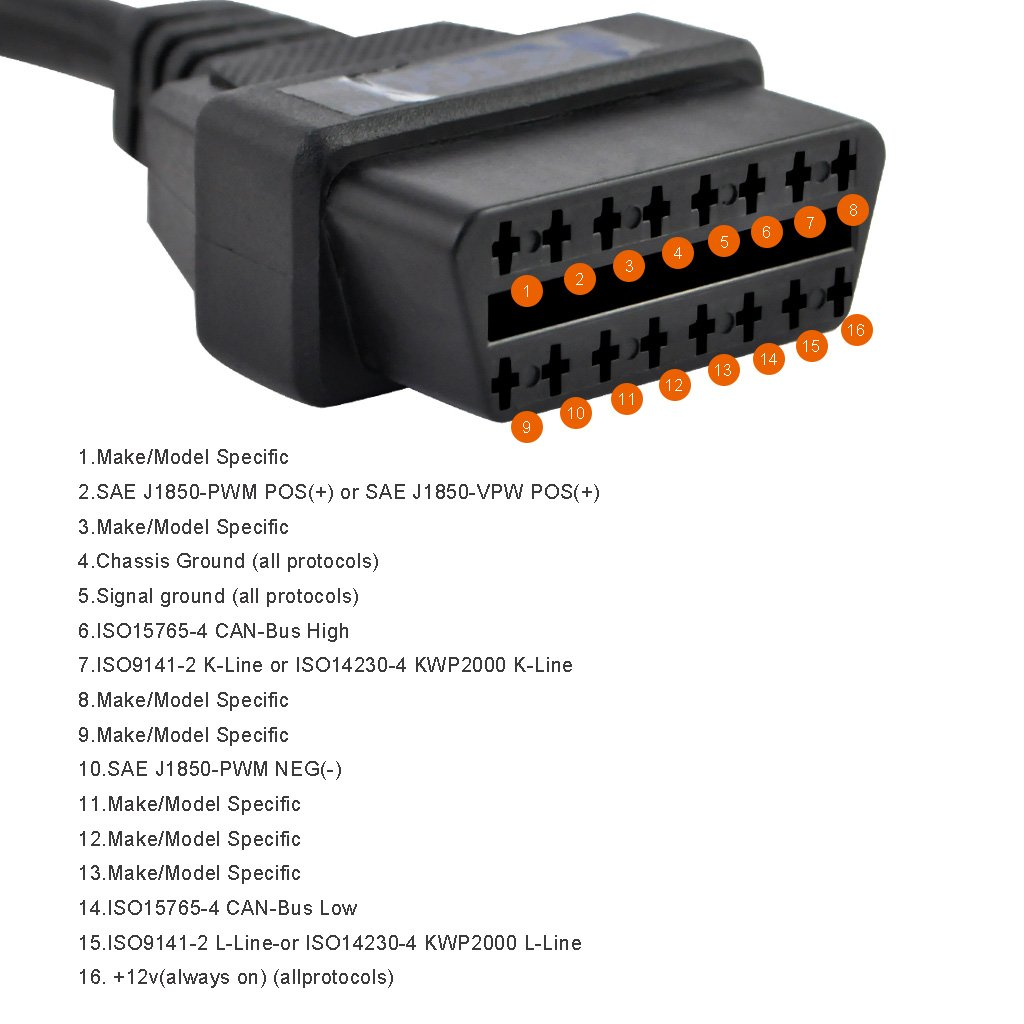

- OBD2 Connector Pinout:
- PIN 1 - Manufacturers discretion
- PIN 2 - SAE J1850 Line (Bus +) *
- PIN 3 - Manufacturers discretion
- PIN 4 - Chassis Ground
- PIN 5 - Signal Ground
- PIN 6 - SAE J2284 (CAN High) *
- PIN 7 - K Line of ISO 9141-2 & ISO/DIS 4230-4*
- PIN 8 - Manufacturers discretion
- PIN 9 - Manufacturers discretion
- PIN 10 - SAE J1850 Line (Bus -) *
- PIN 11 - Manufacturers discretion
- PIN 12 - Manufacturers discretion
- PIN 13 - Manufacturers discretion
- PIN 14 - SAE J2284 (CAN Low) *
- PIN 15 - L Line of ISO 9141-2 & ISO/DIS 4230-4*
- PIN 16 - Unswitched Vehicle Battery Positive
This is second color Pin Assignments
1 - red
2 - white
3 - orange
4 - blue
5 - green
6 - yellow
7 - brown
8 - purple
9 - red/black
10 - white/black
11 - orange/black
12 - blue/black
13 - green/black
14 - yellow/black
15 - brown/black
16 - purple/black
"
