HAPS-01DE-B Switching Station for Mains Priority Switching Briidea Mains Priority Switch Motorhome 16 a 230 V, Switching Station 16 a for Camping Shore Power Inverter, Car, Boat, Outdoor, Solar, Black - Black
HAPS-01DE-B Switching Station for Mains Priority Switching Briidea Mains Priority Switch Motorhome 16 a 230 V, Switching Station 16 a for Camping Shore Power Inverter, Car, Boat, Outdoor, Solar, Black - Black
Brand: briidea
A$146.85
Colour Name

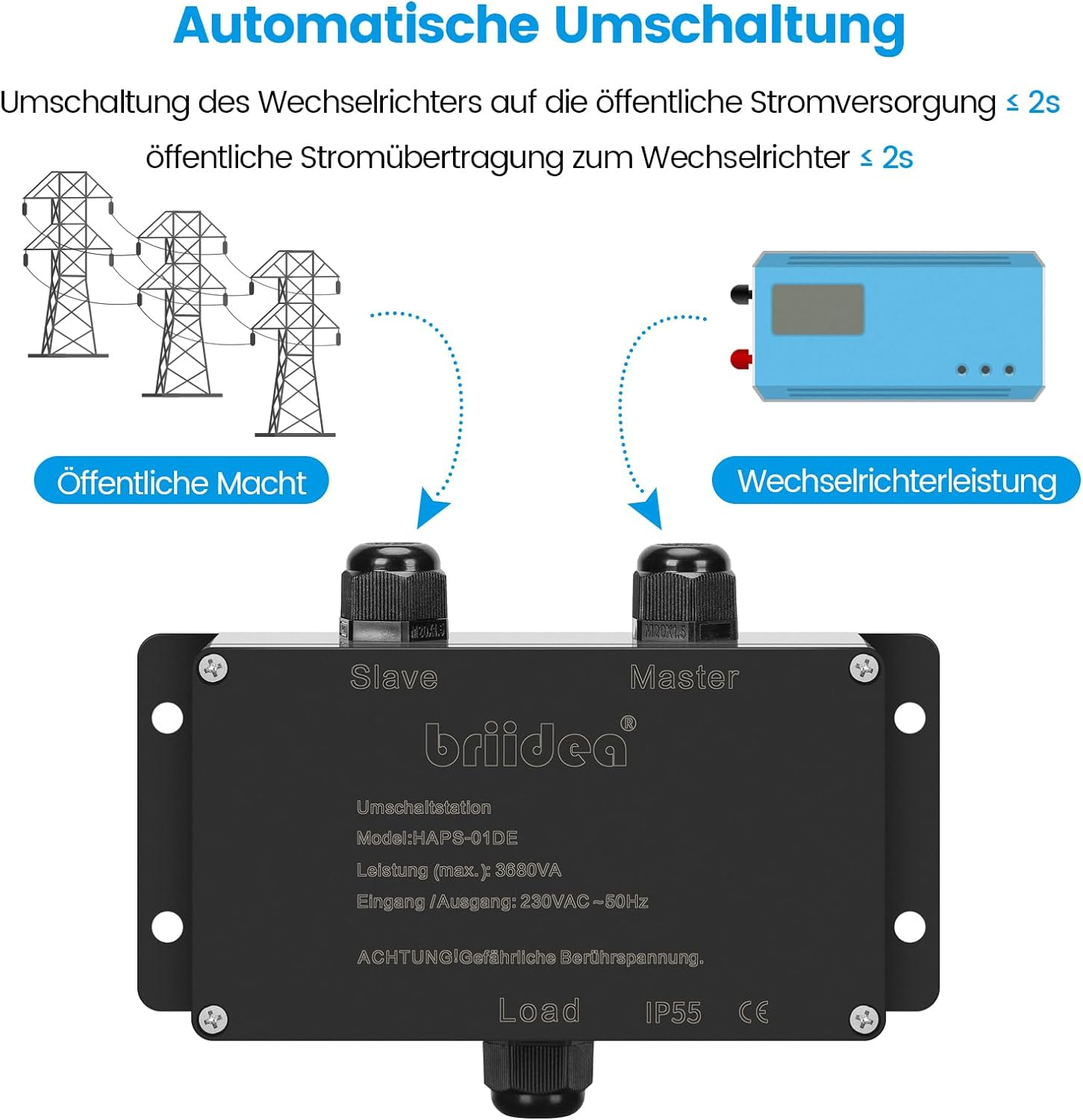

- Professional automatic power switch: 16 A inverter mains priority circuit, 2 power inputs (inverter and main), if both power sources are available, you can choose the priority according to your needs: master or slave. In the event of a power failure, it can go quickly. Switch from inverter to mains or from mains to inverter to keep your devices running
- Quick switching: when switching, our power switch can automatically control the switching load intelligently to ensure absolute safety when switching, so you don't have to worry. The switching time is less than or equal to 2 seconds, which does not affect your daily life

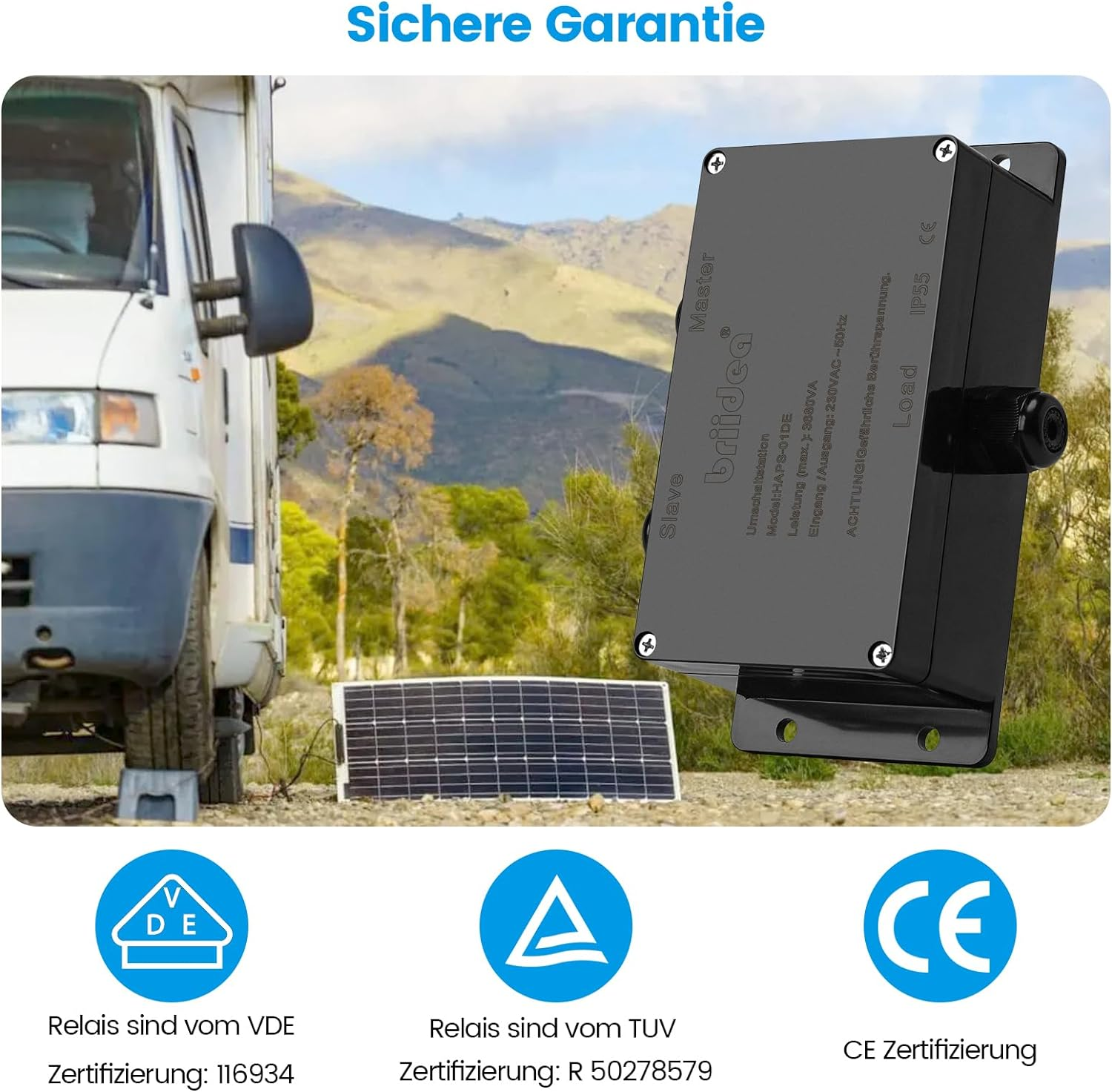

- Safe guarantee: 2 types of high-quality relays are built into the power automatic switcher: built with VDE certified (certification number 116934) and TÜV certified (certification number R 50278579) relay to ensure accurate switching thresholds that you can buy and use with confidence. The shell is made of flame retardant material, which is safe and safe
- IP55 WATERPROOF: IP55 weatherproof, protects your power switch from rain, snow, dust and other weather conditions, rust and corrosion resistant, durable, perfect for outdoor use

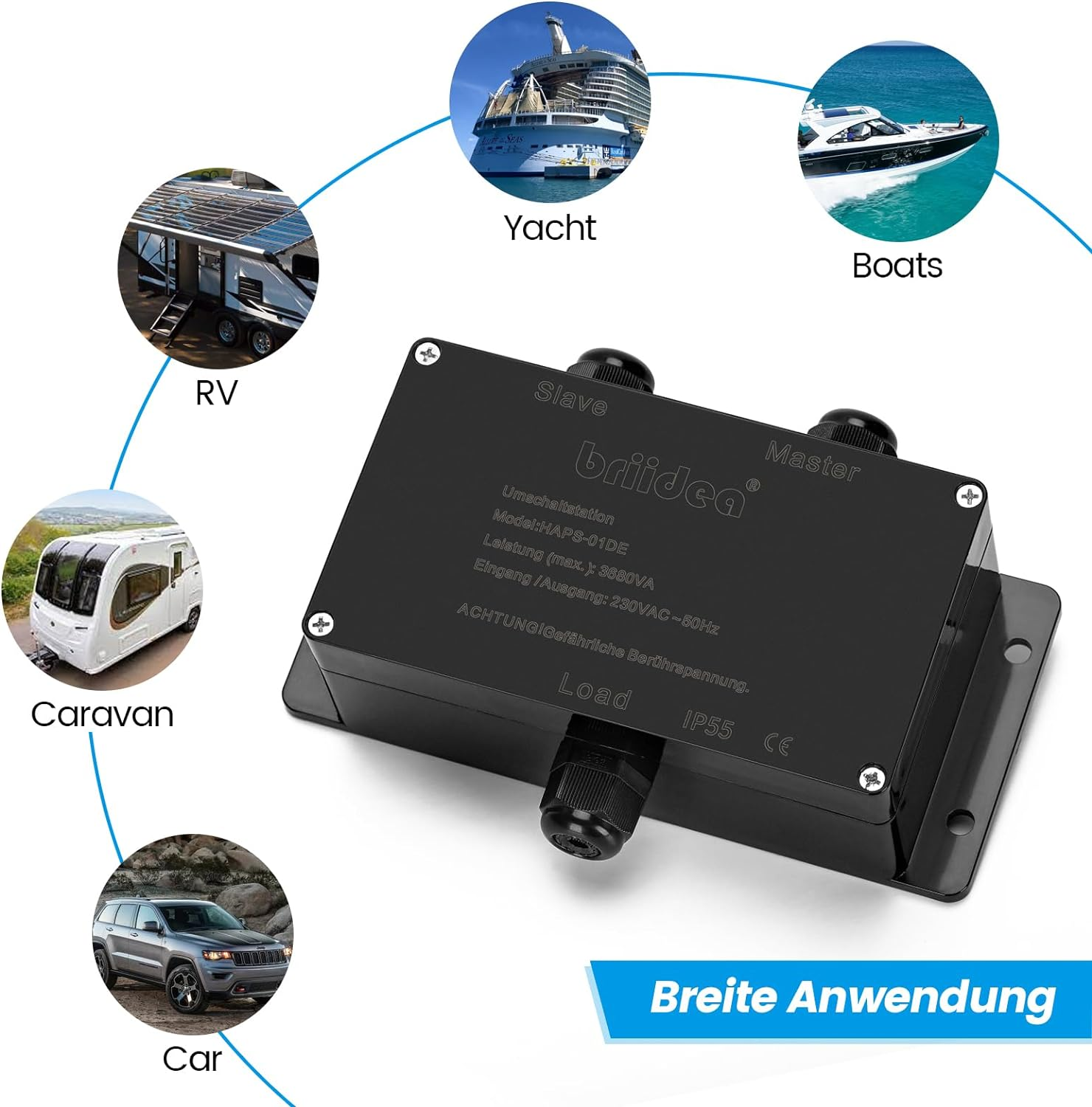

- Wide applications: a resistance load of 2800 VA is recommended, inductive load 550 VA, ideal for: car, boat, camping, outdoor, caravan, motorhome, solar
In a motorhome, the devices are usually powered by an inverter or by connecting the motorhome's outdoor socket to the campsite's 230V voltage. If you connect an external power source via an outdoor socket without first disconnecting the inverter from the mains you can damage the inverter or the consumer. In the event of a power failure, our automatic power switch automatically selects for you from 2 existing power sources, it can quickly switch from the inverter to the mains or from the mains to the inverter, so that no damage to the inverter or electrical appliances. When both power sources are available, you can choose the priority according to your needs: master or slave

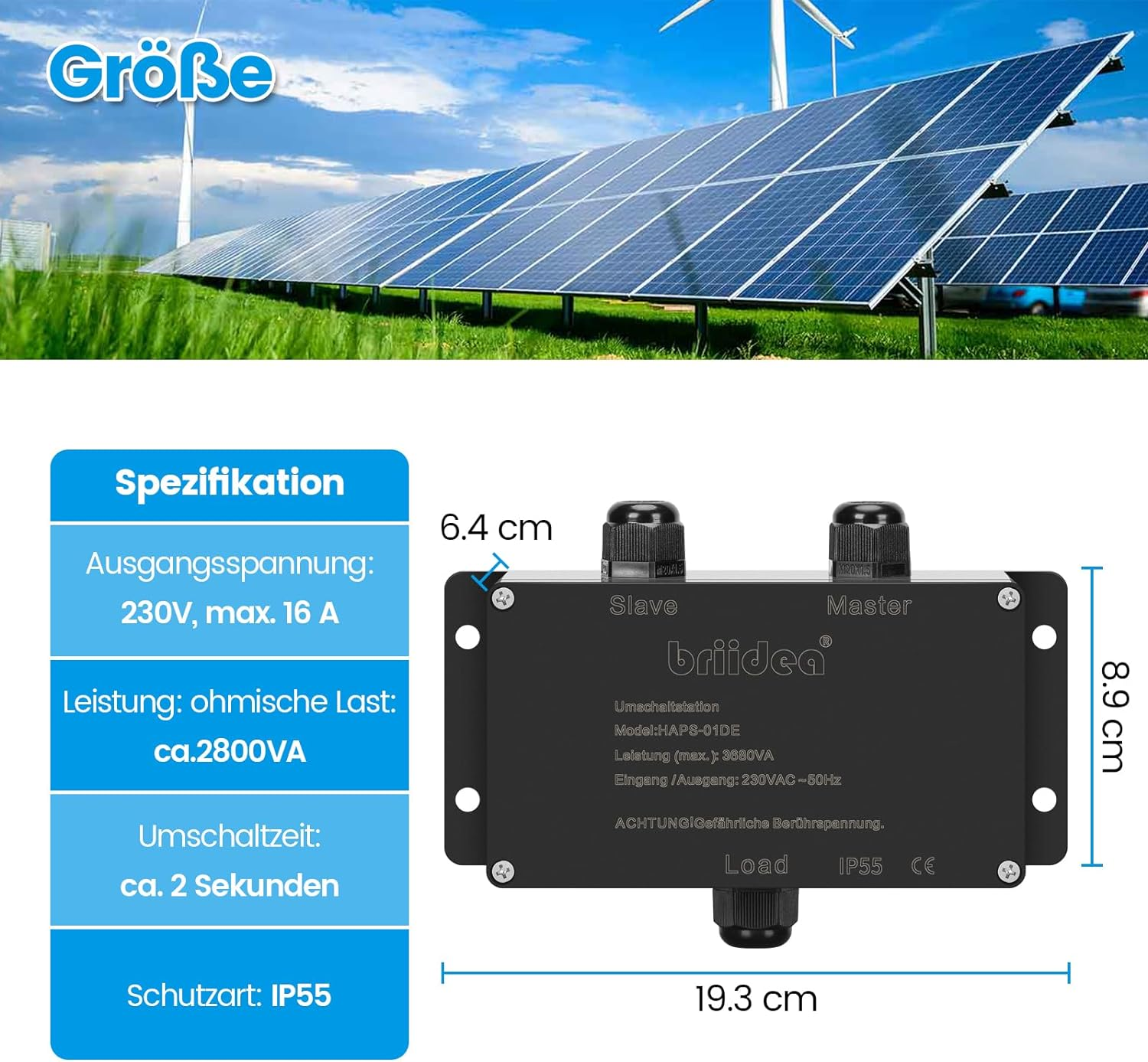

Specification:
Input voltage: 2 x AC220V-AC245V ~ each with max. 16 A.
Output voltage: AC220V-AC245V max.16A.
Recommended output power: ohmic load: approx. 2800VA.
Inductive load: approx. 550 VA.
Switching time: approx. 2 seconds.
Power consumption: master: approx. 1.8 watts.
Slave: approx. 1 watt.
Operating temperature: -20°C ~ 60°C.
Protection type: IP55.
- Item Model Number: br-047
- Part Number: br-047
- Number of items: 1
- Power Source: Battery operated and mains operated
- Batteries Included: No
- Batteries Required: No
- Brand: briidea
- Colour Name: black
- Item Weight: 440 g
- Frequency: 50 Hz
- Model Name: BR-047
- Model: br-047
- Package Dimensions: 19.5 x 14.2 x 7.2 cm; 440 Grams
- Manufacturer: briidea
