ELECTRICAL SPECIFICATIONS
FrequencyRange:144MHz&430 MHz
Band width:MHz
Impedance:50Ω
VSWR:≤1.5
Gain:2.15dBi (144MHz) ,2.5dBi(430MHz)
Polarization:Vertical
Maximum Power Input-watts:20W
Radiation:Omni
MECHANICAL SPECIFICATIONS

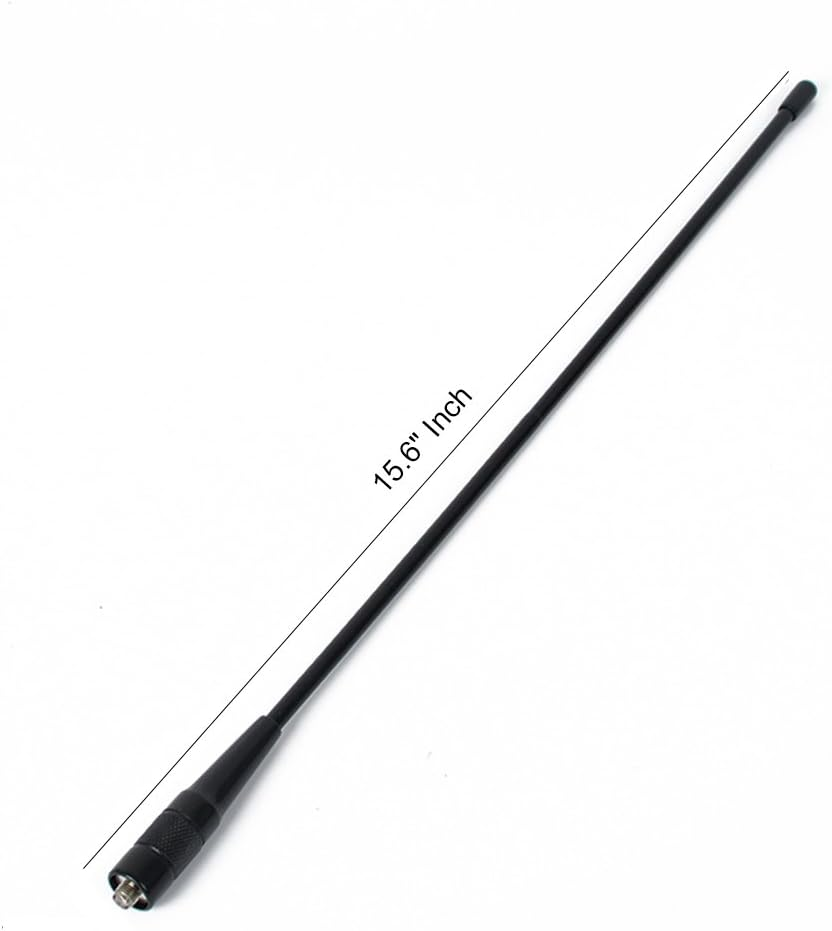

Height: 39.6 cm (15.6 inches)

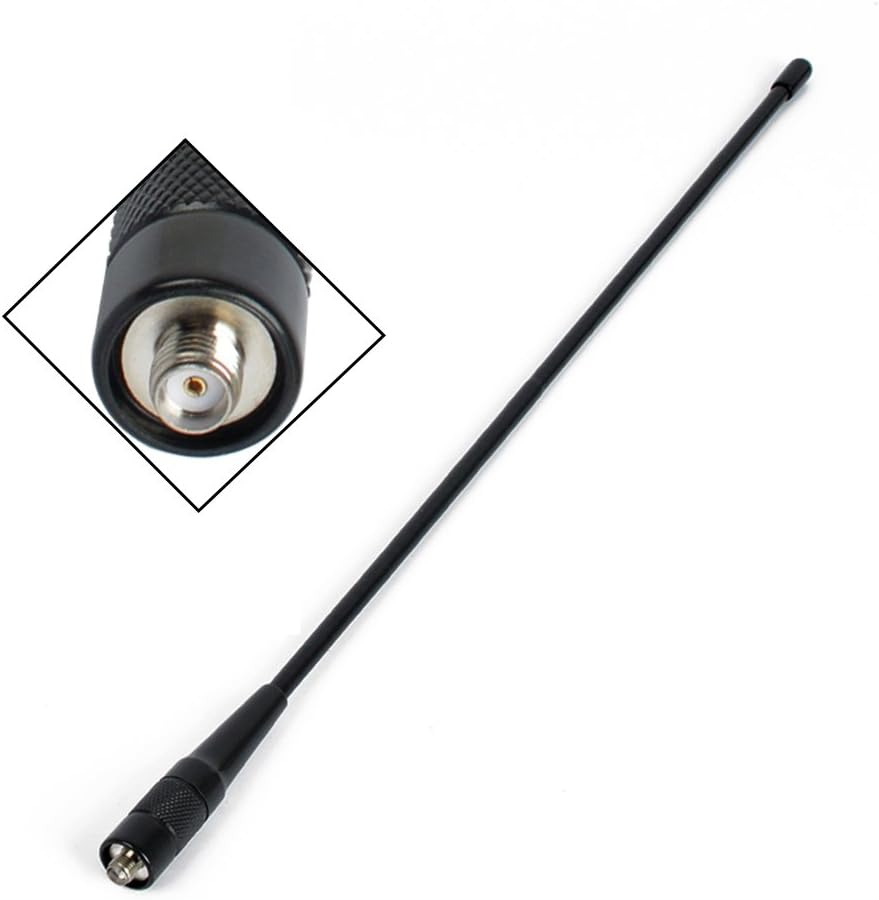

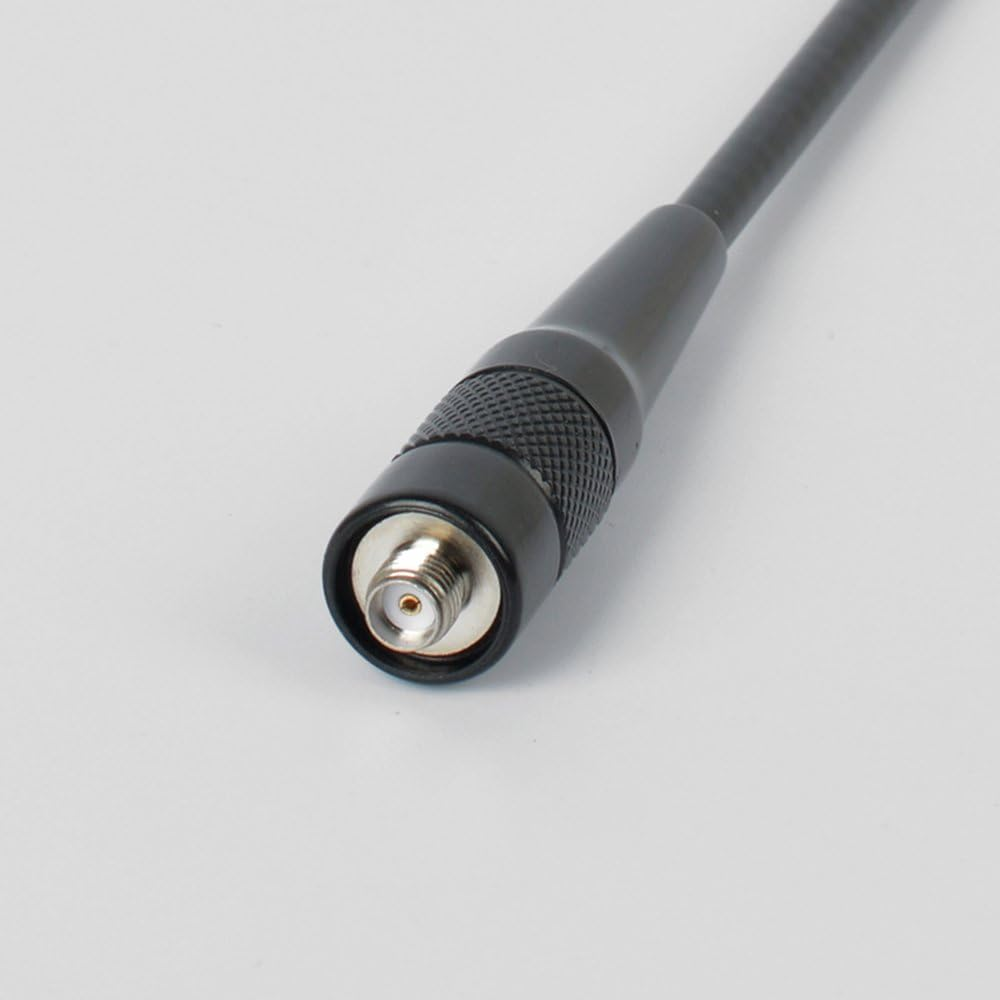

Termination:SMA-FEMALE
Radome material :PLASTIC CEMENT
Radome Color:BLACK(PLASTIC PARTS)
Note: the antenna is compatible for: most SMA-male Radio
Compatible with Two-way handheld radio:
Baofeng/Pufeng handheld Radio:GT-3, UV-5R, UV5RE, UV5RA,UV5R Plus UV-82L BF-F8HP, BF-F8+.etc
Retevis: H-777,RT-5R,RT-B6,RT-5RV,888s Plus,RT5,RT1
WOUXUN handheld Radio: KG-UVD1P,KG-UV6D,KG-659, KG-669 , KG-669 PLUS,
KG-679, KG-679 Plus, KG-689, KG-689 PLUS, KG-699E
Kenwood handheld Radio : TK-240, TK-250, TK-255, TK-260, TK-260G, TK-270, TK-270G,
TK-272G, TK-278, TK-278G, TK-340, TK-349, TK-350, TK-353, TK-360, TK-360G,
TK-370, TK-370G, TK-373G, TK-378, TK-378G, TK-430, TK-431, TK-715, TK-2100,
TK-2102, TK-2107, TK-2118, TK-2160, TK-3100, TK-3101, TK-3102, TK-3107, TK-3118, TK-3160
LINTON handheld Radio : LT-2288, LT-3288, LT-6288, LT-5288, LT-3188, LT-2188, LT-3260, LT-2268, LT-3268, LT6188, LT3288.
PUXING handheld Radio: PX-777, PX-777 PLUS, PX-666, PX-3288, PX-888
WEIERWEI handheld Radio: VEV-3288S,VEV-6288,VEV-3288, V-1000
QUANSHENG handheld Radio: TG-K4AT, TG-2AT, TG-45AT, TG-42AT, TG-22AT, TG-25AT
And any other radio that uses the SMA-FEMALE Connection.
Notice: If your radio model not listed above, please check other item in the store or email to us what are you need model number Via Amazon, then, we will help you find one that suit for you.
Packing Includes:1* HYS-771N SMA-FEMLE Females
