Beam High-Precision Load Cell Scale Sensor 107 5 300 Kg 500Kg 1000Kg 1T 2T 5T 10T S Type High Accuracy Pressure Weight Sensor Load Cell to Measure Force, Pressure, Displacement, Strain(700Kg)

Beam High-Precision Load Cell Scale Sensor 107 5 300 Kg 500Kg 1000Kg 1T 2T 5T 10T S Type High Accuracy Pressure Weight Sensor Load Cell to Measure Force, Pressure, Displacement, Strain(700Kg)

Brand: XYZGTYUJ
3.1
A$82.40 - A$240.90
Availability:
  • Select Styles for Availability

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • 1. High-Precision Measurement: Our Beam High-Precision Load Cell Scale Sensor ensures accurate and reliable measurements for a wide range of weights, ranging from 107kg to 10t. With its resistance sensor theory and magnetic sensor type, it guarantees precise readings with a sensitivity of 2.0± 0.05mv/v.
  • 2. Crafted with metal material, this load cell sensor is built to withstand heavy-duty usage. Its robust design and Mainland China origin ensure long-lasting performance in various industrial applications.
  • 3. Exceptional Performance: With a nonlinearity of ±0.05%FS and repeatability of ±0.03%FS, our load cell sensor delivers consistent and accurate results. The lagging and creep values of ±0.05%FS and ±0.05%FS/30min respectively further enhance its precision.
  • 4. Versatile Temperature Range: Designed to operate in extreme conditions, our load cell sensor can withstand temperatures from -20°C to +80°C. Its zero temperature coefficient of ±0.05%FS/30min and working temperature range enable reliable measurements in any environment.
  • 5. Enhanced Safety Features: Safety is paramount, and our load cell sensor prioritizes it. With a safety overload capacity of 150%FS and insulation resistance greater than 5000M(50VDC), it ensures secure operation even under demanding conditions. The recommended excitation voltage of 5V-15V ensures optimal performance while maintaining safety standards.

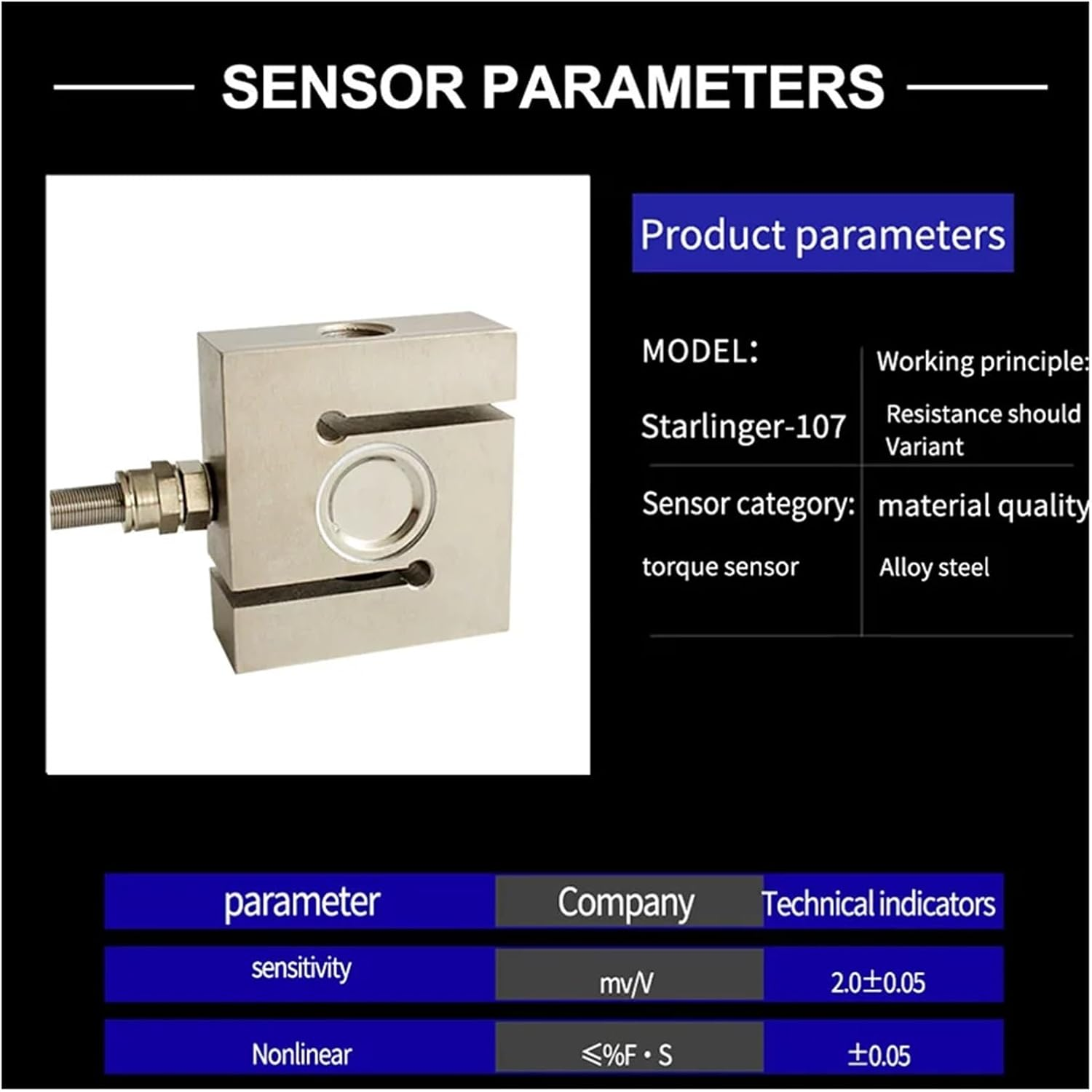

Specifications:
Theory : Resistance Sensor
Usage : Pressure Sensor
Material : Metal
Type : Magnetic Sensor
Output : Analog Sensor
Origin : Mainland China
Capacity : 2~10000KG
Type : Load Cell/Force Sensor
Origin : Mainland China
Sensitivity : 2.0± 0.05mv/v
Nonlinear : ±0.05%FS
lagging : ±0.05%FS
Repeatability : ±0.03%FS
Creep : ±0.05%FS/30min
Zero point output : ±1%FS/30min
zero temperature : ±0.05%FS/30min
Sensitivity temperature coefficient : ±0.05%FS/30min
Working temperature range : -20°C~+80°C
Input resistance : 350±20
Output resistance : 350±5
Safety overload : 150%FS
Insulation resistance : >5000M(50VDC)
Recommended excitation voltage : 5V-15V

  • Item Model Number: 534564845564
  • Part Number: 534564845564
  • Item Package Quantity: 1
  • Colour: Silver
  • Country of origin: China
  • Number Of Pieces: 1
  • Item Weight: 850 g
  • Manufacturer: XYZGTYUJ
  • Package Dimensions: 21.01 x 14 x 7.01 cm; 850 Grams
  • Size: 700KG
