Tunghey DB25 Breakout Board, DB25 Male D-SUB Connector to DB25 Screw Solderless Wiring Terminal Module Breakout PCB Board Kits with Plastic Case (Male)

Tunghey DB25 Breakout Board, DB25 Male D-SUB Connector to DB25 Screw Solderless Wiring Terminal Module Breakout PCB Board Kits with Plastic Case (Male)

Brand: tunghey
5.0
A$15.75 - A$17.85
Availability:
  • Select Styles for Availability

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • One truth about working, you always need the cable or adapter when you don't have in your toolbox. That's why we choose these terminal-block audio connectors. No soldering required! Use stranded or solid core wire and a small screw driver to create custom wiring jigs.

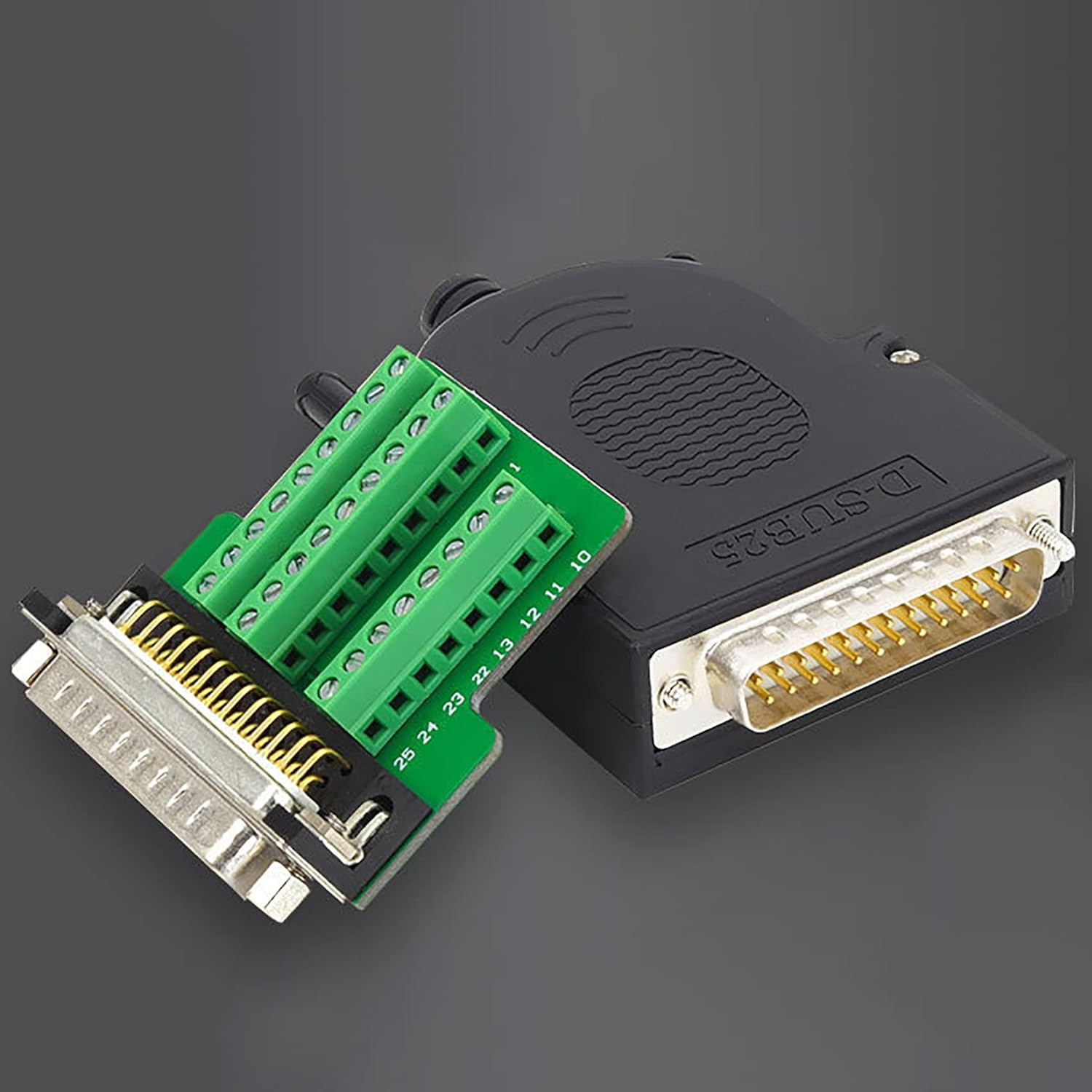

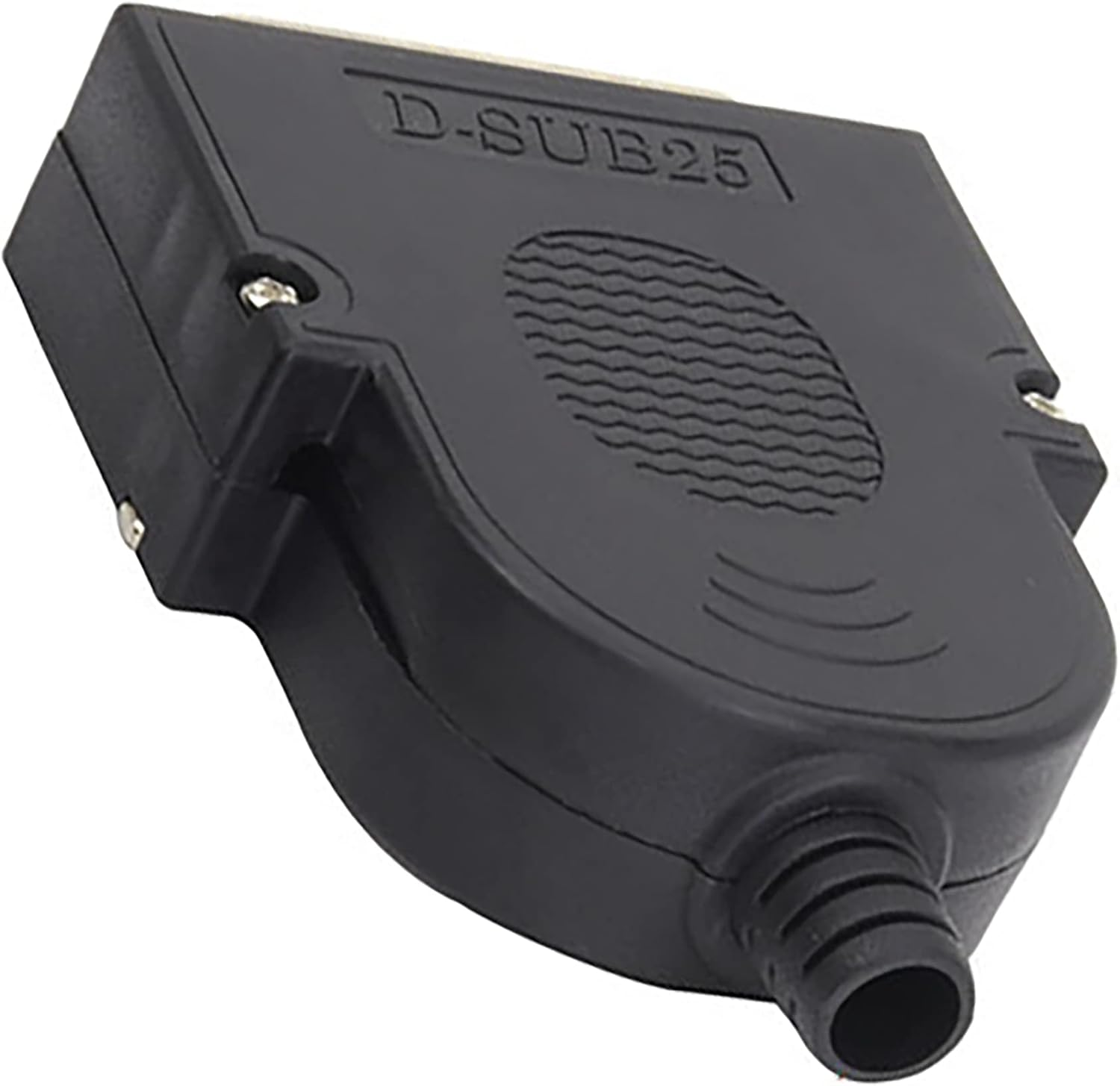

  • Innovatively designed with a new outer casing that is widened and bolded for easy opening and closing. Strong and firm after fastening.Converts a DB25 male( with positioning nuts) to a 25-position screw terminal block with cable strain relief and housing.
  • All-copper base, contacted better and more antioxidative.All copper matrix, better contact and stronger oxidation resistance.
  • All signal ports named and labeled clearly.High quality PCB carrier, FR-4 fiber glass PCB.All signal ports have clear names and tags
  • 【What you get】: We provide this 1 Pack DB25 Breakout Connector with an 18-Month worry-free period and 24/7 friendly client consultation, if you have any questions, we will resolve your issue within 24 hours

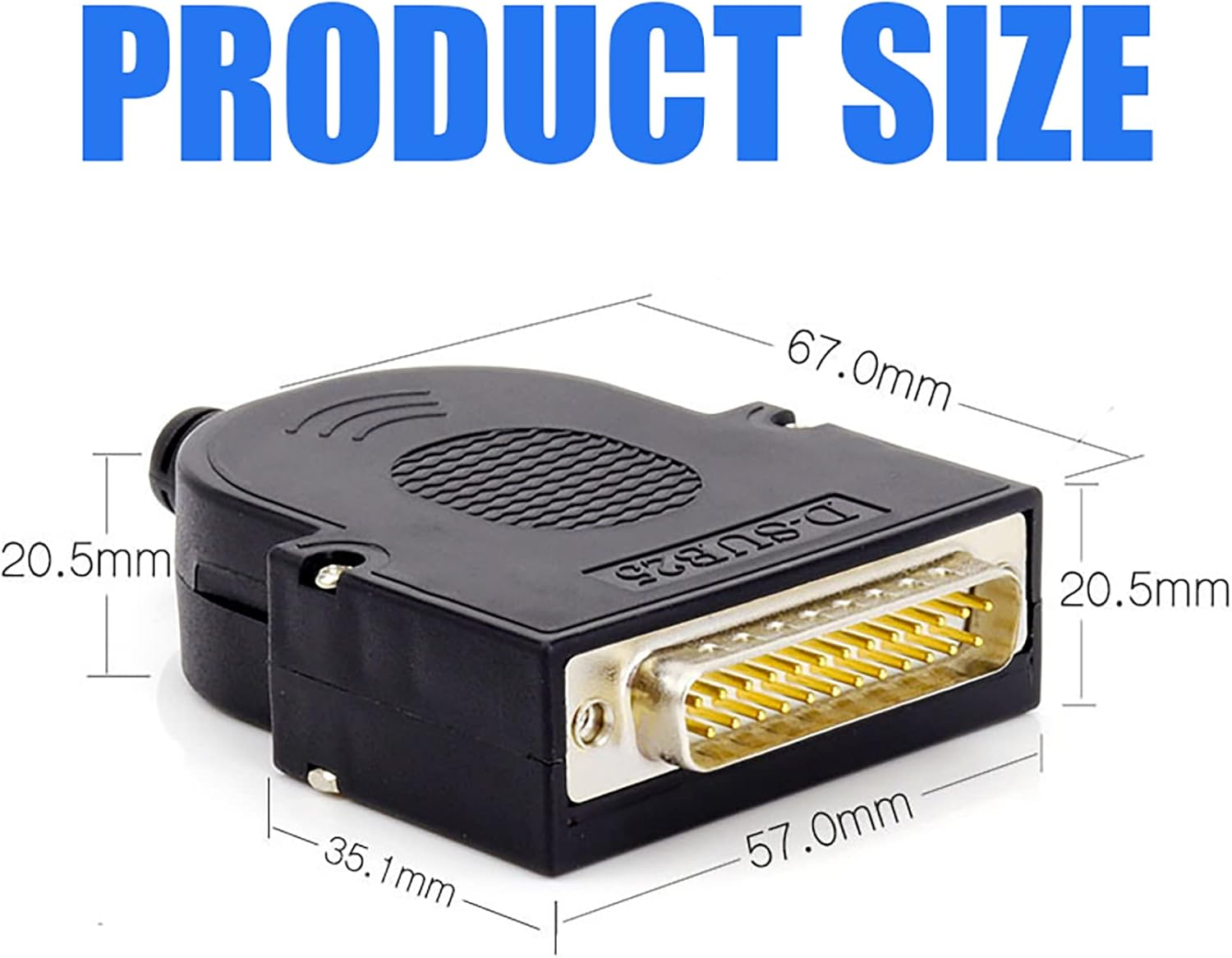

Product Size
Enclosure size: 59 x 55x 22mm
Diameter of stern tube hole :10 mm

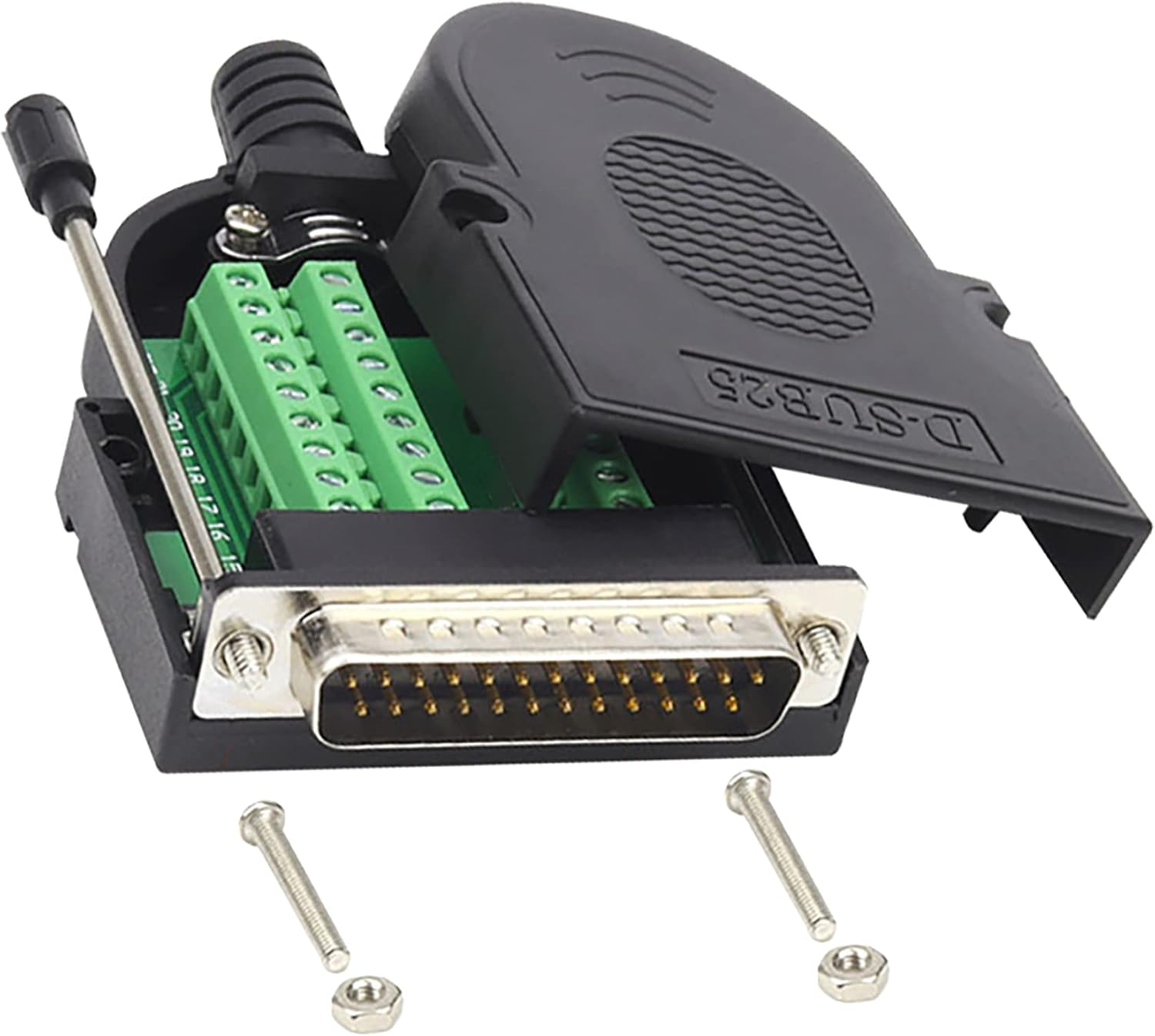

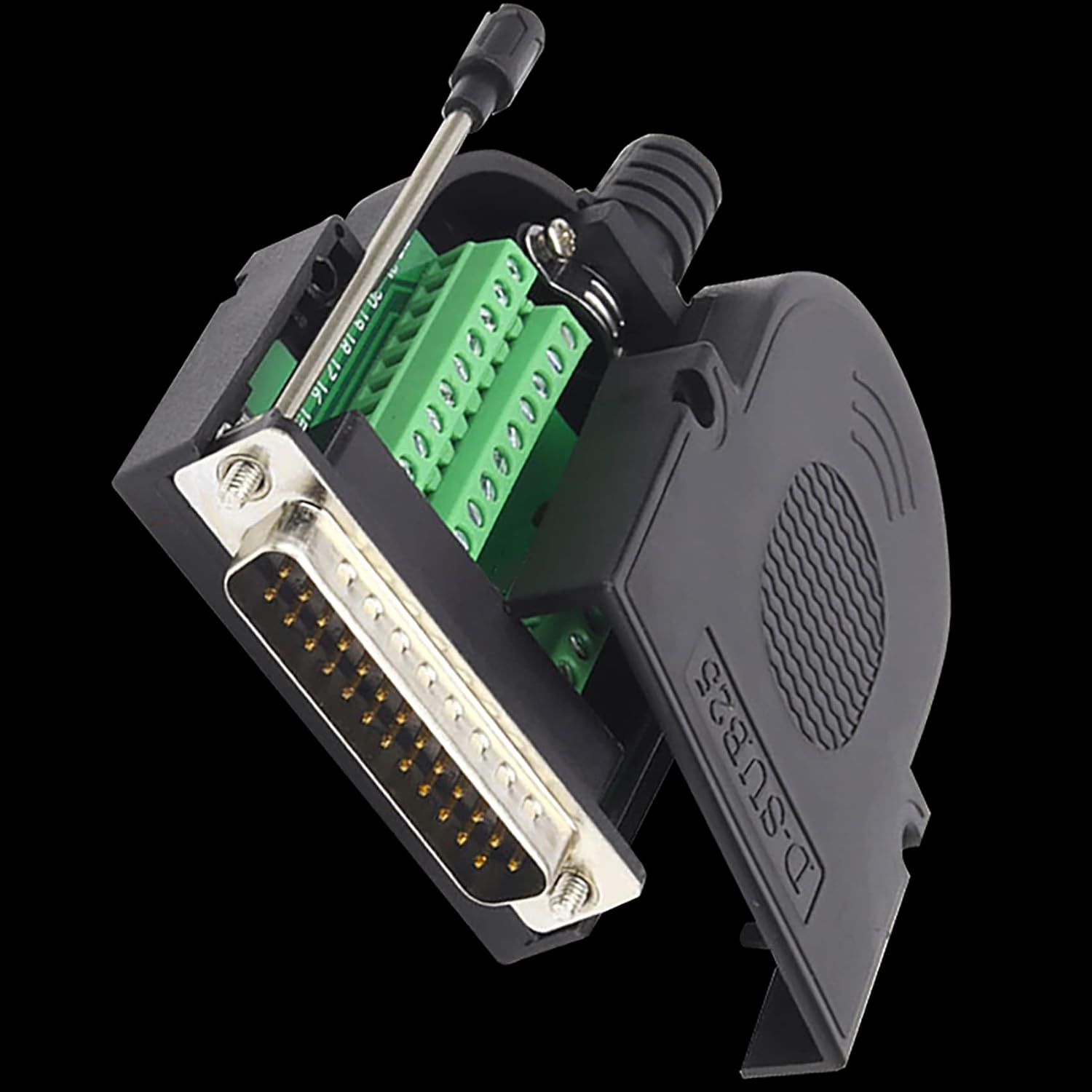

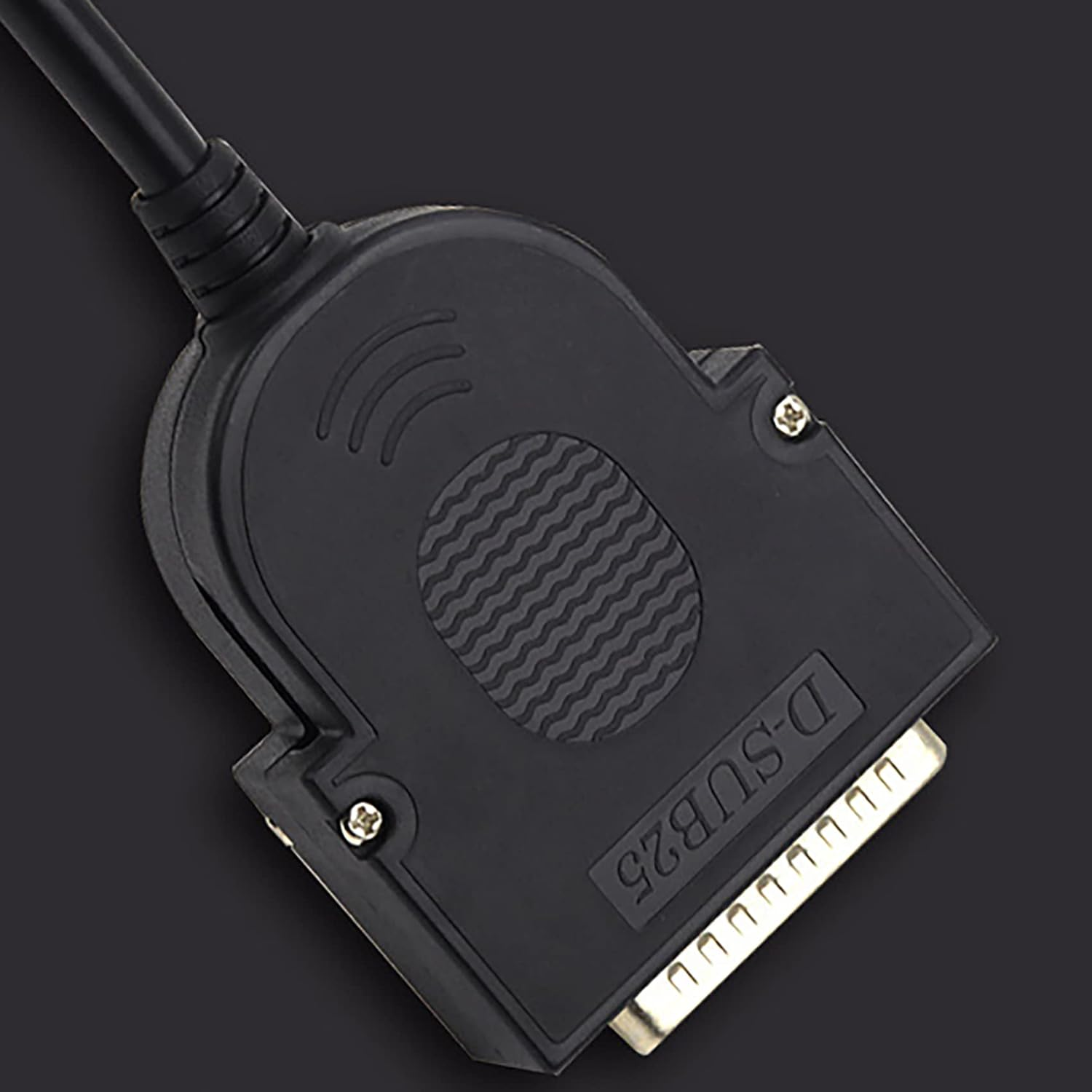

Cable buckle design: The fixing point is on the nylon card wire, so that the shell is not damaged by external force during the process of screw fastening. It is more capable of digesting all external forces' collision and traction during long-term use, thus effectively protecting all crimping points.
Installation Steps
1. Prepare materials and tools.
2. Loosen the terminal block with a screwdriver.
3. Strip the cable
4.Wiring by PCB board number and tighten the screws.
5.Install the cable tie, and cover the case.
Product Applications
Industrial control equipment, radios, computers, tax control machines, automation control equipment, industrial instruments, etc.
What you get:
We provide this 1 Pack DB25 Breakout Connector with an 18-Month worry-free period and 24/7 friendly client consultation, if you have any questions, we will resolve your issue within 24 hours

  • Size Name: Male
  • Mounting type: Board Mount
  • Brand: tunghey
  • Material Type: Copper
  • Item Weight: 10 g
  • Package Dimensions: 3 x 2 x 1 cm; 10 Grams
  • Manufacturer: tunghey
