Blue Sea Systems Hd-Series Heavy Duty Battery Switch

Blue Sea Systems Hd-Series Heavy Duty Battery Switch

Brand: Blue Sea Systems
4.4
A$129.55 - A$157.65
Availability:
  • Select Styles for Availability

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

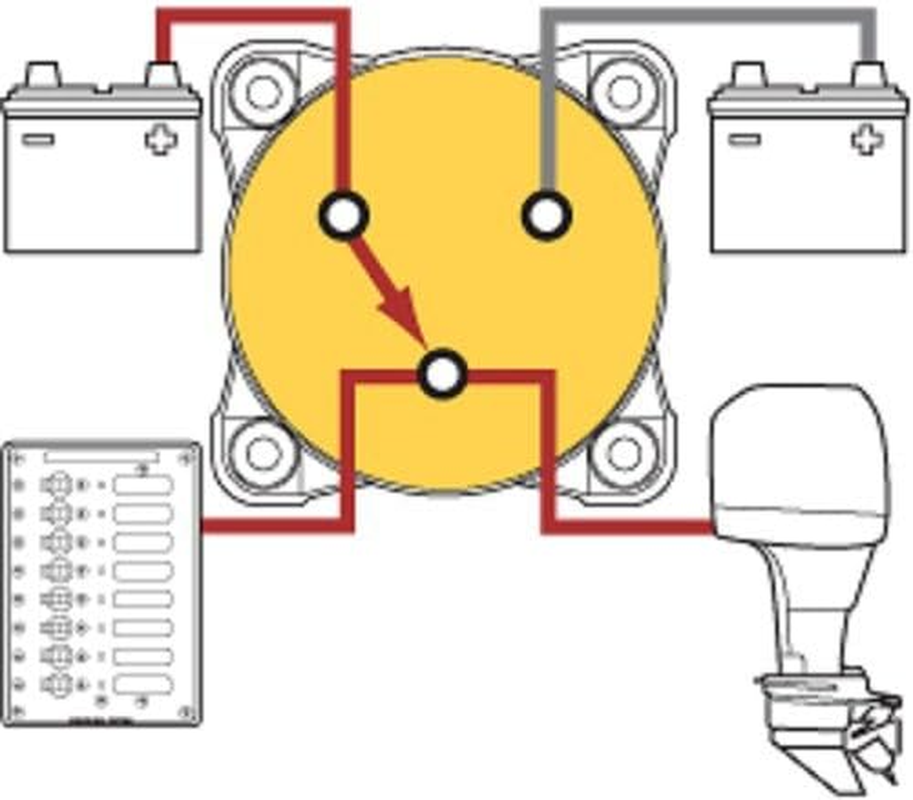

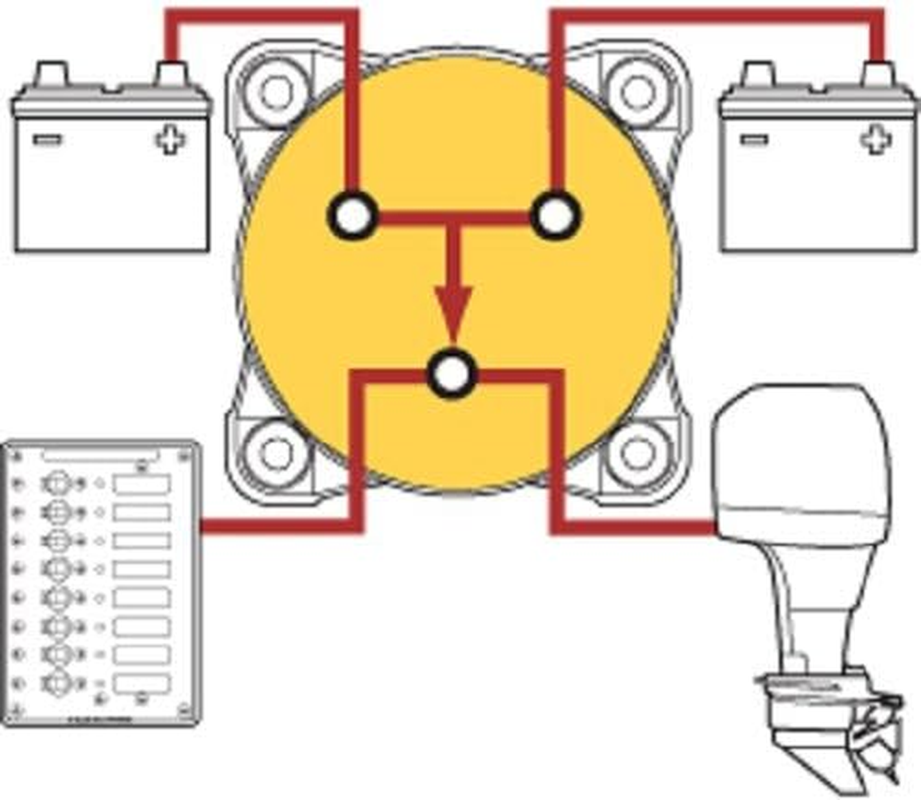

  • Design allows switching between battery banks without power interruption
  • Ignition protected—safe for installation aboard gasoline powered boats

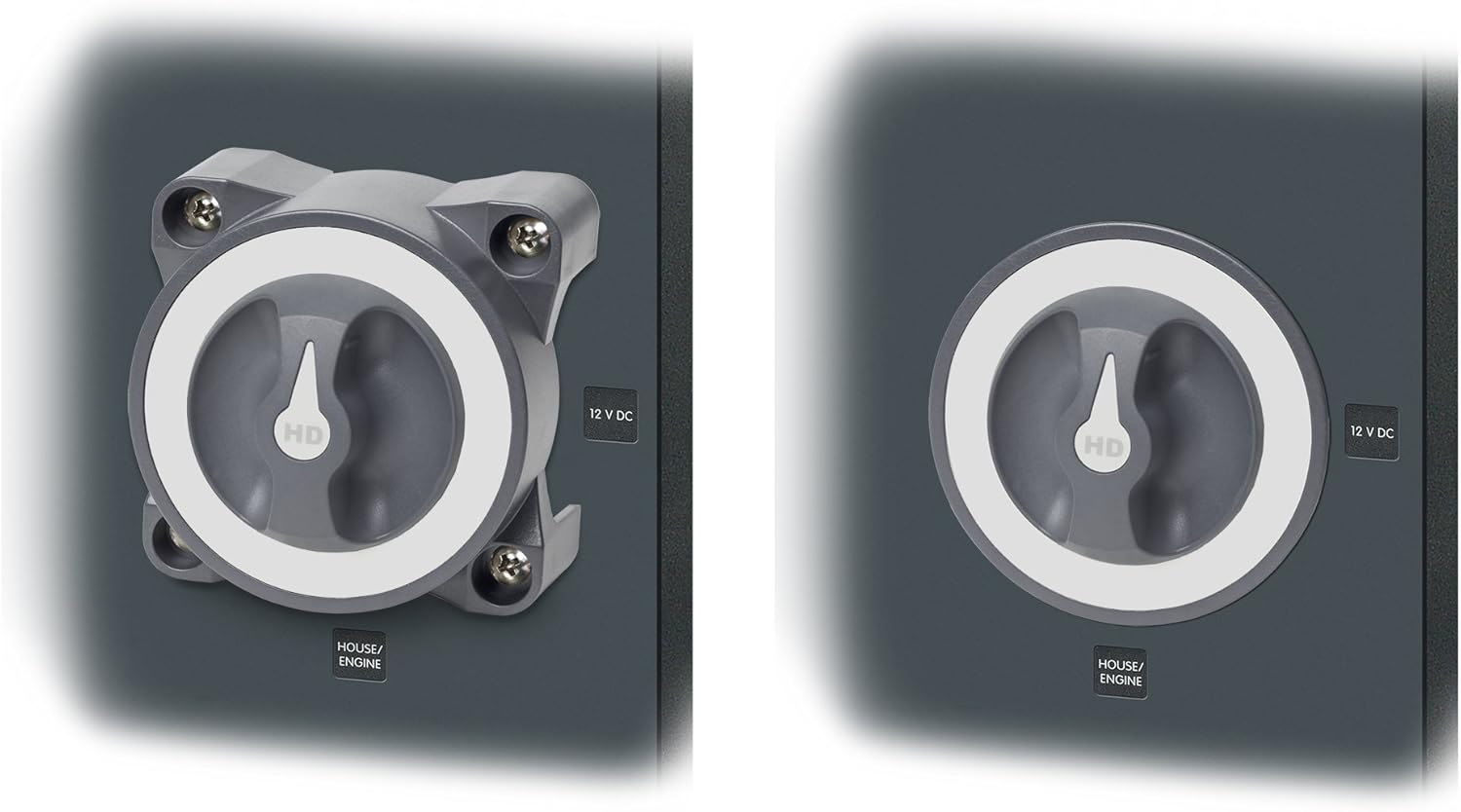

  • Case design allows surface or rear panel mounting

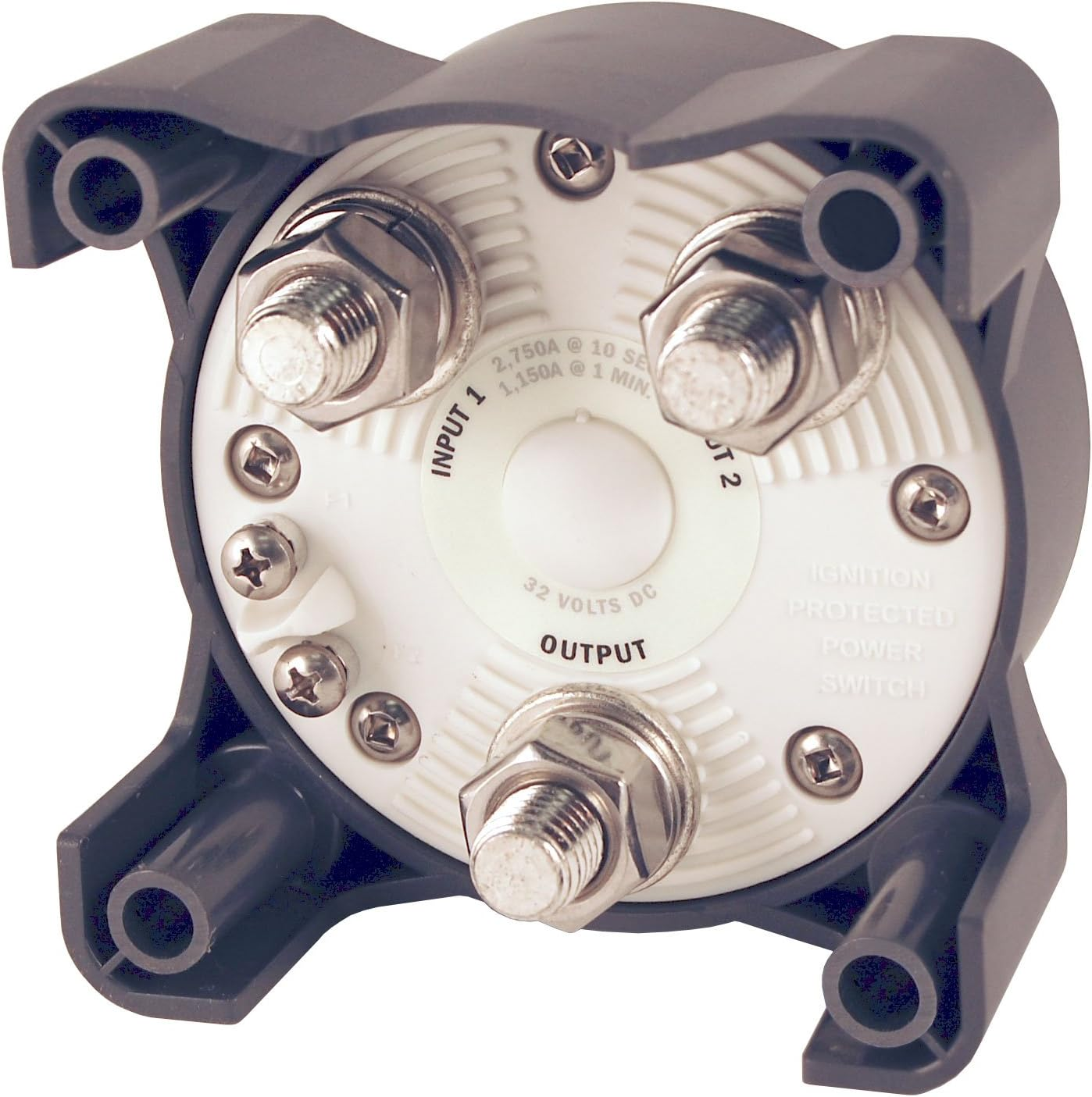

  • Accepts two 4/0 AWG (95mm²) battery cables

Blue Sea 3003 HD-Series Heavy Duty 4 Position Selector Battery Switch design allows switching between battery banks without power interruption. Case design allows surface or rear panel mounting. Ignition protected—safe for installation aboard gasoline powered boats. Accepts two 4/0 AWG (95mm²) battery cables. Switch Type : Selector 4 Position, Color: Grey, Switch Positions: 4, Battery Combine: Yes, Alternator Field Disconnect : Yes, Maximum Voltage: 32V DC, Terminal Stud Torque: 220 in-lb (24.86 Nm), Continuous Rating : 500A, Intermittent Rating : 700A (5 min), Cranking Rating 30 sec : 1600A, Battery Inputs: 2, Cable Clearance For 4/0 AWG Cables: 1.10in (27.94 mm), Cable Quantity to Meet Ratings: Two Cables / Terminal, Cable Size to Meet Ratings: 4/0 AWG (120mm²), Mounting Holes: Accept 1/4 inch (M6) Screw, Stud Material: Tinned Copper, Terminal Stud Size: 1/2 inch (M12).

  • Item Model Number: 3003
  • Wattage: 24000 watts
  • Style: Selector 4 Pos. w/AFD
  • Size: One Size
  • Number of Items: 1
  • Weight: 1.3 Pounds
  • Brand: Blue Sea Systems
  • Material Type: Aluminium
  • Connector Type: Stud
  • Product dimensions: 22.86 x 17.78 x 7.62 cm; 281.23 Grams
  • Height: 3 inches
  • Width: 7 inches
  • Length: 9 inches
  • Batteries Included?: No
  • Department: Unisex-Adult
  • Batteries: 1 Unknown batteries required.
  • Included Components: 1 x Blue Sea 3003 HD-Series Heavy Duty 4 Position Selector Battery Switch with AFD
  • Is discontinued by manufacturer: No
  • Colour: Black
  • Style Name: Selector 4 Pos. w/AFD
  • Manufacturer: Blue Sea Systems
