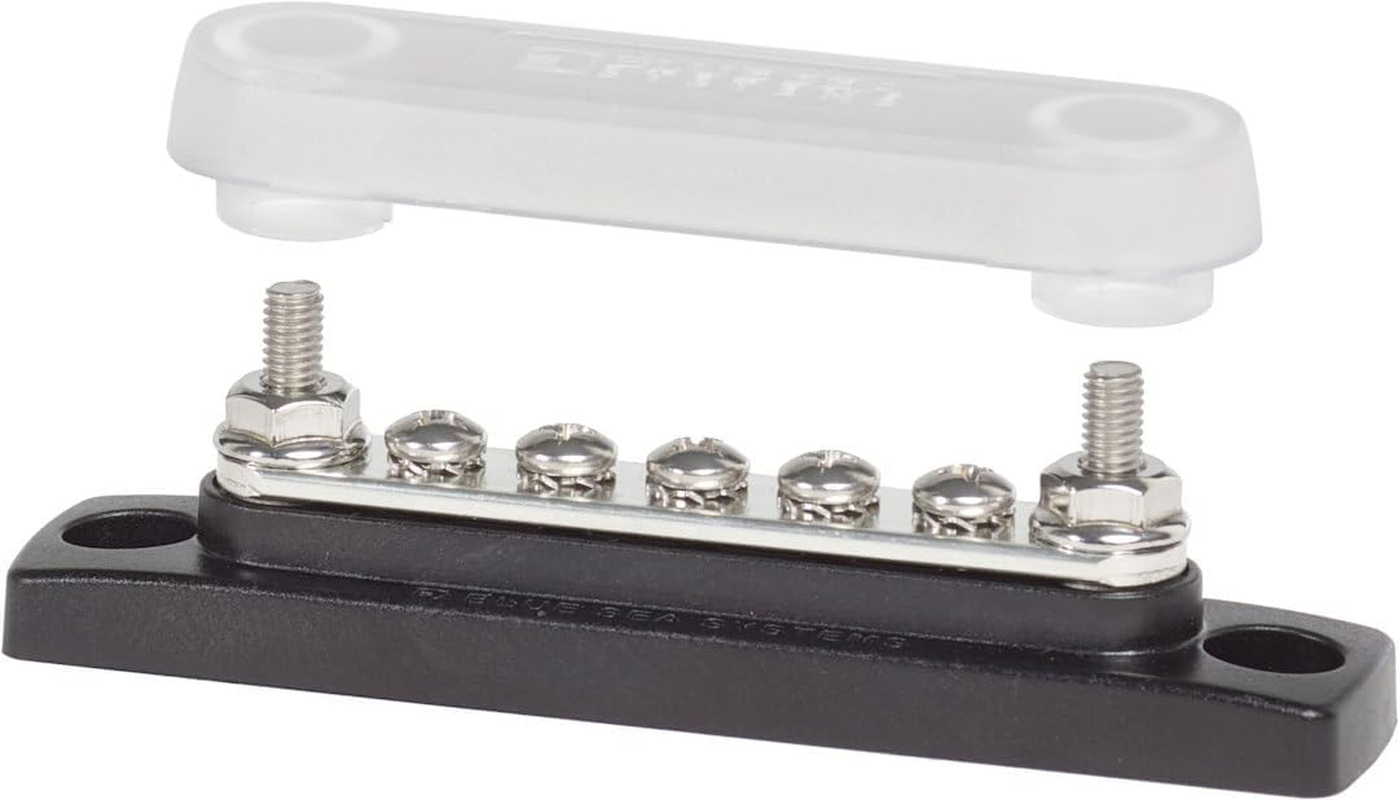

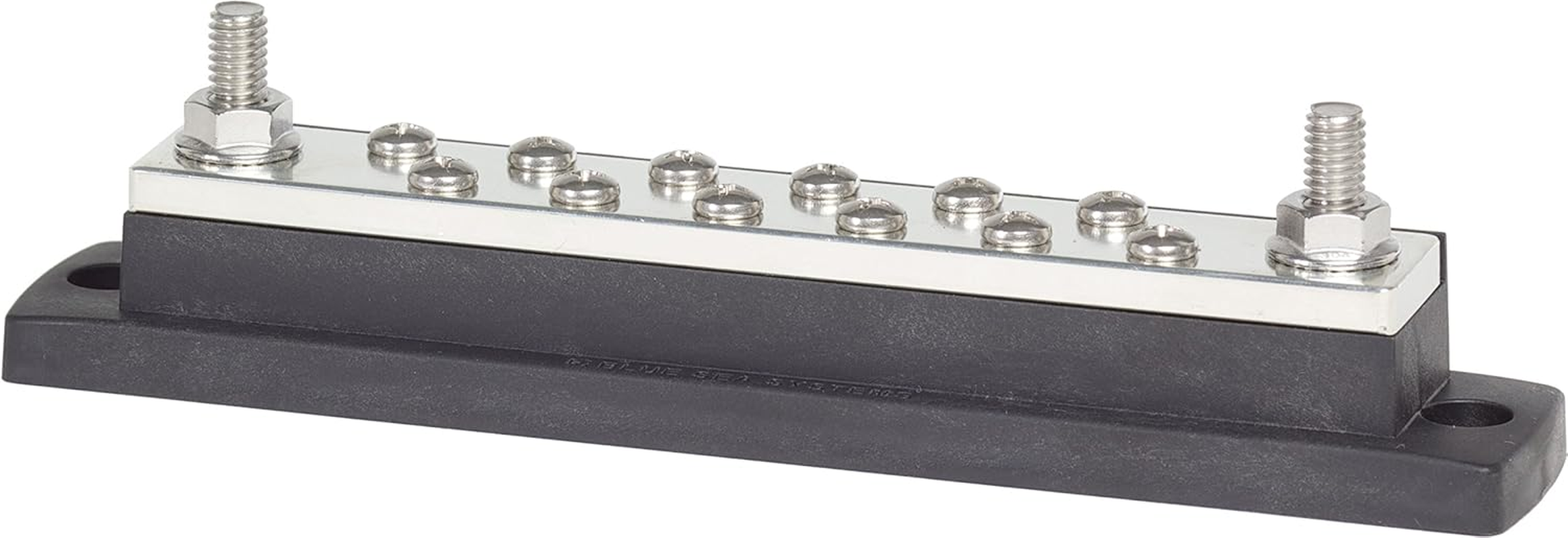

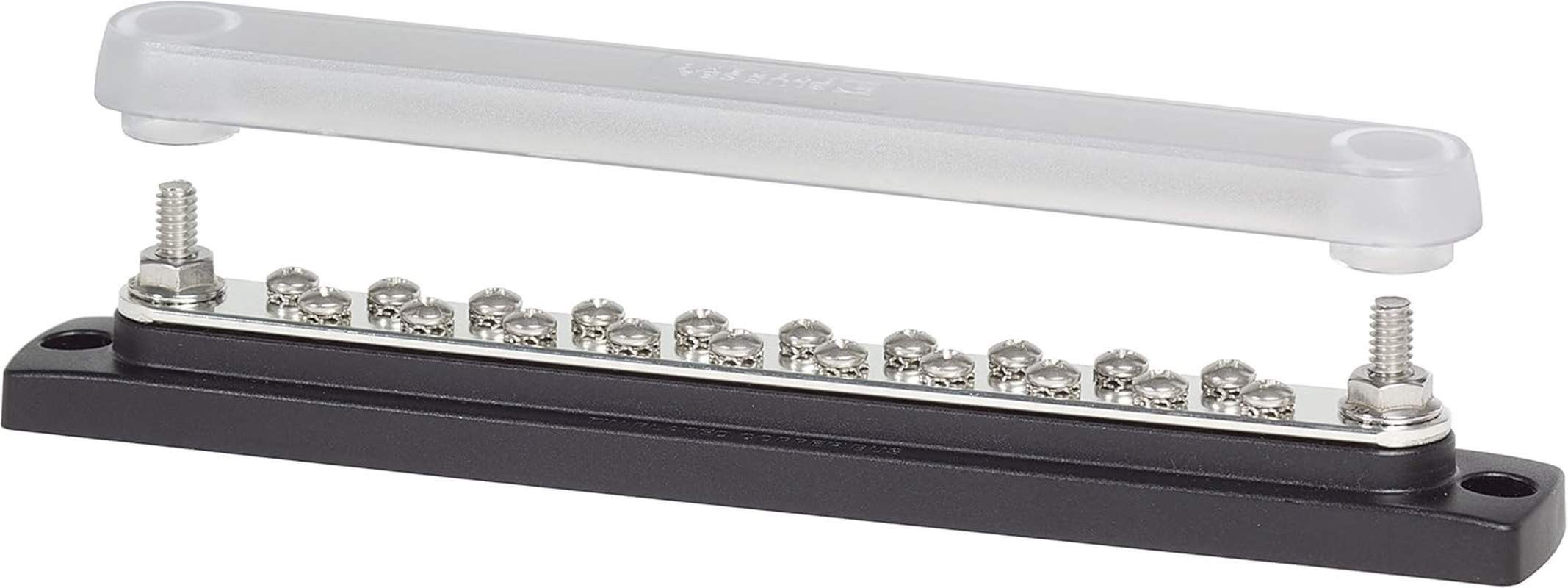

Blue Sea Systems 100 Amp Mini Busbar

Blue Sea Systems 100 Amp Mini Busbar

Brand: Blue Sea Systems
4.7
A$24.00 - A$139.80
Availability:
  • Select Styles for Availability

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • Used to consolidate multiple wires or feed multiple circuits
  • Insert molded stainless steel studs eliminate need for securing nut and allow high torquing for excellent electrical contact
  • Raised bus provides easy access to multiple wires on a single stud
  • UL 94-V0 rated base material resists high heat
  • Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfacesbreaker is capable of breaking without damage

Blue Sea MaxiBus 250A BusBar with 2x 5/16-Inch-18 Studs and 12x #10-24 Screws used to consolidate multiple wires or feed multiple circuits. Insert molded stainless steel studs eliminate need for securing nut and allow high torquing for excellent electrical contact. Raised bus provides easy access to multiple wires on a single stud. UL 94-V0 rated base material resists high heat. Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfacesbreaker is capable of breaking without damage. Specification: Maximum Voltage: 300V AC, 48V DC, Number of Screw Terminals: 6, Number of Terminal Studs: 2, Terminal Type: #10-24 Screw, 5/16"-18 Stud, Continuous Rating: 250A, Base Material: UL 94-V0 Rated, Glass, Reinforced Thermoplastics, Bus Material: Tin-Plated Copper CDA 110 / UNS 11000, Recommended Screw Torque: 23 in-lb (2.6 N·m), Recommended Stud Torque: 132 in-lb (14.91 N·m). Color: Silver/Black.

  • Item Model Number: 2105
  • Manufacturer: Acr Electronics
  • Style: 250a - 18 Stud, No Cover
  • Number of Items: 1
  • Weight: 17.6 Pounds
  • Included Components: 1 x Blue Sea 250A MaxiBus BusBar with 2x 5/16"-18 Studs and 12x #10-24 Screws
  • Brand: Blue Sea Systems
  • Material Type: Tin-Plated Copper CDA 110 / UNS 11000
  • Connector Type: Screw
  • Product dimensions: 5.08 x 8.89 x 33.02 cm; 362.87 Grams
  • Height: 13 inches
  • Width: 2 inches
  • Length: 3.5 inches
  • Batteries Included?: No
  • Department: unisex-adult
  • Sport: Boating
  • Is discontinued by manufacturer: No
  • Colour: Silver / Black
  • Style Name: 250a - 18 Stud, No Cover
  • Size: One Size
