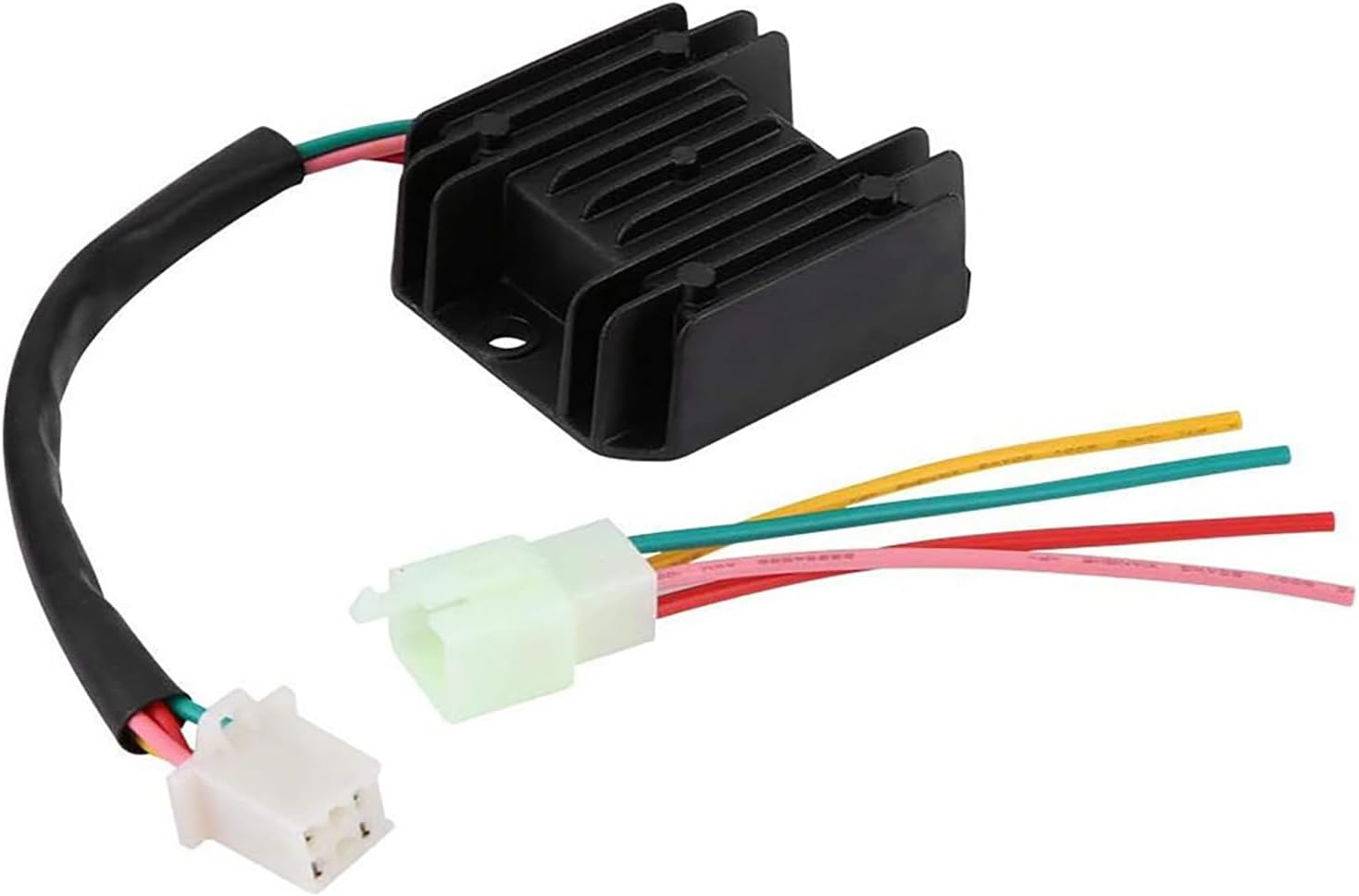

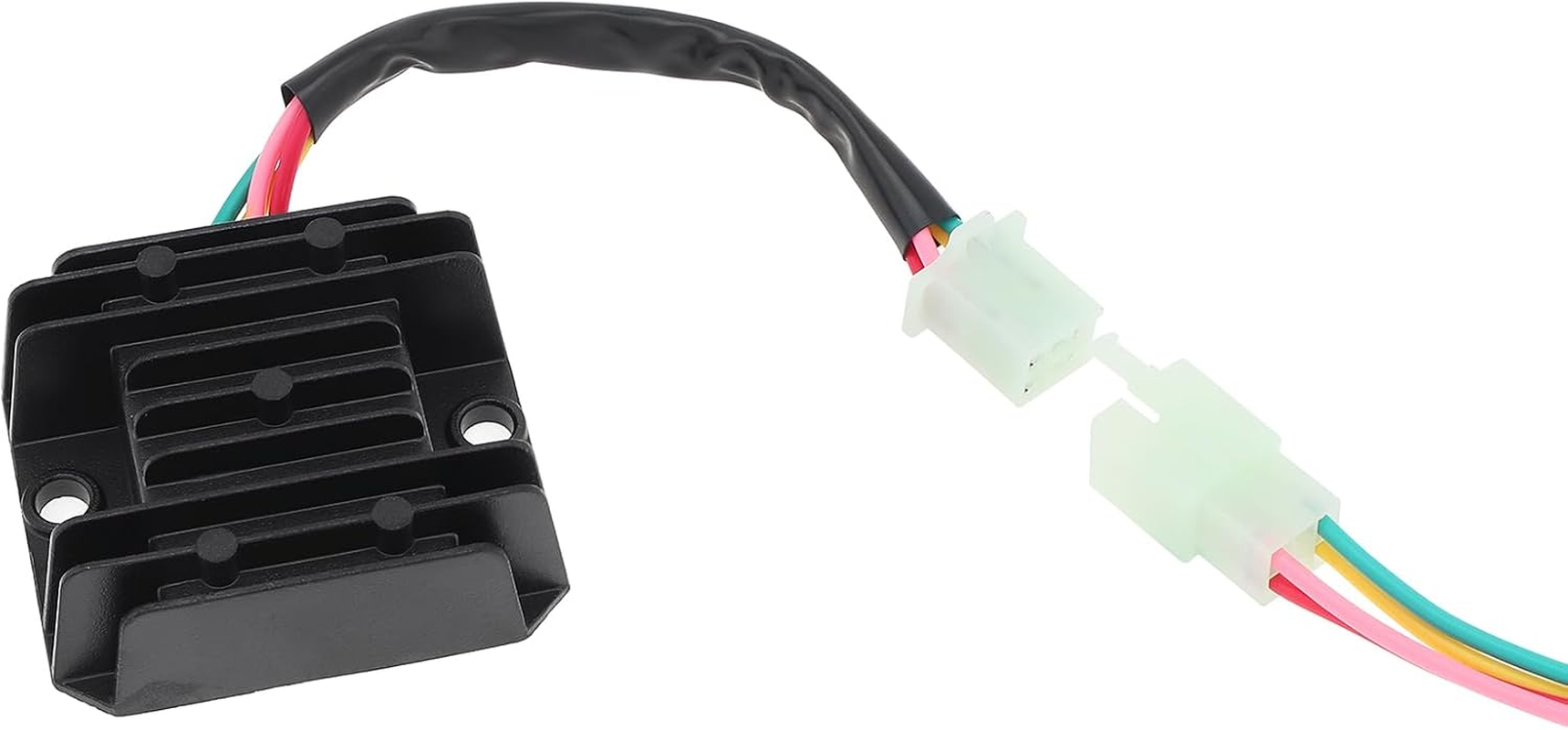

Product Name: 4 Pin Voltage Rectifier
Battery Voltage: 12V
Battery Charging Voltage: 14.5V (-0.5V - +0.5V)
Magneto Idle Output Voltage: 0 - 200V
Features:
- A rectifier is used to convert the alternating current generated by a magneto into direct current, while reducing the higher voltage to a suitable voltage to charge the battery. At the same time, it consumes excess electricity through a resistor to achieve voltage stabilization.
- Moss tube and IC chip design, good voltage regulation, prolong battery life.
- Large area aluminum substrate, good thermal conductivity, long service life.
- High temperature plug for safer use.

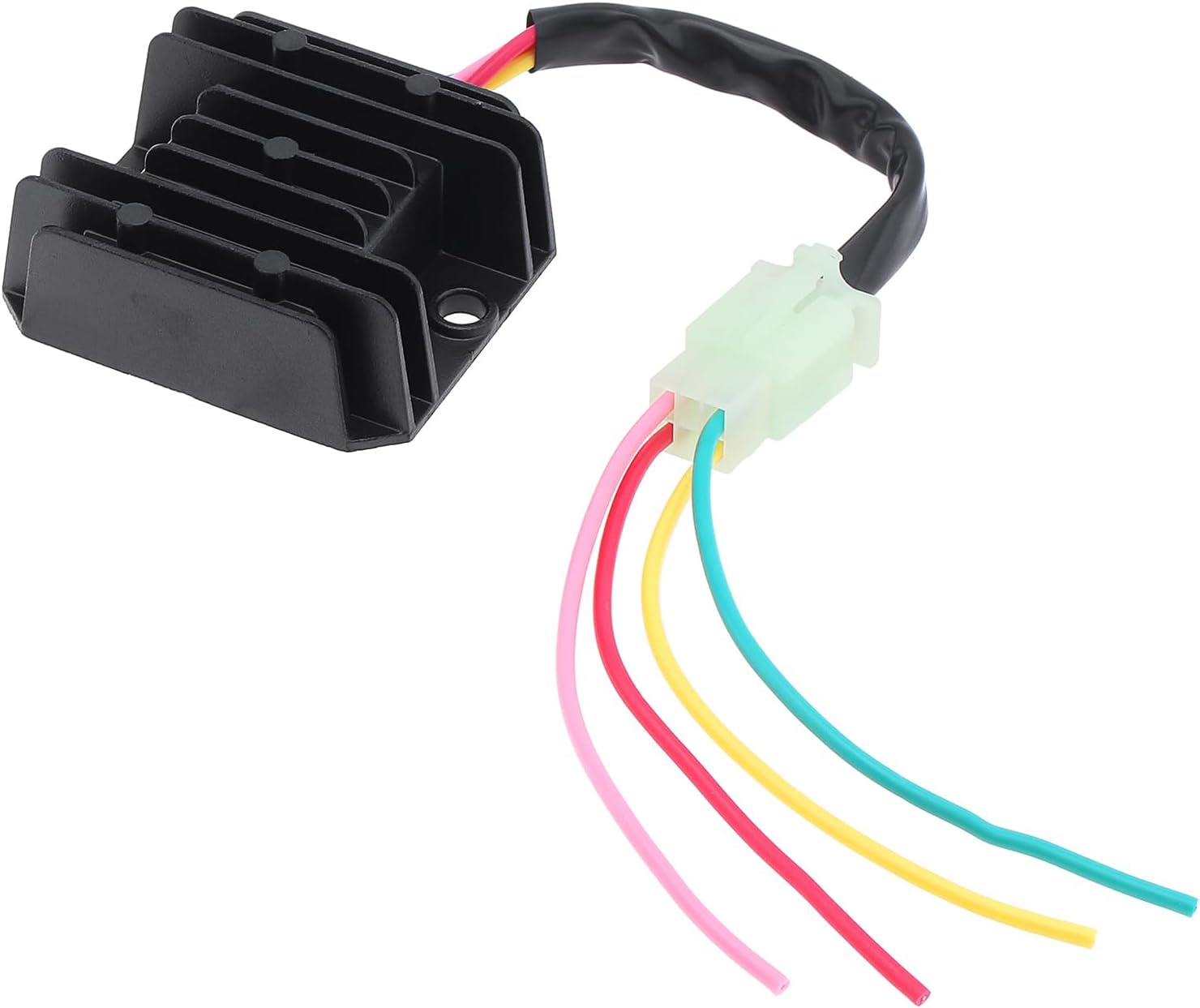

- Red to battery +, green to battery -, yellow and pink AC input, connect to magneto coil.
- This regulator rectifier has to work together with a 12V battery. If without 12v battery, the output voltage will be much higher.
Place of Application:
- Fit for GY6 125cc 150cc 250cc engine and 12V battery, bulb, light and so on.
- Fit for motorcycle scooter ATV dirt bike Go Kart moped boat.
Package Include:
1 x Regulator Rectifier
1 x 4pin Cable
