Heavy Duty Bus Bar 300A 12V Power Distribution Block with 5/16" (M8) 4-Posts Terminals Block with Cover for Automotive, Marine, Battery System(Red)

Heavy Duty Bus Bar 300A 12V Power Distribution Block with 5/16" (M8) 4-Posts Terminals Block with Cover for Automotive, Marine, Battery System(Red)

Brand: UCkasayfy
5.0
A$34.65 - A$68.25
Colour Name
Availability:
  • Select Styles for Availability

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • 【Safety & Reliability】——Engineered for vibration resistance and electrical safety, this distribution block features secure flange nut terminals and a V-0 flame-retardant nylon housing with full protective cover. This robust design effectively prevents terminal loosening and short circuits, delivering worry‑free performance in automotive, marine, and mobile power applications

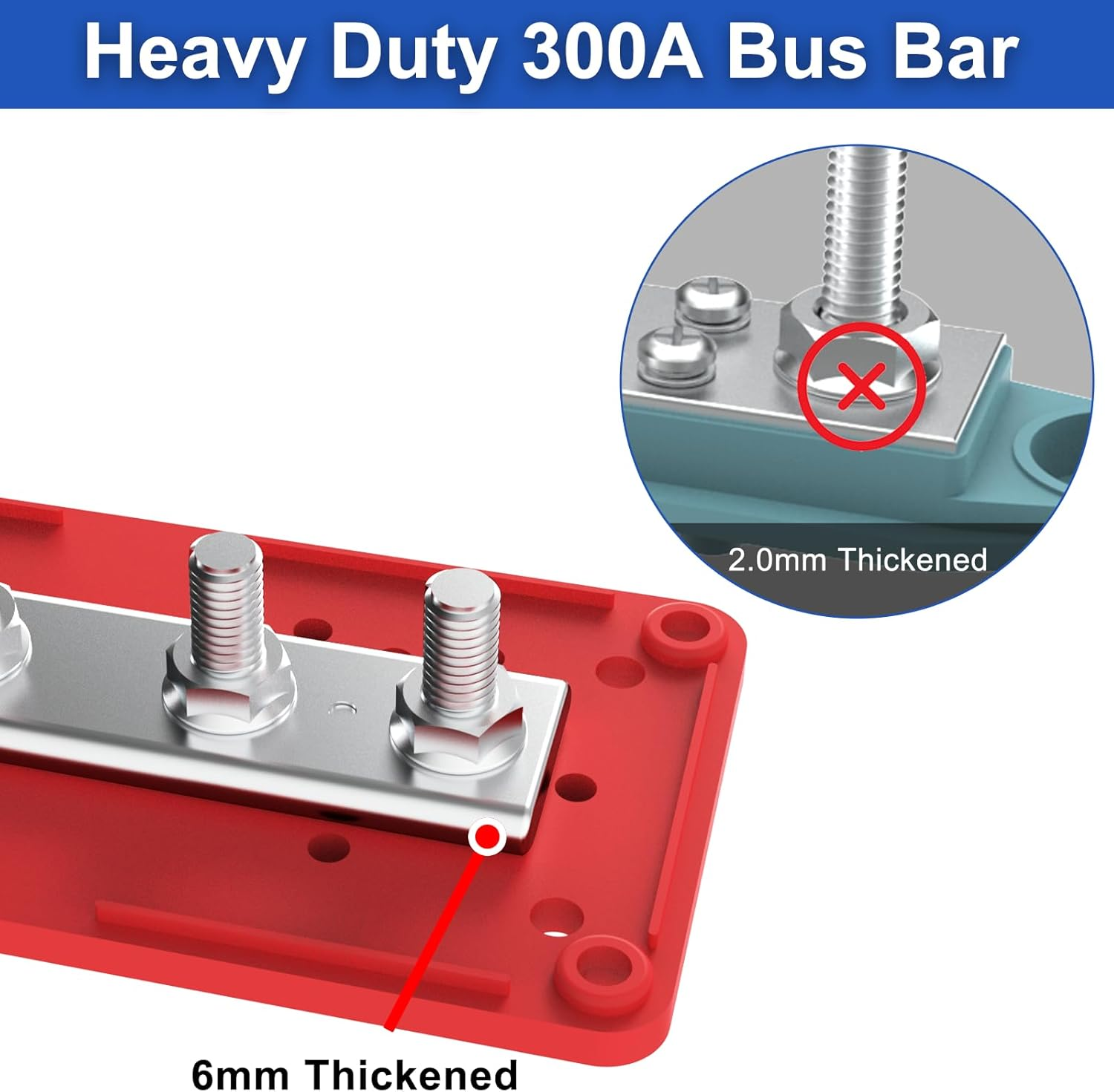

  • 【Premium Conductivity】——At its core is a 6mm-thick nickel-plated copper bus bar for minimal resistance and stable performance, as this 12V bus bar reliably carries a 300A rating at 12V with a maximum voltage of 48V DC

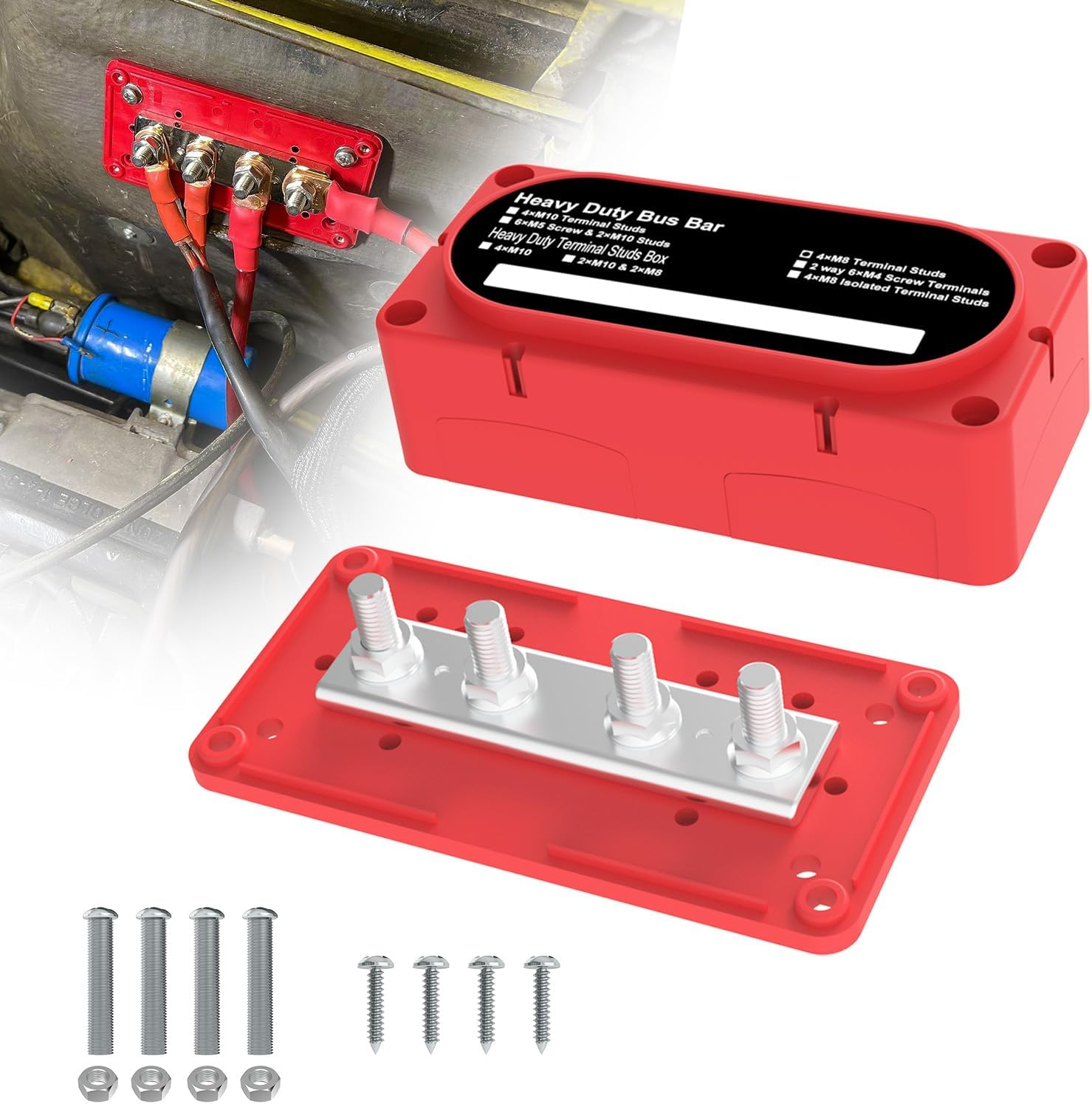

  • 【High-Capacity Connections】——Equipped with 4 x 5/16″ (M8) stud terminals. this battery bus bar supports large size terminal connectors and wires to integrate multiple devices into a centralized, space-saving hub for efficient power distribution

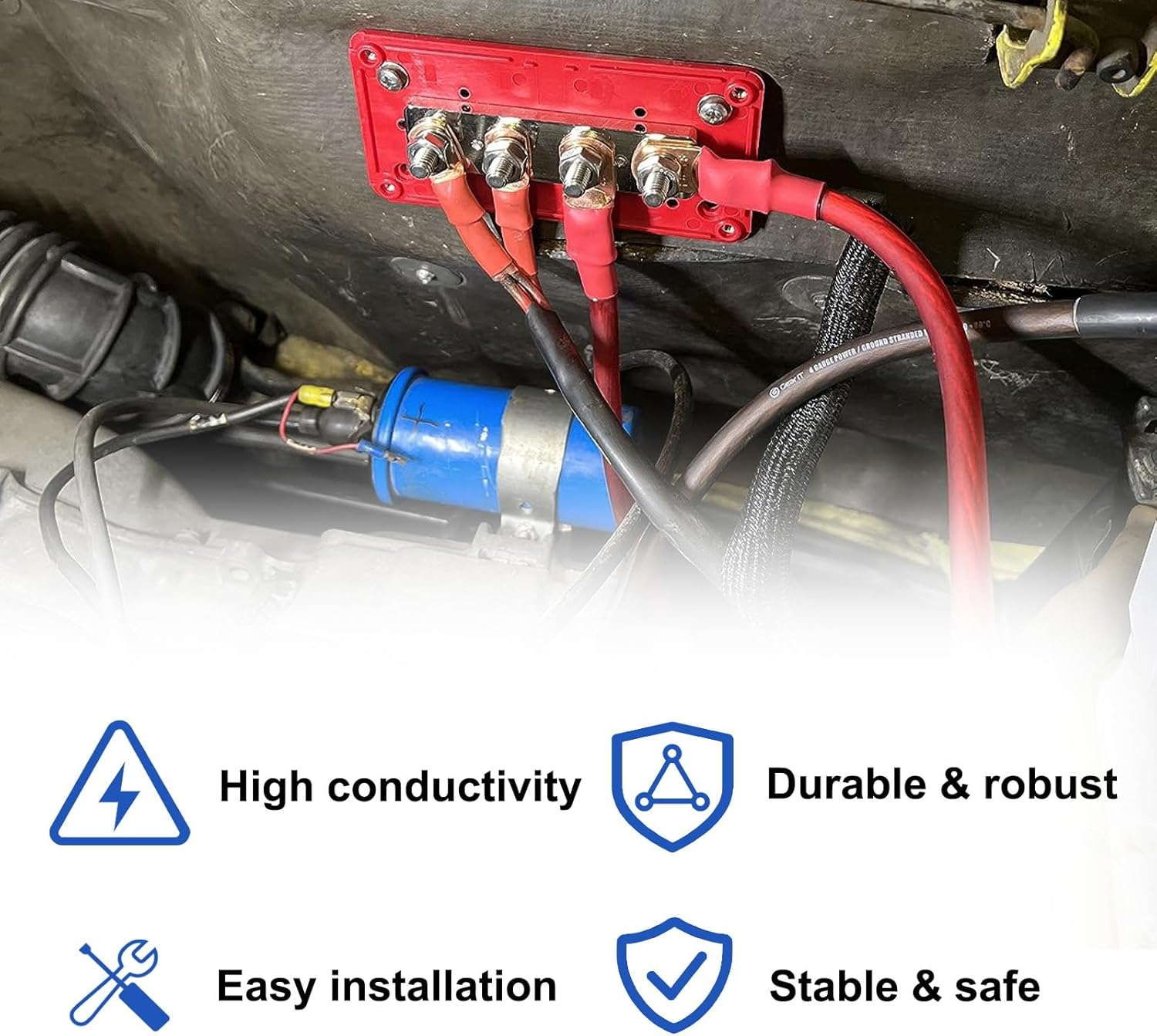

  • 【Organized Power Solution】——This 12 volt bus bar with cover is the ideal power distribution block to organize messy wiring and prevent a messy harness, being particularly suitable for automotive, car, truck, marine, boat, and solar wiring applications
  • 【After-sales Service】——Exquisite craft, strict quality control and excellent after-sales service that is why our products worth your purchase

Product Description

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

Heavy Duty Bus Bar 300A 12V

Merchant video

Technical Specifications

Voltage Max 48V DC
Dimension 5.47in x2.68in x1.77in
Color Positive Bus Bar - Red & Negative Bus Bar - Black
Number of Terminal Studs 4x5/16"(M8)Stud Terminal
Max Continuous Current 300A
Features Bus Bar Box Design & Removable Plate Design Cover

  • Is this Bus Bar suitable for small solar systems?

    Yes, it is well-suited for small solar systems, providing safe and efficient power distribution.

  • Can it be used for automotive modifications?

    Yes, it can be used for automotive electrical system modifications, but please ensure sufficient installation space.

  • What is the current-carrying capacity of the product?

    It offers various options ranging from 250A to 600A to meet different power requirements, with excellent load-bearing performance. Please check the bottom of the product details page for specific options.

  • Is the product size too large?

    The product dimensions are clearly listed on the details page. Please verify the installation space before purchasing.

  • Does it support both M8 and M10 bolt specifications?

    Yes, the product comes in multiple specifications (e.g., 5/16" M8 and 3/8" M10) to accommodate different needs. Please check the bottom of the product details page for available options.

UCkasayfy

Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.6 out of 5 stars 115
4.7 out of 5 stars 71
4.4 out of 5 stars 96
4.6 out of 5 stars 194
4.4 out of 5 stars 283
4.4 out of 5 stars 261
4.2 out of 5 stars 96
Price
$33.99$33.99 $41.99$41.99 $63.99$63.99 $18.99$18.99 $63.99$63.99 $29.99$29.99 $35.99$35.99
Max 48V DC
✔ ✔ ✔ ✘ ✘ ✘ ✘

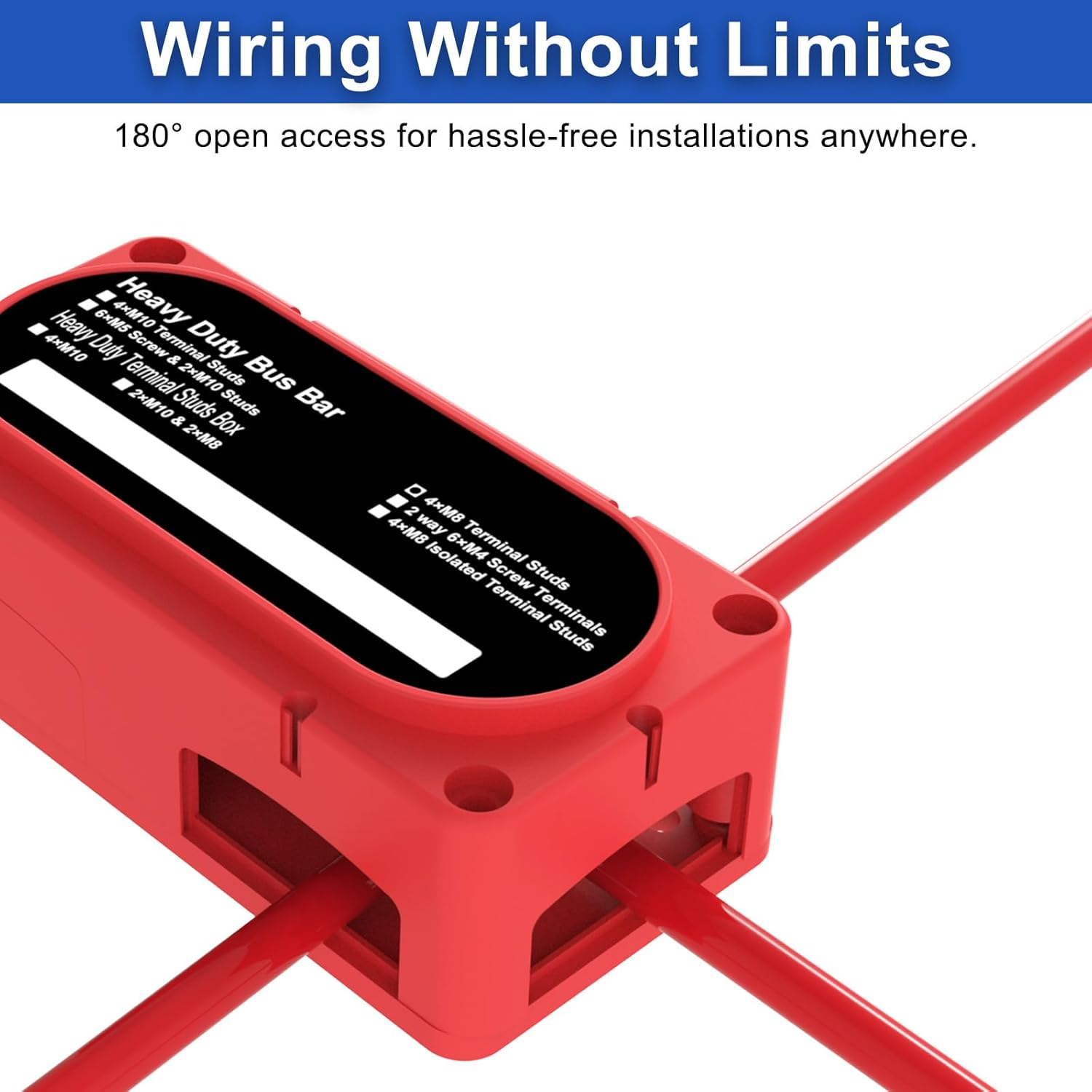

180° Installations
✘ ✔ ✘ ✘ ✘ ✘ ✘
Max continuous Current
250A 250A 300A — — — —
Sheet Metal Thickness
2.5mm 3.5mm 6mm — — — —
Number of Terminal Screw
3 x #8(M4)Screw Terminal 6 x #8(M4)Screw Terminal — — — — —
Number of Terminal Studs
4 x 5/16"(M8)Stud Terminal 4 x 5/16"(M8)Stud Terminal 4 x 5/16"(M8)Stud Terminal — — — —
  • Item Model Number: UCkasayfy Model #
  • Part Number: CB003-M8-R
  • Country/Region of origin: China
  • Mounting type: Panel Mount
  • Batteries Included: No
  • Batteries Required: No
  • Brand: UCkasayfy
  • Colour Name: Red
  • Package Dimensions: 19.2 x 9.19 x 5.69 cm; 390 Grams
  • Item Weight: 390 g
  • Voltage: 12 Volts
  • Model: UCkasayfy Model #
  • Size Name: 300A-5/16''(M8)
  • Manufacturer: UCkasayfy
