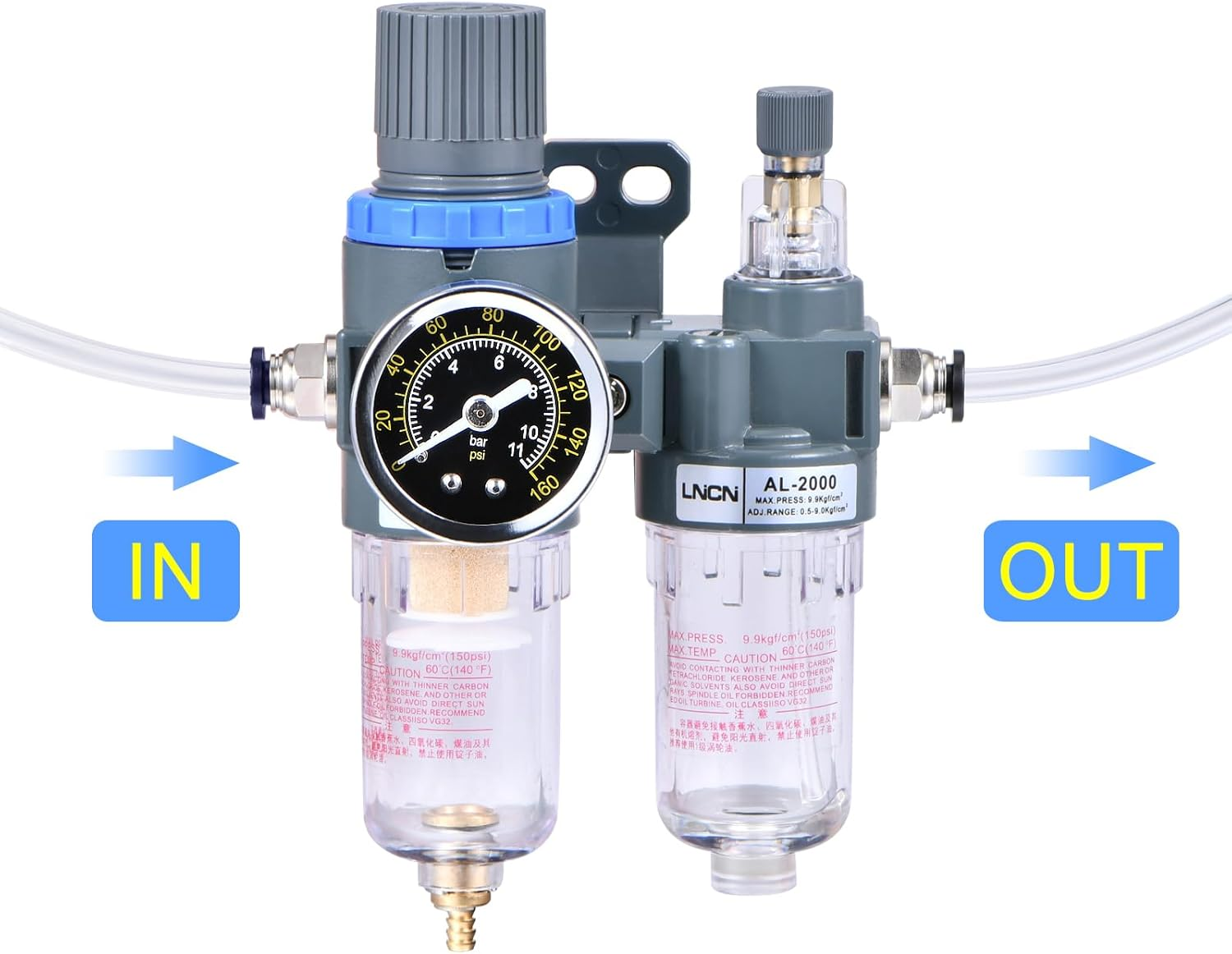

What’s the functions of this compressor air filter?

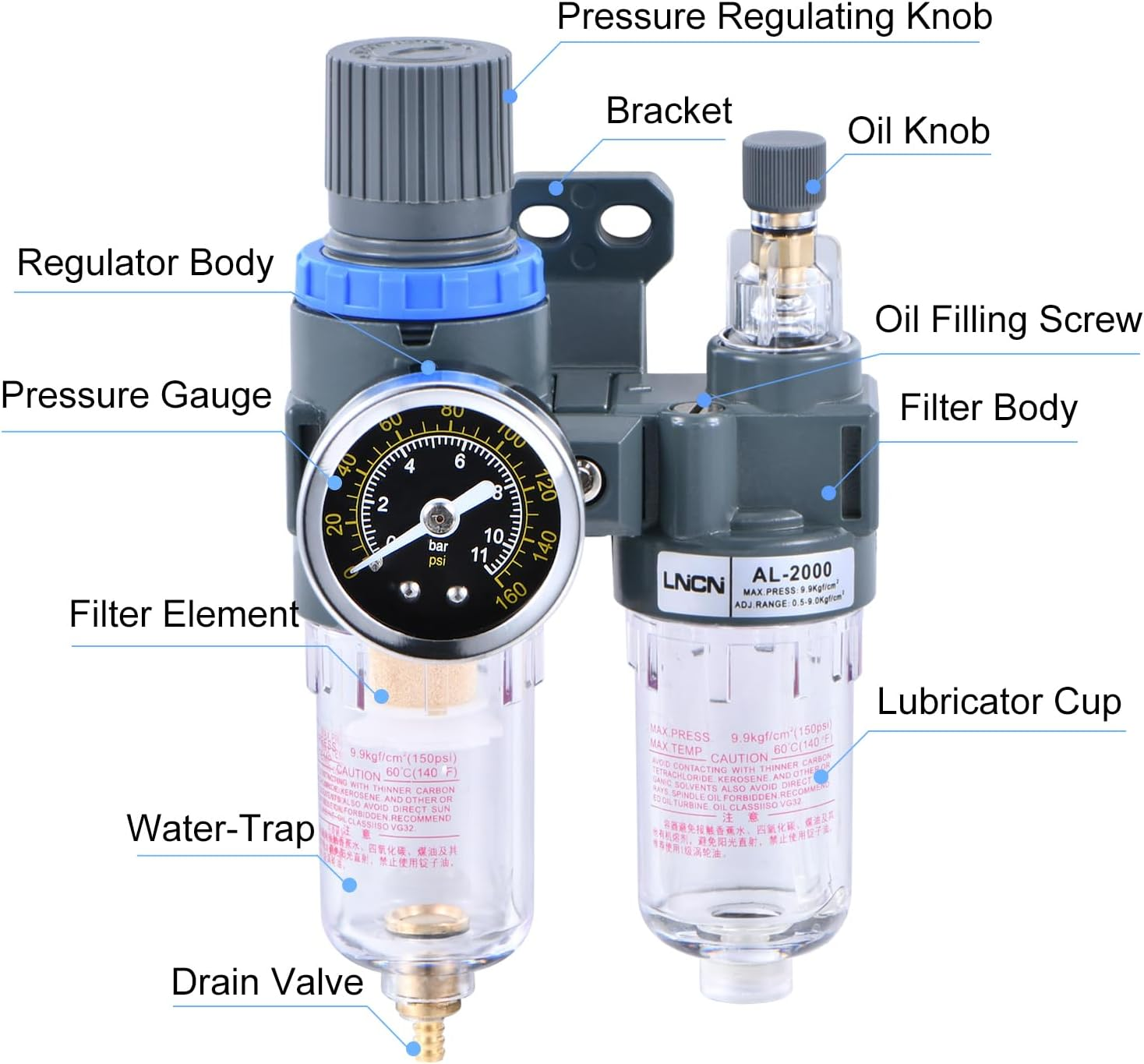

1, FILTER: This air compressor regulator is very effective to control pressure and remove the moisture, dust, particles of air to supply clean air to extend air tools life like air spray gun, and also protect workers’ health in working environment.

2, REGULATOR: You can change the gas line pressure within the specified range by using knob. Only need pull up the knob and rotate it to increase or reduce the air pressure. It's very convenient to use and easy to operate.

3, LUBRICATION: Add oil into the oil cup from the oil filling screw just show in the picture, when the item working, the oil will get an atomization effect and atomized oil will be sent to the parts and elements of air tools to lubricate those and keep them work well.

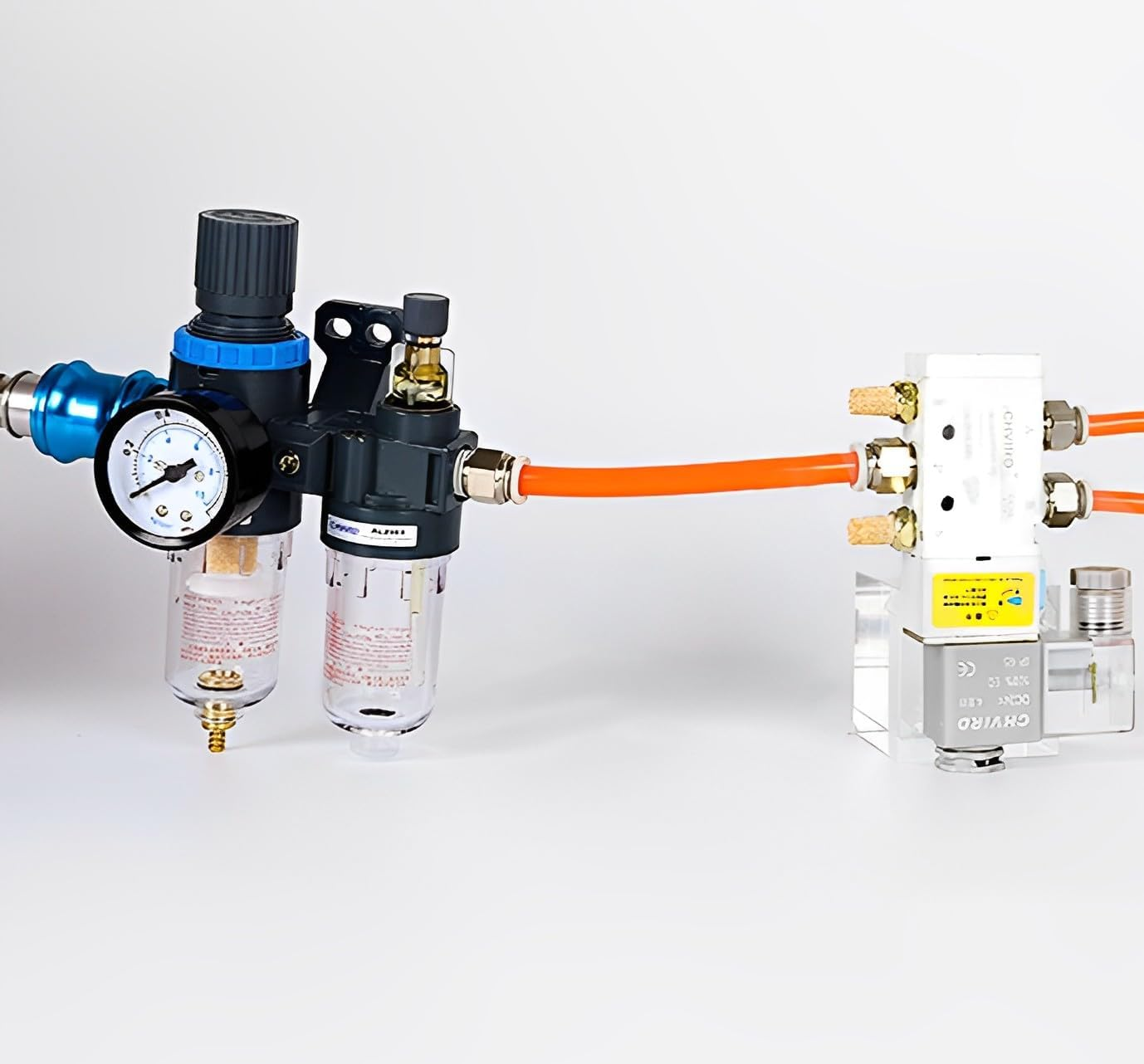

Application

Ideal for air compressor and air spray gun and other air tools to remove the moisture to extend air tools life, also can regulate air pressure to satisfy your working pressure.

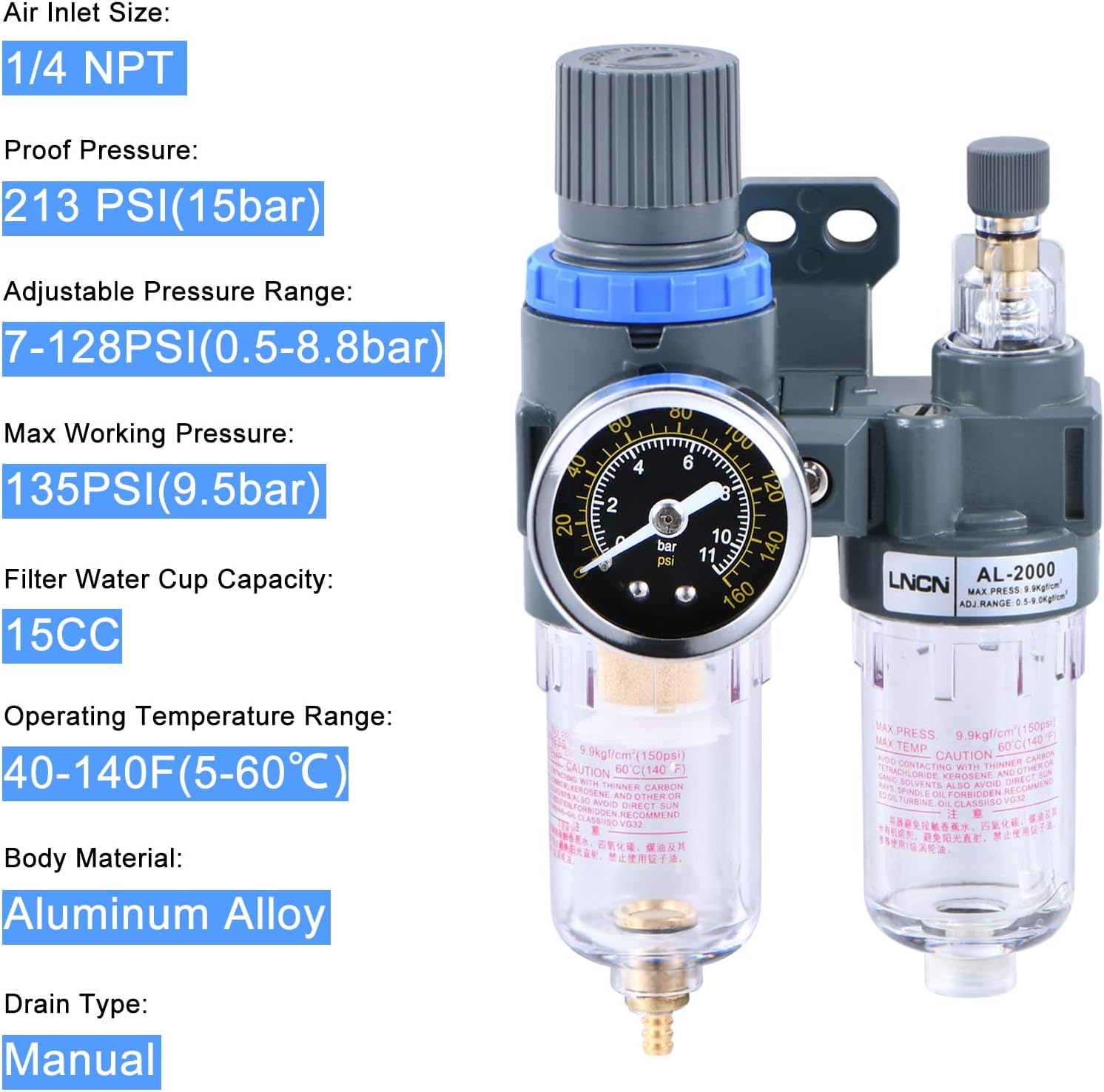

Product Specification

√ Air Inlet Size: 1/4 NPT

√ Proof Pressure: 213 PSI(15bar)

√ Adjustable Pressure Range: 7-128PSI(0.5-9bar)

√ Max Working Pressure: 135PSI(9.5bar)

√ Filter Water Cup Capacity: 15CC

√ Operating Temperature Range: 40-140F(5-60℃)

√ Body Material: Aluminum Alloy

√ Drain Type: Manual

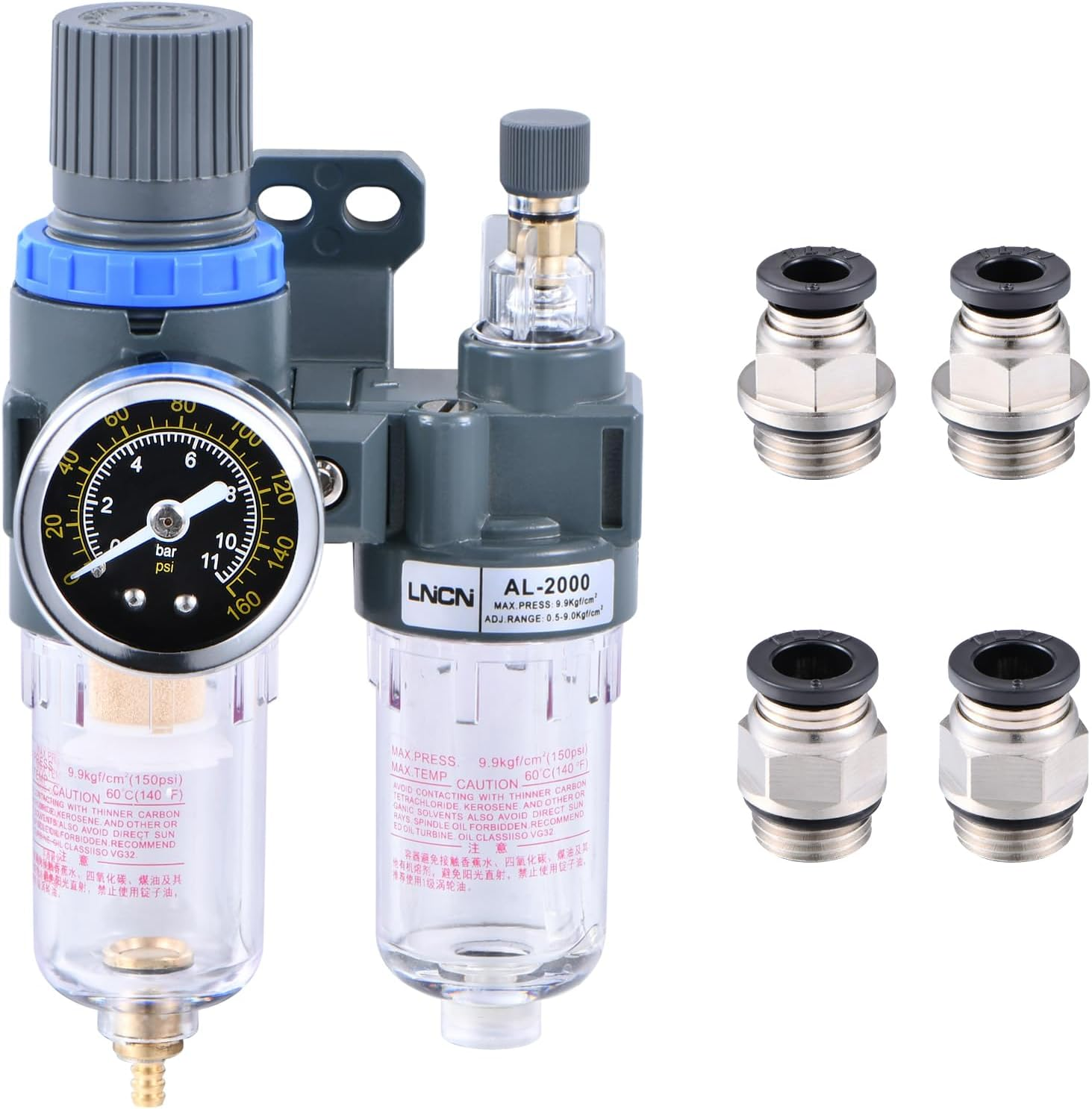

Package Included

1 × Air Filter Regulator Moisture Trap

1 × Pressure Gauge

1 × Metal Bracket

2 × PC6-02(6mmOD × 1/4 NPT)

2 × PC8-02(8mmOD × 1/4 NPT)

1 × English Instruction
