Topping D50 III 2*ES9039Q2M DAC, Usb/Bt5.1/Optical/Coaxial to RCA/TRS Audio DAC, Type-C Bluetooth 5.1 SPDIF Input Digital-Analog Converter, Hi-Res Audio DAC, Home Audio DAC with 12V Trigger (Silver)

Topping D50 III 2*ES9039Q2M DAC, Usb/Bt5.1/Optical/Coaxial to RCA/TRS Audio DAC, Type-C Bluetooth 5.1 SPDIF Input Digital-Analog Converter, Hi-Res Audio DAC, Home Audio DAC with 12V Trigger (Silver)

Brand: AOSHIDA
5.0
A$364.50
Colour
Availability:
  • Select Styles for Availability

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • 『TOPPING D50 III DAC』TOPPING D50 III, boasting dual ES9039Q2M chips for clarity and depth, supporting formats up to DSD 512 and PCM 768kHz, perfect for audiophiles seeking hi-res sound.
  • 『Audiophile-Grade Engineering』The D50 III features a novel I/V conversion circuit for reduced distortion and noise, encapsulated in a CNC unibody aluminum chassis.
  • 『Wireless Hi-Fi Experience』Enjoy LDAC support and other high-definition Bluetooth codecs for wireless audio without compromising quality, alongside dual Type-C interfaces.
  • 『Professional Connectivity』Equipped with both RCA and TRS balanced outputs, the D50 III caters to various audio setups, doubling as a preamp for direct volume control and offering ten-band PEQ adjustment for personalized sound profiles.
  • 『Complete Audio Solution』Pair the D50 III with the A50 III amplifier for an integrated audio experience, featuring a 12V trigger output for device control, ensuring compatibility with desktop speakers, power amplifiers, and more.

Product Description

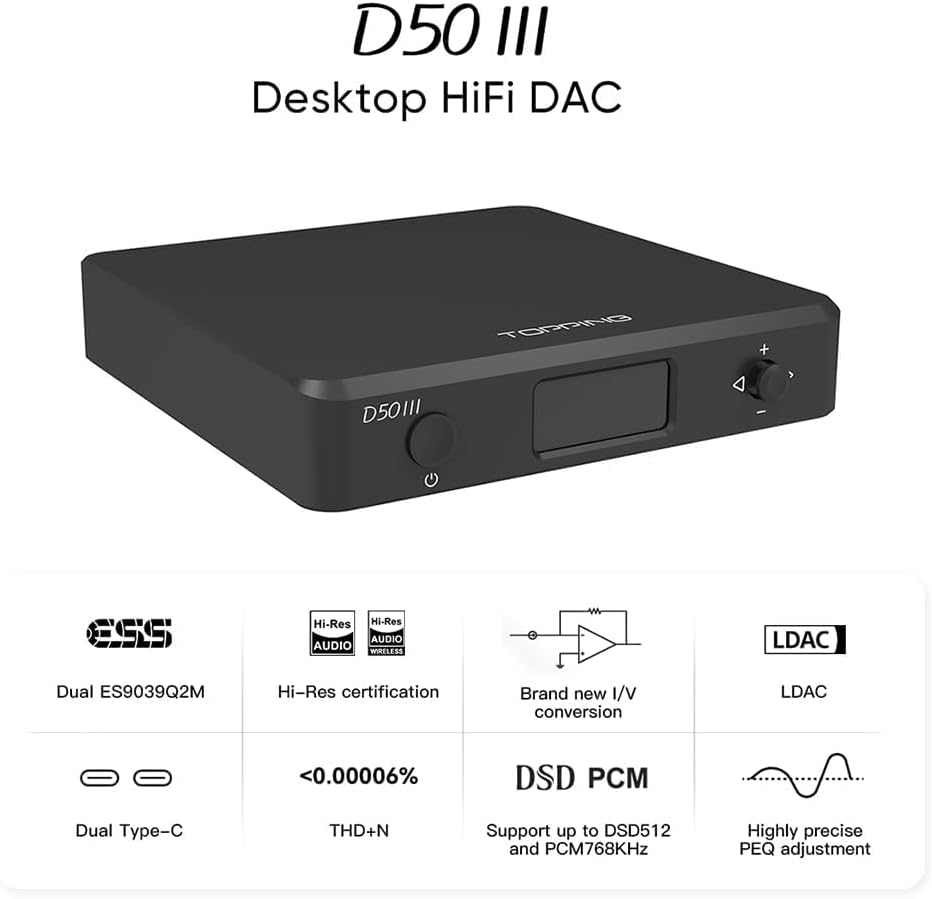

TOPPING D50 III 2*ES9039Q2M DAC, XMOS XU316 USB DAC, Home Audio DAC

TOPPING D50 III

The D50 III now features two ES9039Q2M DAC chips and an XMOS XU-316 USB interface, enabling it to support high-resolution streams up to PCM 32bit 768kHz and DSD512. TOPPING chose to offer the possibility of operating it as a DAC/preamplifier with volume control, coupled with active speakers or a power amplifier. The DAC D50 III's connectivity interface features numerous digital inputs: SPDIF Coaxial, Toslin Optical and USB-C. Outputs include a balanced 6.35mm TRS jack and an RCA output.

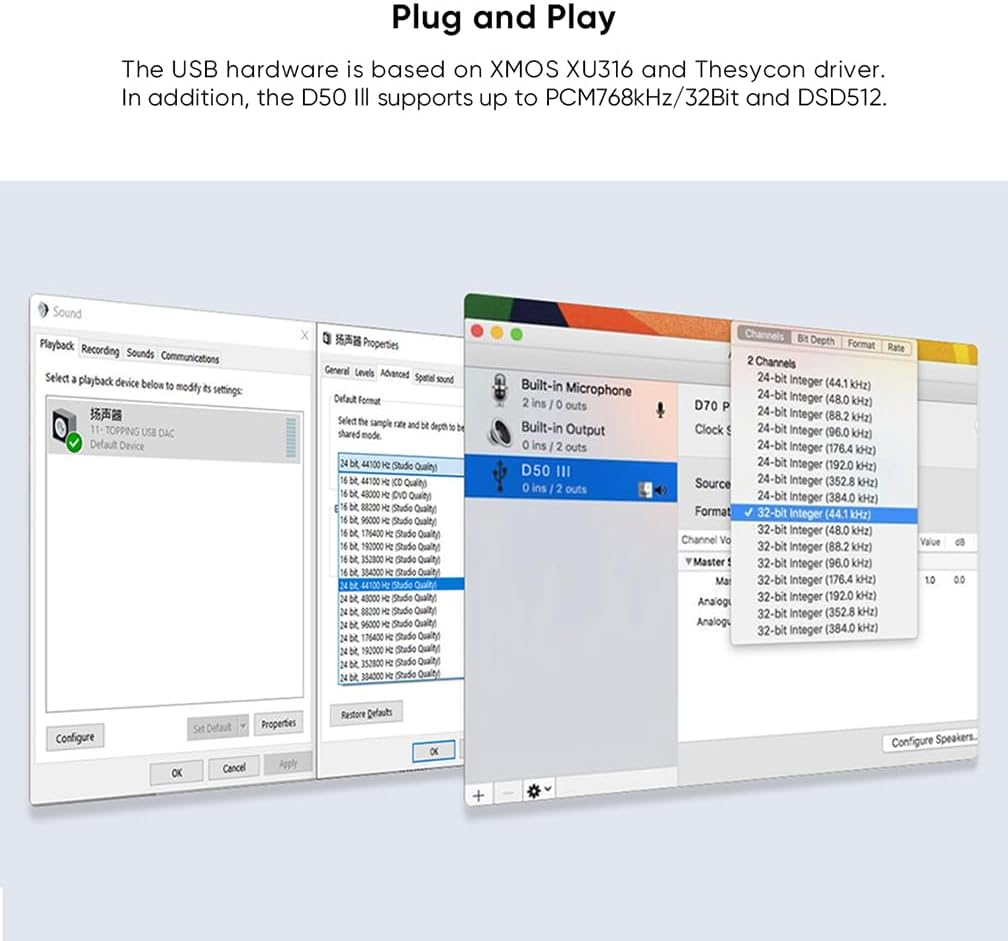

USB-C DAC

TOPPING D50 III's USB-C interface has two ports. A transmission port and a power port. It is recommended to use the additional power port when the D50 III is connected to a laptop or phone.

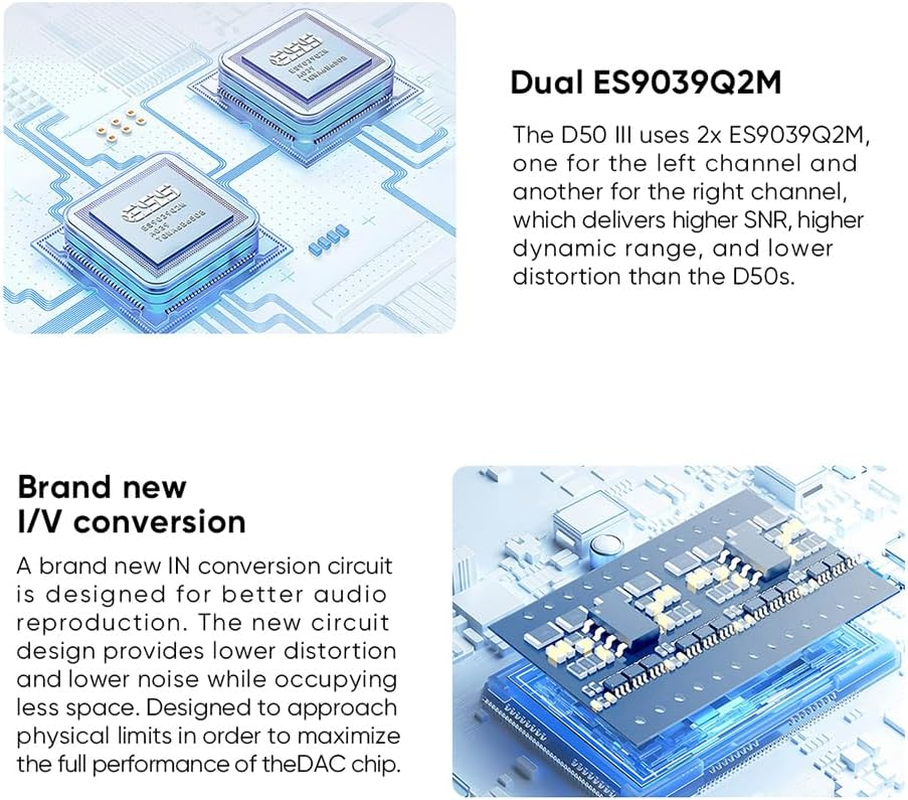

2 ES9039Q2M Chips

The D50 III features one ES9039Q2M DAC chip per channel for balanced signal processing.

10-Band Equalization

A 10-band equalizer offering the possibility of adjusting numerous settings.

I/V Conversion

The new circuit design provides lower distortion and lower noise while occupying less space.

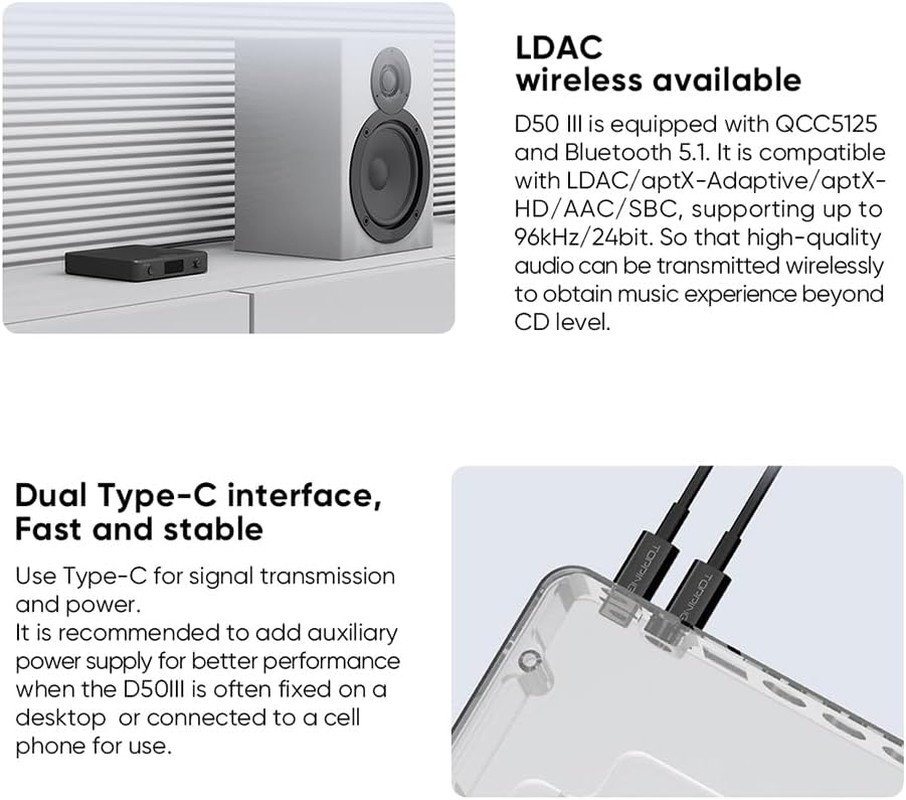

Bluetooth 5.1

A QCC5125 Bluetooth chip enables the D50 III to support the high-resolution codecs SBC, AAC, aptX, aptX Adaptative, aptX HD and LDAC. As a result, you can enjoy high-quality wireless transmission.

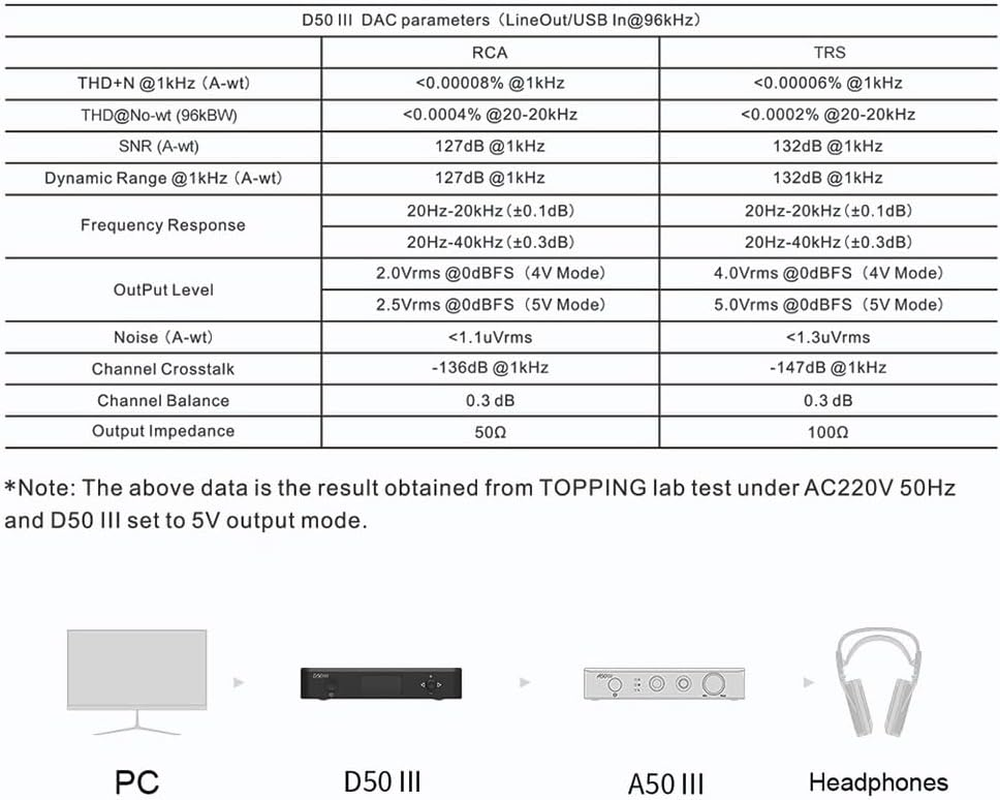

Specification

THD+N @1kHz (A-wt) RCA: <0.00008% @1kHz; TRS: <0.00006% @1kHz
THD @20-20kHz (90kBW) RCA: <0.0004% @20-20kHz; TRS: <0.0002% @20-20kHz
SNR @MAX OUT 1kHz (A-wt) RCA: 127dB @1kHz; TRS: 132dB @1kHz
Dynamic Range @1kHz (A-wt) RCA: 127dB @1kHz; TRS: 132dB @1kHz
Frequency Response 20Hz~20kHz(±0.1dB), 20Hz~40kHz(±0.3dB)
OutPut Level RCA: 2.0Vrms @0dBFS (4V Mode), 2.5Vrms @0dBFS (5V Mode); TRS: 4.0Vrms @0dBFS (4V Mode), 5.0Vrms @0dBFS (5V Mode)
Noise (A-wt) RCA: <1.1uVrms; TRS: <1.3iVrms
Channel Crosstalk RCA: -136dB @1kHz; TRS: -147dB @1kHz
Channel Balance 0.3dB
Output Impedance RCA: 50Ω; TRS: 100Ω
Measured 12.5cm x 13.1cm x2.6cm (Include protruding parts)
Weight 465g

Q1: Can't be turned on.

· Connect DC5V power supply to the POWER port.

· Try with another DC5V power adapter.

· Try with another power cable.

Q2: Abnormal sound (USB IN).

· Check if the PEQ function is ON. [Setup menu - 9.PEQ]

· Check to see if the problem is with the source, downstream equipment and cables.

Q3: One channel with noise/no output.

· Check to see if the problem is with the source, downstream equipment and cables. You can try swapping the left and right channel connections and try with another source.

Q4: Channel imbalance.

· Check to see if the problem is with the source, downstream equipment and cables. You can try swapping the left and right channel connections and try with another source.

Q5: PN ERR / PNH ERR / PNL ERR

· Negative and positive voltage abnormal

· Connect DC5V power supply to the POWER port.

· Try with another DC5V power adapter.

· Disconnect other devices and reboot.

  • Item Model Number: TOPPING D50III Silver
  • Product dimensions: 15 x 2 x 7 cm; 300 Grams
  • Country of origin: China
  • Item Weight: 300 g
  • Colour: Silver
  • Manufacturer: TOPPING
