FEELWORLD FW568 6" Camera Field Video Monitor 4K HDMI Full HD 1920X1080 LCD 16:9 IPS Screen with Swivel Arm for DSLR Rig Sony Canon Nikon Olympus Pentax Panasonic

FEELWORLD FW568 6" Camera Field Video Monitor 4K HDMI Full HD 1920X1080 LCD 16:9 IPS Screen with Swivel Arm for DSLR Rig Sony Canon Nikon Olympus Pentax Panasonic

Brand: Feelworld
4.9
A$283.50 - A$514.50
Availability:
  • Select Styles for Availability

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

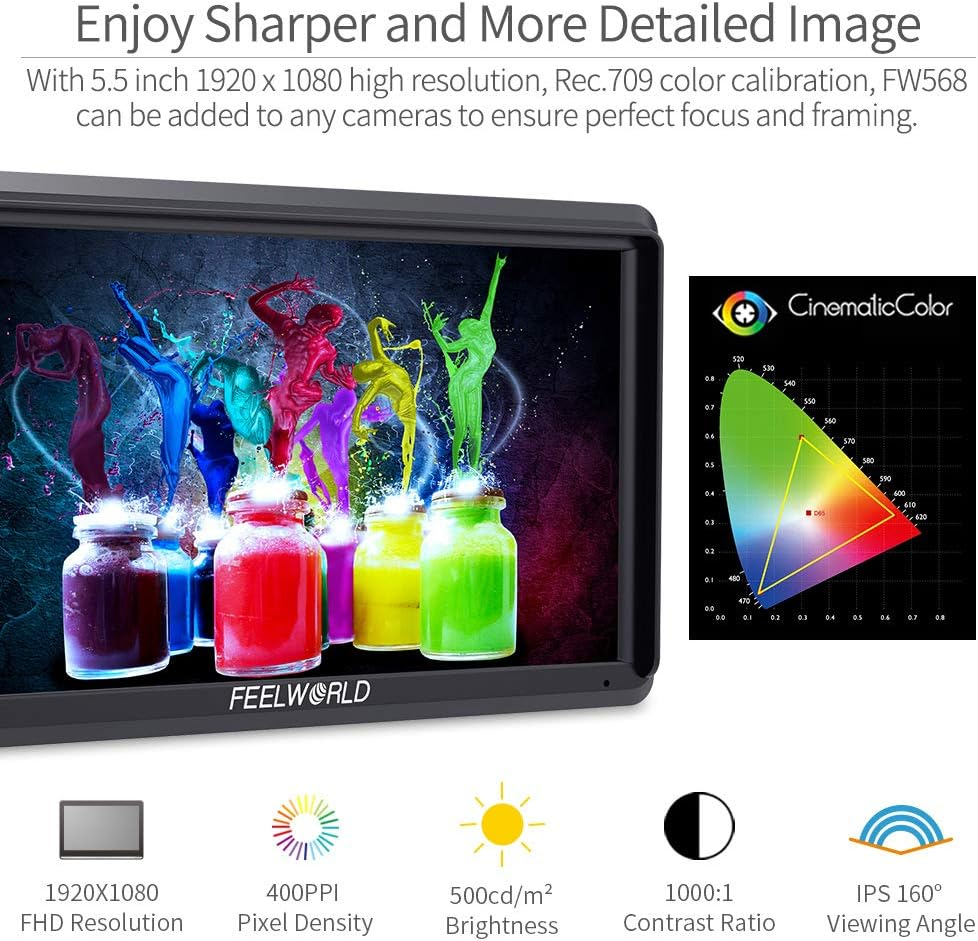

  • ✔ 6" IPS screen,with the wide viewing angle 160° [80°/80°(L/R)80°/80°(U/D)], makes it easy for multiple members of the crew to watch it at the same time. Full HD 1920x1080 high resolution,High brightness nit: 500cd/m2,High Contrast: 1000:1, support 4K HDMI input and output, provide shaper and richer color image and delivers excellent detail.
  • ✔ FW568 features powerful focus and exposure tools that help you get the best shots! Focus peaking indicators can be displayed as red, green or blue overlays that indicate exactly which parts of the image are in focus. The False color tool works by highlighting specific color range of luminance with a solid color overlay make it easy to properly set exposure. Using these two professional tools to make your flim more attractive!

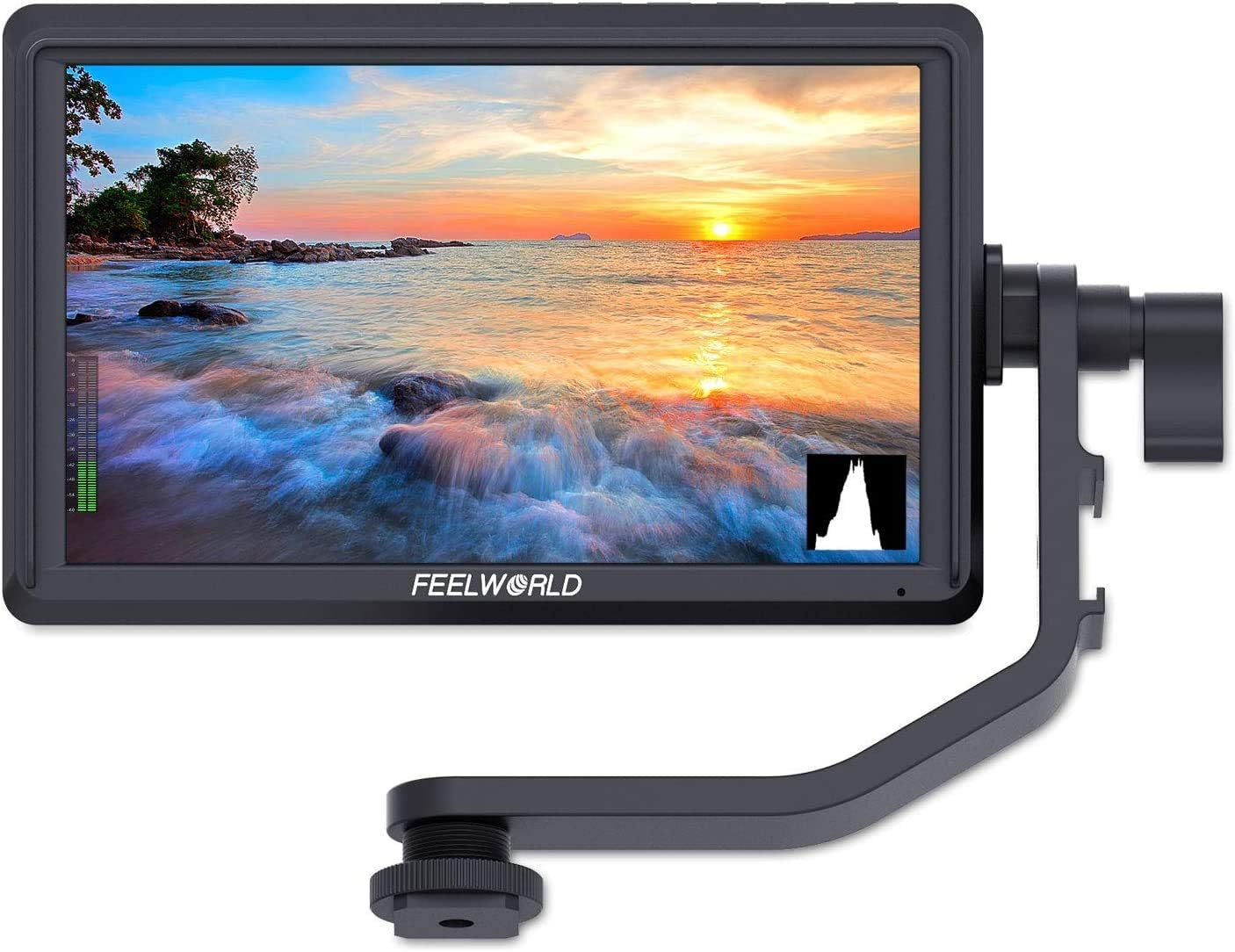

  • ✔ Cold Shoe Mounted Tilt Arm, 360° rotation of Tilt Arm allows run-and-gun shooters to make quick, smooth monitor adjustments. Included an extra shoe mount for accessories like microphones, video lights.
  • ✔ Professional Rec.709 HD color standard, and color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video
  • ✔ Advanced Features: Brightness Histogram * Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus) * False Colors * Zebra Exposure (1-100IRE adjustable) * Check Field (Red, Green, Blue, Mono) * Camera Mode * Anamorphic Mode (1.3x, 2.0x, 2.0x mag) * Image Flip (H, V, H/V) * Image Freeze * Center Marker * Screen Marker (80%,85%,90%,93%,96%, 2.35:1) * Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1) * Color Temperature Adjustment etc

Product Description

Let Your Video Shooting Become Easier

FEELWORLD has been committed to providing comprehensive broadcast monitoring and solutions for professional filmmakers. Whether the upgrade of the excellent display technology from HD to FHD or to UHD 4K resolution, FEELWORLD aims to support the professional creators to obtain the greater benefits and to create more exciting stories, with the most advanced technology to improve production efficiency.

FEELWORLD Monitor is A Must-have Accessory for Your Shooting Setup.

When you’ve put together rigs made up of powerful equipment, you want to be able to see shots that so much work has now gone into getting to that point. No matter the setup, whether it’s a shoulder rig, gimbal, tripod, or handheld, you need a FEELWORLD monitor for all your setups which allow you to see, in perfect definition, make sure your shot in focus and accurate exposure, what you are shooting so that you know that the shot you are working hard to get is truly stellar.

Flexible for Your Creative

As a filmmaker, you need to pay special attention to the visual aspect in order to capture every moment of emotion. For that reason, you can always trust FEELWORLD monitors technology, which allows you to bring your full capacity and creativity taking care of every detail in the most efficient way possible. FEELWORLD monitor helps you to capture those precious moments that you cannot afford to miss.

Easy Multi-angle Monitoring

It’s not easy to evaluate your shot solely through your camera’s built-in monitor, especially if the entire unit is constantly rotating on a gimbal/ stabilizer, the camera on crane rig jib, One of the biggest issues when you are doing low-angle/ high angle shot is monitoring what you’re shooting. FEELWORLD monitor is an ideal tool for you to monitor the scene since you can install it where you can conveniently see it.

No Only Display, Make Sure Your Shot in Focus and Accurate Exposure

FEELWORLD monitor integrated directly help to make footage analysis/ adjustment, especially on focus/ exposure while some cameras can`t transfer their features like Histogram to monitor.

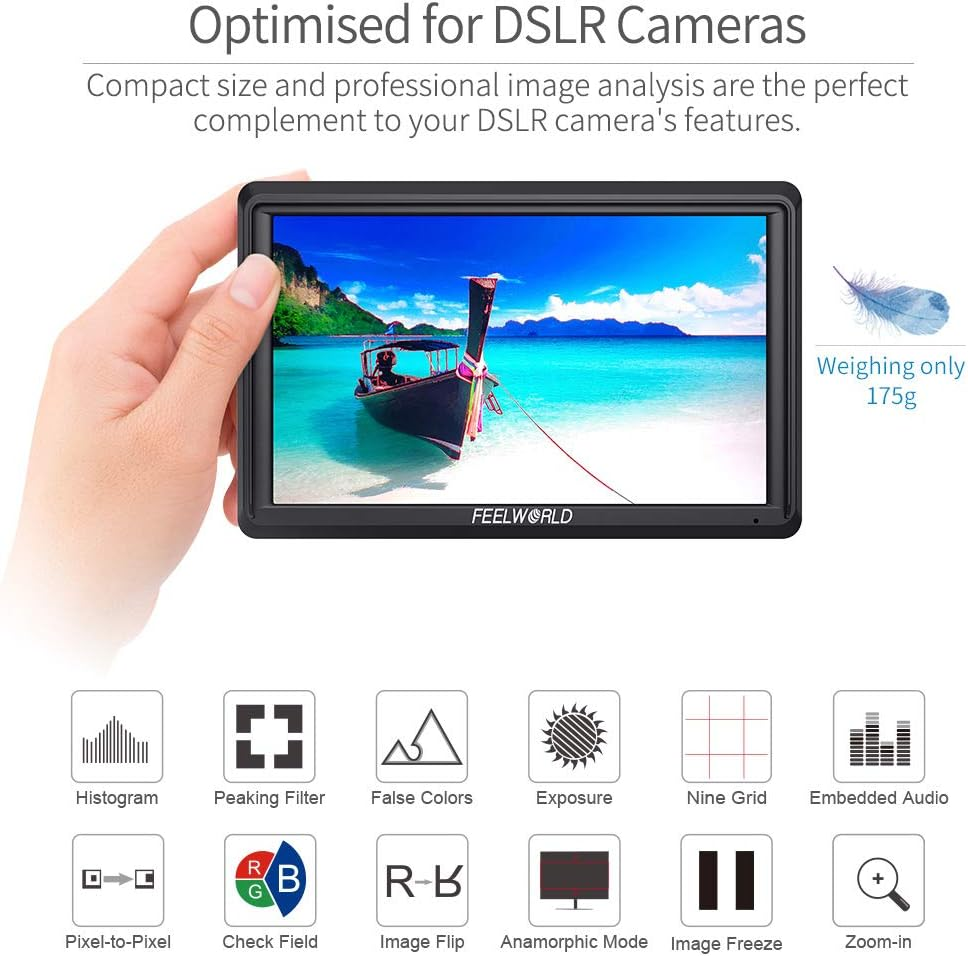

Integrated with: Histogram, Peaking Focus Assist, False Colors, Zebra Exposure, Nine Grid, Scan Mode, Zoom, Anamorphic Mode, Pixel to Pixel, Center Marker, Safe Area, Ratio marker, Marker

Color, Check Field, Image Flip, Image Freeze, Zoom All, U/D & L/R Zoom, Color Temperature Adjustment.

Accurately expose and focus every shot.

  1. Histogram
  2. Peaking Focus Assist (Red,Green,Blue three colors optional highlight over parts of the image in focus)
  3. False Colors
  4. Zebra Exposure
  5. Nine Grid
  6. Scan Mode (Under Scan, Over Scan)
  7. Zoom (4x,9x,16x)
  8. Anamorphic Mode (1.3x,2.0x,2.0x mag)
  9. Pixel to Pixel
  10. Center Marke, Safe Area (80%,85%,90%,93%,96%,2.35:1)
  11. Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
  12. Marker Color (Red,Green,Blue,White,Black）
  13. Check Field (Red/Green/Blue/Mono)
  14. Image Flip (H, V, H/V), Image Freeze, Zoom All U/D & L/R Zoom

False Color / Exposure

  • False Color

The False Color filter is used to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external test equipment.

  • Exposure (zebras) The Exposure is used to assist in exposure adjustment in the mode of Zebra Pattern. It is considered overexposed and displays the moving warning lines onto the over exposed areas. 1-100IRE adjustable.

Peaking Focus Assist

The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. You can switch the putline color between red, green, blue according to different tone of the subject.

Professional Color Calibration

FEELWORLD uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video.

Accurate Color Reproduction

FEELWORLD monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals.

Flexible Install Both on Camera and Gimbal

FW568 equipped with one removeable 1/4 screw, you can install at button and side.

Not only you can install it on a handheld stabilizer, but also you can mount itsecurely attach it to the top of your camera as the ultimate HD viewfinder! If you install it on the bottom of the device, you can also combine the image flip function to maintain the correct orientation of the screen!

HDMI Output Application

Connect to Wireless Transmitter, transmission to film crew director monitoring at the same time. Without the cable more flexible to transition between scenes effortlessly for outdoor shooting.

More Detail about FW568

Display Spec.

  1. Screen Size: 5.5" IPS
  2. Resolution: 1920x1080 pixels
  3. Pixel Pitch: 0.0639 (H) x 0.0213 (W) mm
  4. Aspect Ratio: 16:9
  5. Brightness: 500cd/m²
  6. Contrast Ratio: 1000:1
  7. Backlight: LED
  8. Viewing Angle: 80°/80°(L/R) 80°/80°(U/D)

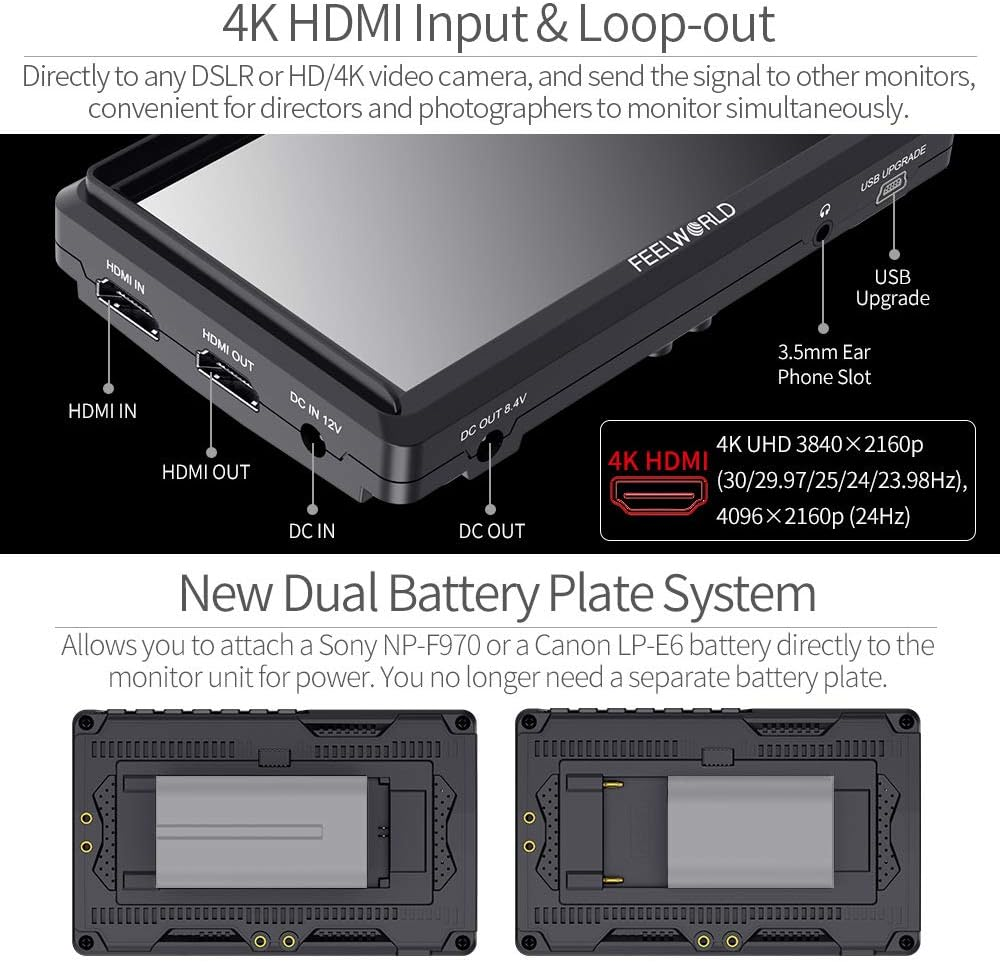

Input/ Output

  1. Input: 1 X 4K HDMI

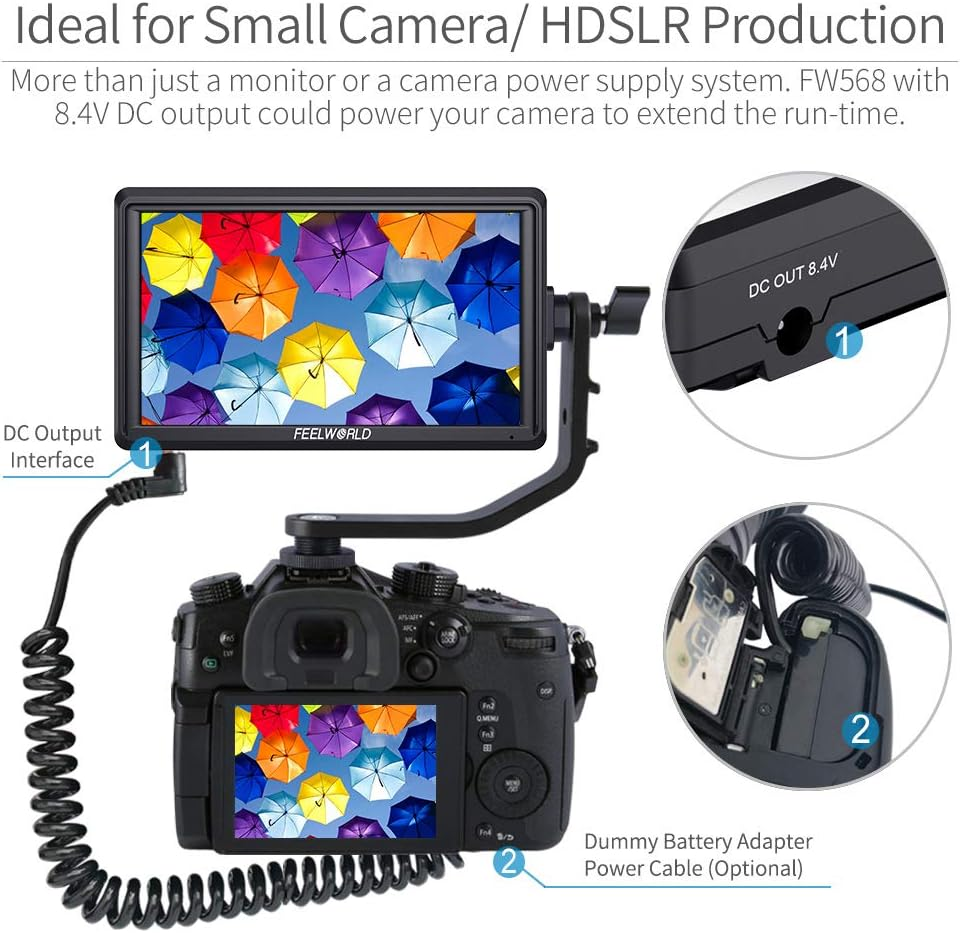

  2. Output: 1 X 4K HDMI, DC Output
  3. Audio: Stereo Headphone

HDMI Input/ Output Support Format:

  • 480i/576i/480p/576p
  • 1080i (60/59.94/50)
  • 720p(60/59.94/50/30/29/25/24/23.98)
  • 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
  • 4K UHD 3840×2160p(30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)

General

  • Input Voltage: DC7～24V
  • Power Consumption: ≤8W
  • Power Connector: DC
  • Working Temperature: -20°C~55°C
  • Storage Temperature: -30°C~65°C
  • Install Way: One removable ¼-20 thread points
  • Unit Size: 142Lx87.2Hx27.5D (mm)
  • Unit Weight: 175g

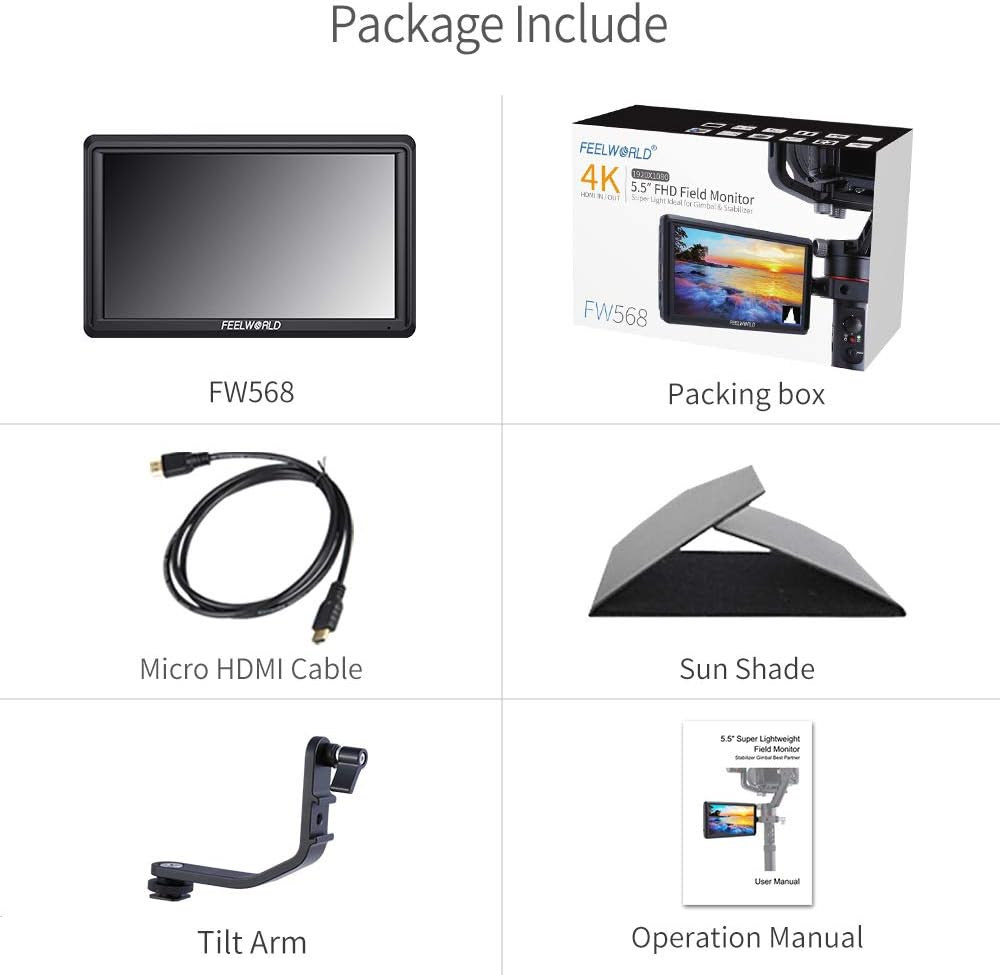

Package Include

  • 1 x FW568 Monitor
  • 1× Micro HDMI Cable
  • 1× Sunshade
  • 1× Tilt Arm
  • 1× Manual
  • Item Weight: 560 g
  • Item Model Number: AU-FW568
  • Product dimensions: 18.8 x 12.95 x 8.64 cm; 560 Grams
  • Manufacturer: Feelworld
  • Size Name: 5.5" (FW568-1920X1080-with Swivel Arm)
