Splitter

Philips Hue is great, but it only allows for a single, continuous lightstrip run. Litcessory products allow for several! This splitter, specifically designed for the Philips Hue Lightstrip system, allows for a single run of lightstrips to be split into two or more runs. This product is flexible and flat, allowing it to be inconspicuous - perfect for designing your ideal lighting setup!

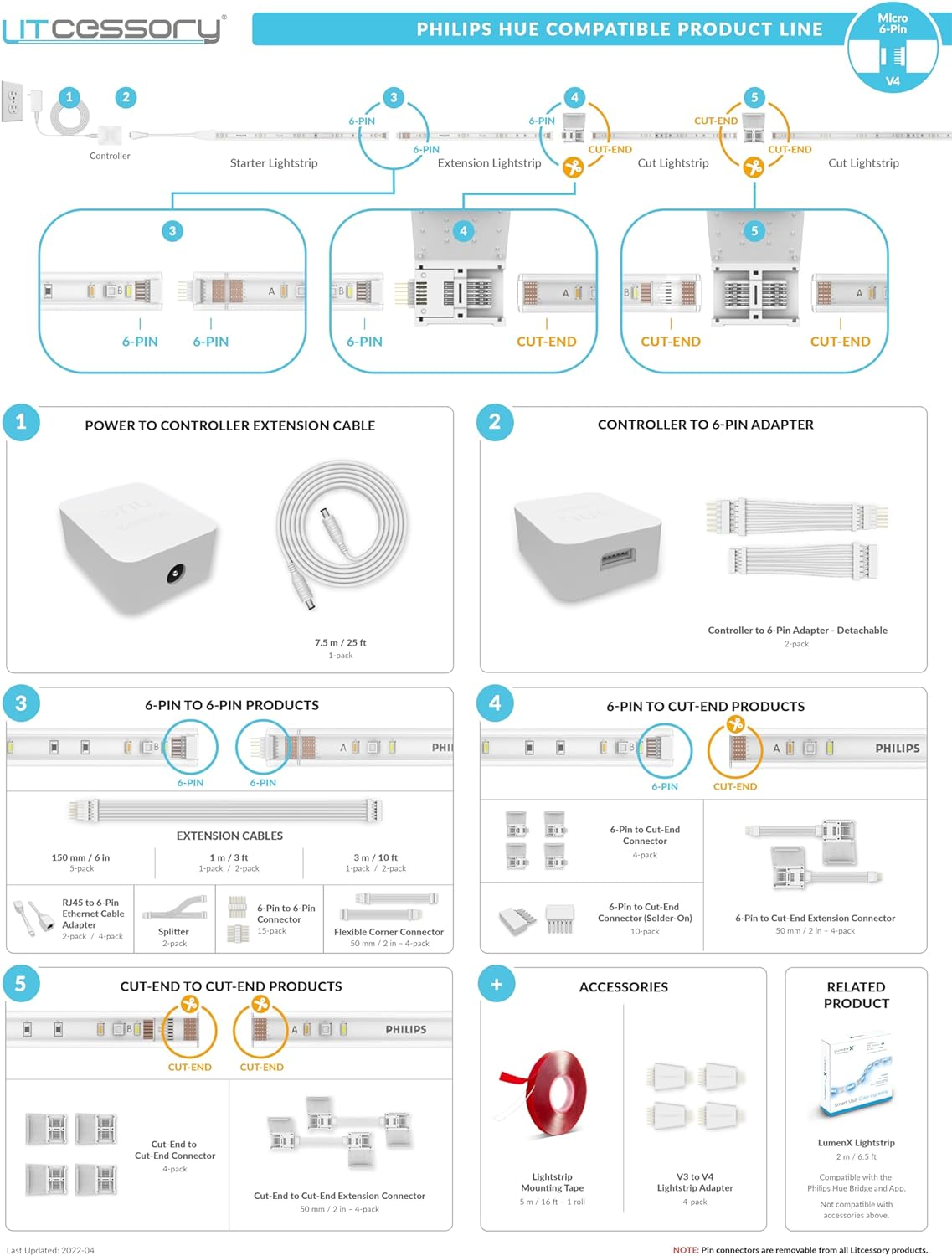

NOTE: If you want to connect this product directly to the Philips Lightstrip Plus Controller, you MUST use the Litcessory “Controller to 6-Pin Adapter" to do so. If you want to connect to a cut lightstrip, you must use one of our 6-pin to Cut-End products. Please see our product line chart below for more info.

This splitter is great for...

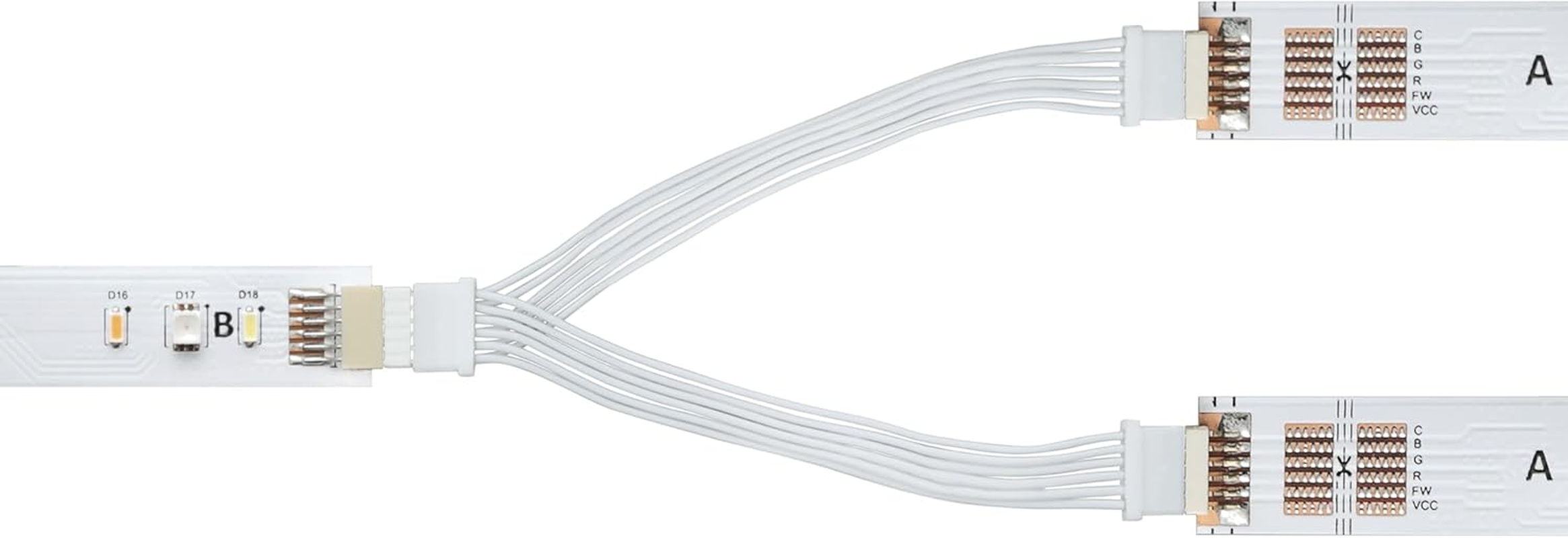

• Splitting a lightstrip run into two or more separate runs

Important things to keep in mind...

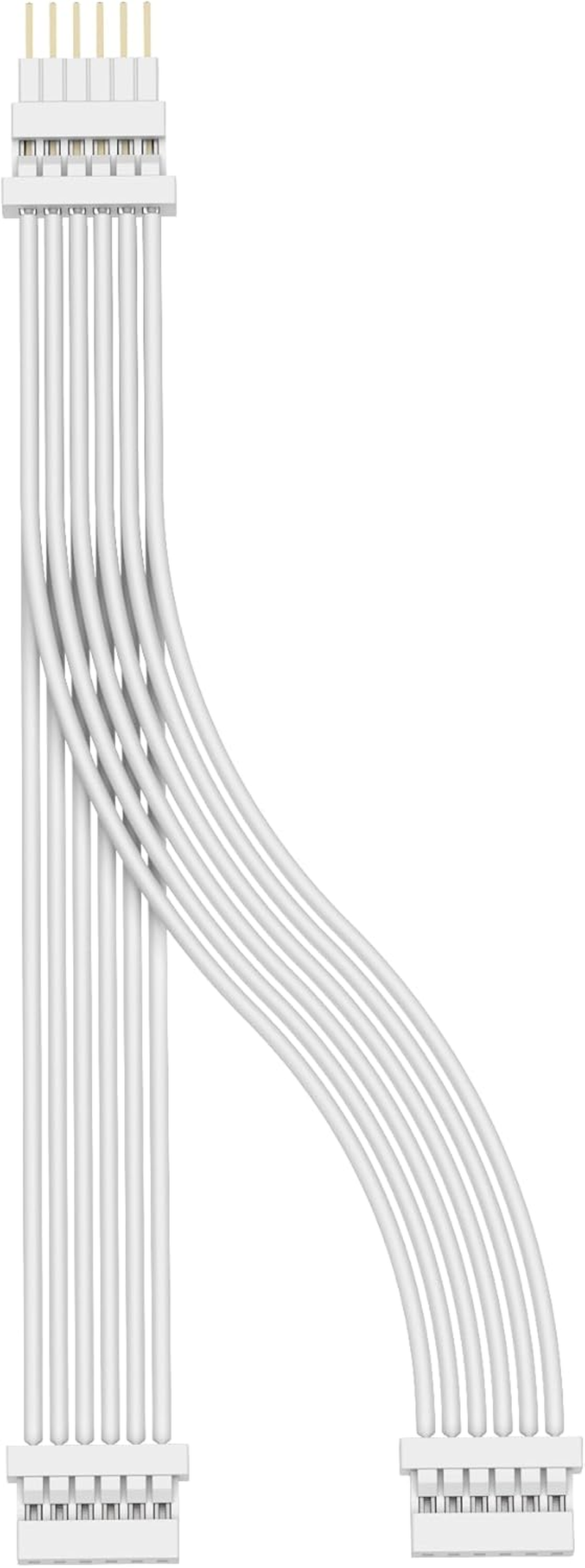

• Each splitter has a single male 6-pin to double female 6-pin.
• Male ends are removable, converting them to female.
• Supports lightstrip runs up to 33 feet/10 meters (lightstrips and extension cables combined).
• Cable is UL Listed.
• Made for Indoor Dry Locations Only.

Frequently Asked Questions:

Will Litcessory products cause my lightstrip to be dimmer?

• No, Litcessory products do not affect the brightness of the lights, as long as your total lightstrip run length (lightstrips plus any Litcessory product length) stays within 10 meters, your lights will be just as bright!

What is reverse polarity, and how do I fix it?

• Reverse polarity happens when you plug in the wrong side of a 6-pin connector. The flow of electricity gets reversed, and the lightstrip won’t turn on. This is a common occurrence when setting up your project and it is easily fixed.

Is the total recommended length of the lightstrip (10 meters) affected by the extension cable and/or an ethernet cable? Is it 10 meters plus the length of the ethernet cable?

• We recommend keeping your total lightstrip run under 10 meters. This includes the total length of your lightstrips and any Litcessory products and ethernet cables. Some customers have reported success going over this limit, however we have not tested this.

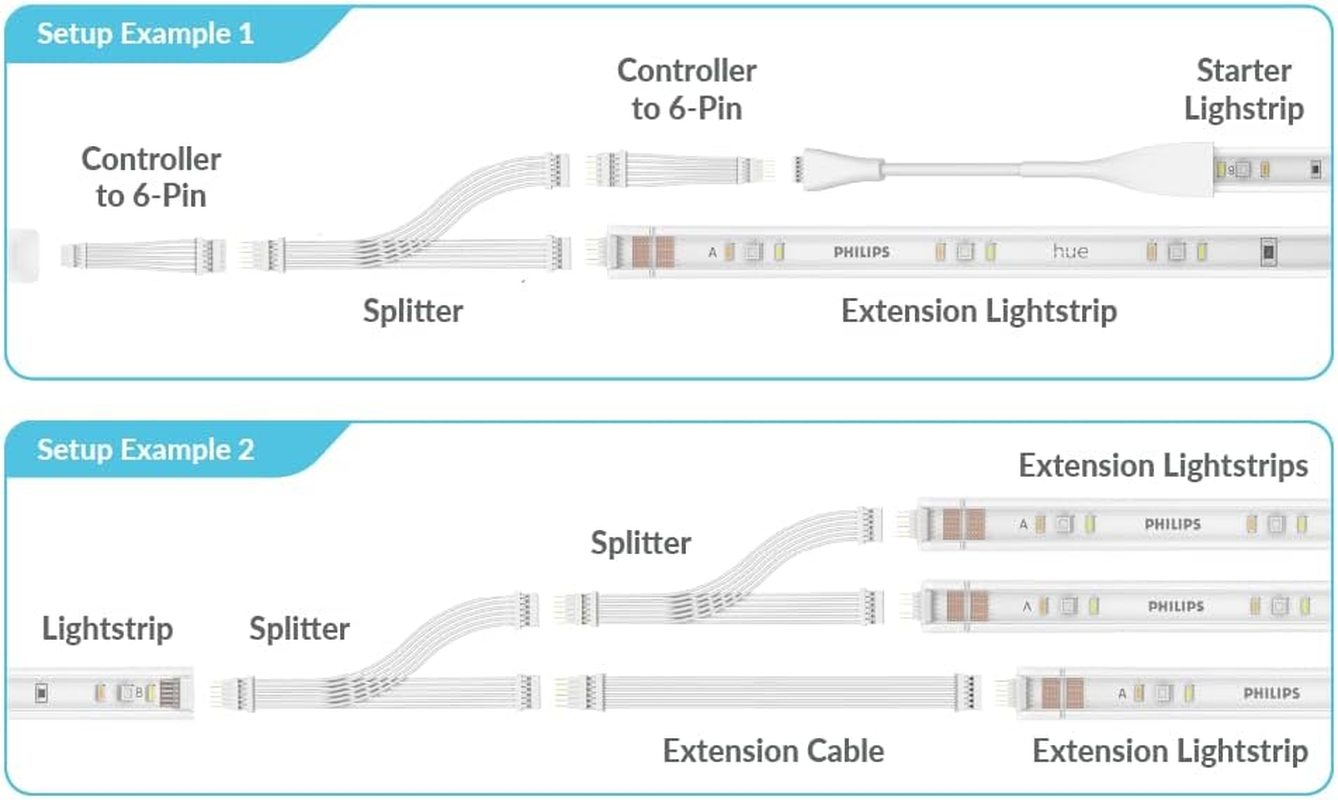

How many times can I split? I want to connect 3+ extensions using splitters, will that work?

• Yes, you will need to connect an additional splitter to the splitter to create the number of connections you need.

Can I split cut ends?

• Yes, you can do that by using first converting your cut-end into a 6-pin end by using our Cut-End to 6-Pin Extension or our Cut-End to 6-Pin Adapter and adding our extension cable to it.
