DC 12V Timer Switch Module - Adjustable Delay Turn off Timing Relay for Operating Equipment (0-120 Minutes)

DC 12V Timer Switch Module - Adjustable Delay Turn off Timing Relay for Operating Equipment (0-120 Minutes)

Brand: Tiiyee
3.7
A$13.15 - A$13.90
Availability:
  • Select Styles for Availability

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • [Delay Relay]: Turn on the power of the module, press the button once, and the relay is connected (normally open and common terminal is on), and the delay is 1 to 10 and 12v dc timer can be turned off.
  • [Widely Used]: Timer module widely used on timer operating equipment, robots, intelligent product development, automation equipment, PLC development, smart home anti-theft alarm delay, electronic development, etc.
  • [Operation of DC 12V Timer Module]: Turn on the power, then press the trigger switch to turn on the load, and turn off the load after the delay time; the time range is 1 second to 10 seconds, which can be adjusted by the potentiometer. If you need longer time, simply replace a larger capacitor or potentiometer.
  • [Protection Function]: Off delay timer supports reverse input protection, timer relay module with a trigger button switch, adjustable time, and versatile.
  • [Trigger the Delay Module]: After supplying power to the module, the power indicator will light up, and the status of the module output terminal is: normally open and public disconnection, normally closed and public conduction.

Features:
1, It is a timer relay module with high precision, stable and reliable performance.

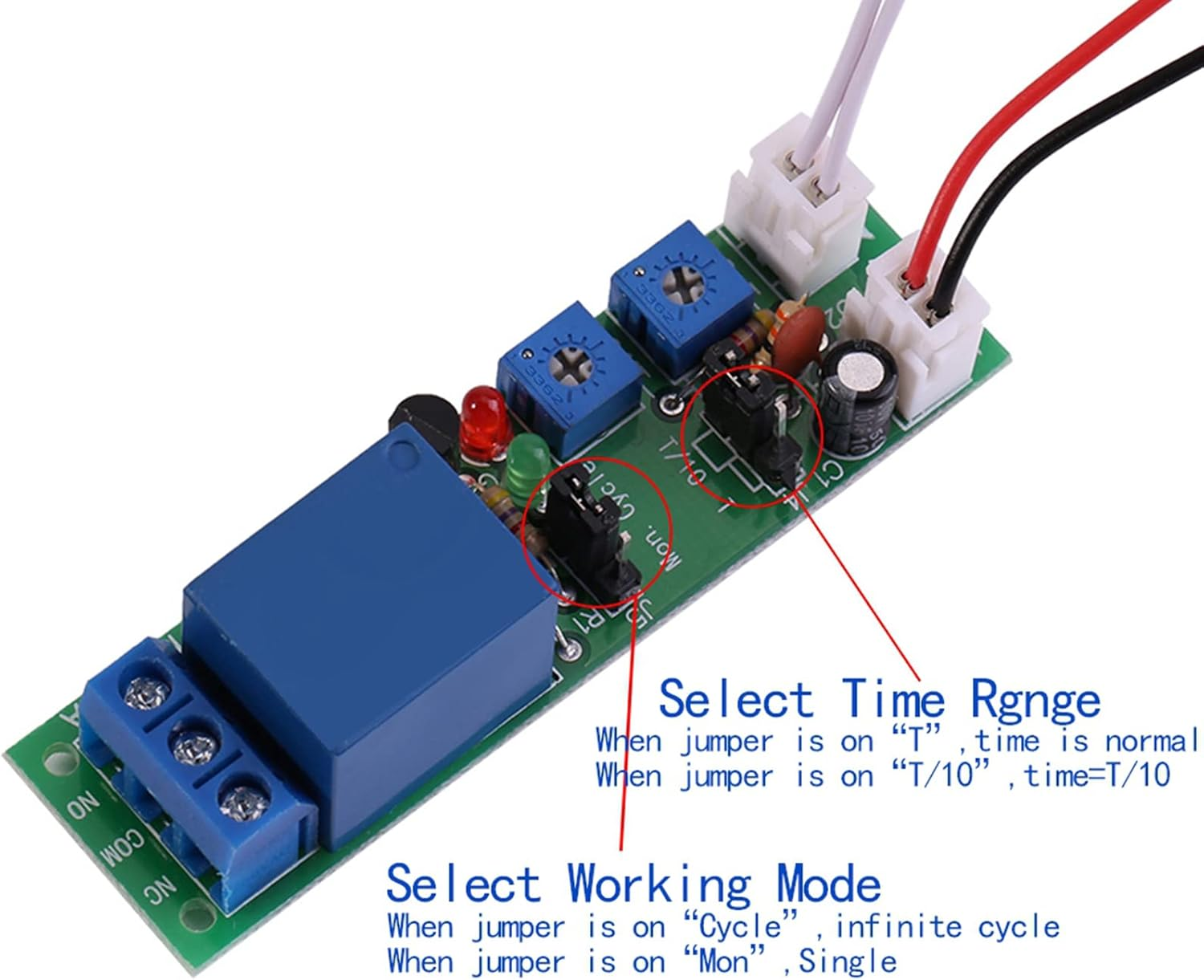

2, Support 2 modes, mon mode(once) and cycle mode, and you can simply switch mode by adjusting the jumper.

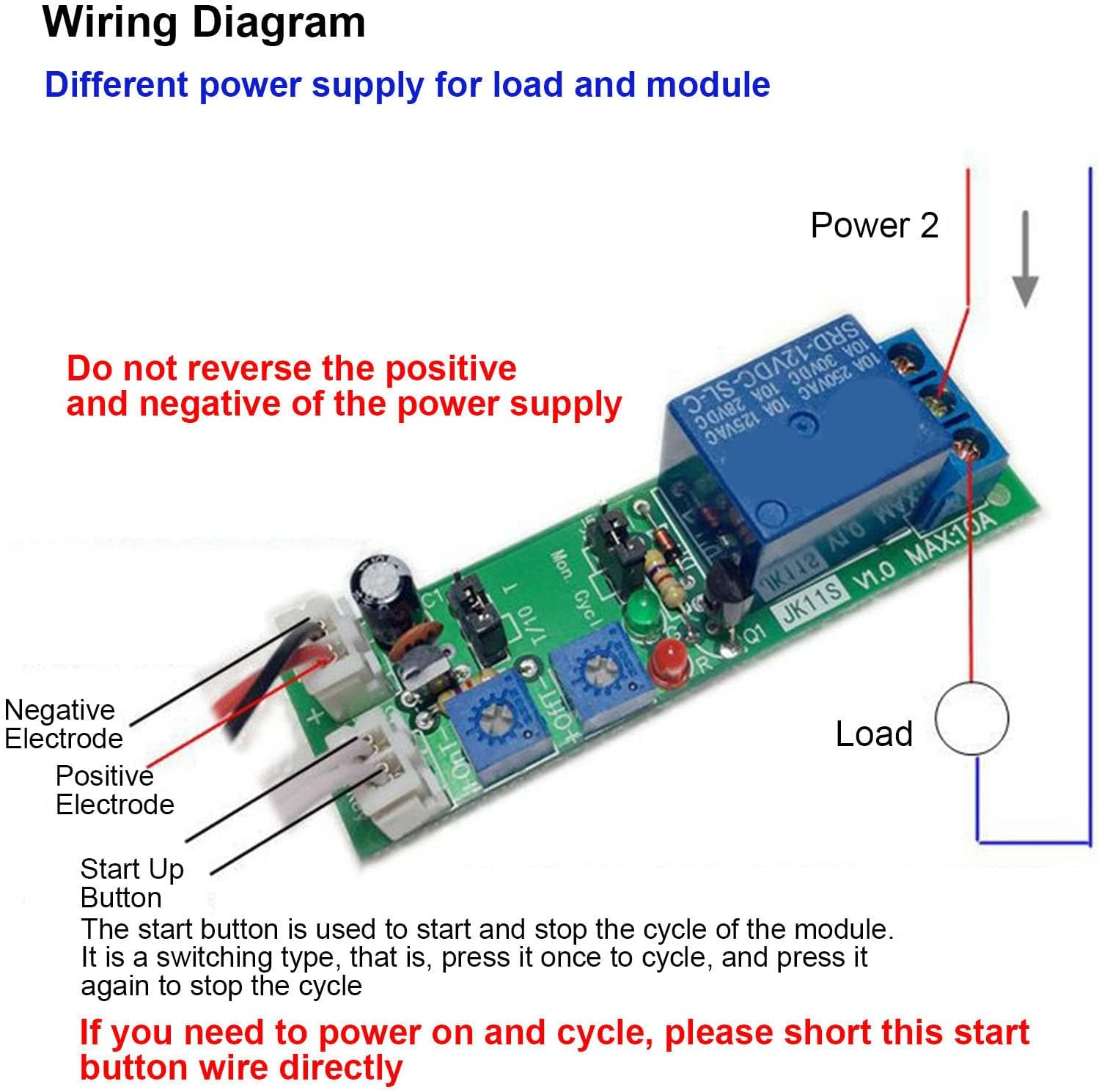

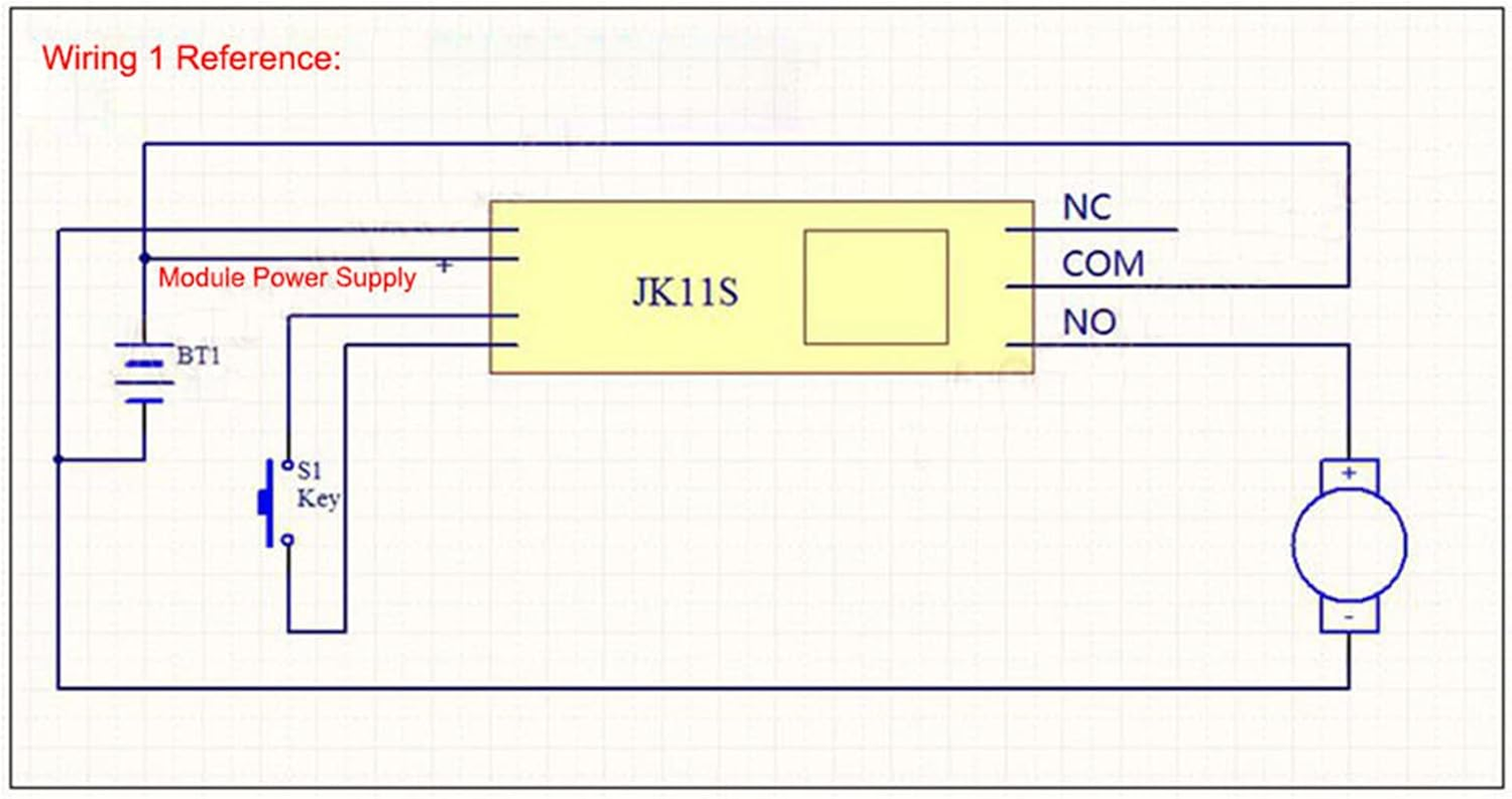

3, Connect 2 wires of "Key" if you need module to work recurrently after power on.

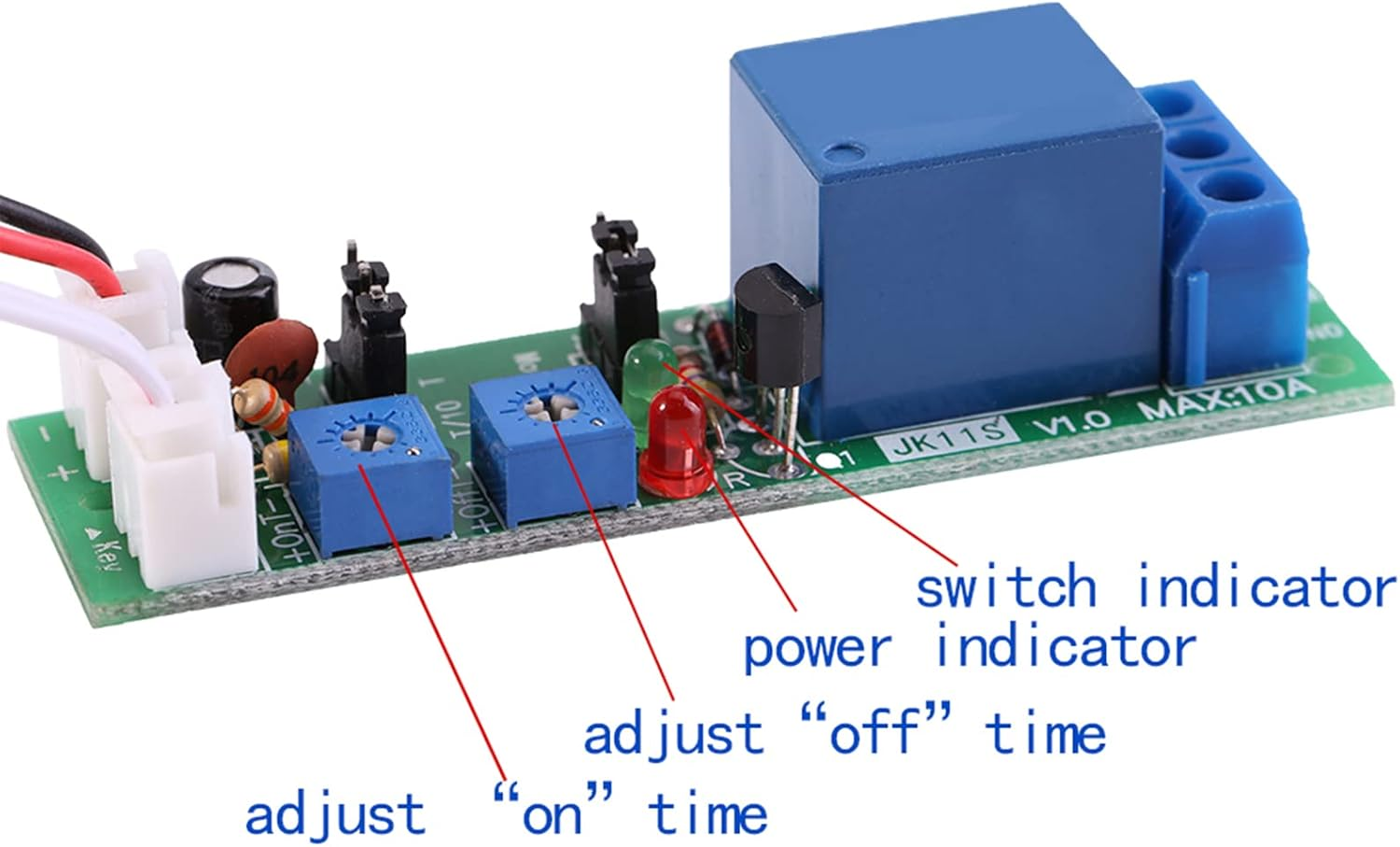

4, There are many voltage and time range for your choice, both "on" time and "off" time are adjustable.
5, Widely used on timer operating equipment, machine repetitive test circuit, fish tank intermittent pump, etc.
Specifications:
Type: DC5V,0-30min/DC5V,0-24hr/DC12V,0-120min/DC12V,0-24hr/DC24V,0-15min/DC24V,0-30min (Optional)
Quiescent Current: <10mA
Dynamic Current: 45mA@12V; 90mA@5V; 30mA@24V
Contact: 1 group NO+NC
Load Capacity: 10A(AC0-250V, DC0-30V）
Size: 70*20*18mm / 2.75*0.78*0.7"
Time Accuracy: Max value*0.001
Package Includes:
1 x Timer Relay Module

  • Manufacturer reference: Tiiyee9uinzoewd1-03
  • Brand: Tiiyee
  • Manufacturer Part Number: Tiiyee9uinzoewd1-03
  • Item Weight: 20 g
  • Lift Type: Automatic
  • Manufacturer: Tiiyee
  • Product dimensions: 12 x 6 x 2 cm; 20 Grams
  • Size: DC12V 0-120min
