[Designed for Household Applications] - for home use, featuring a 35mm din rail mount.
[Superior Insulation Material] - Enhanced security during operation with high quality insulation material.

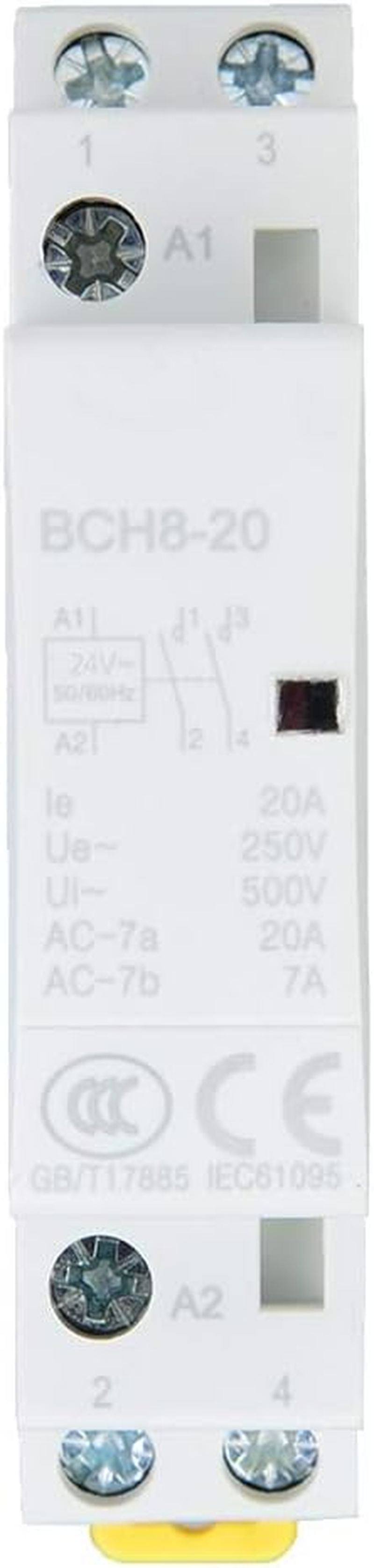

[Clear Wiring Diagram] - The surface of the contactor features a printed wiring diagram for guidance.
[Compact Modular Design] - Easy mounting and installation for convenience.
[No Noise, No Spark] - Enjoy smooth and quiet operation without any noise or electric spark.
Spec:
Features:
Designed for household applications, 35mm DIN rail mount.
Adopt superior insulation material to enhance the operation security to a great extent.
Compact modularization design, easy to mount.
A wiring diagram is printed on the surface of the contactor.
No noise and electric spark during operation.
Specification:
Rated Control Supply Voltage (Us): AC 24V, AC /(Optional)
Rated Current: 20A(AC-7a), 7A(AC-7b)
Conventional Thermal Current (lth): 25A
Rated Insulation Voltage (Ui): 500VAC
Rated Working Voltage (Ue): 250VAC
Number of Poles: 2P(2NO)
Maximum Number of Switching Operations: 30times/hour
Electrical Life: 100,000 times
Mechanical Life: 1,000,000 times
Package Weight: Approx. 128g
Rated Duty:
1) 8-hour duty
This is the basic duty, and conventional heating current Ith of the contactor is determined by this working system.
2) Intermittent periodic duty
The rated operating frequency of the contactor under this duty is 30 times/h, and the load factor is 40%.
Action(Operation) Condition:
When the ambient temperature is in the range of -5°C to +60C, apply the rated control power supply voltage Us to the contactor sucking coil to make it heat up to a steady state, Then the contactor should be reliably closed under any voltage of (85% ~ 110%) Us. Its release voltage is (20%~75%) Us.
