SHNITPWR 108W Universal Power Supply Adjustable DC 3.5V~36V 3A AC/DC Adapter 12V 24V 36V 5V 6V 9V 14V AC Adapter Multi-Voltage 100V~240V AC to DC Variable Power Converter DC Power Adapter with 14 Tips

SHNITPWR 108W Universal Power Supply Adjustable DC 3.5V~36V 3A AC/DC Adapter 12V 24V 36V 5V 6V 9V 14V AC Adapter Multi-Voltage 100V~240V AC to DC Variable Power Converter DC Power Adapter with 14 Tips

Brand: SHNITPWR
5.0
A$68.80
Availability:
  • Select Styles for Availability

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • .~ : We have upgraded the voltage adjustment range to 3.5V~36V, while similar products on the market are only 3.5V~24V or 9V~36V. The scope of application will be greatly expanded. You only need to spend the money of one power supply, but get at least the value of one hundred power supplies.

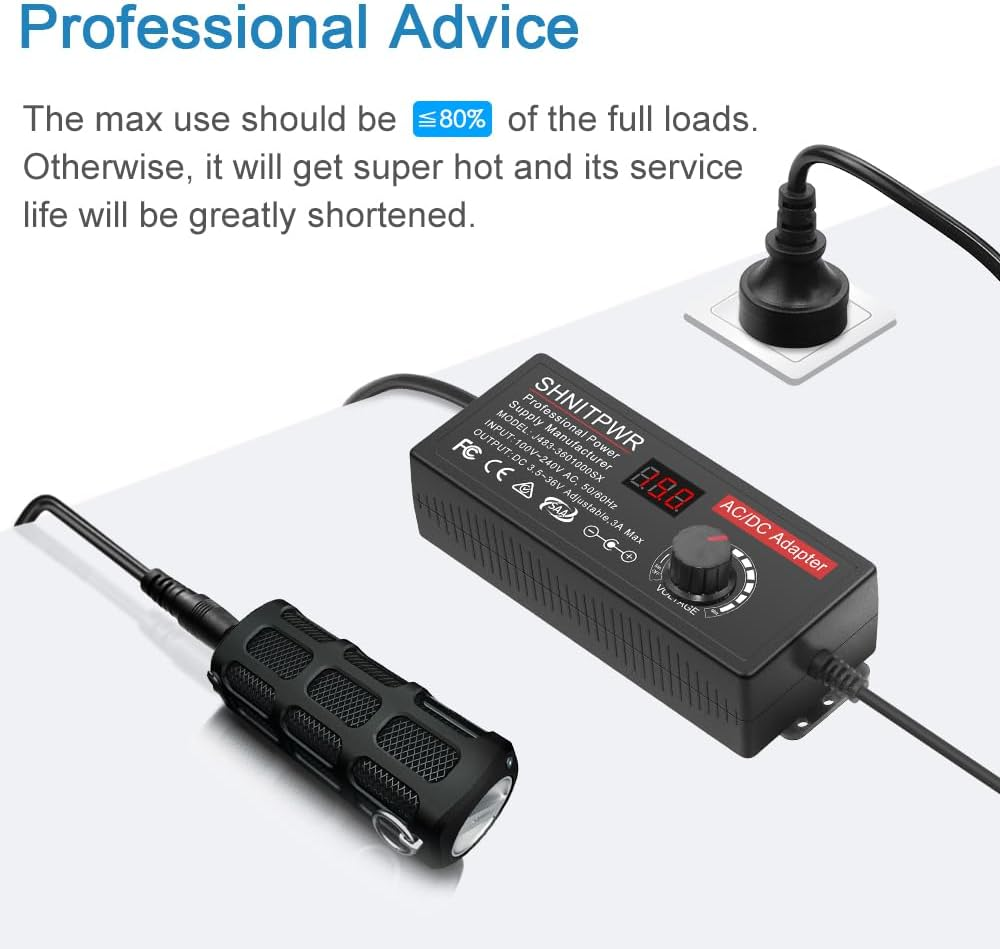

  • ：Input: AC 100V~240V, 50/60Hz; Output:DC 3.5~36V Adjustable, Max 3A 108W; It can supply with any voltage between 3.5~36V,like 3.5V 4V 5V 6V 9V 12V 14V 15V 19V 20V 24V 36V and any amp less than 3A,like 300mA, 500mA,1A, 1.5A, 2A, 2.5A, 3A.We recommend using 80% of the full load.
  • : Based on hundreds of users feedback, we have made the following improvements: 1.The knob can be adjusted more evenly,it can reach 16V ~ 18V by rotating 50%. 2.Add a polarity converter cable, which make it compatible with more devices，doubles its range of application.

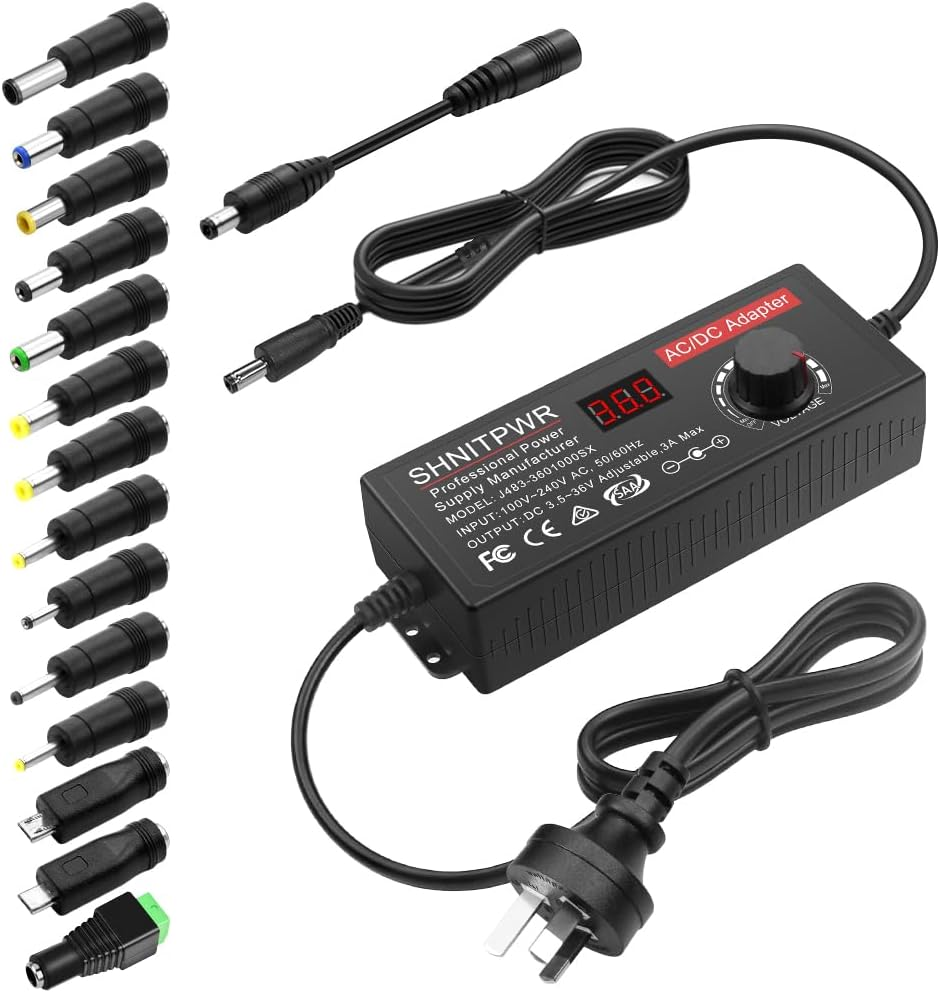

  • : It comes with an original 5.5x2.5mm tip and 14pcs frequently used tips: 6.5x4.4mm+Pin, 5.5x2.1mm, 5.5x3.0mm+Pin, 5.0x2.5mm, 6.3x3.0mm, 5.5x1.7mm, 4.8x1.7mm, 4.0x1.7mm, 3.5x1.35mm, 3.0x1.1mm, 2.5x0.7mm, Micro-USB, Type-C, DC terminal connector.Suitable for almost all common electronic devices.
  • : Certified by FCC CE ROHS.Built-in multiple safety protection systems.Automatic over-voltage cut-off,over-current cut-off,over temperature cut-off,short circuit cut-off, No fire hazard. The pure copper power cord ensures low resistance and optimal power transmission.

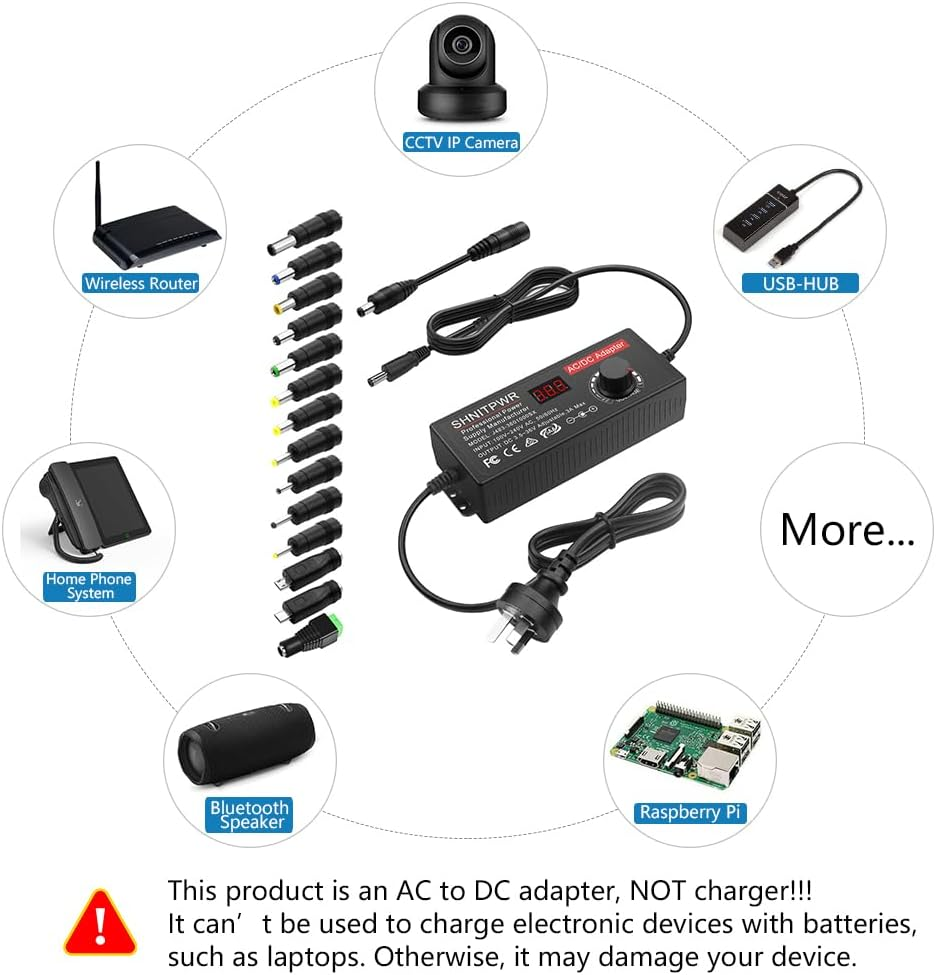

  • : It is perfect for many 3.5~36V small household electronics such as LED strip light, TV Box,wireless routers, Wifi camera, CCTV Security Systems, LCD Monitor etc. For indoor use only. 12 hours response,30 days money back guarantee.If you have any issue, please contact us anytime.

Product Description

Parameter

  • Input: AC 100V~240V 50/60Hz

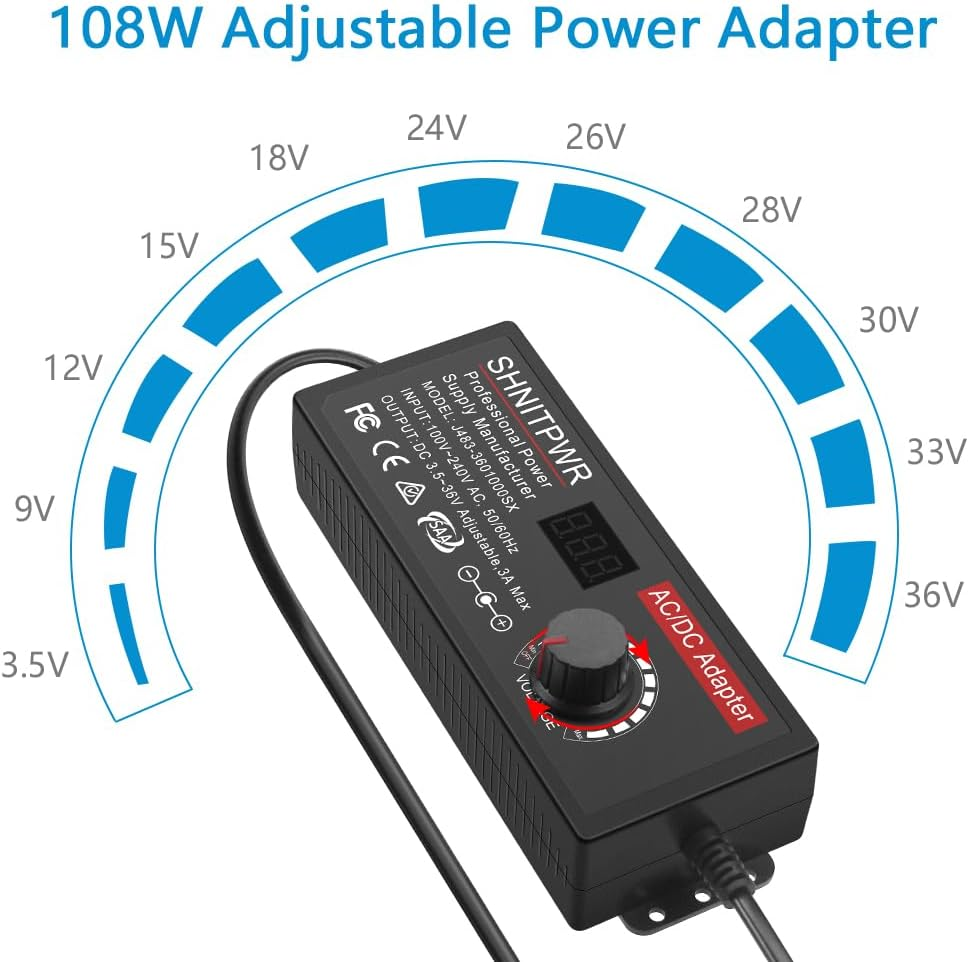

  • Output Voltage: DC 3.5V~36V Adjustable
  • Output Current: Max 3A
  • Output Wattage:Max 108W

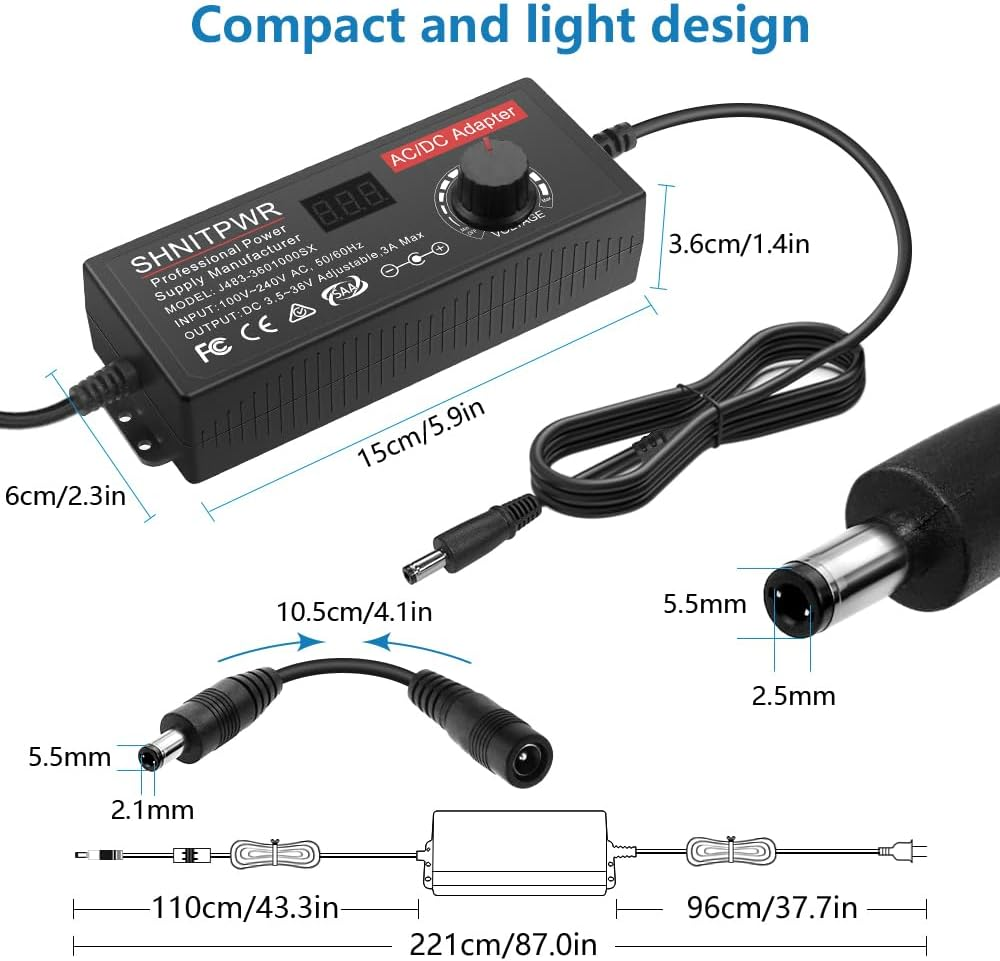

  • Output DC connector:5.5mm x 2.5mm (inside"+", outside"-")
  • 14 Tips Size: 6.5x4.4mm+Pin, 5.5x2.1mm, 5.5x3.0mm+Pin, 5.0x2.5mm, 6.3x3.0mm, 5.5x1.7mm, 4.8x1.7mm, 4.0x1.7mm, 3.5x1.35mm,3.0x1.1mm, 2.5x0.7mm, Micro-USB, Type-C and DC terminal connector.
  • Reverse polarity converter: 5.5mm x 2.1mm
  • Power cable length: 7.7ft / 236cm
  • Safety Compliance: FCC / CE/ RoHS /CCC
  • Working Temperature: 0~40℃
  • Ambient Humidity: 5~95% Non-Condensation
  • Weight: 0.886lb / 402g

Package include

  • 1x 108W Universal Power Supply Adapter; 14x DC Tips; 1x Reverse polarity converter cable

Latest upgraded version of adjustable power supply！

Based on hundreds of users feedback, we have made the following improvements:

  1. The knob can be adjusted more evenly, and it can reach 16V ~ 18V by rotating 50%.
  2. Increase the off gear to turn off the power without pulling the plug.
  3. Add a polarity converter cable, which make it compatible with more devices.
  4. Correct knob label, "Min" being 3.5 volts and 36 volts being "Max”.

Kindly note:

  • Some user complained that voltage will change slightly without adjusting it.
  • In fact, this is normal when your device is working.
  • Besides, ambient temperature, magnetic field, signal noise will also affect output voltage.
  • But the change is slight and acceptable. It will not damage most of the electronics.

Caution:

  • The 4cm short black power cord is a reverse polarity converter, not extension wire. It is used to reverse the original polarity of the power supply output port ( reverse the internal positive pole to negative , and the external negative pole to positive). Please confirm the polarity of your devices’ power port before use. If the positive and negative poles are reversed, it will cause short circuit and damage your device.

Is this 9~36V 144W universal power supply (PS) compatible with your device?

1. Check Voltage

Please find the spec label of your device and check the working voltage. It should be among 3.5V~36V DC, not lower than 3.5V or higher than 36V DC. Otherwise, your device will not work or be damaged.

2. Check Current

Check the max current your device will draw. It should be equal to or less than 3A, such as 1A,1.5A,2A,2.5A, 3A. Otherwise, your device won’t work well and the PS will be damaged very soon.

3. Check Plugs

Check the power input port of your device. The PS is equipped with 14 pcs frequently-used DC tips. Please confirm wether it fits for your device before buy. If you can 't confirm, please measure it with a ruler.

4. Check Original PS

If you have a original power supply for reference, their output voltage, plug size, polarity should be the same . If our PS’s current is equal to or higher than original one’s, then our PS will work with your device.

  • Item Model Number: J483-3601000SX
  • Size Name: 3A
  • Number of items: 1
  • Power Source: AC
  • Batteries Required: No
  • Brand: SHNITPWR
  • Compatible Devices: LED strip lights, TV boxes, wireless routers, Wi-Fi cameras, CCTV security systems, LCD monitors
  • Connector Type: DC
  • Item Weight: 580 g
  • Voltage: 36 Volts
  • Wattage: 108 watts
  • Model: J483-3601000SX
  • Package Dimensions: 22.1 x 8.6 x 6.7 cm; 580 Grams
  • Country/Region of origin: China
  • Manufacturer: Shenzhen Junchen Technology Co., Ltd
