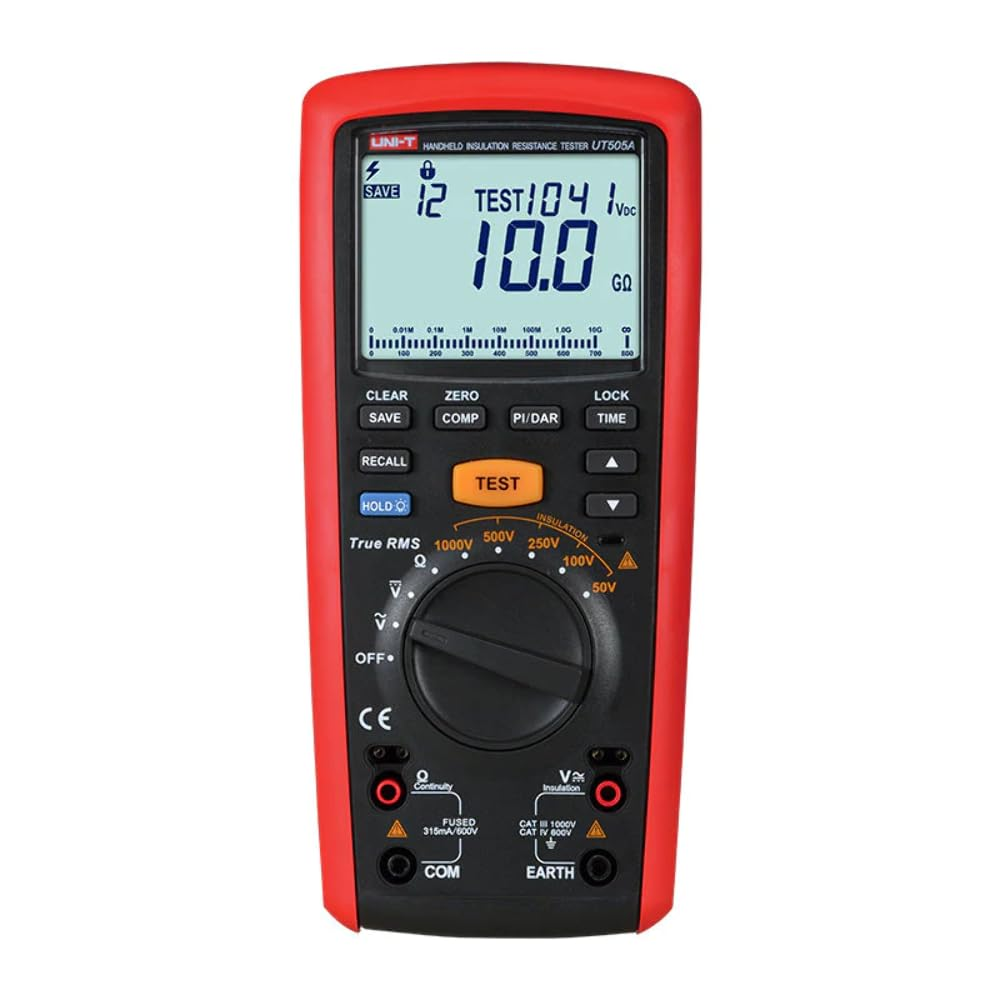

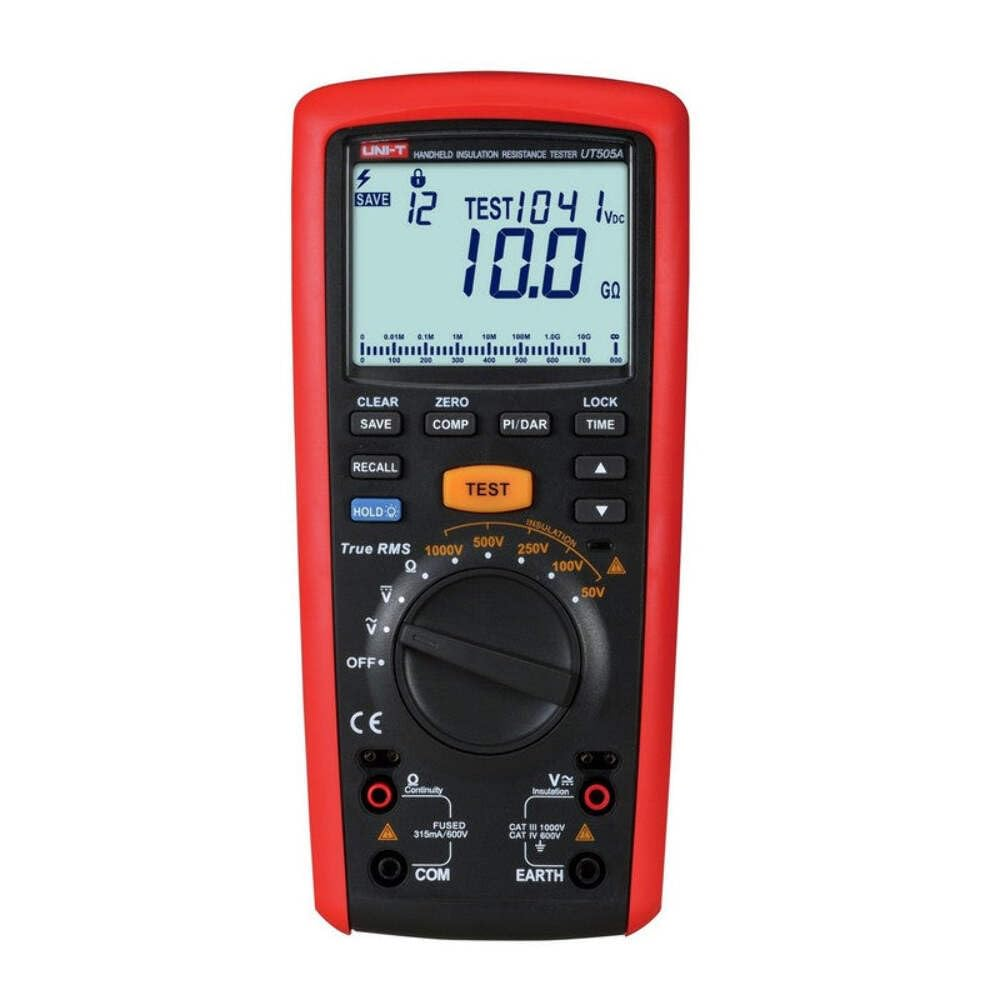

UNI-T UT505A/UT505B Insulation Resistance Tester

UT505 series handheld true RMS insulation resistance testers combine features of a digital multimeter and insulation resistance tester. Aside from the typical multimeter functions, these meters can also measure insulation resistance, PI, DAR, and automatically calculate resistance ratio to determine the insulation status.

Applications:

UT505 can be used in insulation resistance testing of precision tools, including motors, cables, transformers, switches, electrical appliances, and insulated materials.

UNI-T UT505A/UT505B Insulation Resistance Tester

1. Auto power off

2. LCD backlight

3. High voltage output alarm

4. 99-group data storage

5. Data hold

6. Meets IEC 61557: 61557-1:2007; 61557-2:2007; 61557-4:2007

UNI-T UT505A/UT505B Insulation Resistance Tester General Characterisitics

• Power:1.5V battery (LR6) x 6
• Display:78mm x 59mm
• Product color:Red and grey
• Product net weight:630g
• Product size:103mm x 225mm x 59mm

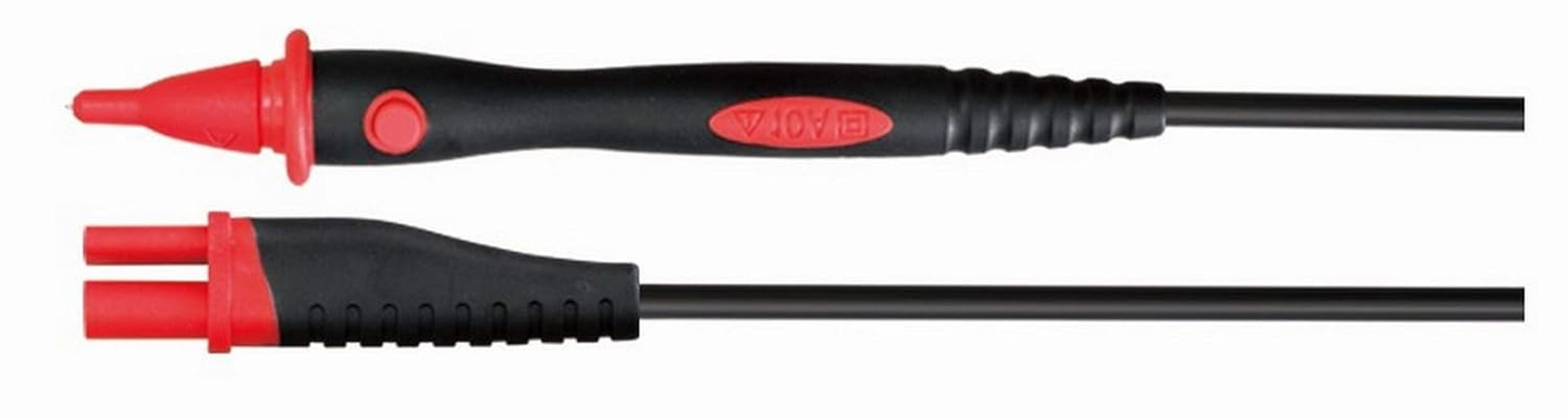

• Standard accessories:Batteries, test leads, test probes, alligator clipsStandard individual packingCarrying bag, gift box, English manual
