Btf-Lighting RGBW RGBNW Natural White SK6812 (Similar WS2812B) 16.4Ft 5M 60Leds/Pixels/M Individually Addressable Flexible 4 Color in 1 LED Dream Color LED Strip Non-Waterproof DC5V

Btf-Lighting RGBW RGBNW Natural White SK6812 (Similar WS2812B) 16.4Ft 5M 60Leds/Pixels/M Individually Addressable Flexible 4 Color in 1 LED Dream Color LED Strip Non-Waterproof DC5V

Brand: BTF-LIGHTING
4.3
A$73.40 - A$89.20
Colour Name
Availability:
  • Select Styles for Availability

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

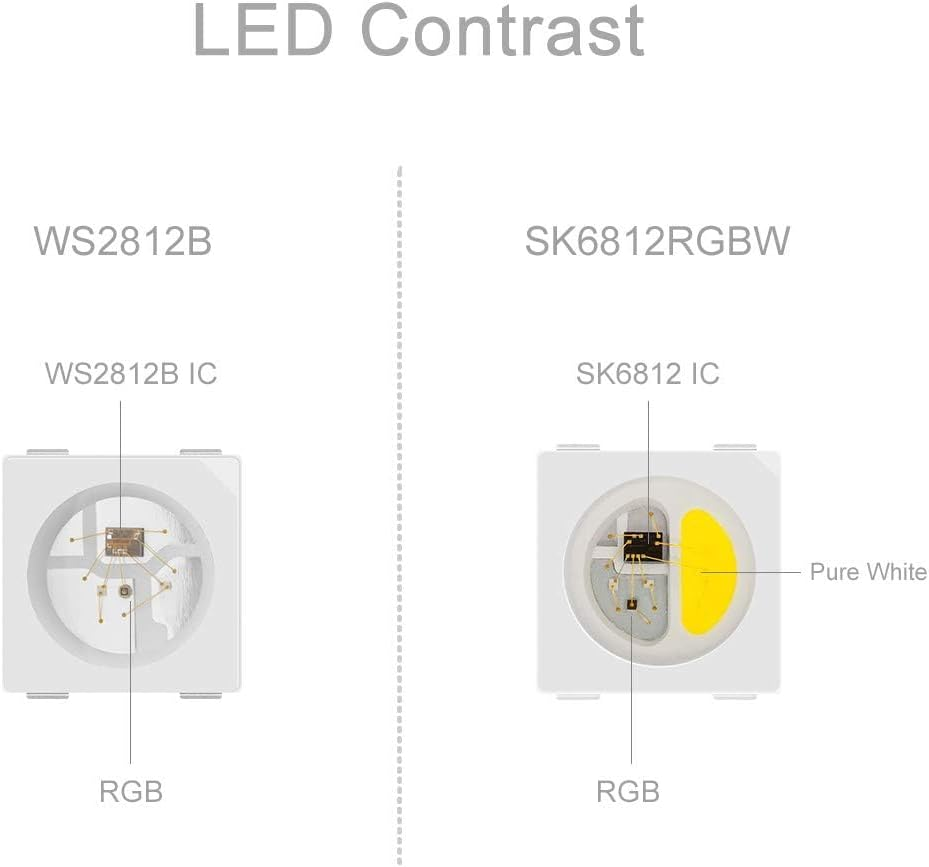

  • ividually addressable. RGB+Pure White The SK6812 RGBW LED strip is the newest, improved version of the WS2812B LED strip. R/G/B/W 4 colors in 1 LED. SK6812 has more options for color changing and color combinations. With all the features of the WS2812B LED strip.

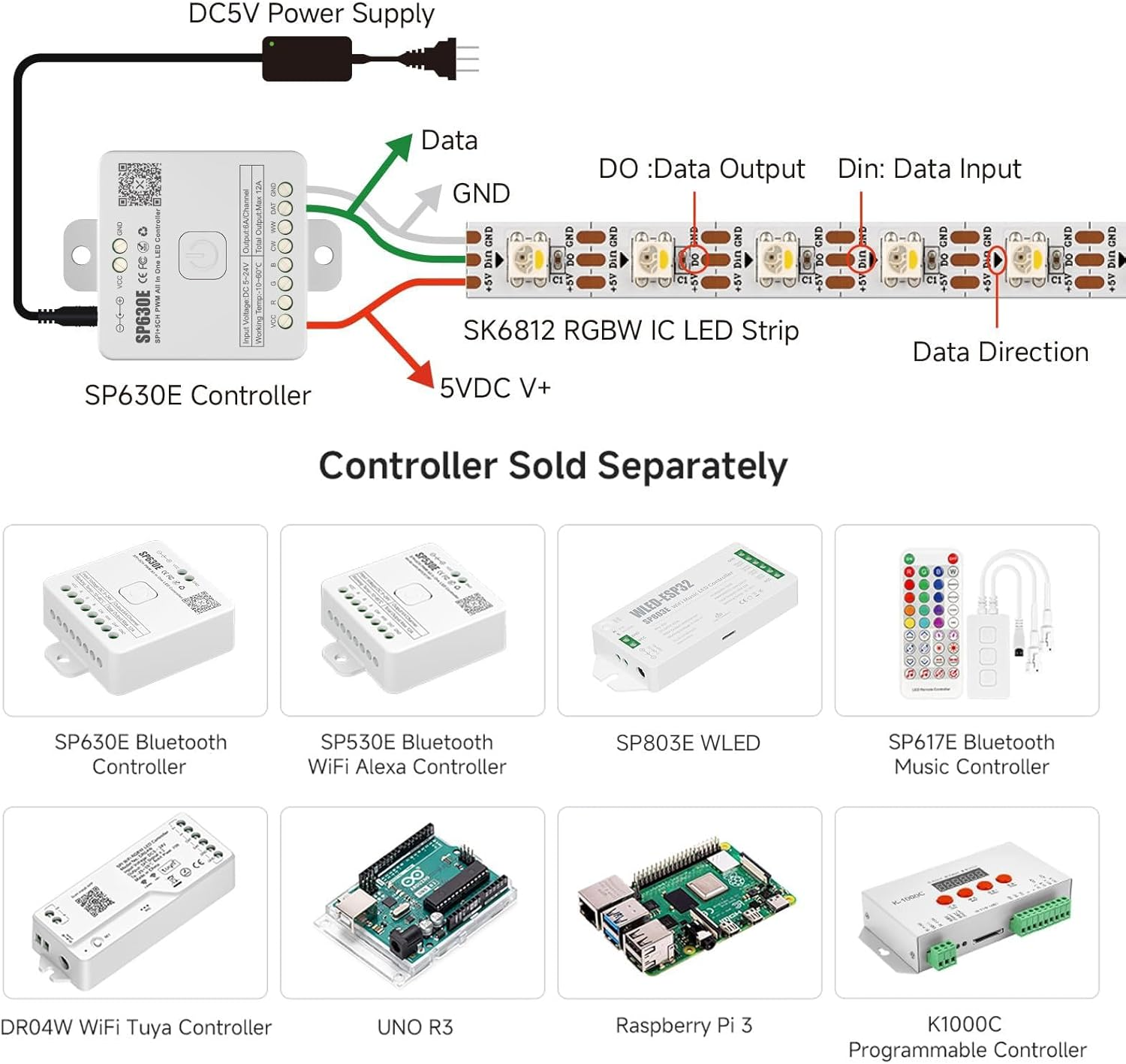

  • Works great with SP105E SP617E SP630E SP530E K-1000C controller. You can illuminate a single pure white light, the LED strip is more energy efficient and extends the life of the LED strip.
  • Each LED is individually addressable. Display with 256 brightness levels and 32-bit colour display. An IC controls an LED. Each pixel can have its own colour and brightness. You can control them individually and apply them to any colour or animation you want. Match use controllers can appear colourful curtain up/flow water/raindrops/jump flash and so on hundreds of light effects.
  • Linkable design. It has 3-pin JST-SM connector on both ends. You can extend or cut both ends further. Note: If the strips are connected too long, there may be a voltage drop and the brightness of the LEDs at the end can be dimmed. This is a normal physical phenomenon. Solution: If the LED strips are connected in series over more than 5 meters, please add a power supply every 5 meters to increase the voltage.

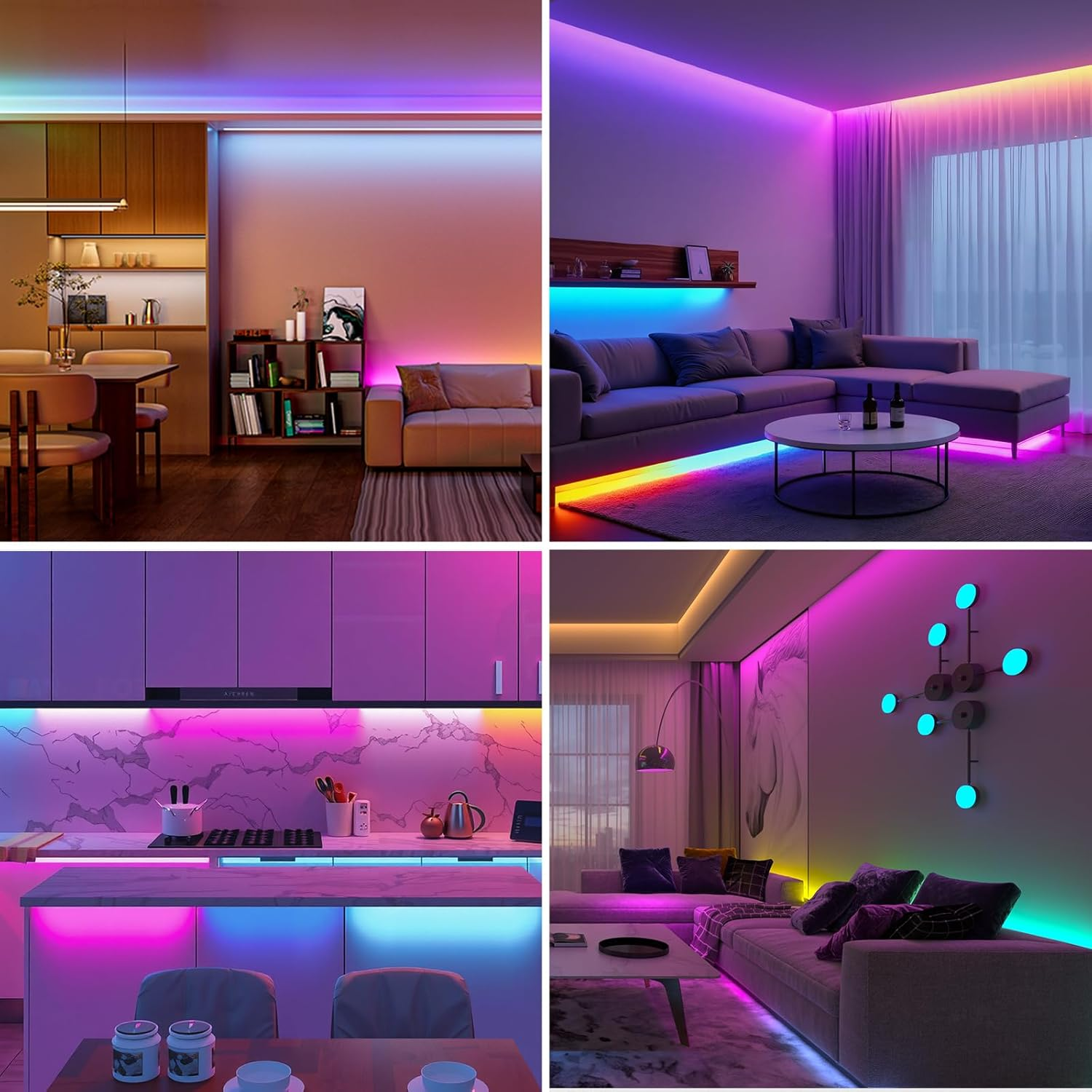

  • Wide range of applications. Suitable for home, hotel, KTV, bars, festival, Christmas or wedding party decoration. There is an adhesive tape on the back of the IP30/IP65 LED strip, so you can attach it to the wall or other items as you like. IP67 waterproof has no double-sided tape. IP67 fixed with screws and clips.

Deatail:
Model: SK6812 strip 5050rgbnw chips
Input voltage: DC5V
Led Qty: 60pcs RGBNW SMD 5050 per meter
Color: RGBNW=RGB+Natural white(4000-5000K)
Wave length(NM):R, 650mcd ; G,520mcd ; B,460mcd
Power:18W/m
Length:5meters /16.4ft
Signal:SK6812 IC(Similar with ws2812b) SK6812 chip built-in LED
View angle:120¡ã
Life span:more than 50000hrs
FPCB Width:10mm
Product Dimensions:L5000mmxW10mmxH2.5mm
IP30 Non-waterproof
White PCB
Features:

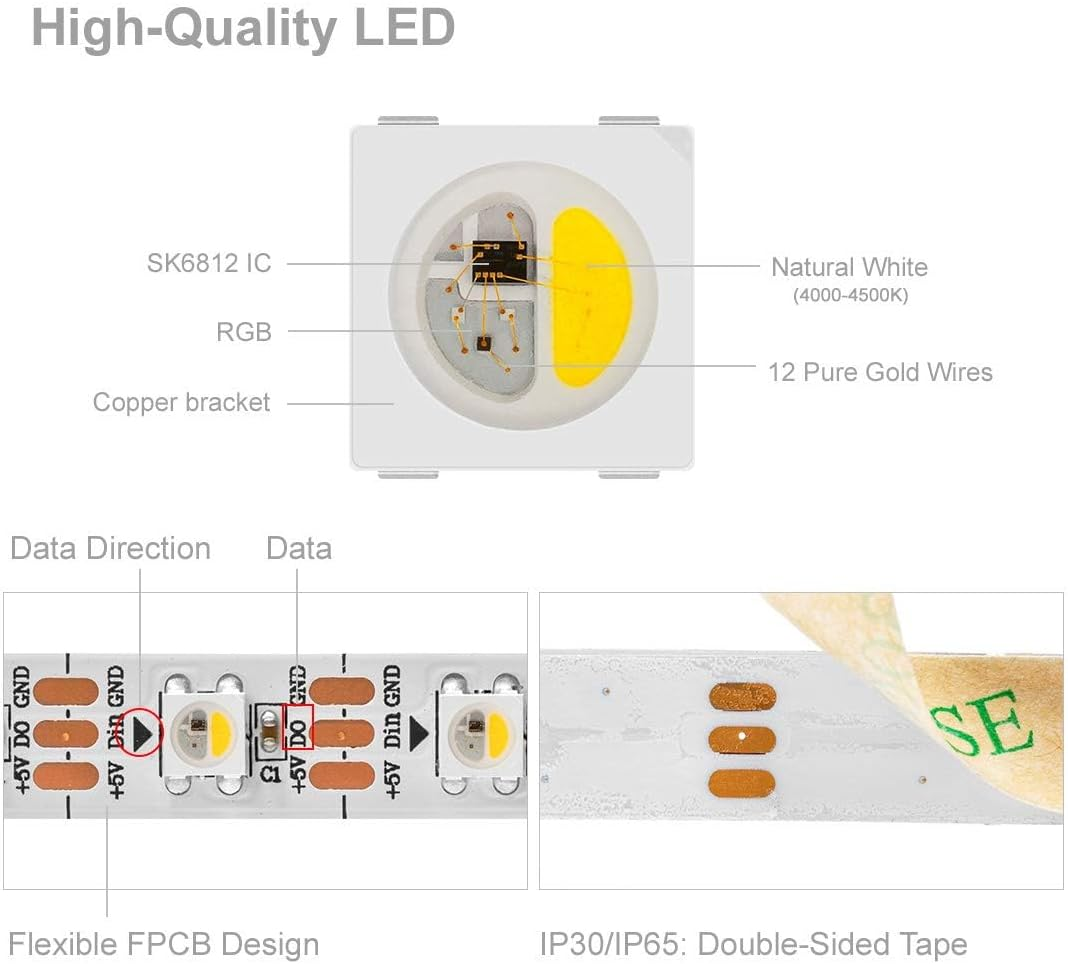

The SK6812 strip, every 5050 RGBW SMD built-in(embedded) one SK6812 Chip, realize individually Addressable, means every one led lighting effect can be controlled.
each LED is individually addressable, with 8 bits of red, green, and blue data shifted in for 24 bit color, Strips take data in green, red, blue order.
Match use controller can appear colorful curtain-up/ flow water/raindrop/jump flash and so on hundreds of lighting effect.
Every one LED lamp can be arbitrary cut off.
1 meter 4 meters 5 meters 60leds/m 144leds/m available

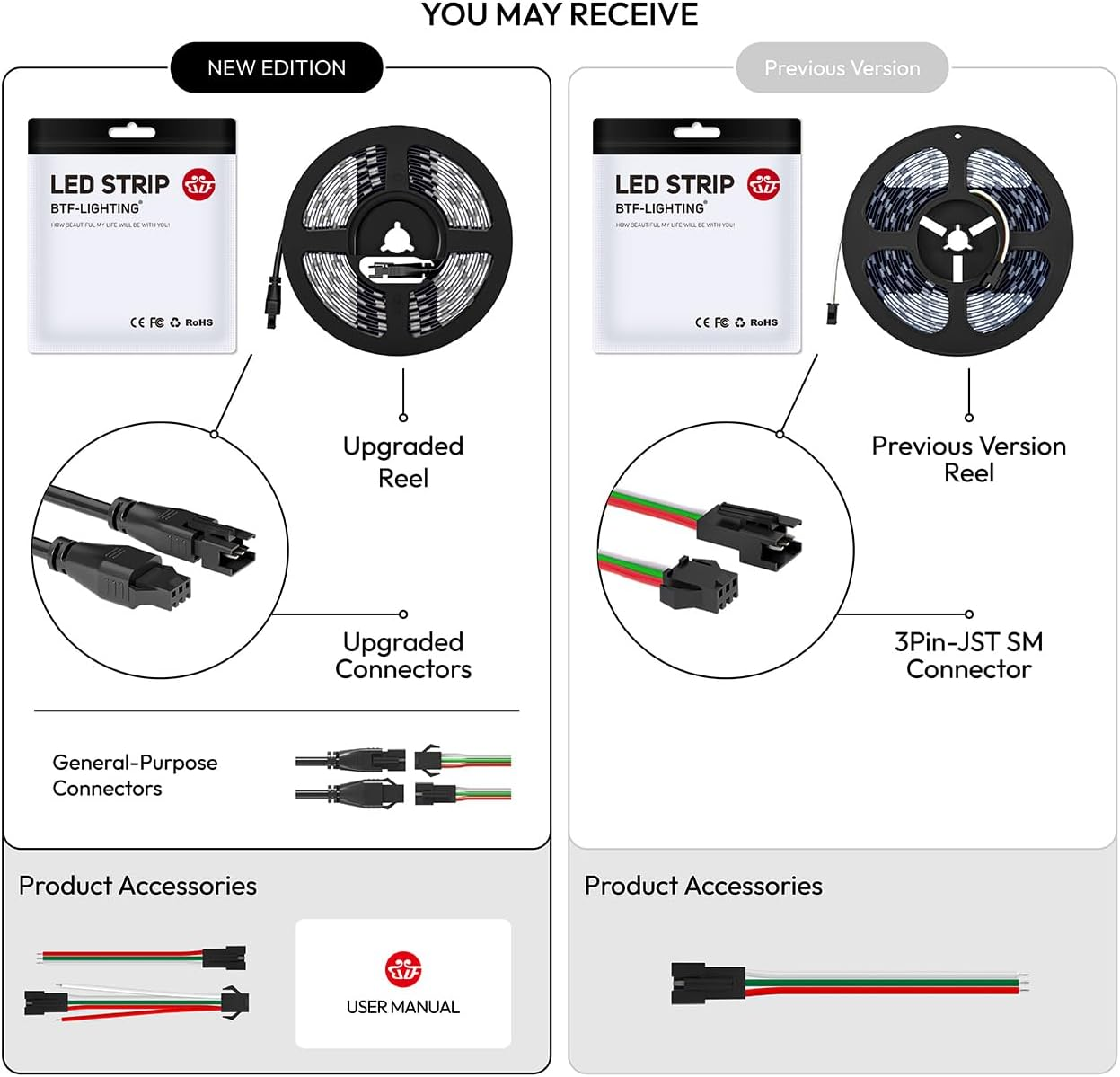

Package:
Length: 16.4ft SK6812 led strip
1x3pin male connector
Kindly note
Led strip is made by 50cm FPCB, so there is a solder point each 50cm on strip. But this minor flaw has no any bad effect on the strip¡¯s performance. In fact, most of the LED strips on the market are manufactured in half-meter lengths.
Related product links
5V 20A Power supply:
https://www.amazon.com/dp/B01D8FLWGE
3pin JST-SM connectors:
https://www.amazon.com/dp/B01DC0KIT2
3pin right angle DIY connector:
https://www.amazon.com/dp/B01N6Q5Q4L
3pin 15cm cable solderless dual end DIY Connector:
https://www.amazon.com/dp/B01NARSHY2
3pin 15cm cable solderless single end DIY Connector:
https://www.amazon.com/dp/B01NCUYDXG

  • Style: Modern
  • Number of Items: 1
  • Power Source: DC
  • Product dimensions: 21 x 21 x 1.5 cm; 30 Grams
  • Switch Style: Depend on controller
  • Light Direction: Adjustable
  • Batteries Included?: No
  • Is discontinued by manufacturer: No
  • Assembled Height: 1.5 centimetres
  • Number of Lights: 300
  • Size Name: White PCB IP30
  • Batteries Required?: No
  • Colour Name: Blue,Green,White,White.sk6812
  • Brand: BTF-LIGHTING
  • Material: Metal+PCB+Plastic
  • Type of Bulb: LED
  • Assembled Width: 21 centimetres
  • Colour Temperature: 4500 Kelvin
  • Included Components: 1x 3 pin SM male connector£¨No power supply or controller£©
  • Item Model Number: SK68125M60RGBNWW30
  • Colour: Blue,Green,White,White.sk6812
  • Item Weight: 30 g
  • Shade Material: Metal+PCB+Plastic
  • Specific Uses: Indoor use only
  • Part Number: SK68125M60RGBNWW30
  • Wattage: 100 watts
  • Shape: Strip
  • Voltage: 5 Volts (AC)
  • Assembled Length: 21 centimetres
  • Manufacturer: BTF-LIGHTING
