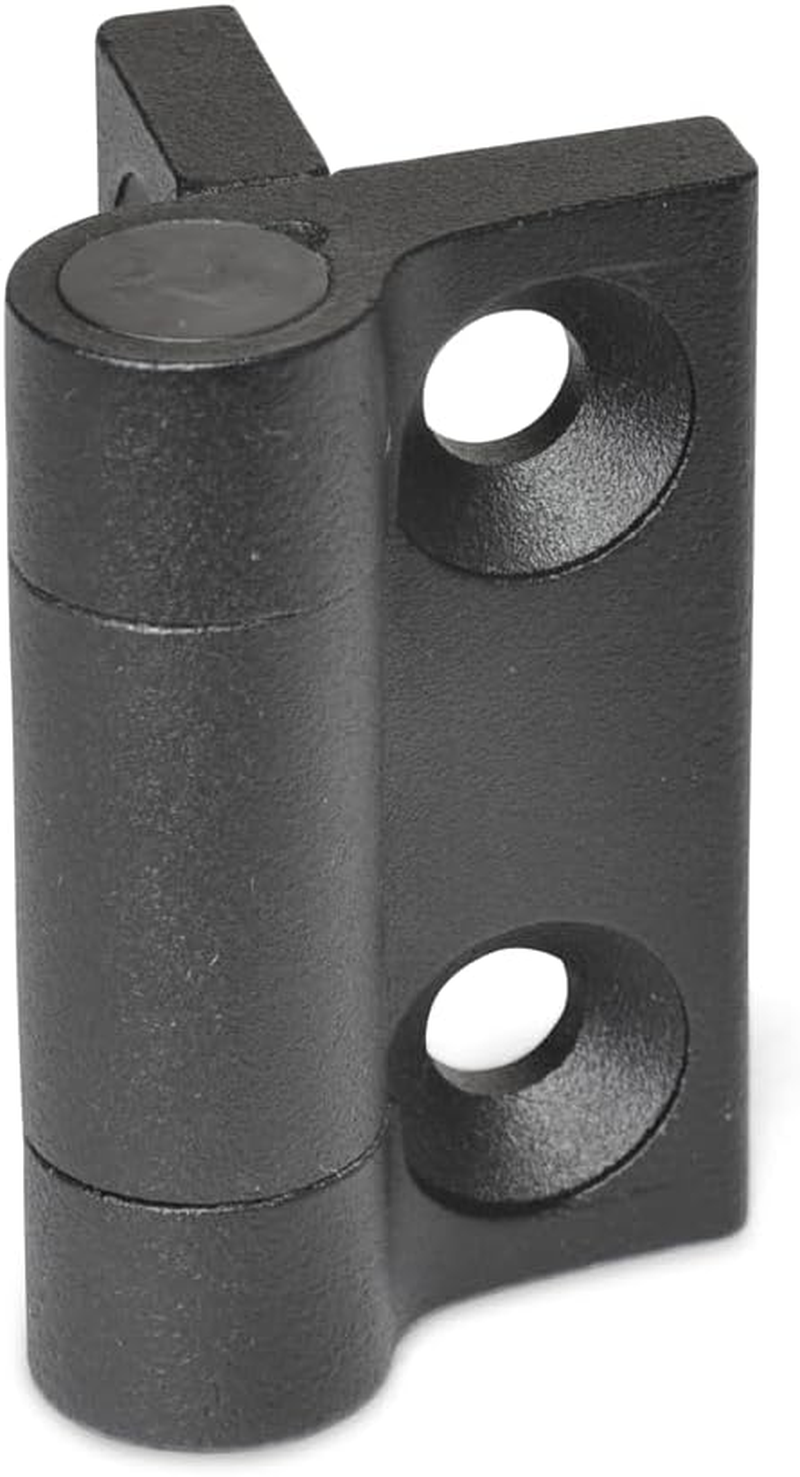

Ganter Normelemente Spring Hinge, Hinge with Spring Return, GN 437.3-ZD-60-60-L2-SW, Die-Cast Zinc, 60 X 60 Mm, Closing

Ganter Normelemente Spring Hinge, Hinge with Spring Return, GN 437.3-ZD-60-60-L2-SW, Die-Cast Zinc, 60 X 60 Mm, Closing

Brand: Ganter Normelemente
5.0
A$37.95 - A$57.00
Availability:
  • Select Styles for Availability

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

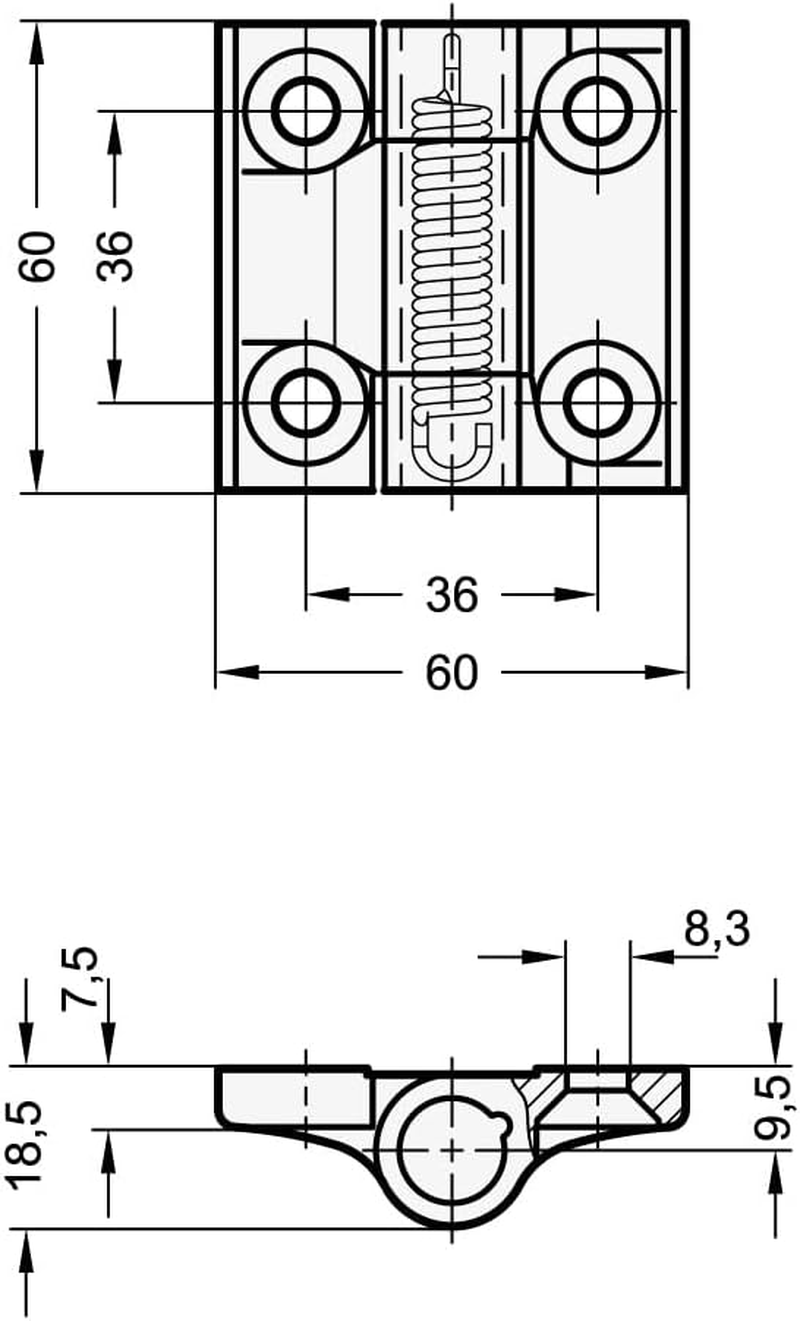

  • Dimensions see drawing
  • Spring return, closing, medium spring force
  • Die-cast zinc, plastic-coated, black RAL 9005
  • Torsion spring spring steel
  • Spring guide/cover cap plastic (polyacetal POM), temperature-resistant up to 80 °C

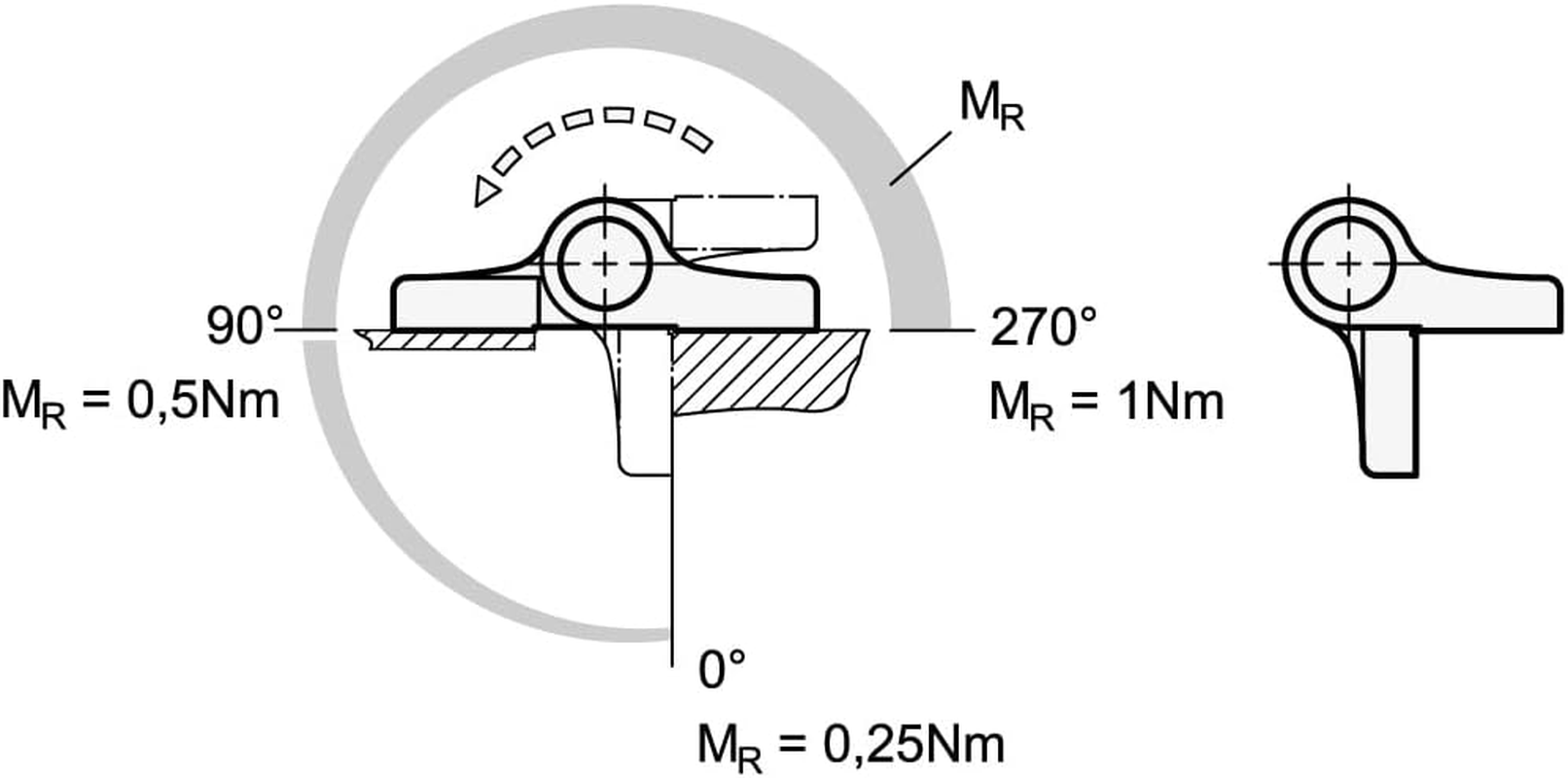

GN 437.3 hinges with spring return allow automatic opening or closing of doors via the torsion spring. The torque of the reset varies with the opening angle of the hinge. Continuous tests have shown that the torque of the reset has not changed even after 100,000 opening/closing cycles.

  • Item Model Number: GN 437.3-ZD-60-60-L2-SW
  • Part Number: GN 437.3-ZD-60-60-L2-SW
  • Style: Spring hinge
  • Finish: Powder Coated
  • Item Package Quantity: 1
  • Colour: black
  • Material: Die-cast zinc, spring steel, polyacetal (POM)
  • Plug Profile: Türhalterung
  • Item Weight: 150 g
  • Size Name: schließend
  • Batteries Required?: No
  • Manufacturer: Ganter Normelemente
  • Product dimensions: 60 x 60 x 0.25 cm; 150 Grams
  • Size: schließend
