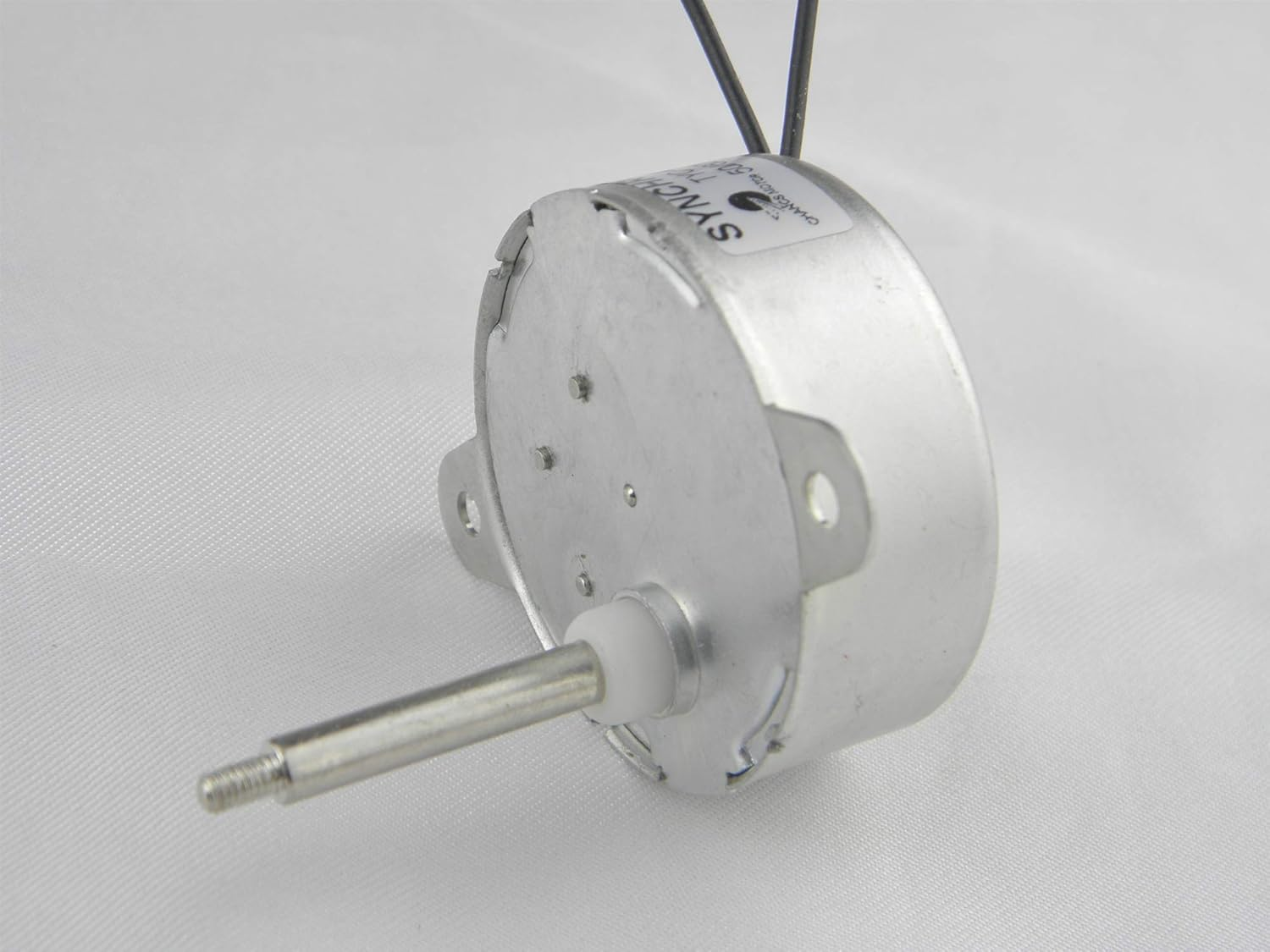

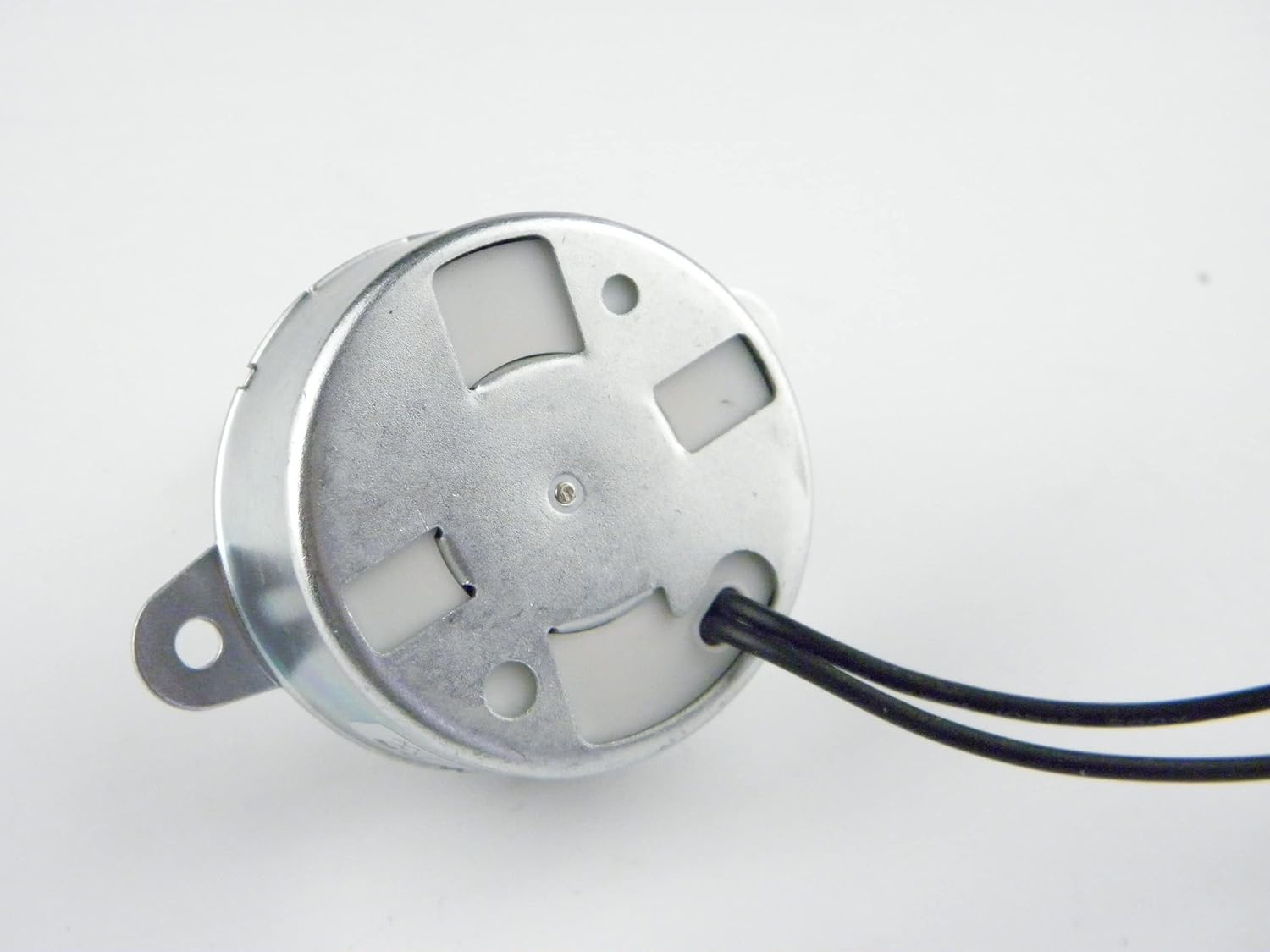

This is a TYC-40 DC 12V 5RPM CW/CCW synchronous motor,small power consumption,
low noise, small size, light weight, easy to use. The reduction gear is combination of metal/plastic to ensure the gear working continuously and quietly.
We promise we will tested ever motor before shipment.
【Specification:】
Product Name : Synchronous Motor
Model : TYC-40；
Speed: 5RPM；

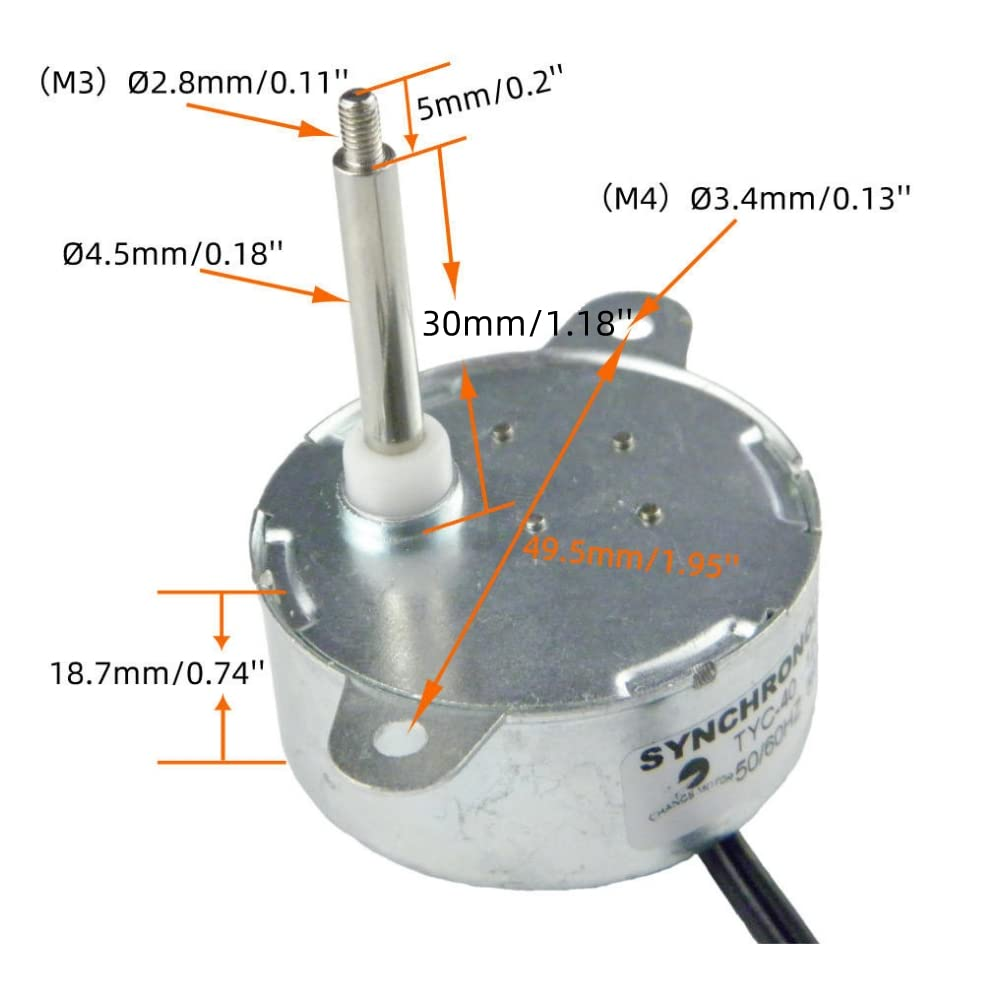

Shaft Diameter: 4.5mm ；
Shaft Length: 35mm；
Shaft Screw Thread Inner Diameter: M3,(Φ2.8mm)
Mounting Hole Diameter: M4 (φ3.4mm)；
Motor diameter: 40mm;
Motor height: 18.7mm;
Direction : CW/CCW(UNCONTROLLAB)；
Torque:≤0.5kg*cm；
Frequency : 50/ 60Hz；
【Application:】
Widely used in Christmas tree, hand-made, decorative colored lights, school project, electric fan shake heads, heaters,
prayer cylinders, air conditioners, microwave ovens, glue machines, electric ovens, rotating lamps,
electric tables, electric models, electric advertising, electric shelves, dishwashers, control appliances , curtain machines, etc.
【Attention:】
1.The applicable voltage of this motor is DC 12V, USING AC POWER SUPPLY, THE MOTOR DOES NOT WORK!! If you can't judge whether
your power supply is AC or DC, and you have any questions about the voltage, please ask the custcome service
before buying the motor.

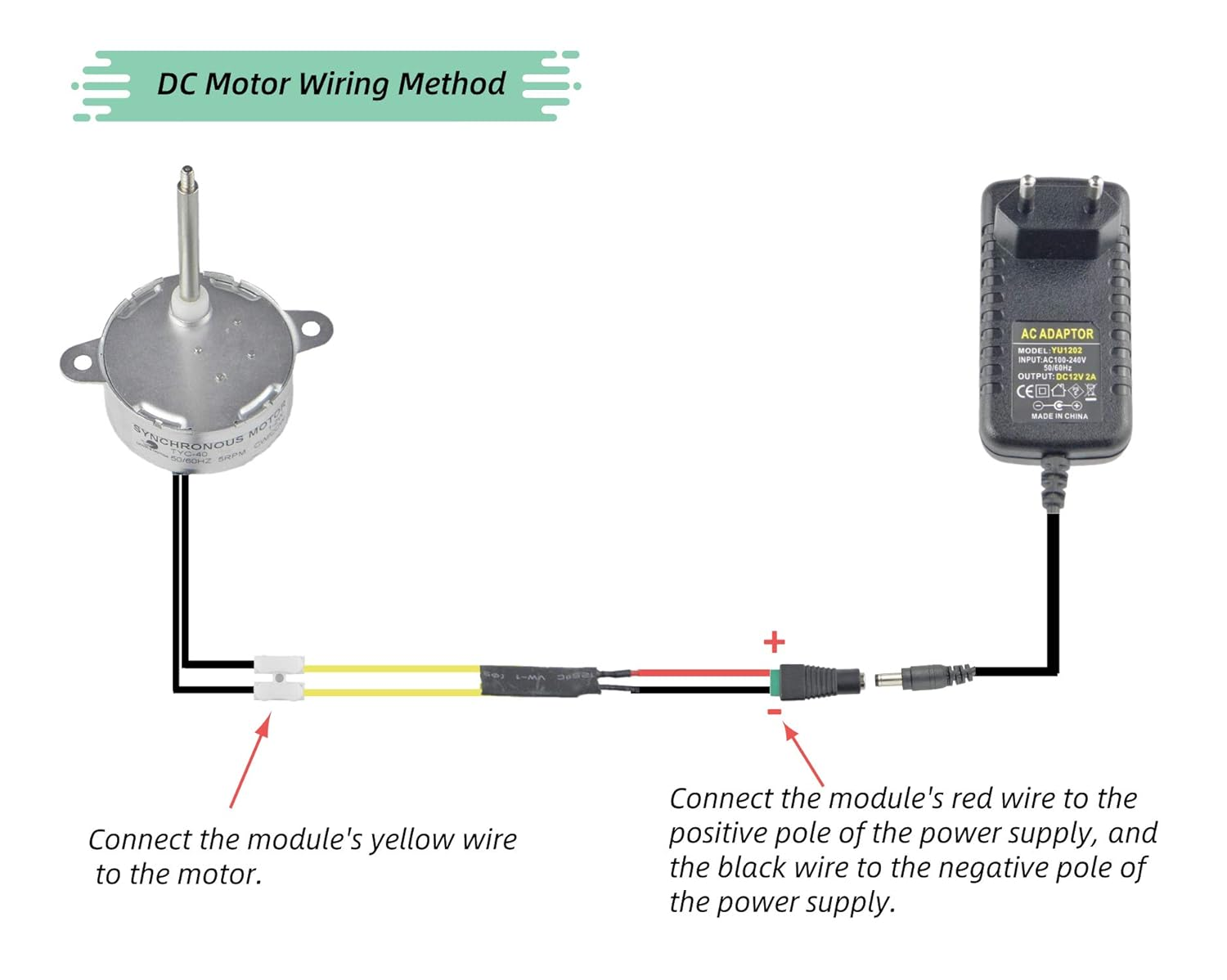

2.When using the motor must be connected to the module, incorrect wiring, the motor does not start, please follow the wiring
diagram for accurate wiring, if you do not know how to wire, please contact the customer.
【Package Content:】

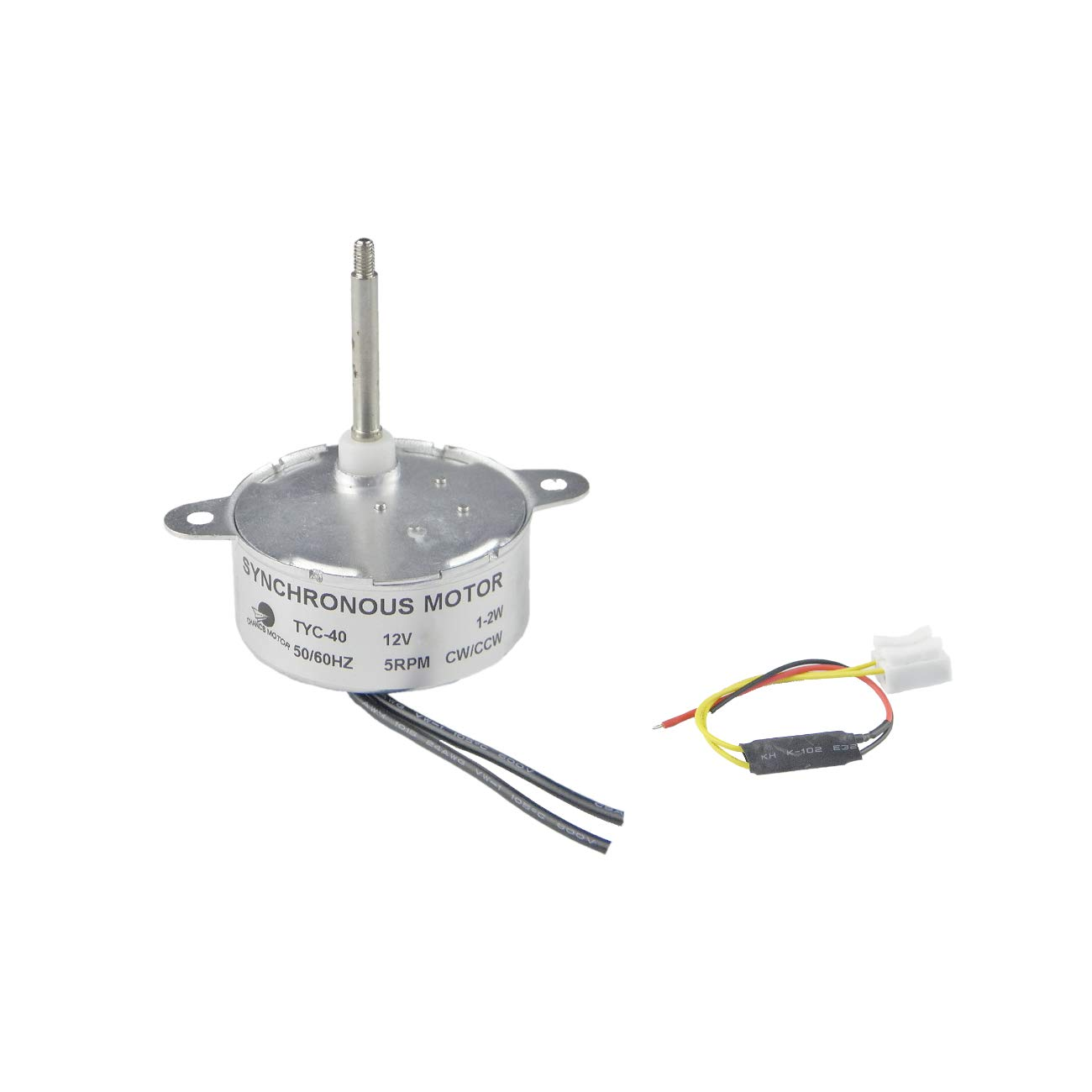

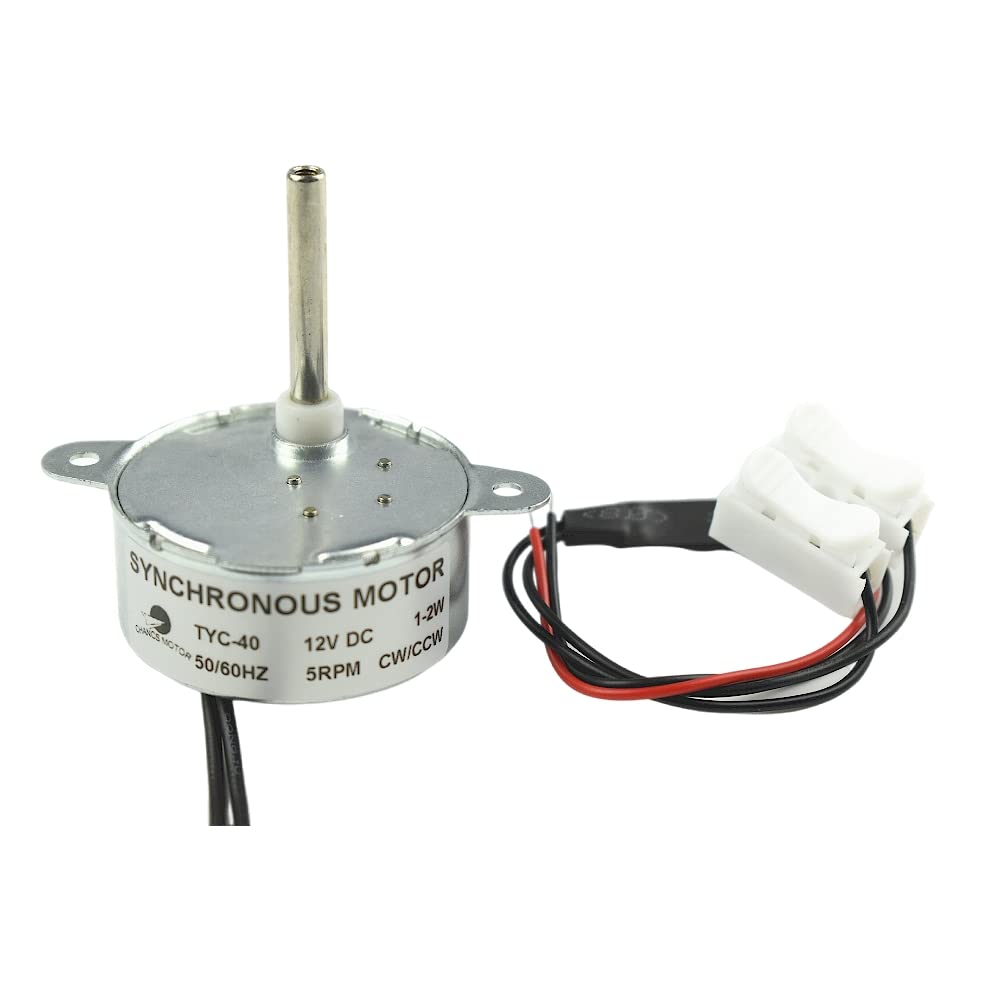

1PC X Synchronous Motor, 1PC X Module
