BSIDE Thermal Imaging Camera Multimeter with Macro Lens, 320X320 IR Resolution with 15 Thermal Palettes, 20000 Counts with 3.98" Touch LCD, Measures Cap, AC Clamp, Temp Diode for Electrical Electronic

BSIDE Thermal Imaging Camera Multimeter with Macro Lens, 320X320 IR Resolution with 15 Thermal Palettes, 20000 Counts with 3.98" Touch LCD, Measures Cap, AC Clamp, Temp Diode for Electrical Electronic

Brand: BSIDE
4.6
A$420.00 - A$682.50
Colour Name
Availability:
  • Select Styles for Availability

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

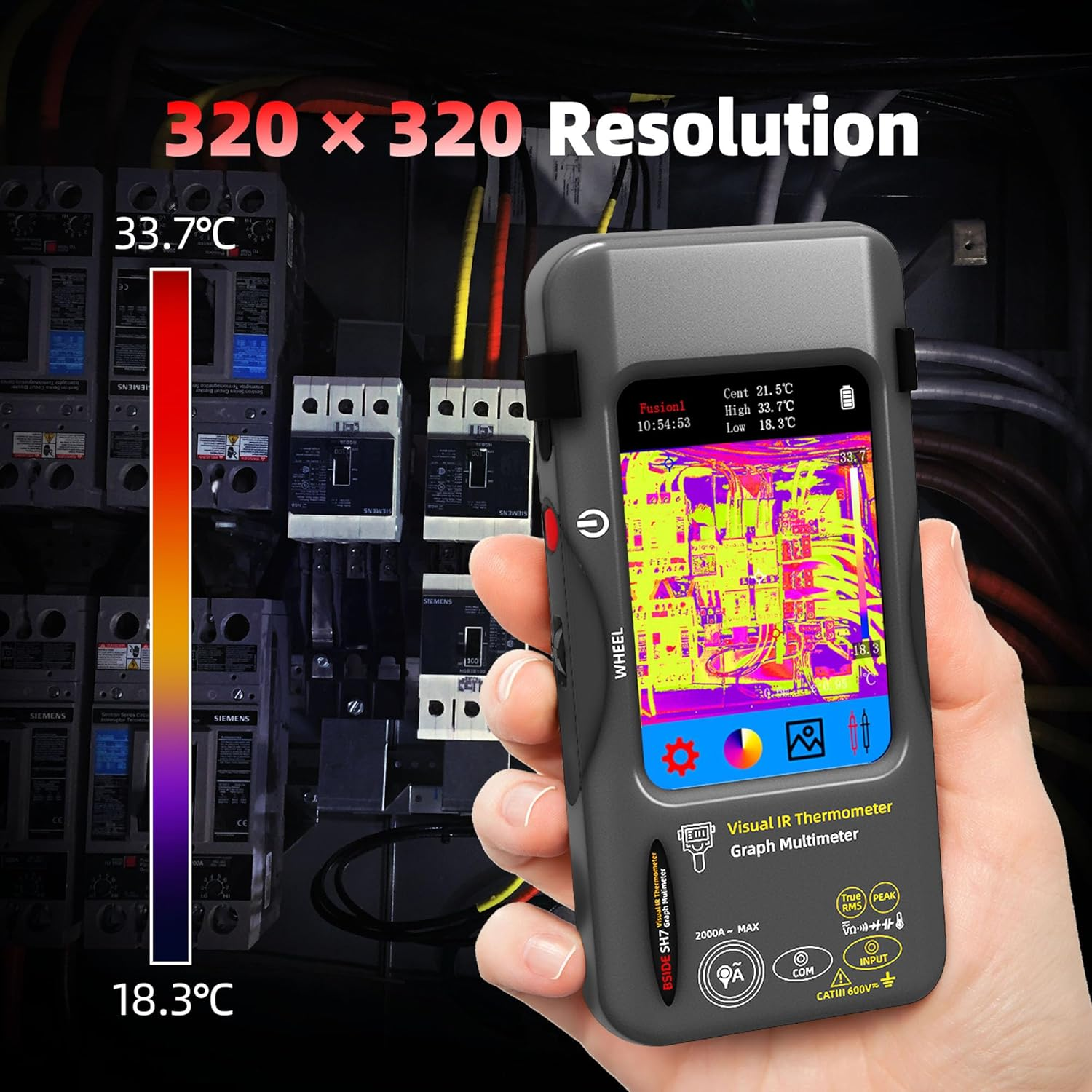

  • [320x320 IR Infrared Camera]: BSIDE SH7 thermal imaging camera has 320 x 320 ir resolution, which could help you detect potential problems early and diagnose problems reliably.

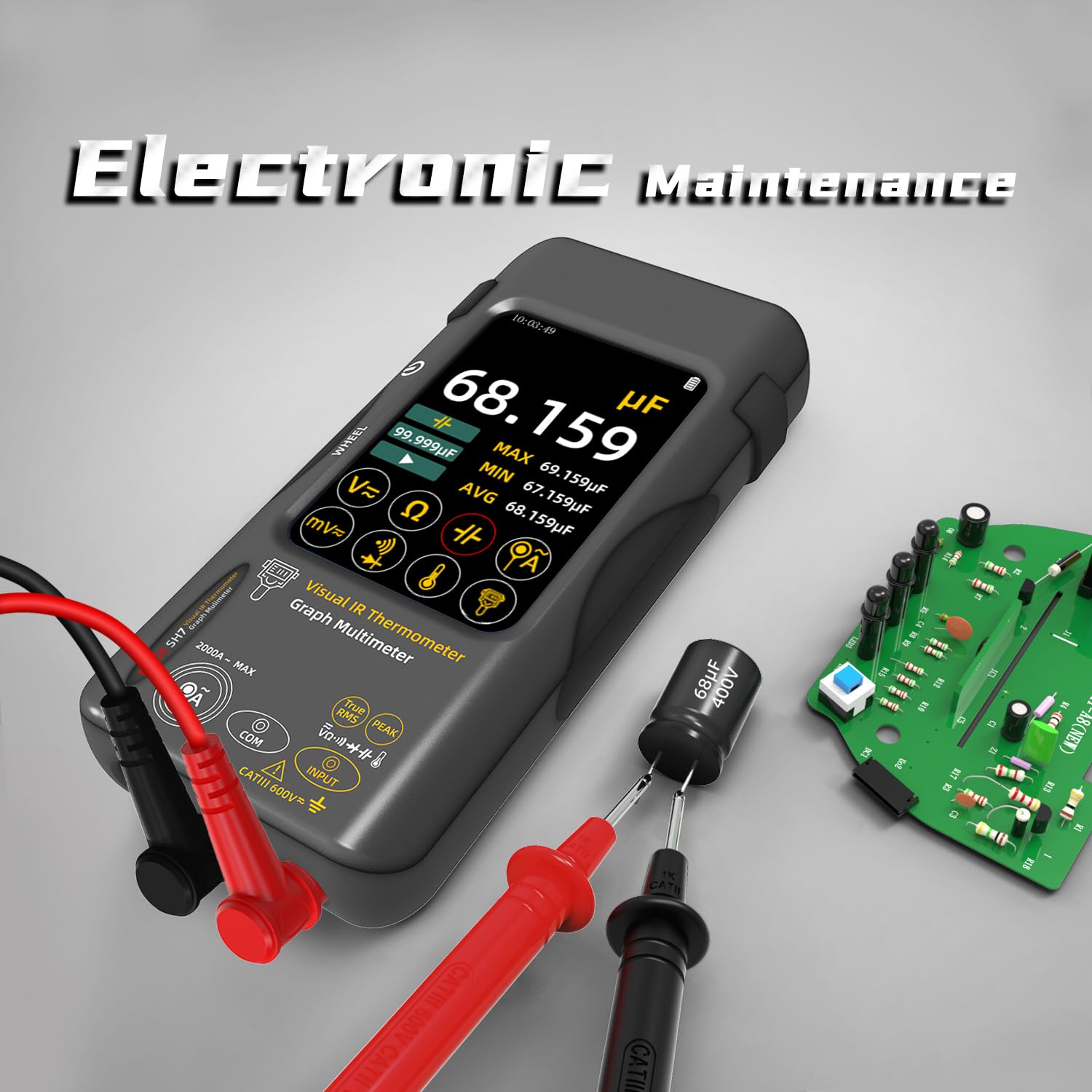

  • [20000 Counts Multimeter]: Infrared camera integrated multimeter, which measures flexible ac current clamp, capacitance, diode, temperature, ac and dc voltage, resistance, continuity, etc.
  • [with Macro Lens]: Thermal imager with macro lens allows you to spot potential design flaws, evaluate PCB hot spots, and inspect small electronic components, etc. Working object distance: 35mm; Magnification: 0.3X.

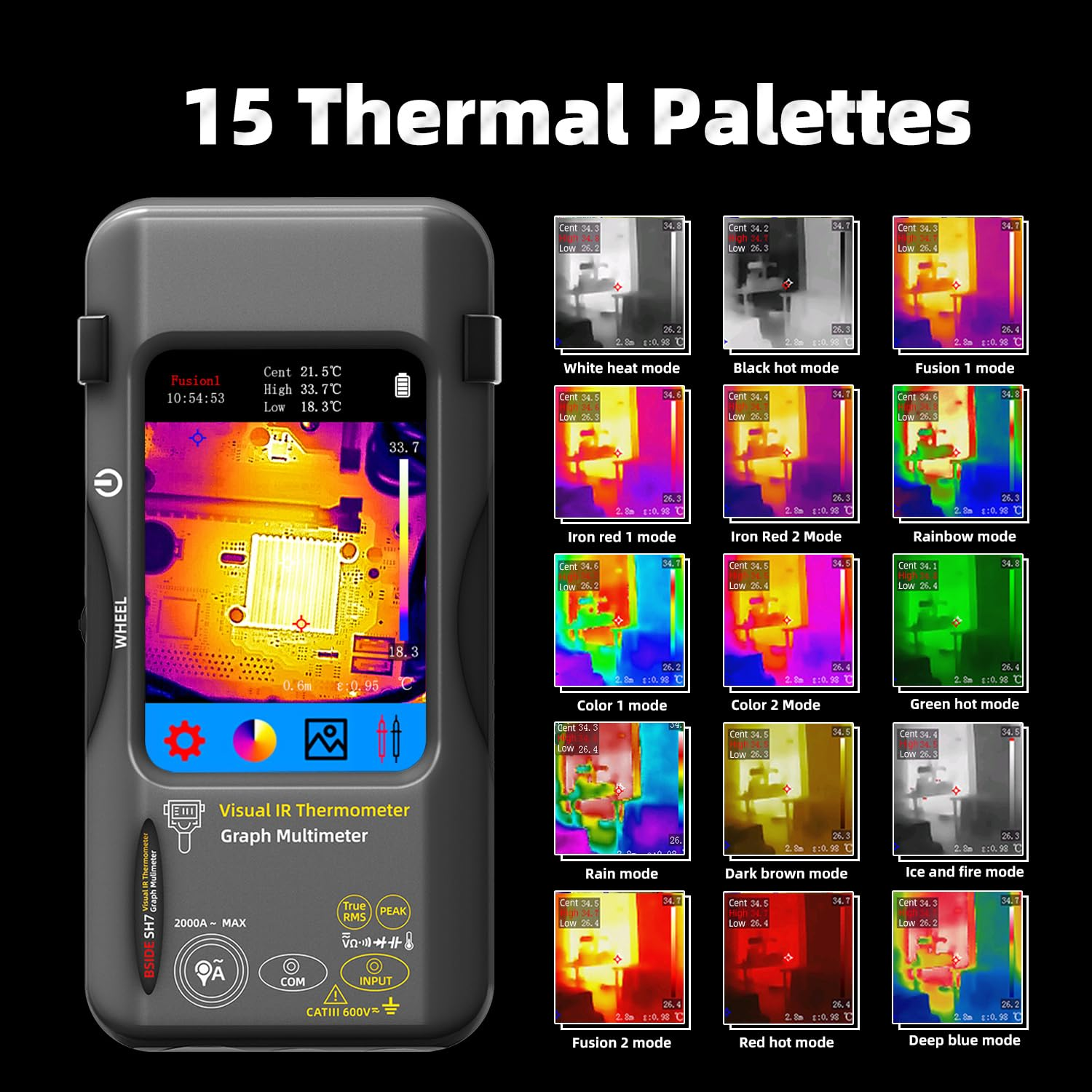

  • [15 Thermal Palettes]: Thermal imager multimeter has 15 thermal palettes for choice: white hot, black hot, fusion 1, rainbow, fusion 2, iron red 1, iron red 2, dark brown, color 1, color 2, ice fire, rain, green hot, red hot, dark blue.

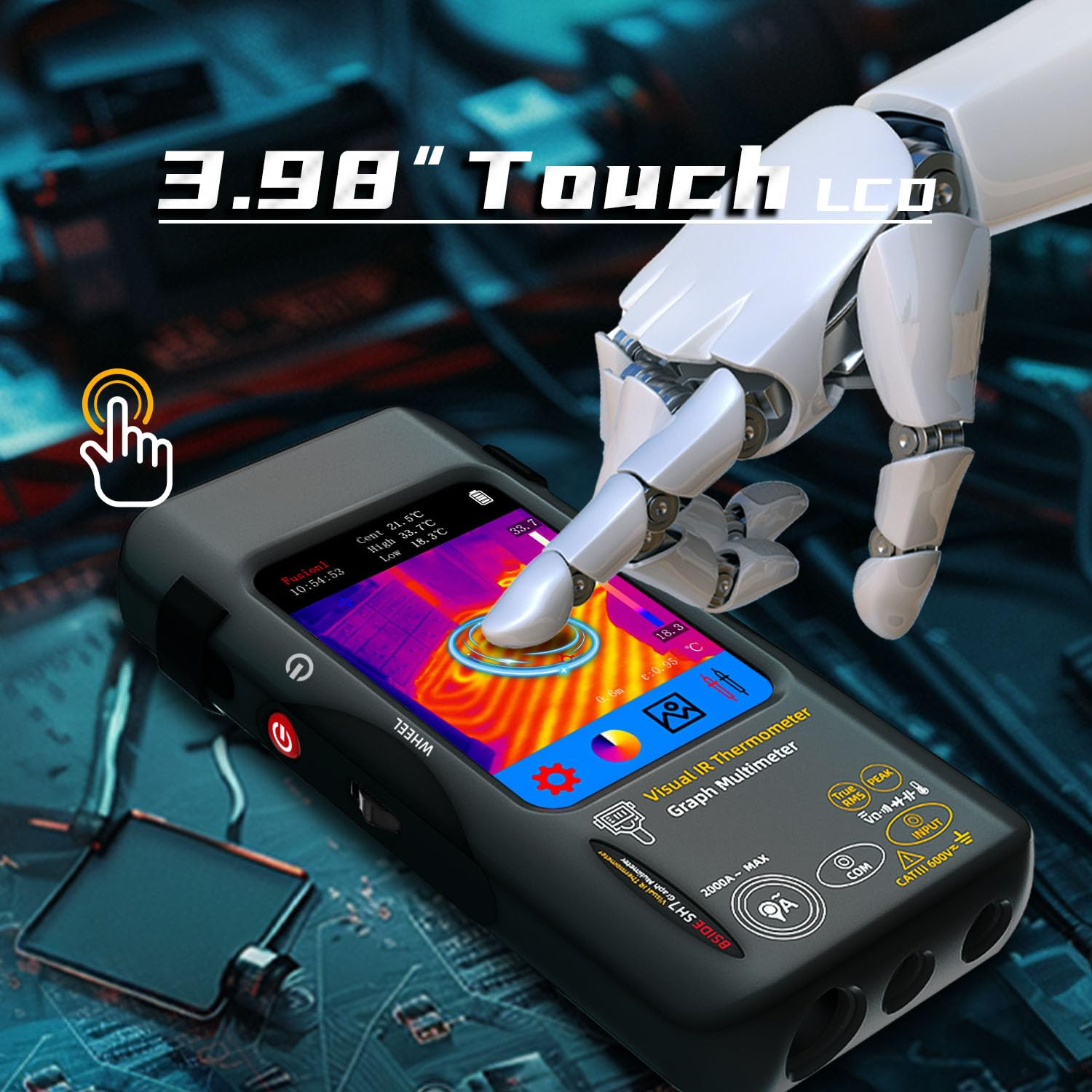

  • [3.98” Touch TFT Screen]: Infrared camera multimeter equipped with 3.98 inch 320 x 480 color touch lcd, which provides you with best reading enjoyment, you could get the clear test results at wide angle.
  • [Accurate Measurement]: Thermal imager voltmeter enables a refresh rate of 25 Hz and a wide temperature range from -20℃ to 550℃(-4℉ to 1022℉).
  • [Efficient Data Storage and Export]: Thermal imaging camera can be connected to computer via USB for further analysis. The memory card can hold more than 19,000 images.
  • [Flexible AC Current Clamp Measurement]: Digital multimeter tester measures flexible ac current clamp accurately up to 2000A. The flexible clamp wire were not included.
  • [Super Battery Life]: Smart digital multimeter comes with a 2500mAh rechargeable battery & charging cable, ensuring that you never have to worry about running out of power during your measurement.
  • [High & Low Temperature Alarm]: IR laser camera with high and low temperature alarm functions, the camera will give out alarm when the temp exceed or under the setting data.

Features:
Handheld thermal imaging camera
Infrared camera with touch LCD screen
Super large touch screen thermal imager
20000 counts smart digital multimeter
320 x 320 ir resolution thermal imaging camera
320 x 480 screen display resolution infrared camera
Measures ac and dc voltage, resistance and continuity
Measures capacitance, diode, temperature and ac current clamp

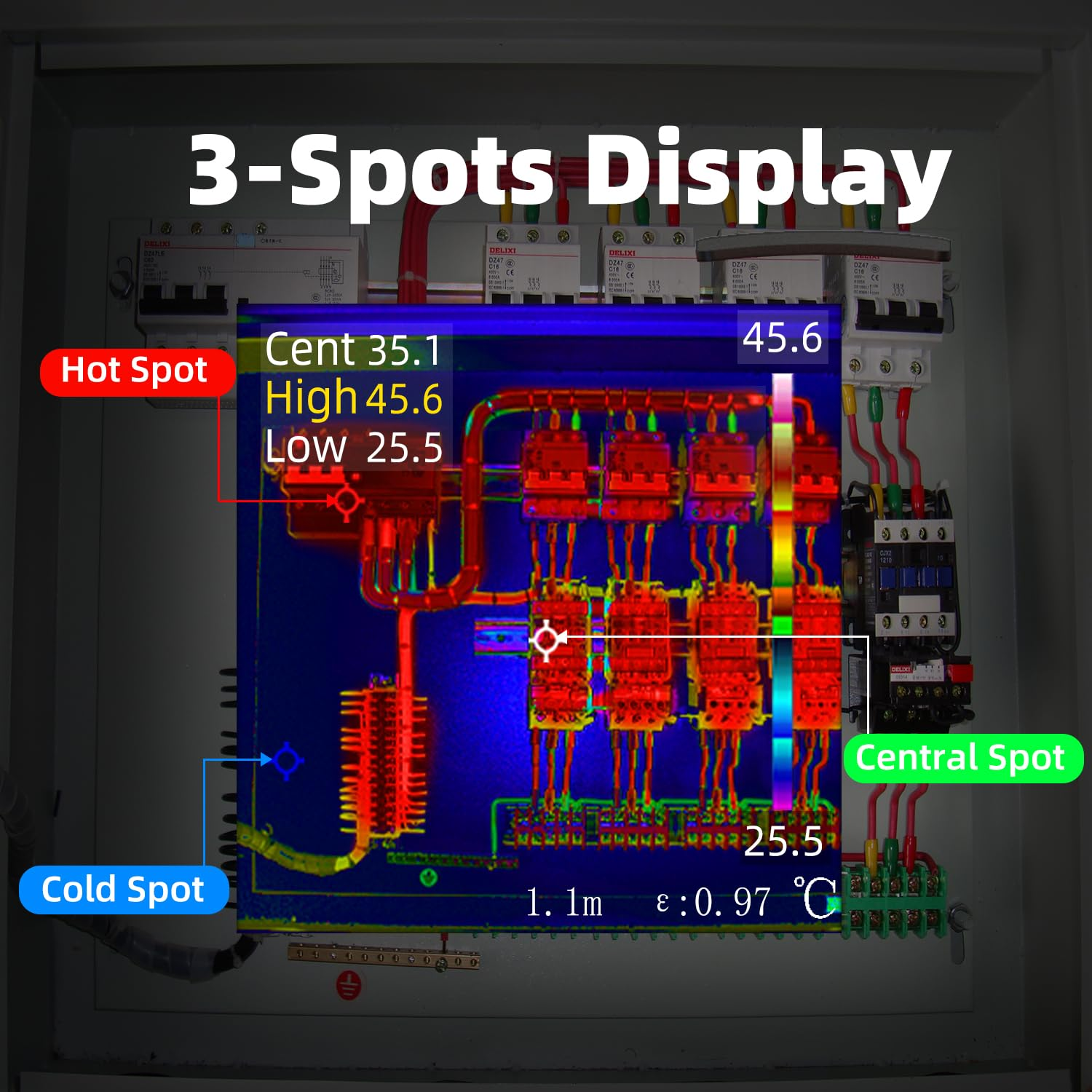

Display hot, cold and central spots temperature on the screen
The emissivity of infrared imaging camera is adjustable
Rechargeable portable infrared camera with 15 thermal palettes
Tested data can be exported to your computer for analyzed
for home inspection, hvac electrical plumbing, boiler inspection
Specification:
1.Infrared Camera
Display Size: 3.98 Inch TFT LCD
IR Resolution: 320 x 320
Screen Resolution: 320 x 480
Angle of View (FOV): 50.0°(H)x 50.0°(V)/72.1°(D)
Spatial Resolution (IFOV): 8.89mrad
Temperature Range: -20℃-550℃(-4℉-1022℉)
Thermal sensitivity/NETD: Less 60mk
Refresh Rate: 25Hz
Distance Settings: 0.3-3 m
Emissivity: 0.01-1
Thermal Palettes: 15
Number of storage image: 19000
2.Digital Multimeter
MAX Display: 20000 counts
DC voltage:
20mV/200mV 0.001mV/0.01mV ±(0.1%+3); 2V/20V 0.0001V/0.001V/ ±(0.05%+3); 200V/1000V 0.01V/0.1V ±(0.5%+3)
AC voltage:
20mV/200mV 0.001mV/0.01mV ±(0.1%+3); 2V/20V 0.0001V/0.001V/ ±(0.05%+3); 200V/750V 0.01V/0.1V ±(0.5%+3)
Flexible AC Current: 200A/2000A 0.1A/1A ±(1.0%+5)
Resistance:
200Ω 0.01Ω ±(0.5%+3); 2kΩ/20KΩ/200KΩ 0.0001KΩ/0.001KΩ/0.01KΩ ±(0.2%+3);
2MΩ/20MΩ 0.0001MΩ/0.001MΩ ±(1%+3); 200MΩ 0.01MΩ ±(5%+5)
Capacitance:
999.99nF 0.01nF ±(5.0%+20); 9.999µF/999.9µF 0.001µF/0.01µF ±(2%+5); 99.999mF 0.001mF ±(5%+10)
Temperature: -20℃~1300℃/-4℉-2372℉ 1℃/1℉ ±(2%+5)
Diode: Yes
Continuity: Yes
3. Macro Lens
Working object distance: 35mm
Magnification: 0.3X
Power: 2500mAh rechargeable battery (built-in)
Size: 169*81*26.8mm
Weight: 270g
Package Includes:
1 x Infrared Camera Multimeter
1 x Macro Lens
1 x Charging Cable
1 x Carrying Case
1 x User Manual
Note:
The flexible ac current clamp are not included in the package

  • Item Model Number: SH7 with Macro Lens
  • Colour Name: SH7 with Macro Lens
  • Product dimensions: 16.9 x 8.1 x 2.7 cm; 270 Grams
  • Item Weight: 270 g
  • Batteries: 1 Lithium Ion batteries required. (included)
  • Manufacturer: BSIDE
