GLEDOPTO ESP32 WLED Controller with Ethernet, Sound Sensitive, UART 20A Plug-In Fuse for WS2811, WS2812, SK6812, WS2815, RGB Digital Addressable IC Light Strip (616WL)

GLEDOPTO ESP32 WLED Controller with Ethernet, Sound Sensitive, UART 20A Plug-In Fuse for WS2811, WS2812, SK6812, WS2815, RGB Digital Addressable IC Light Strip (616WL)

Brand: GLEDOPTO
5.0
A$75.05 - A$79.60
Availability:
  • Select Styles for Availability

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

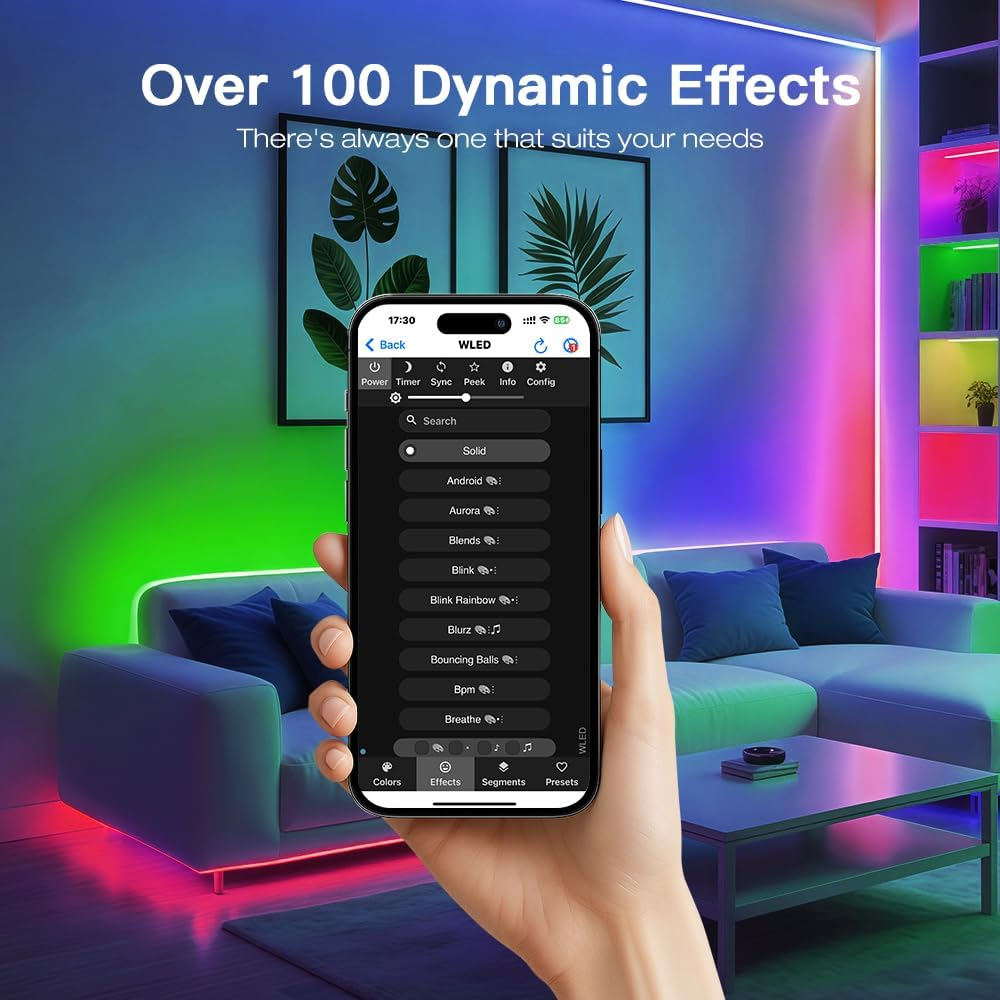

  • Powerful ESP32 Based Design: Designed with a versatile ESP32 chip, it delivers robust and stable performance for complex lighting setups. It supports seamless firmware updates and extensive customization capabilities to meet ever-evolving demands. Compatible with various addressable LED strips (including WS2811, WS2812, SK6812 and WS2815), offers over 100 built-in dynamic lighting effects via WLED software.

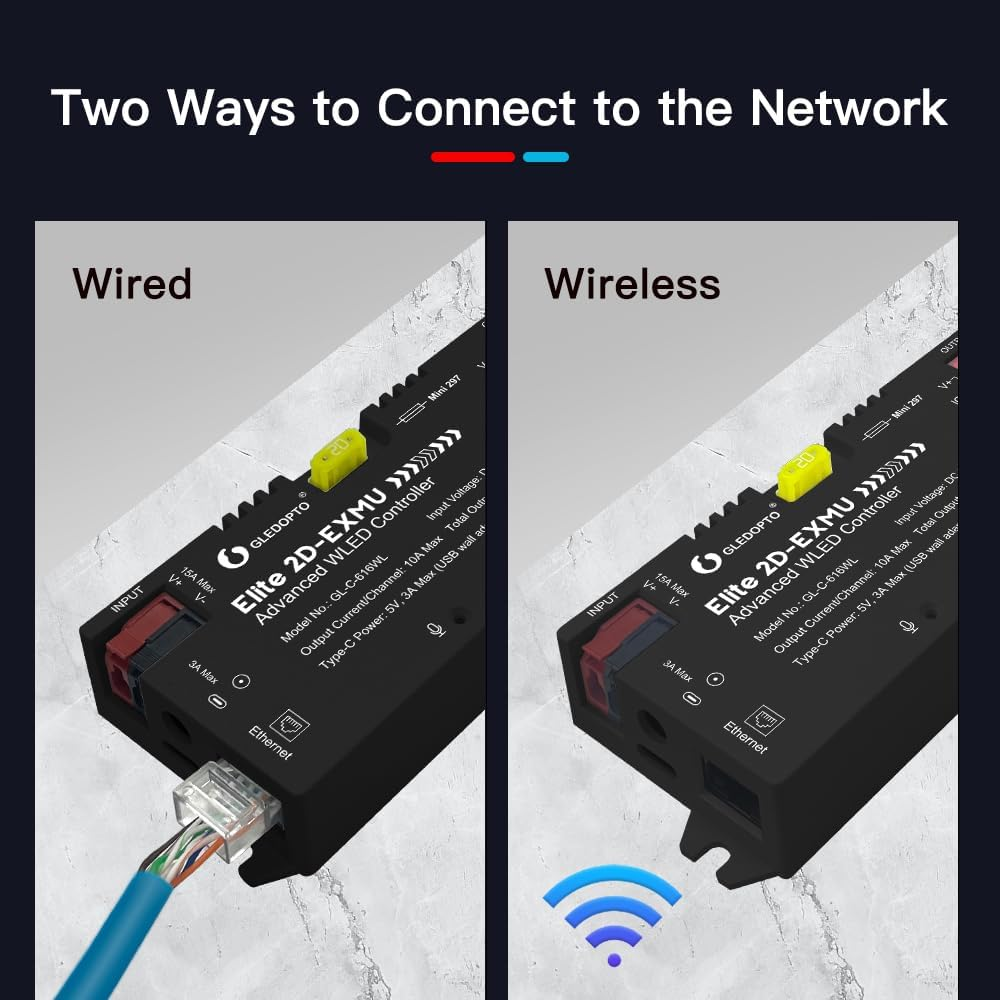

  • DUAL MODE NETWORK CONNECTIVITY - Features a plug-and-play Ethernet port and built-in Wi-Fi for seamless wired or wireless integration into home networks, offering maximum flexibility and convenience.
  • HEAVY DUTY PROTECTION & ENERGY EFFICIENT DESIGN - Ensures reliability and safety with a built-in 20A removable fuse for over-current protection and energy-saving relays that significantly reduce power consumption in standby mode. Fireproof PC shell ensures safe operation.

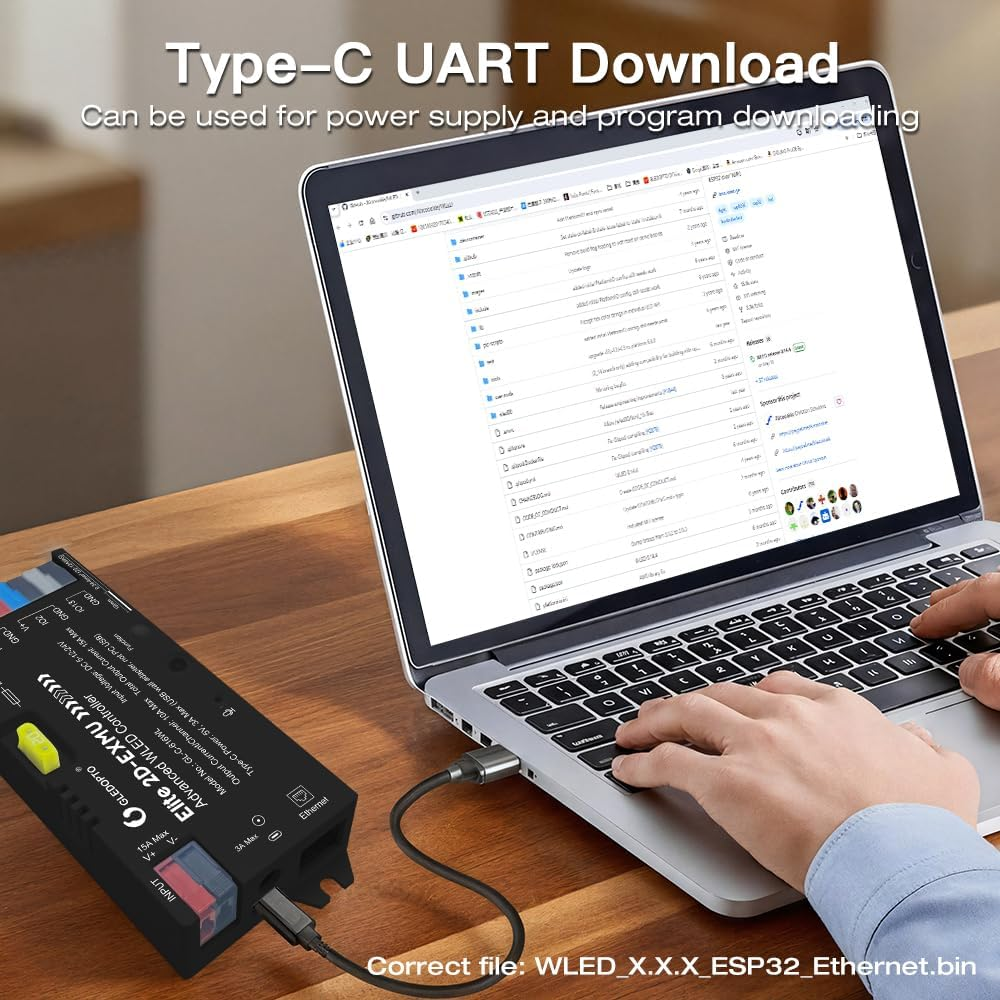

  • Audio Response & Expansion Ports - Built-in microphone allows for audio-responsive lighting effects that sync with ambient sounds or music. The UART interface supports advanced DIY projects, while firmware updates are facilitated via the Type-C port.
  • Convenient Installation & Segment Control - Features a 5-24V DC wide input voltage design and quick connect terminals to simplify wiring. The powerful WLED software allows precise control by segments, allowing you to create various scenes and lighting effects in different areas of a single LED strip.

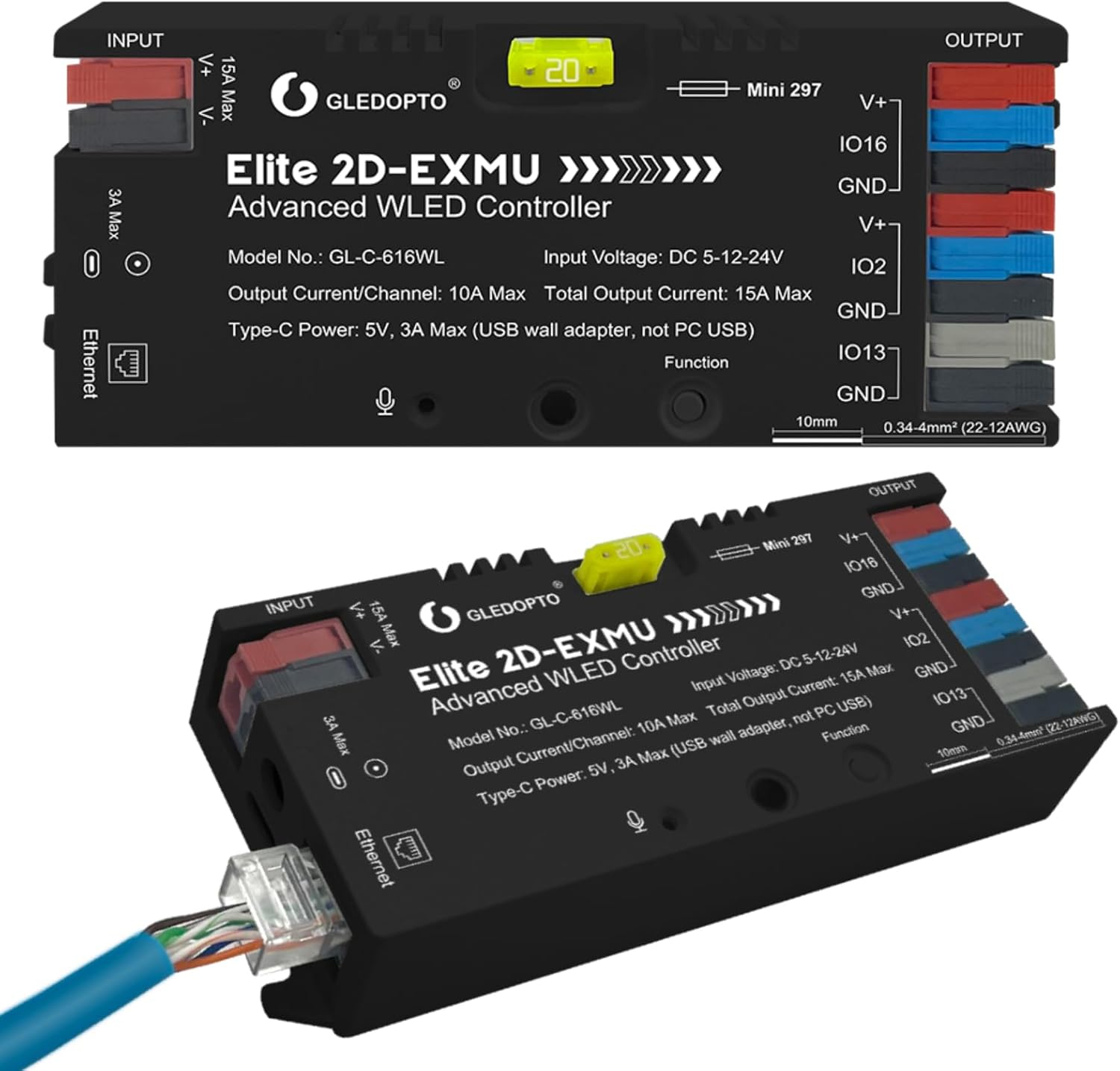

Product Name: ESP32 WLED Controller
Model No.: GL-C-616WL
Voltage: DC 5-24V
Output current/channel: 10A max
Total Current: 15A Max
Size: 129 x 50 x 23 mm
Operating Temperature: -20-45℃
Compatible Strip: WS281X SK6812 Addressable RGBIC Digital LED Strip
Package includes:
1 x Elite WLED LED Driver
1 x User Manual
1 x 3cm sticker
1 x 5A plug-in fuse

  • Item Model Number: GL-C-616WL/GL-C-618WL
  • Part Number: GL-C-616WL/GL-C-618WL
  • Style: 616WL
  • Number of Items: 1
  • Power Source: Corded Electric
  • Brand: GLEDOPTO
  • Colour: Black/White
  • Material: Polycarbonate
  • Type of Bulb: LED
  • Batteries Required?: No
  • Item Weight: 80 g
  • EU Energy Efficiency Label: No Rated
  • Batteries Included?: No
  • Voltage: 24 Volts
  • Special Features: Adjustable
  • Included Components: 1 x Elite WLED LED Driver, 1 x User Manual, 1 x 3cm Sticker, 1 x 5A Plug-in Fuse
  • Package Dimensions: 12.8 x 5.3 x 2.7 cm; 80 Grams
  • Style Name: 616WL
  • Manufacturer: GLEDOPTO
