Gebildet Rolling Door Contact Magnetic Reed Switch Alarm with 2 Wires for NC. Applications MC-52

Gebildet Rolling Door Contact Magnetic Reed Switch Alarm with 2 Wires for NC. Applications MC-52

Brand: Gebildet
5.0
A$24.70 - A$38.75
Availability:
  • Select Styles for Availability

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • [Specification] - Current: 0.5A ; Voltage: 100V ; Power Rating: 10W; Action Distance: 15mm

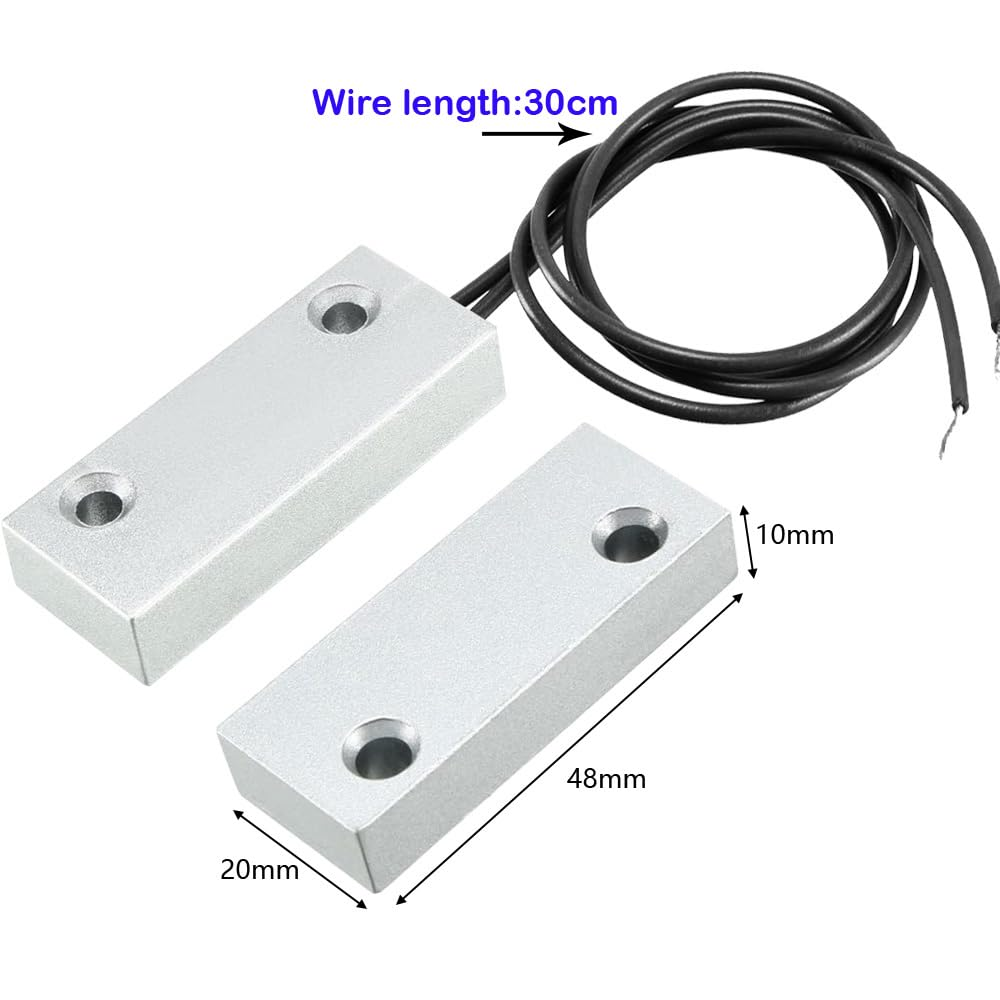

  • [Dimension] - Cable Length: 30cm/11.8"; Total Size: 48.7mm x 19.5mm x 10 mm/1.92 x 0.77 x 0.39 inch (L*W*H)
  • [Material] - The magnetic switch alarm is with durable zinc alloy housing for better rust resistance

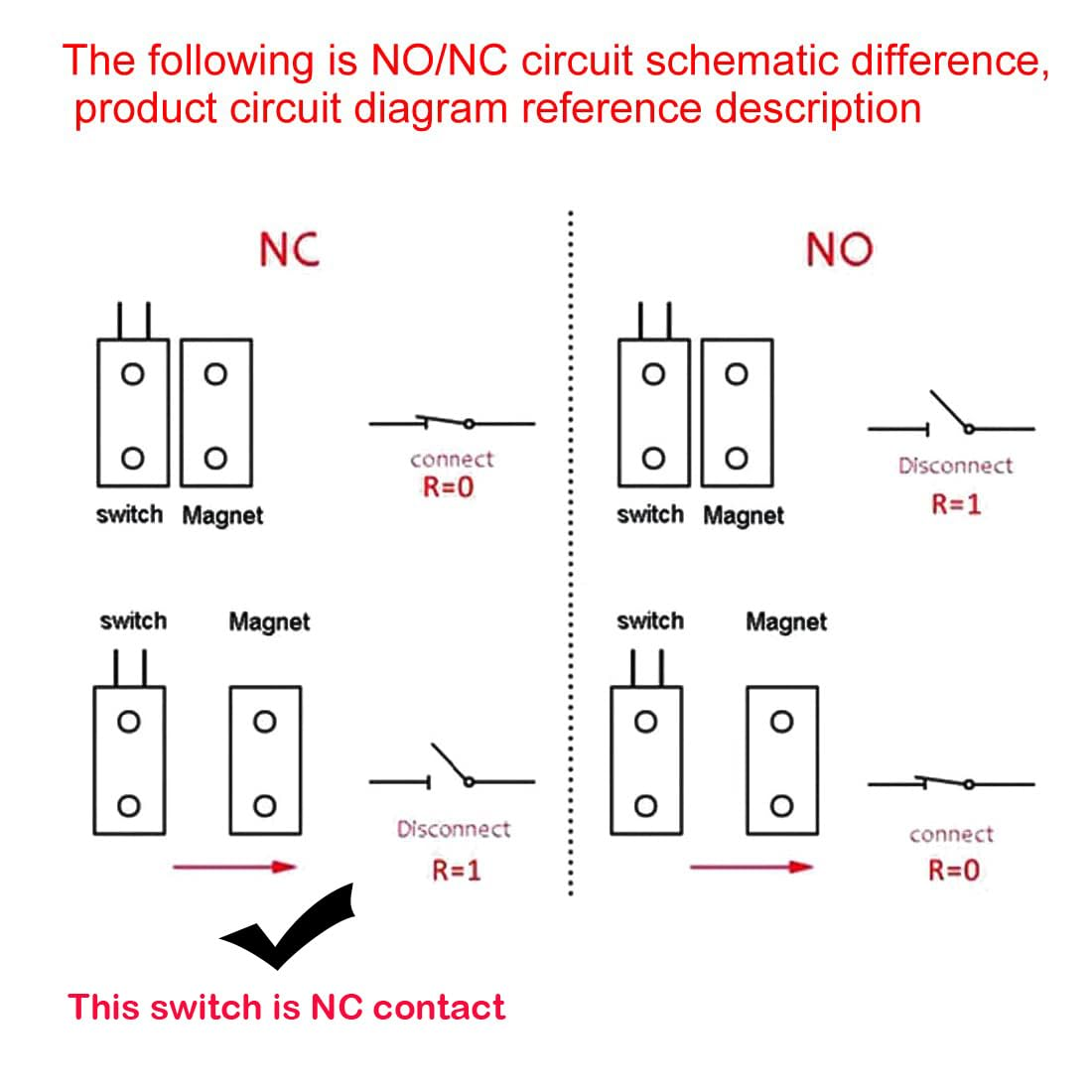

  • Normally Closed: When the magnet together, the circuit is conductive( light on ); when the magnet separates, the circuit is not conductive ( light off )
  • [Applications] - The Rolling Door Contact is designed for use with window and door alarm systems, such as garage, industrial warehouse and shops, etc.

Installation instructions:
1. The door and window magnet should be installed in the closed position of the door/window.
2. The magnetic part is attached to the movable door and window. The switch part is mounted on the fixed door and window frame. The switch part and the magnetic part should be aligned as much as possible.
3. The door magnet should be away from the strong magnetic field interference source such as a transformer. Otherwise, the functional properties of the door magnet will be changed and misactions may occur.

  • Item Weight: 60 g
  • Item Model Number: E1280
  • Package Dimensions: 11.3 x 8.5 x 1.2 cm; 60 Grams
  • Style Name: MC-52
  • Manufacturer: Gebildet
