HEUER vice The HEUER vice is a real quality tool. Forged entirely from steel, guaranteed unbreakable. Thanks to its high-quality individual elements, it impresses in its entirety with reliability, durability and precision.

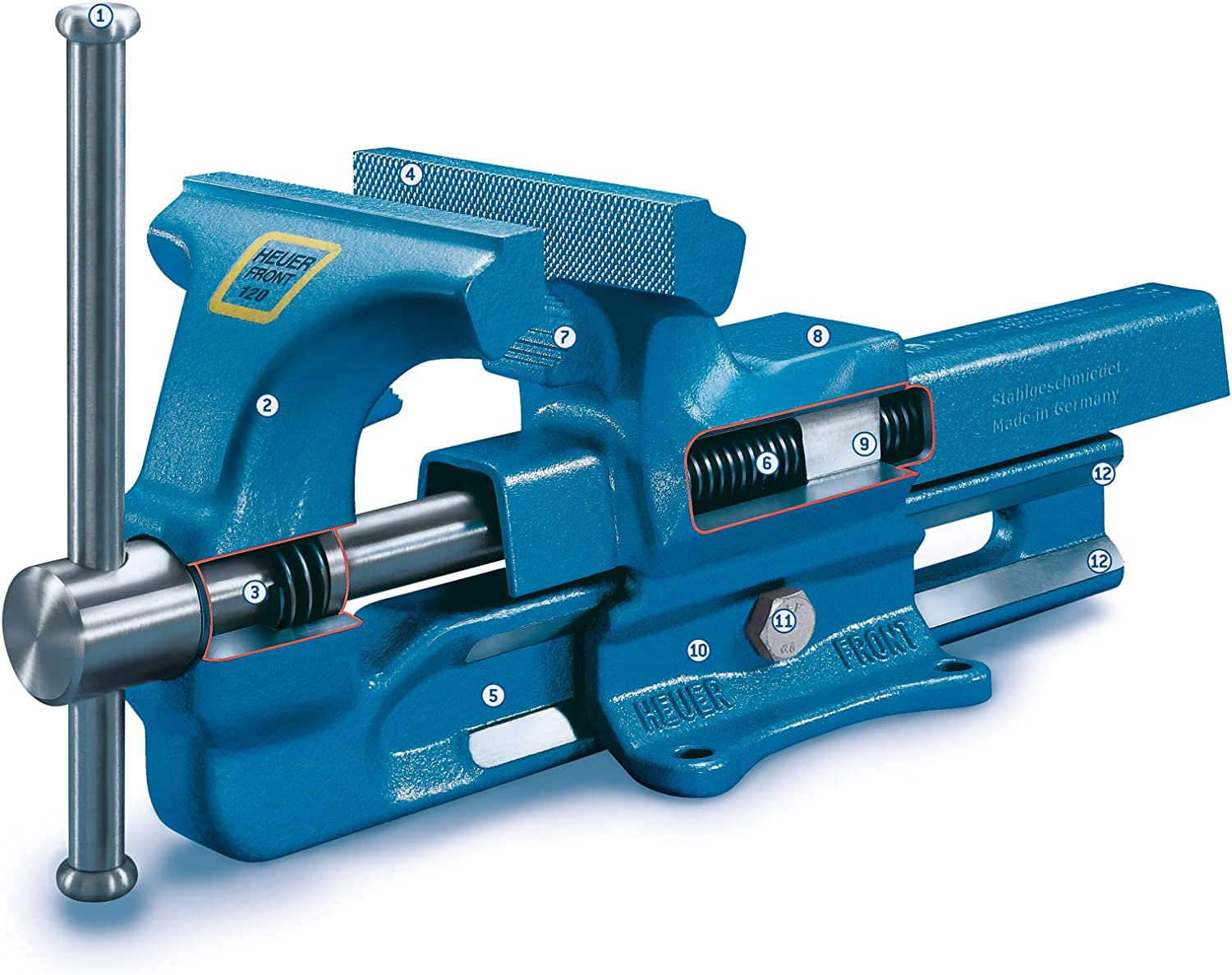

Due to the slim, drop-forged guide rail, it offers a great low clamping possibility. The double, internal prism guide is well protected against damage and dirt. Large, machined guide surfaces guarantee a steadily precise, smooth running of the guide rail, unceasing when clamping sensitive workpieces exactly.

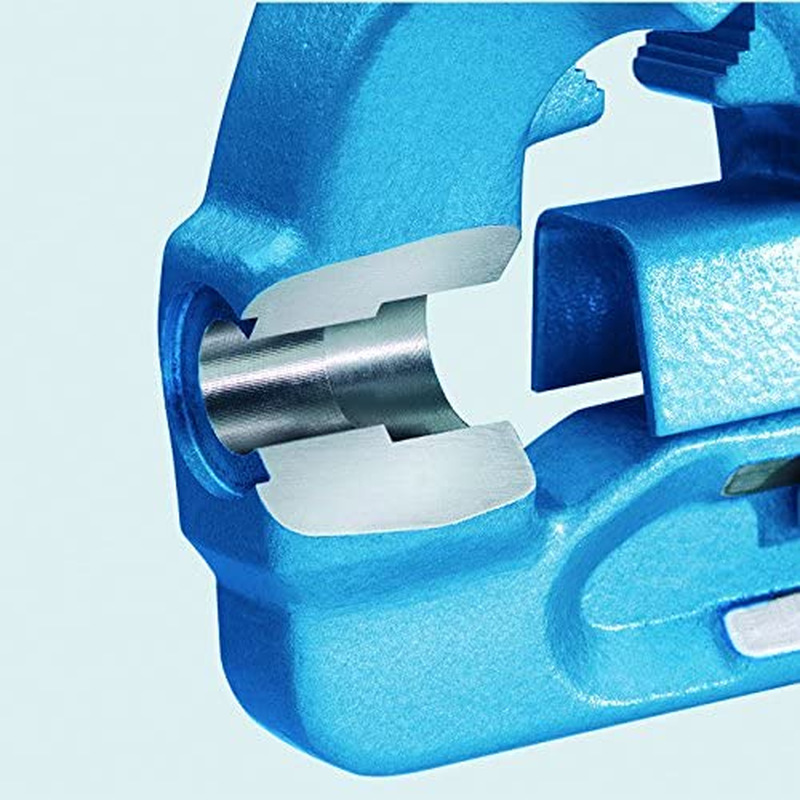

Another plus is the protected precision spindle bearing, the covered spindle with two-speed trapezoidal thread, as well as the easily adjustable, central guide. This construction is crucial for high precision. The riveted locking rings on the steel spindle wrench provide the necessary safety. An anvil is integrated into the rear jaw.

Technical details:

• Jaw width: 120 mm.
• Weight: ~ 9 kg.
• Span width: 150 mm.
• Clamping depth: 65 mm.

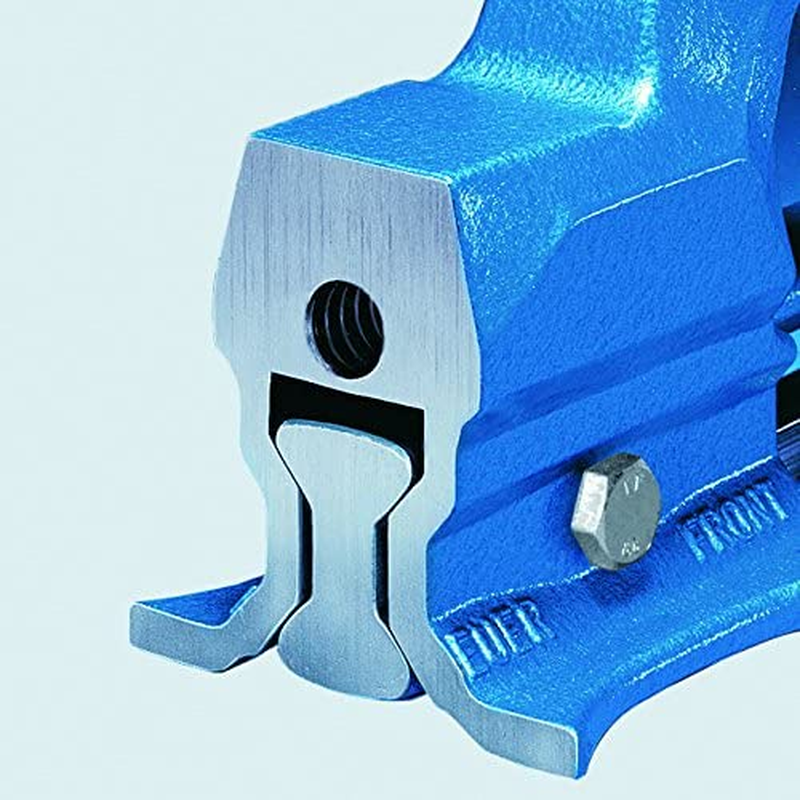

• Diameter of pipe clamping jaws: 16 – 55 mm.

• lift
• Protective jaws.
• Table clamp
• turntable
• Swivel clamp

• 1 x vise, no. 100120.
