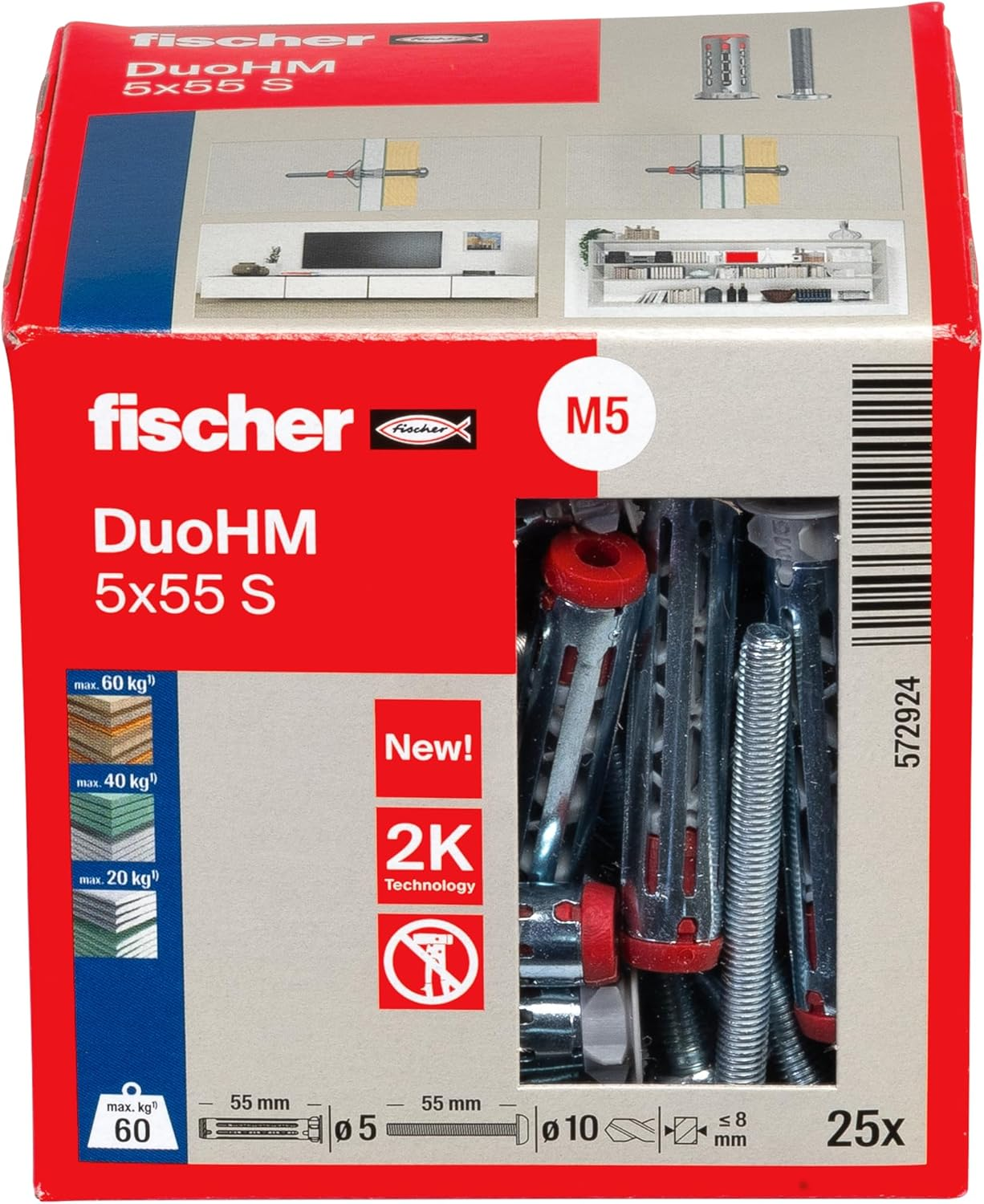

fischer cavity dowel DuoHM 5 x 55 S TX.

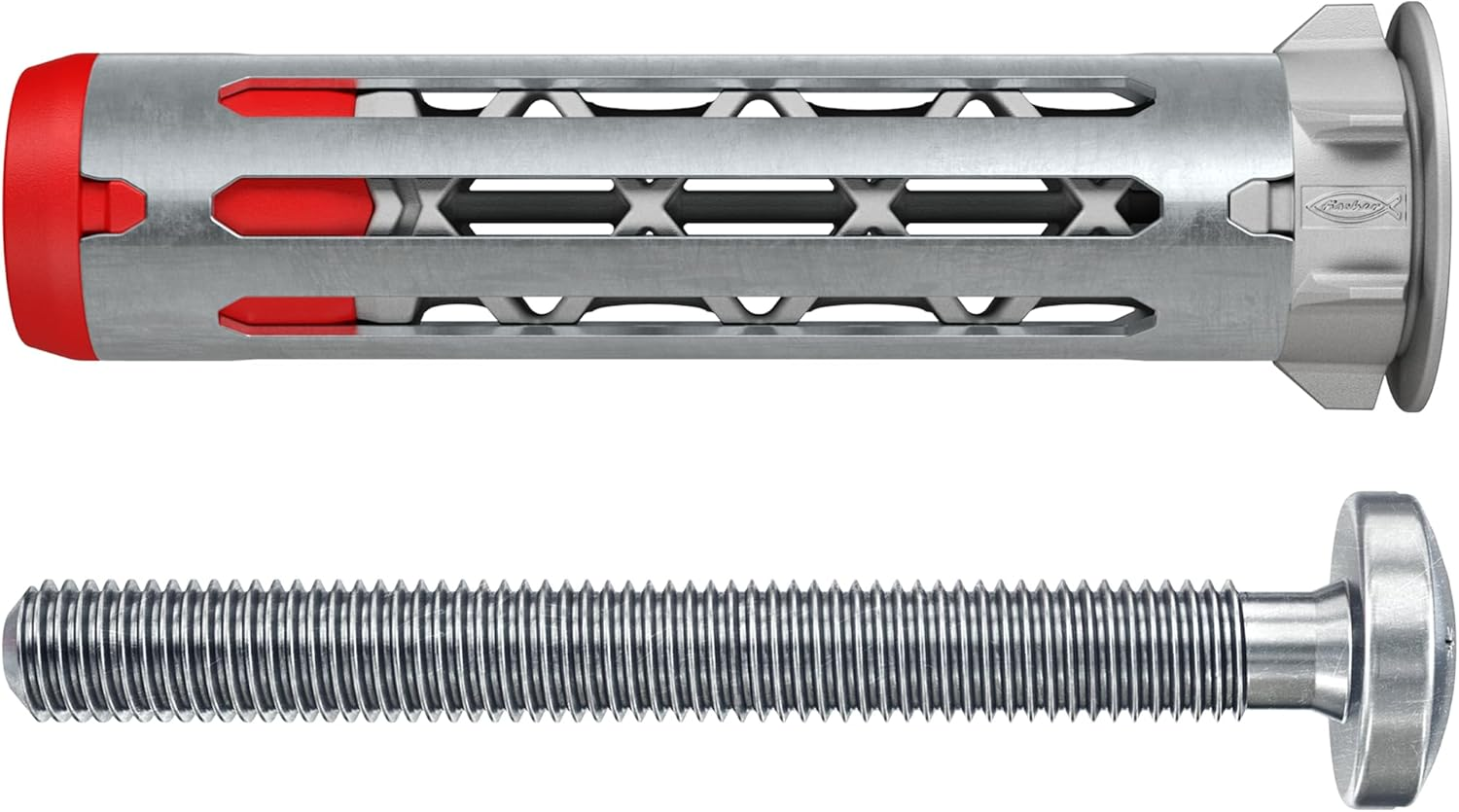

The DuoHM cavity dowel covers all standard building material thicknesses from 9.5 - 30 mm with just one length. Thanks to the unique combination of nylon and metal, the DuoHM allows high loads and maximum flexibility in panel building materials. The metal sleeve folds behind the building material and presses against the back of the plate, the plastic dowel spreads in the plate. The DuoHM is quick and easy to assemble using a cordless screwdriver without additional setting tools. This reduces assembly time up to 50% compared to conventional panel anchors. Thanks to the metric internal thread, the attachment part can be screwed in and loosened several times. In addition to the included screw, the DuoHM can also be used with other metric screws. The anti-rotation nylon protection protects the surface of the building material from damage. Due to the narrow dowel edge, the dowel is no longer visible behind the attachment. The fischer DuoHM cavity dowel is suitable for attaching pictures, TV brackets, lights, wall shelves, towel rails, mirror cabinets, curtain rails and substructures.
Product features:
Contents: 25 x DuoHM 5 x 55, 25 x M5 x 55 screws with TX drive.
Drill nominal diameter: 10 mm.
Plate thickness: 9.5 - 30 mm.
Dowel length: 55 mm.
Min. Hole depth: 55 mm.
fischer – innovative solutions.
fischer fastening systems is the largest division of the Fischer group of companies. The specialist for secure and economical fixings and connections in construction has become one of the market leaders over the past 70 years. The product range ranges from chemical systems to steel anchors to plastic dowels. Whether heavy duty fixings in tunnel, bridge or power plant construction for the professional or wall and cavity dowels for the DIY enthusiast: fischer offers the right solution for every mounting problem.
