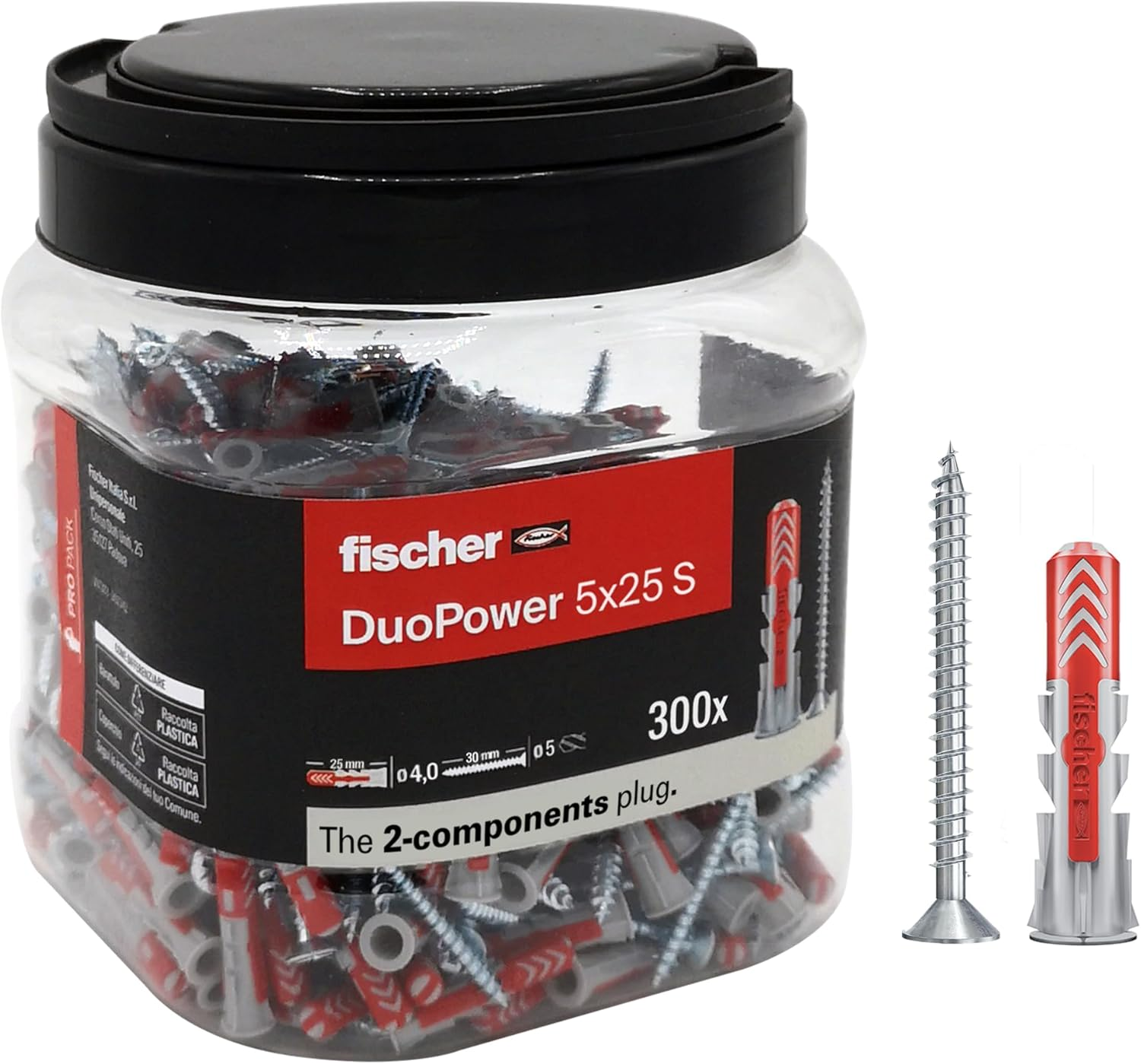

Propack DuoPower 5 x 25 S - 250 Dowels with Countersunk Head and Slot PZ 2

Backing material:

• tv shelves
• Lighting.
• Shelves.
• mirror cabinets
• mailboxes
• Pictures
• Roller blinds
• curtain rails
• Fixings for sinks
• Plumbing and Heating Fittings
• Accessories for bathrooms
• Wall Cabinets
• cooker hood

Advantage:

• Two components for higher load values and intelligent operation (stretching, bending, knotting) depending on the carrier material.
• The best feedback possible when putting on. You can feel with confidence when the attachment is perfectly installed.
• The small mounting length ensures quick installation without deep drilling.
• The narrow retaining collar prevents slipping into the hole.
• Tight anti-twist slats prevent turning in the hole during installation.

Recommended uses:

• Concrete
• Solid brick made of brick.
• Solid brick made of calcium silicate.
• Solid block made of lightweight concrete.
• Semi-full brick (drilled vertically) made of brick
• Semi-full brick (vertically perforated) made of calcium silicate
• Hollow block made of lightweight concrete.
• Autoclave aerated concrete (aerated concrete).
• plasterboard
• Plasterboard and gypsum fibreboard.
• Cavities made of concrete and brick or similar
• Natural stone.
• Chipboard.
• Full wall plaster plate.

How it works:

• The DuoPower is suitable for through-through and non-through installation.
• The combination of two different materials and their diverse functional capabilities (expansion, bending and knot) extend the range of applications to additional materials with high loads.
• The required length of the screw is given by the length of the dowel + the thickness of the object to be attached.
• Suitable for wood and chipboard screws as well as double threaded screws.
• When attached to panels, the non-threadless part of the screw must not be longer than the object to be attached.
• The distance to the edge must be equal to the length of the attachment at least on

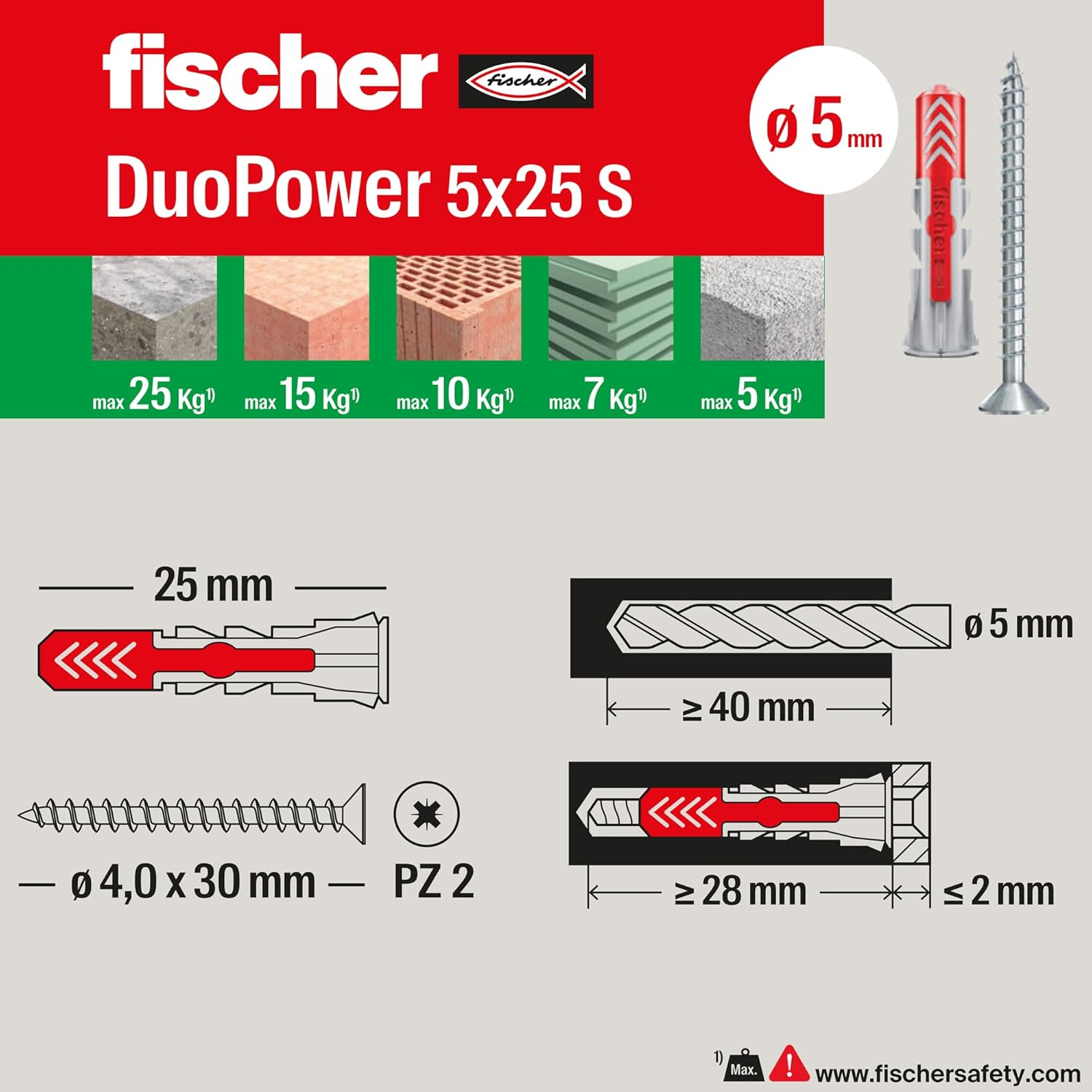

Technical details:

• Tool holder: PZ2.
• Bore diameter: 5 [mm]
• Mounting length: 25 mm.
• Spacing Mounting: No
• Loop Installation: No
• Pre-positioned installation: Yes
• Colour: grey.
• Design: with screw.
• Max. Fixable thickness: 2 [mm]
• Drill hole depth min: 40 [mm]
• Plate thickness min: 12 [mm]
• Wood and chipboard screws: 4.0 x 35 [mm]

Reference:

• EAN: 8001132119631.
• fischer code: 572884.
