All Schellenberg tubular motors open and close your roller shutters completely automatically and quietly. The strenuous operating of the shutters by hand has come to an end. The operation of the roller shutter motor is done with a roller shutter switch, timer or wirelessly. You will no longer need belt winders and straps that wear out over time and need to be replaced. This is more comfortable, modern and looks elegant.

Features

The Schellenberg tubular motor Maxi STANDARD 15 is a powerful roller shutter motor for roller shutters with an area up to max. 6.2 m2. This is limited to roller shutters made of plastic and depending on the material type and severity of the shutter. The maximum tensile force of the shutter motor (25 kg) must not be exceeded. The tubular motor does not wear quickly, is quite running and maintenance-free and has a long life. Thus, the roller shutter motor is ideal for your home!

Benefits

• Smooth running and maintenance-free roller shutter motor
• Low wear and tear
• Ideal for home ownership (adds value)
• Ready to mount with adapter and quite running wall bearing, adjustable in height

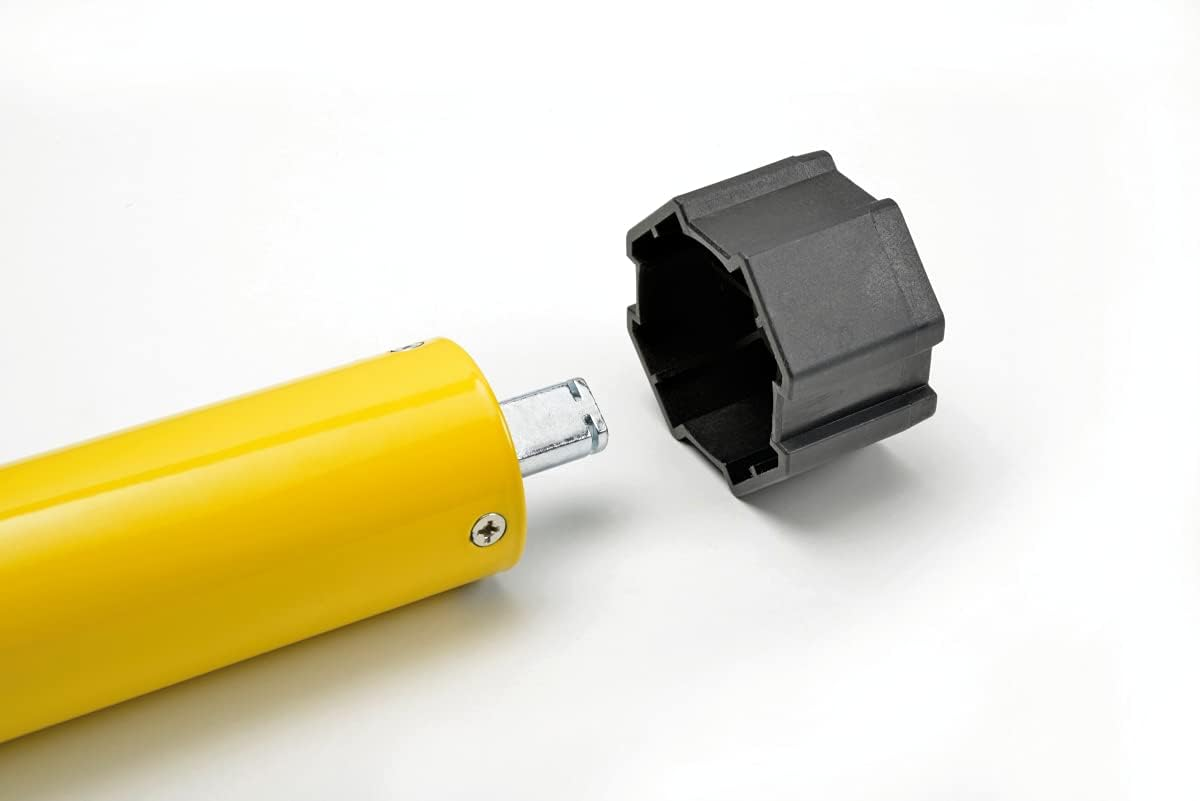

• Adapter with large contact surface for optimal power transfer
• Reduced installation depth by innovative carriers
• Thermal overload protection
• Simple mechanical end positions (successful for many years)
• Comprehensive and illustrated installation and operating instructions
• Permanent preservation of the end positions in case of power failure
• Retrofitting on remote control possible
• TÜV tested and CE certified
• 3 year warranty

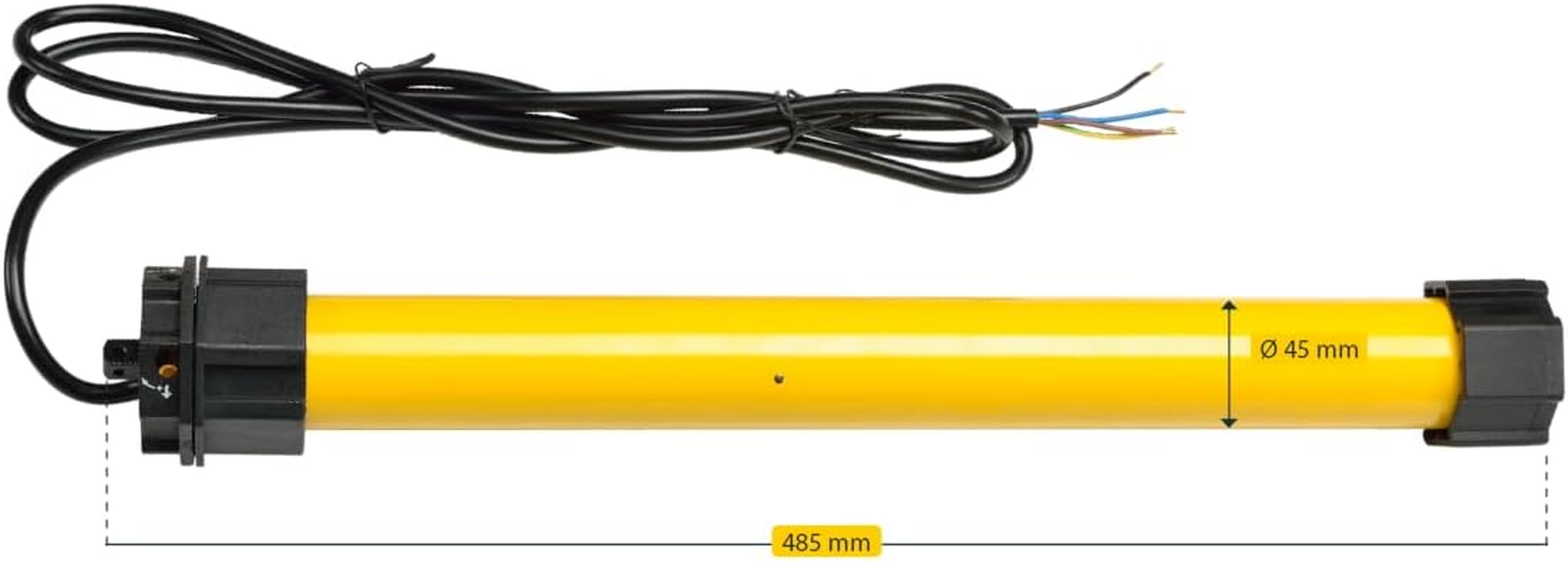

The Schellenberg tubular motor maxi STANDARD 15 is suitable for simple installation in octagonal shafts with a diameter of 60 mm. The roller shutter motor is mounted directly in the roller shutter shaft and transmits its power directly to the octagonal shaft (max. tensile force: 25 kg). Thus it is the most effective and low wearing for roller shutters.

Roller shutter motors are always the right choice when shutters are controlled from multiple locations or more shutters need to be operated simultaneously (multiple/group control).

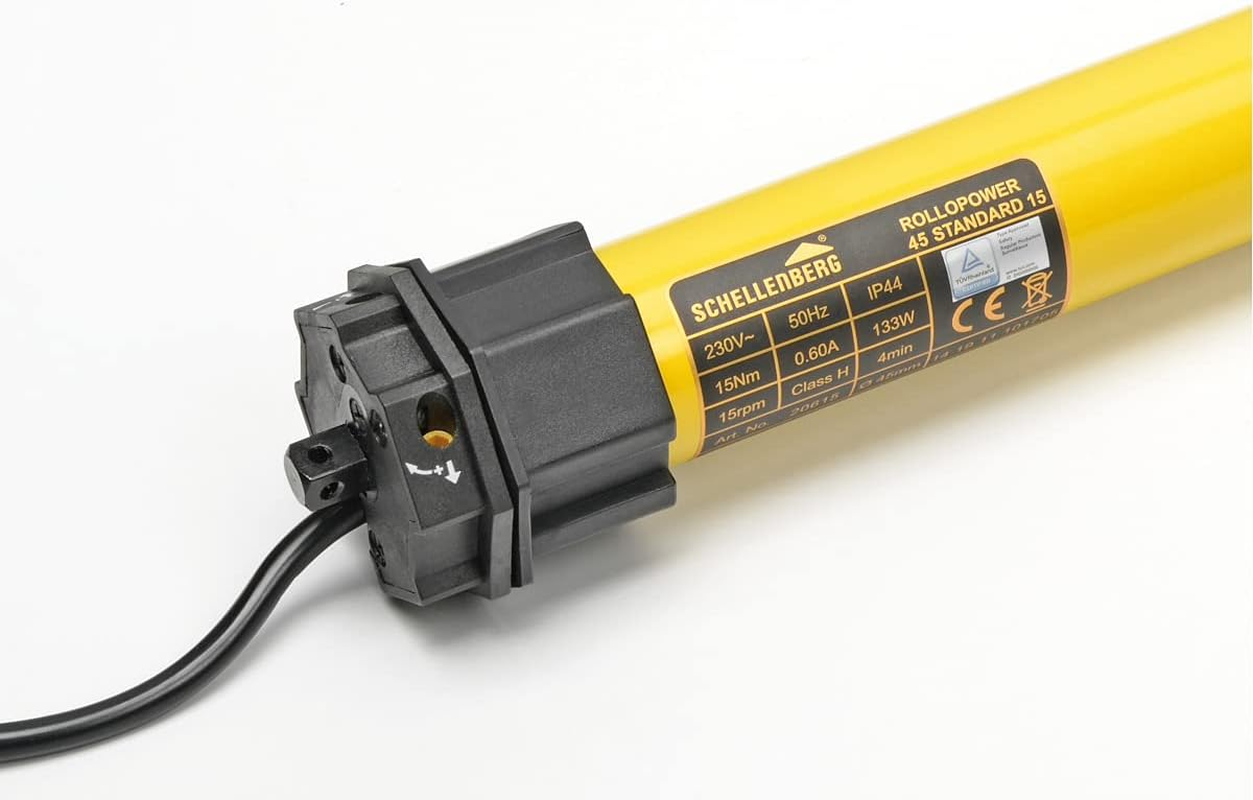

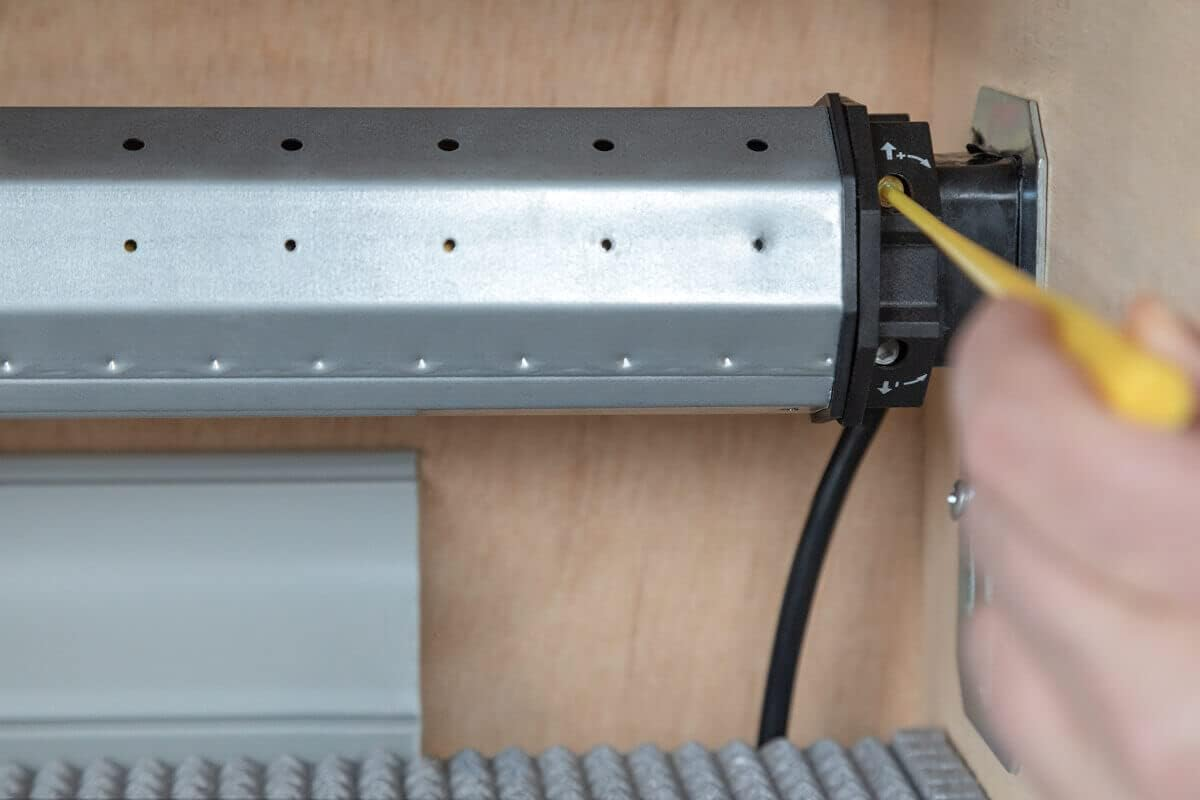

The Schellenberg tubular motor Maxi STANDARD 15 is ready for installation and supplied with an adapter and wall bearing. During assembly, the end positions of the roller shutters can be manually adjusted by turning the adjustment screws on the head of the engine. A corresponding adjustment tool is included.

It is a multi-controller with relay possible. The relay is not included.

For all STANDARD and PLUS tubular motors from the Schellenberg company an individual multiple control is possible by switching in different relays. The relays are not included.

Expandability: Retrofitting a convenient radio control!

For all Schellenberg tubular motors of the series PLUS and STANDARD can the shutter control conveniently be retrofitted wirelessly. There are two options:

• Shutter control with wireless receiver module, mounted directly on the tubular motor, (It. No. 20017) and remote control (for example It. No. 20015)

• Shutter control with wireless receiver switch, for easy replacement of the roller shutter switch (It. No. 20030 and remote control (for example It. No. 20015)

Information about applications and technical data for this product we keep in the attached PDF file for you.

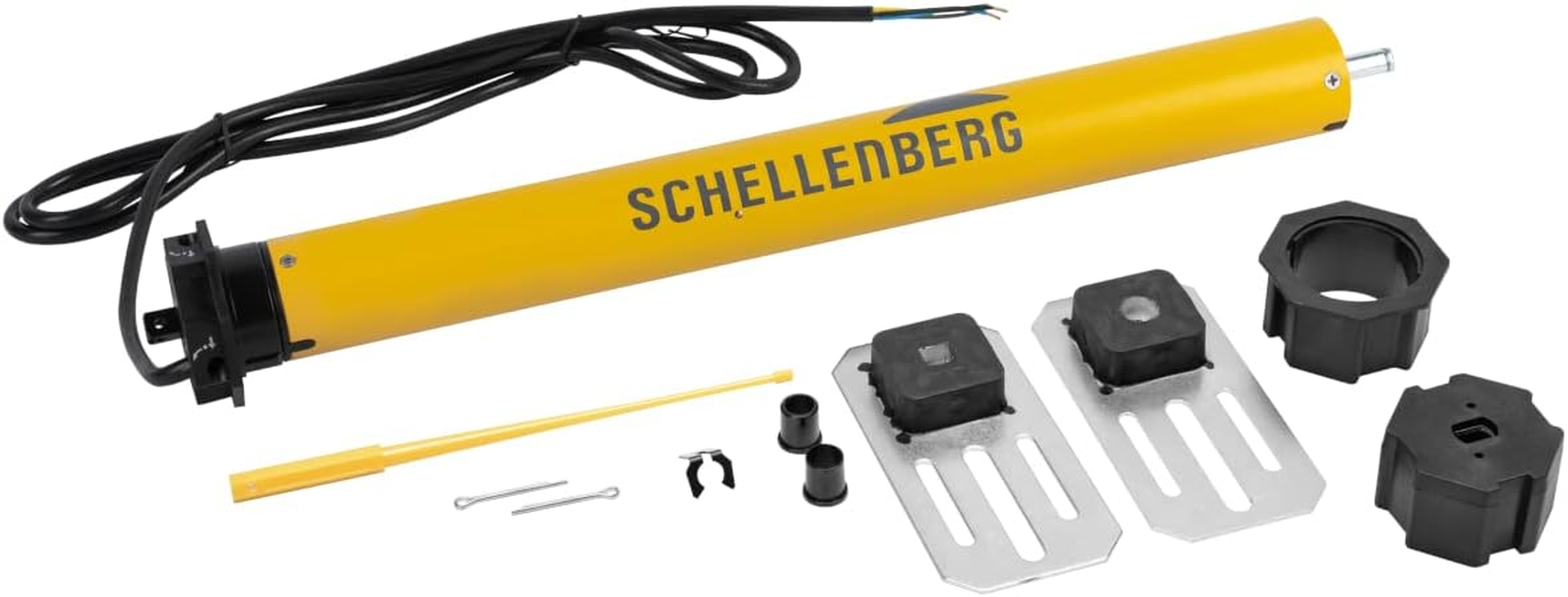

Scope of Delivery

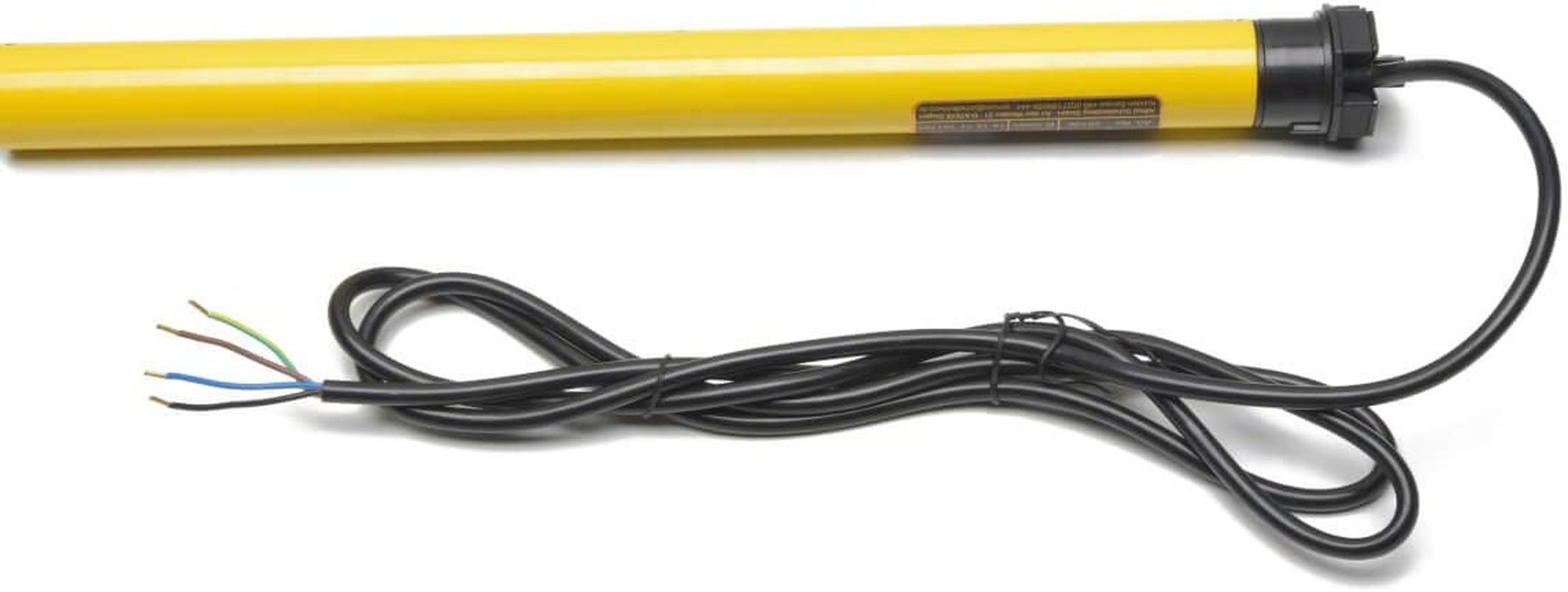

• 1 tubular motor with cable (2 m)
• 1 adapter set
• 1 quite running wall bearing set
• 1 adjustment tool
• 1 assembly instructions
