Performance Tool W125C Thickness Gauge

Decimal and metric sizes. .010" brass blade for transistorized ignitions.

-SAE Sizes: .0015, .002, .0025, .003, .004, .005, .006, .007, .008, .009, .010, .011, .012, .013, .014, .015, .016, .017, .018, .019, .020, .021, .022, .023, .024, .025, .026, .028, .030, .032, .035".

-Metric Sizes: .04, .05, .06, .08, .10, .13, .15, .18, .20, .23, .25, .28, .30, .33, .35, .38, .40, .43, .45, .48, .50, .53, .55, .58, .60, .63, .65, .70, .75, .80, .88 mm.

Performance Tool W129C Thickness Gauge

9 thickness blades 2" long and 6 flat 1" long spark plug blades. Decimal and metric sizes. 2" steel rule. Electrode adjuster.

-Straight Blade SAE Sizes: .002, .003, .004, .006, .008, .010, .015, .017, .018, .019, .020 and .025".

-Straight Blade Metric Sizes: .05, .08, .10, .15, .20, .25, .38, .432, .457, .483, .50 and .63 mm.

-Flat Blade SAE Sizes: .020, .025, .028, .030, .035 and .040".

-Flat Blade Metric Sizes: .50, .64, .70, .75, .88 and 1.02 mm.

Performance Tool W131C Thickness Gauge

Decimal and metric sizes. 3" steel rule.

-SAE Sizes: .002, .003, .004, .005, .006, .008, .011, .012, .013, .014, .016, .018, .020, .022 and .025".

-Metric Sizes: .05, .08, .10, .13, .15, .20, .28, .30, .33, .35, .40, .45, .50, .55 and .63 mm.

Performance Tool W80524 GO NO GO Feeler Gauge

Two step ground blades. Decimal and metric sizes.

-Sizes: .004/.006 in (.102/.152mm), .005/.007 in (.127/.178mm), .006/.008 in (.152/.203mm), .007/.009 in (.178/.229mm), .008/.010 in (.203/.254mm), .009/.011 in (.229/.279mm), .010/.01 (.254/.305mm), .011/.013 in. (.279/.330mm), .012/.014 in. (.305/.356mm), .013/.015 in. (.330/.381mm), .014/.016 in. (.356/.406mm), .015/.017 in. (.381/.432mm), .016/.018 in. (.406/.457mm), .017/.019 in. (.432/.483mm), .018/.020 in. (.457/.508mm), .019/.021 in. (.483/.533mm), .020/.022 in. (.508/.559mm), .021/.023 in. (.533/.584mm), .022/.024 in. (.559/.610mm), .023/.025 in. (.584/.635mm), .024/.026 in. (.610/.660mm), .025/.027 in. (.635/.686mm).

Performance Tool W80526 Non Magnetic Feeler Gauge

6 non magnetic straight brass blades. Check or set clearance between reluctor and pickup coil on electronic ignition distributors.

-SAE Sizes: .006, .008, .010, .012, .014 and .016".

-Metric Sizes: .152, .203, .254, .305, .356 and .406 mm.

Performance Tool W80527 Metric Feeler Gauge

25 straight blades.

-Metric Sizes: .04, .05, .06, .07, .08, .09, .10, .15, .20, .25, .30, .35, .40, .45, .50, .55, .60, .65, .70, .75, .80, .85, .90, .95 and 1.00 mm.

Performance Tool W80528 Standard Feeler Gauge

26 straight blades. Check for accurate clearance on ignition points, valve lash, etc.

-SAE Sizes: .0015, .002, .0025, .003, .004, .005, .006, .007, .008, .009, .010, .011, .012, .013, .014, .015, .016, .017, .018, .019, .020, .021, .022, .023, .024, .025".

-Metric Sizes: .038, .051, .064, .076, .102, .127, .152, .178, .203, .229, .254, .279, .305, .330, .356, .381, .406, .432, .457, .483, .508, .533, .559, .584, .610, .635 mm.

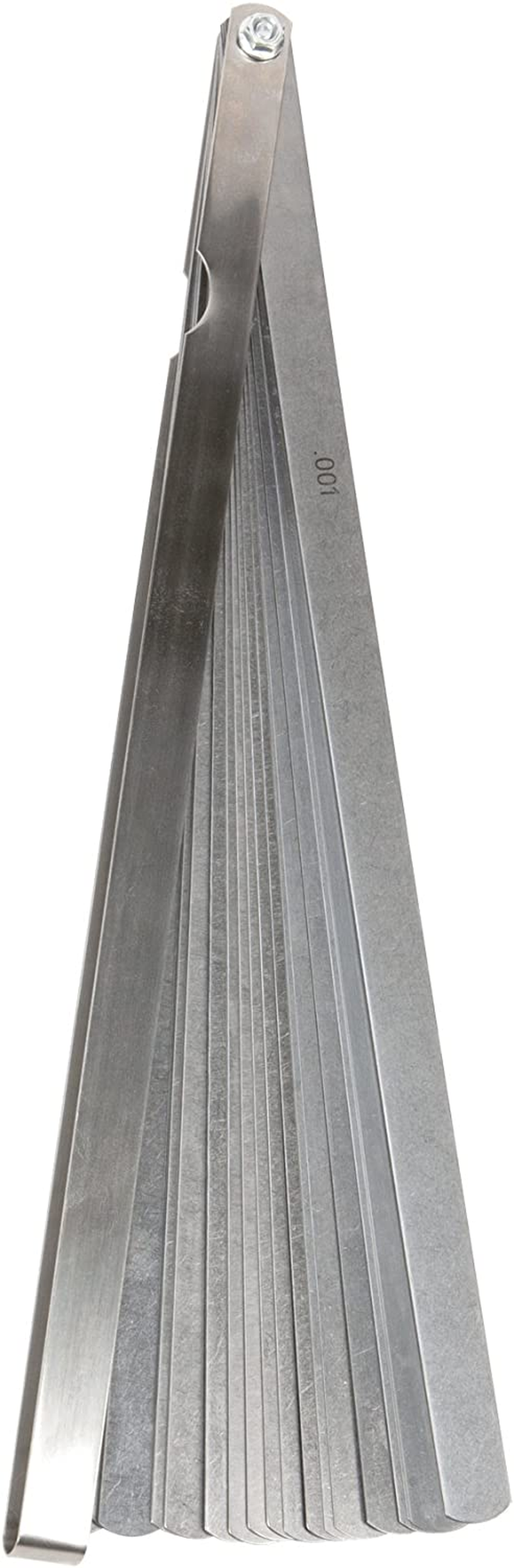

Performance Tool W80541 12" Long Feeler Blade Set

Feeler Gauges are mostly used to measure gap clearance widths between two parts. For easy identification, each blade is permanently marked with the blade thickness. Blades are flexible enough that even if they are all on the same hinge, several can be stacked together to gain increased values.1/2" x 12" blades in steel holder.Blades etched with both decimal size and metric equivalent.

-Sizes: .002, .004, .006, .008, .010, .012, .014, .016, .018, .020, .022, .024, .026, .028, .030, .032, .034, .036, .038, .040.
