Type 2 EV Charging Cable 7M 22 Kw - Electric Vehicle Car Charger Type 2| RCM Certified| 3 Phase | 480V | IP54 |7M TPU Cable Compatible with All Evs Tesla/Mg/Byd
Type 2 EV Charging Cable 7M 22 Kw - Electric Vehicle Car Charger Type 2| RCM Certified| 3 Phase | 480V | IP54 |7M TPU Cable Compatible with All Evs Tesla/Mg/Byd
Brand: MCEVKELN
A$208.75
-
A$247.80
Availability:
-
Select Styles for Availability
Shop with confidence
- ⚡Top Charging Performance: MCEVKELN 7M 22kW Type 2 to Type 2 EV charging cable is produced according to IEC 62196-2 standard. It provides the fastest charging speed for all Type 2 EVs, such as the Tesla Model 3 and Model Y, at AC charging stations.
- ⚡Certified for Safety: This7M type 2 to type 2 EV charging cable is RCM certified, with a maximum power of 22KW at 480V and 32AMP.
- ⚡Wide Compatibility: This TPU 7m charging cable is compatible with all electric cars and PHEV with IEC 62196 and CCS2 connector, including Tesla Model 3, Tesla Model Y, Tesla Model X /S, KIA, MG ,VOLVO ,Hyundai ,etc..
- ⚡Waterproof : With top sealing tech, the charging cable meets IP54 waterproof level,which means you can charge it even in the rain.
- ⚡Load Capacity :The cable is tested with 1 meter drop test and 2 tons car transition test, ensuring its durability and reliability.
- ⚡Services: MCEVKELN provides all customers with a 1-year warranty for every purchase, covering quality problems (excluding surface marks from normal use, normal aging, and damage from improper use of electronic components).
Product Description

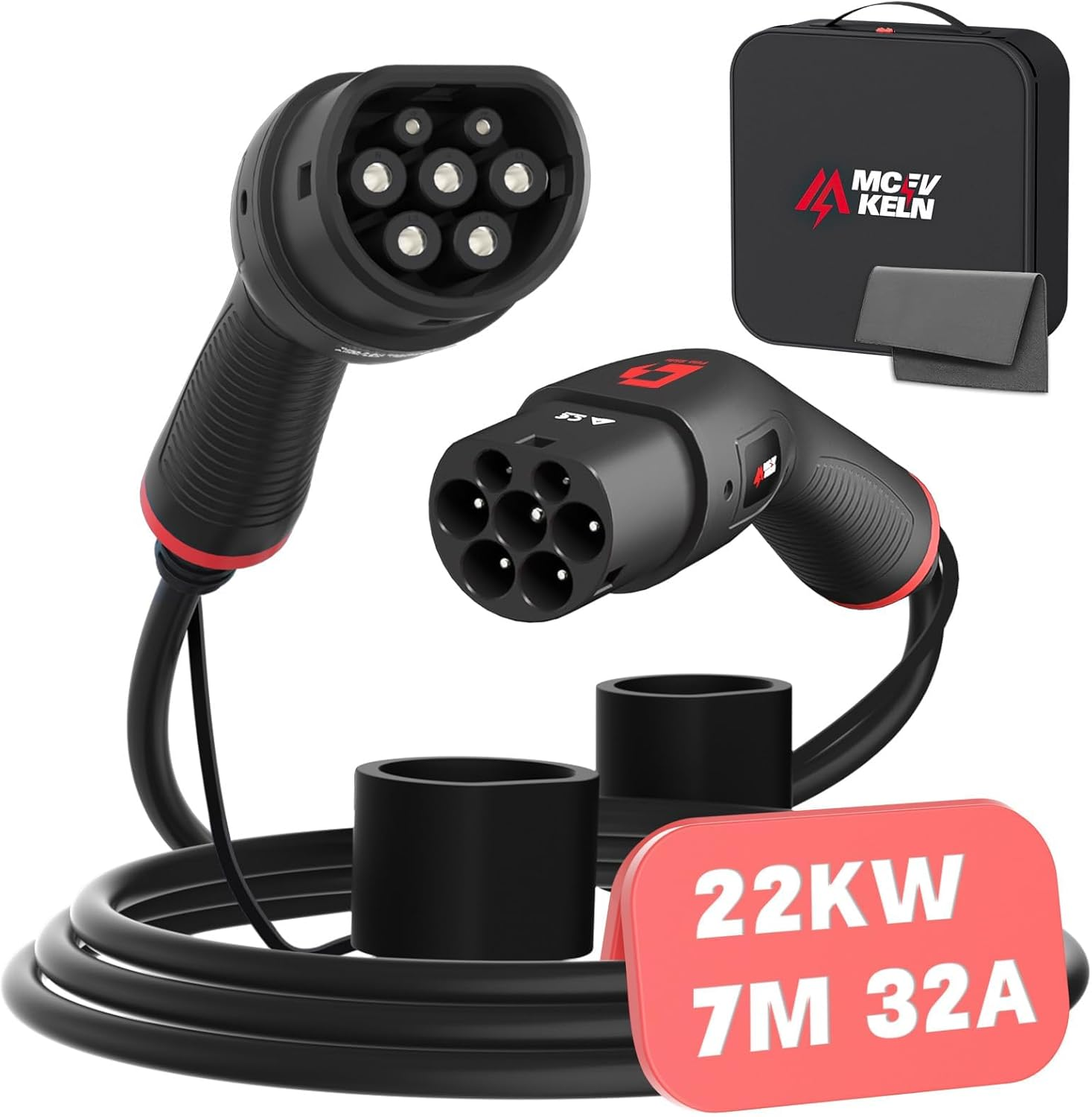

MCEVKELN Type 2 to Type 2 EV Charging Cable
The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.
Type 2 to Type 2 EV Charging Cable 22kW 32A
Merchant video| Product Name | MCEVKELN RCM Certified Type 2 EV Charging Cable |
| Cable Material | 3G2.5mm2+1x0.5mm TO 5X6mm2+1x0.5mm2 TPU |
| Standard | IEC 62196 |
| Rated Current | 16 A /32 A |
| Rated Voltage | 1phase (250V)/3phase (480V) |
| Conductor | copper alloy, silver plated surface |
| 22kW Rated | 32A + 480V |
| 11kW Rated | 16A + 480V |
| 7.2kW Rated | 32A + 250V |
| 3.6kW Rated | 16A + 250V |
-
Does this Type 2 to Type 2 EV charging cable compatible with Tesla?
Yes, this Type 2 to Type 2 EV charging cable is compatible with all electric vehicles that comply with IEC62196, including Tesla Model 3, Tesla Model Y, Tesla Model s/x,BYD, BMW, VW, Kia, MG, Hyundai, Audi, Nissan,and other Type 2 BEVs or PHEVs.
-
When using an 11kW cable at a 7.2kW charging station, why is the actual charging current only 3.6kW?
11kW cable has rated current of 16A. Meanwhile, and 7.2kW station only provide 1 phase electricity. When they are used together, they only provide a charging environment of 16A and 1 phase electricity, Resulting in a power output of around 3.6kW.
-
How could I arrive at how many kw of cable I need when I know what the charging current and voltage will be like？
There are the calculation for AC power: 1 phase：P = V × I ，3 phase：P = √3 × V × I
Which V means Voltage, I means Current. Usually, 1 phase is around 225V and 3 phase is around 400V. And the actual charging power is dependent on actual environment.
-

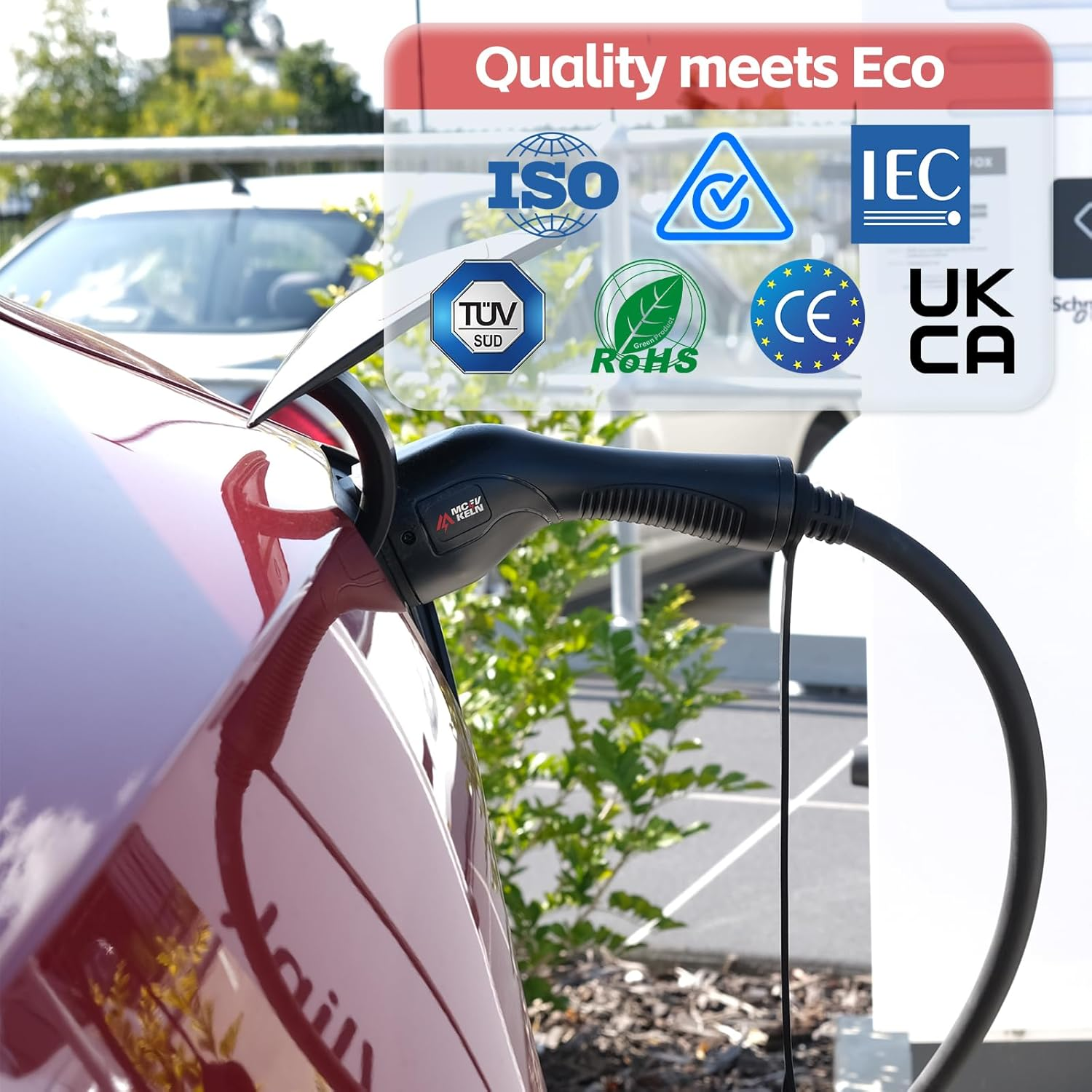

What safety certifications does this type 2 charging have?
This type 2 ev charging cable has RCM, CE, UKCA, TUV, and RoHS certifications.
- Item Model Number: V1-32T B
- Amperage: 32 Amps
- Brand: MCEVKELN
- Country of origin: China
- Manufacturer Part Number: MCB2CC-7
- Product dimensions: 6 x 32 x 37 cm; 3.3 kg
- Item Weight: 3.3 kg
- Special Features: Fast Charging, Lightweight Design
- Manufacturer: MCEVKELN
- Model: V1-32T B
- Size: 7M
