Inhand Networks IR305 Industrial Iot LTE 4G VPN Router,Modem,5 Ethernet Port,Wifi,Dual Sim Slot Unlocked, Wan Failover,Remote Connection,Link Backup, Mu-Mimo,Vlan,Lte CAT4 (RS232/485 Port)

Inhand Networks IR305 Industrial Iot LTE 4G VPN Router,Modem,5 Ethernet Port,Wifi,Dual Sim Slot Unlocked, Wan Failover,Remote Connection,Link Backup, Mu-Mimo,Vlan,Lte CAT4 (RS232/485 Port)

Brand: inhand
5.0
A$313.95
Availability:
  • Select Styles for Availability

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • The InRouter305 (IR305) is a dual-SIM cellular router with 5 Ethernet ports, and I/O or serial ports, integrated 4G LTE (CAT 4) and WiFi, and VPN technologies to provide easy, reliable, and secure Internet connectivity. It supports two operation modes, 4G Router mode and Wireless Router mode to provide uninterrupted multiple network access capabilities.
  • Multiple Networking Functions IR305 is suitable for complex and large-scale network applications with its multiple networking functions, such as virtual network VLAN, static routing, OSPF, GRE, VPN DMVPN, etc.
  • Continuity and Reliability Network Connection With Dual SIM failover and link backup, IR305 provides a reliable network connection for users. It can also provide high-quality network services by dual-SIM failover, VRRP, multi-layer auto detection and recovery of links failures.

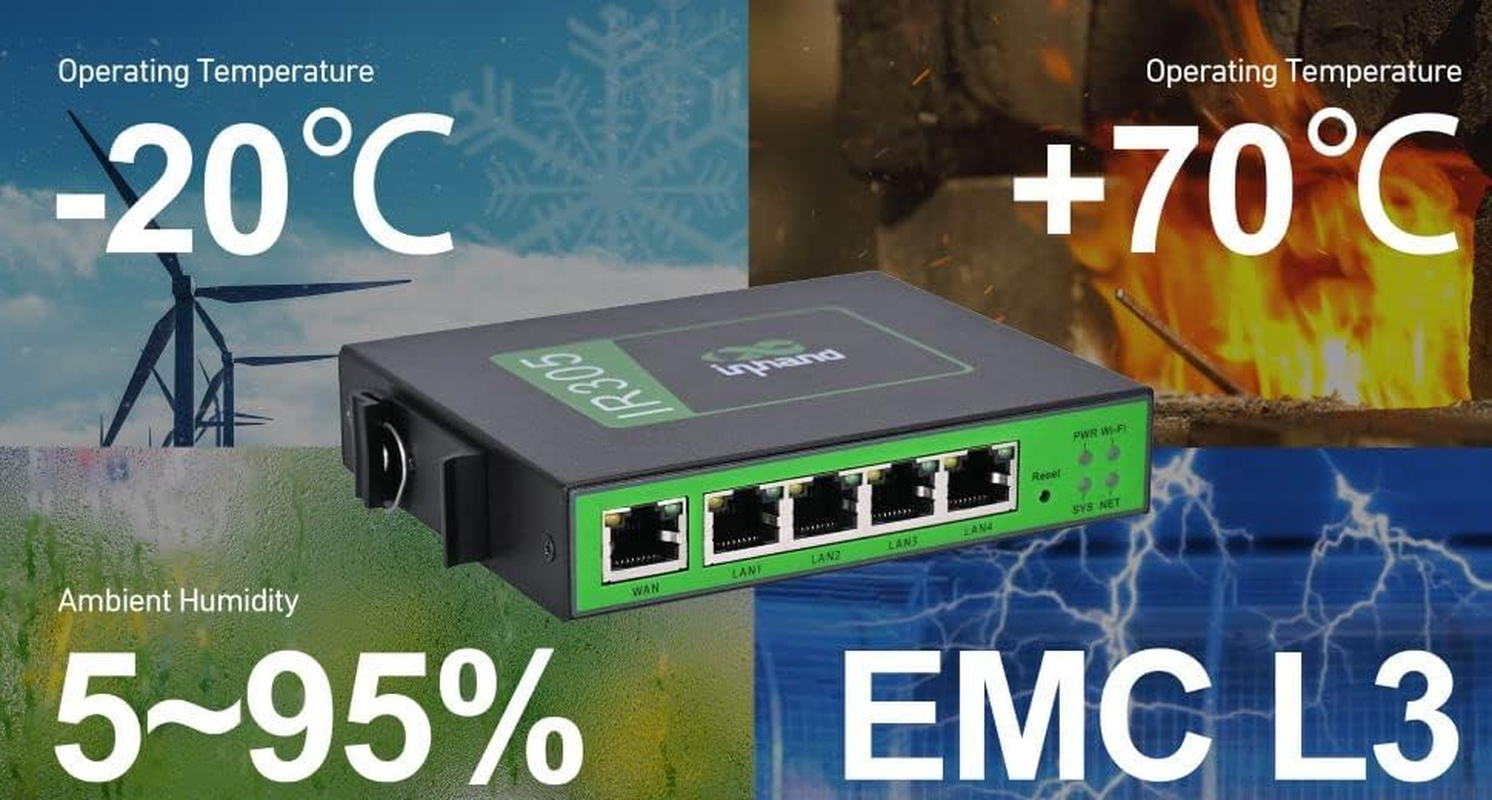

  • Fully Industrial Design Metal shell, IP30 protection. EMC level 3. Wide operating temperature: -20℃~70℃. IR305 is compact, which effectively reduces the space of installation and deployment. It supports DIN rail mounting, lug mounting and wall mounting, which is suitable for a variety of IoT deployment sites.
  • Device Manager-Free Remote Centralized Management Platform IR305 is compatible with InHand Device Manager, a free centralized cloud management platform, allowing to remotely configure and monitor the status and parameters of IoT devices by SNMP V1/V2c/v3 protocol.
  • Power supply: DC9-36V, over-current protection, anti-reverse connection, 2 PIN industrial terminal

Product Description

Compact Industrial Router InRouter305

4G LTE, Five Ethernet Ports, Dual SIM, Cloud Management

  • InHand launches IR305 series products combined with DeviceManager cloud management service. It is suitable for various industries, making your digital IoT more convenient, more economical and more efficient!
  • IR305 has a variety of network access capabilities, suitable for different networks, and provides different network speeds for different business needs, providing convenient and efficient network access services for IoT devices.

Compact cellular 4G router

Convenient and Efficient Access to the Network Anytime, Anywhere

● 4G cellular access, LTE CAT4 standard, compatible with 2G/3G network

● Wired/ADSL access

● WiFi wireless access

● Optional IO port or serial port, depending on your application

Build a Simple and Secure Wireless Wi-Fi Network

● 802.11 a/b/g/n

● 2.4G Wi-Fi

● 2*2 MIMO, up to 300Mbps

● 74 accessible terminals

● Support AP/STA mode

● Support multiple security authentication methods and encryption algorithms: TKIP and CCMP

Quickly Build a Complete Network

● Virtual network can be divided: VLAN

● Rich routing functions: static routing, OSPF, etc

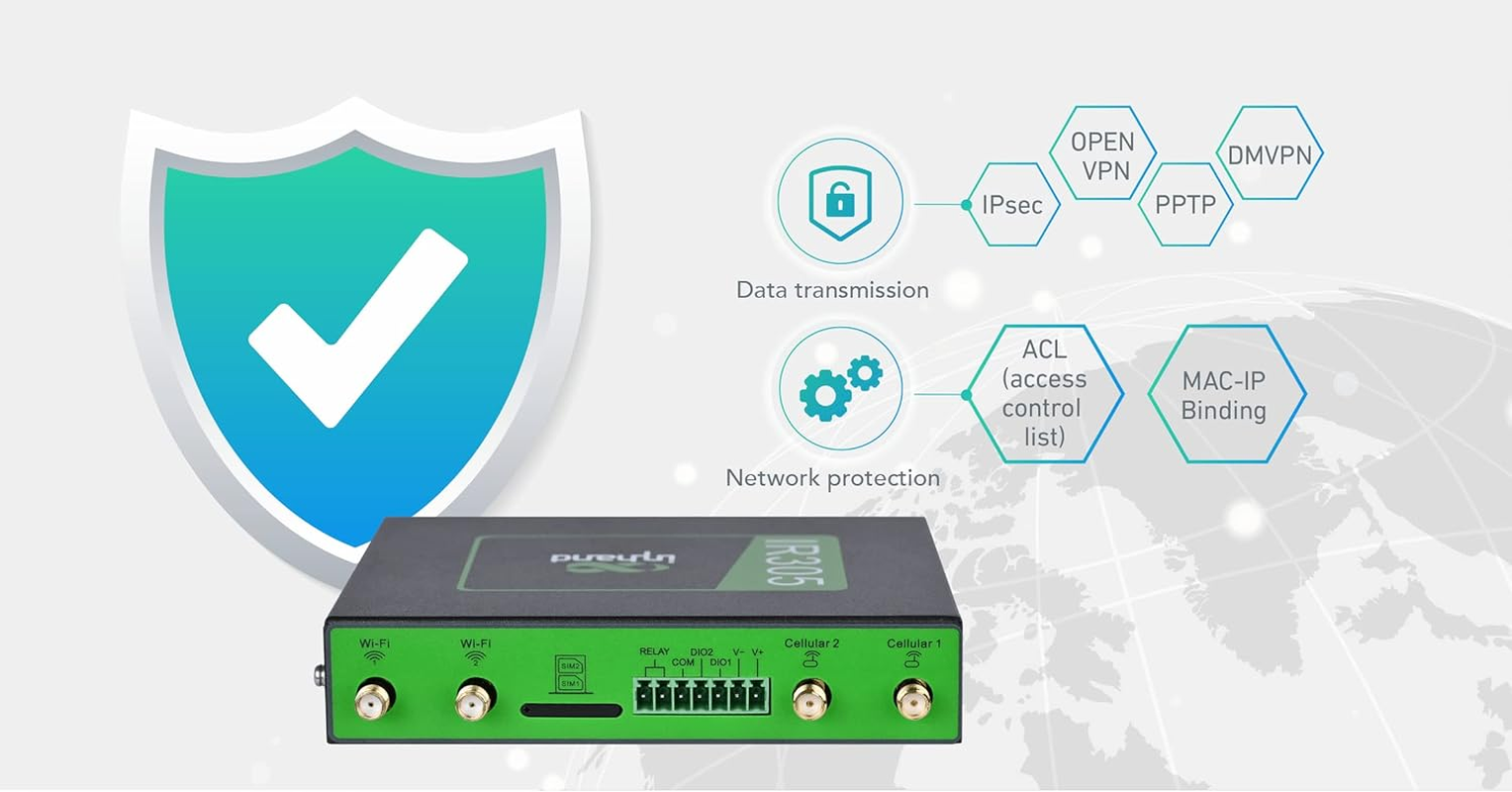

● Full networking functions: GRE, VPN, DMVPN, etc

● Remote connection to the network: InConnect

InRouter305 Software Specifications

Network Access APN, VPDN
Acess Authentication CHAP/PAP
Network Type GSM/GPRS/EDGE, UMTS/HSPA+/EVDO/TD-SCDMA/, TDD LTE/FDD LTE (Please refer to the Ordering Guide for frequencies).
LAN Protocol ARP
WAN Protocol PPP, PPPoE, DHCP
IP Application Ping, Trace, DHCP Server, DHCP Relay, DHCP Client, DNS relay, DDNS, Telnet
IP Routing Static routing, OSPF dynamic routing
NAT Supports network address translation
Dual SIM Failover Supports dual SIM failover
Link Detection Sends heartbeat packets to detect, and redials when disconnected
WLAN Protocol IEEE 802.11b/g/n
Mode AP, Client, WDS modes
Wi-Fi Rate Up to 300Mbps
Transmission Distance 80 meters by line of sight (Actual transmission distance depends on environment of the site)
QOS Management Bandwidth, IP speed limit
Traffic Management Supports data traffic threshold, traffic statistics and traffic alarm

InRouter305 Hardware Specifications

CPU 580MHz
RAM 128MB DDR2
FLASH 64MB SPI

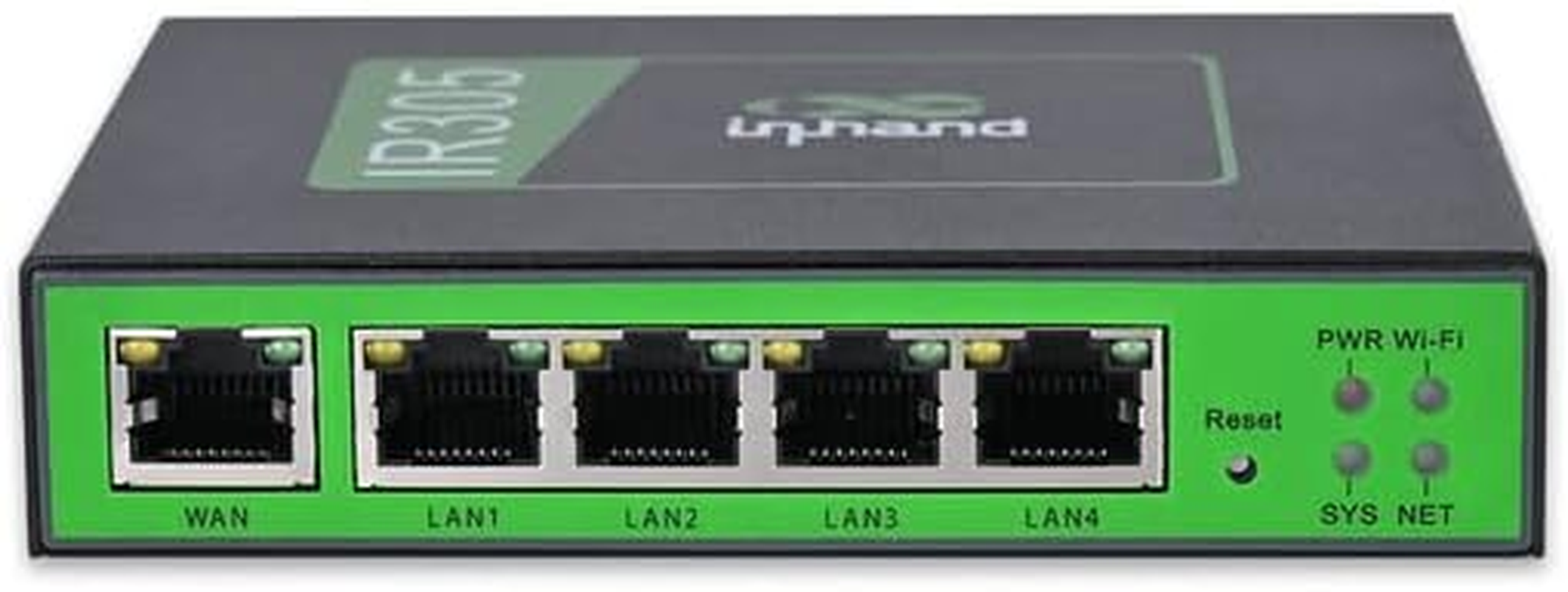

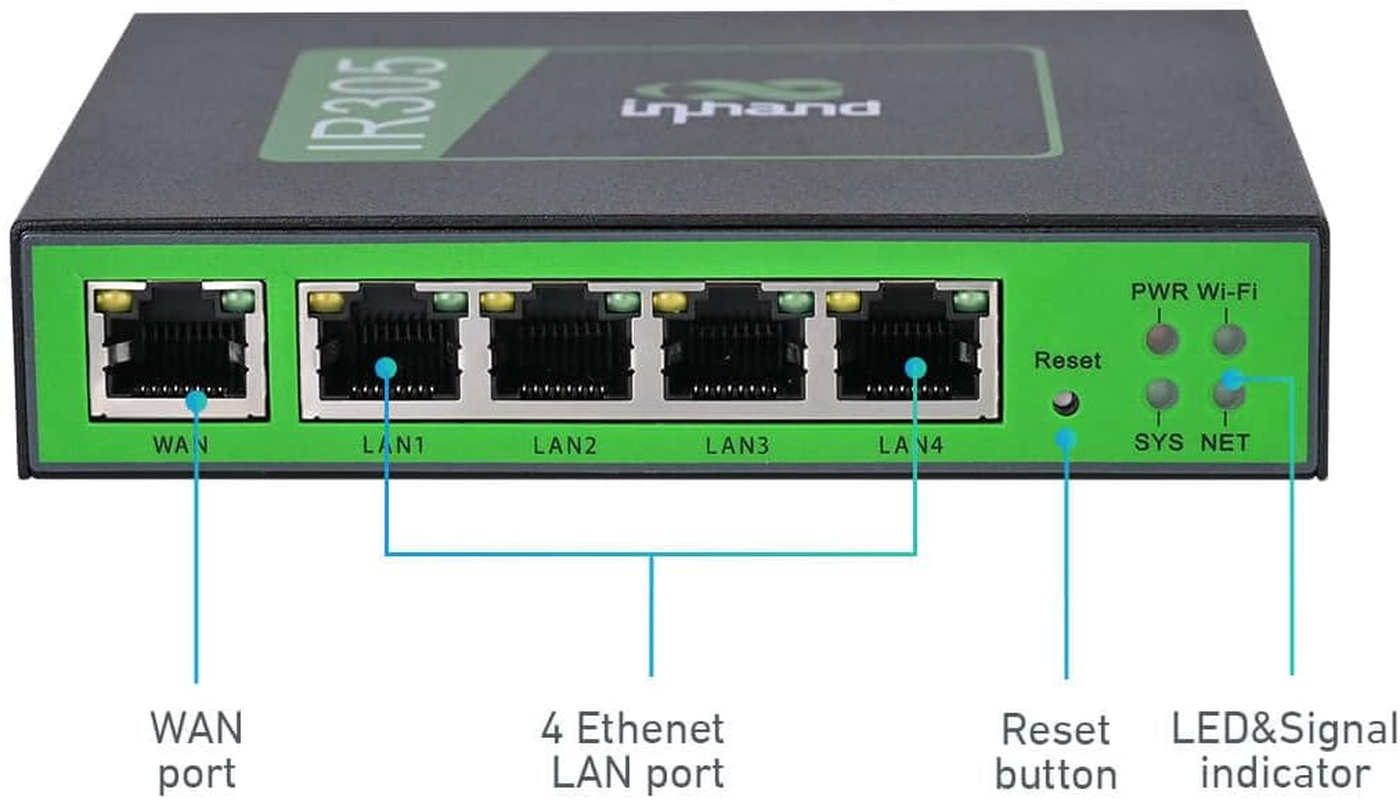

Ethernet Port 5*10/100Mbps fast Ethernet port, WAN/LAN/VLAN port 1.5KV network isolation transformer protection
Power Supply DC9-36V, over-current protectiob, anti-reverse connection, 2*PIN industrial terminal block

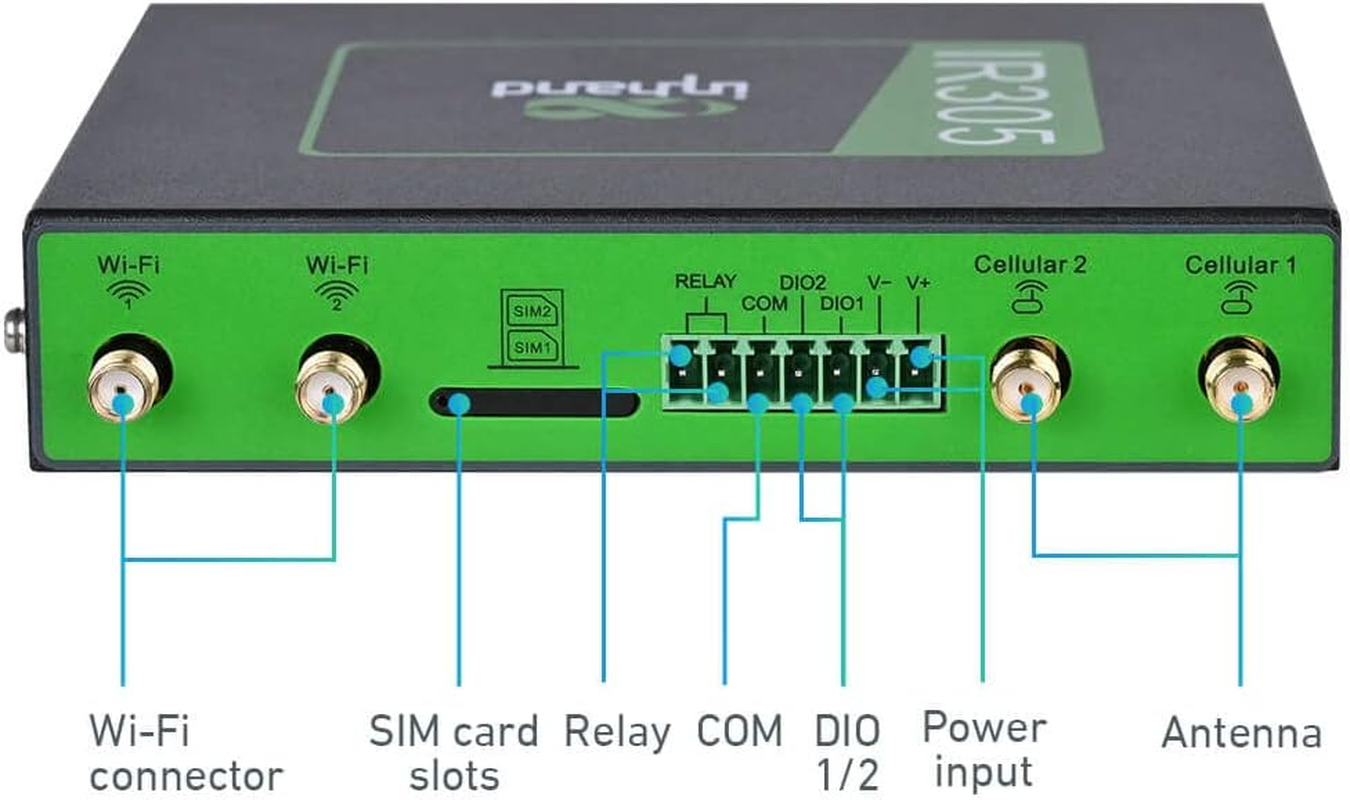

I/O ( *Optional ) Support 4*IO (DO or DI can be configured)
Serial port ( *Optional ） 1*RS232+1*RS485
SIM Card Drawer-type slot *1, support dual-NANO SIM
Wi-Fi IEEE 802.11b/g/n, 300Mbps
Antenna Connector 4G：SMA x 2; Wi-Fi：RP-SMA x 2
Ground Terminal Supports
Dimensions 120x99x25(mm)
Weight 354g
Installation Method Panel mounting, rail mounting
Certificate CE, FCC, CB, E-MARK, PTCRB, IC, VZW, RCM, AT&T
  • Item Model Number: RS232/485
  • Part Number: IR305
  • Operating System: RouterOS
  • Number of items: 1
  • Mounting Hardware: ANTENNA
  • Batteries Required: No
  • Brand: inhand
  • Special Features: Access Point Mode
  • Compatible Devices: Laptop, Personal Computer
  • Wireless Type: 802.11n
  • Item Weight: 840 g
  • Number of Ports: 5
  • Connector Type: Ethernet, LTE, Wi-Fi
  • Model Name: ir305
  • Model: RS232/485
  • Package Dimensions: 29.5 x 20.8 x 6.4 cm; 840 Grams
  • Country/Region of origin: China
  • Manufacturer: InHand Networks
