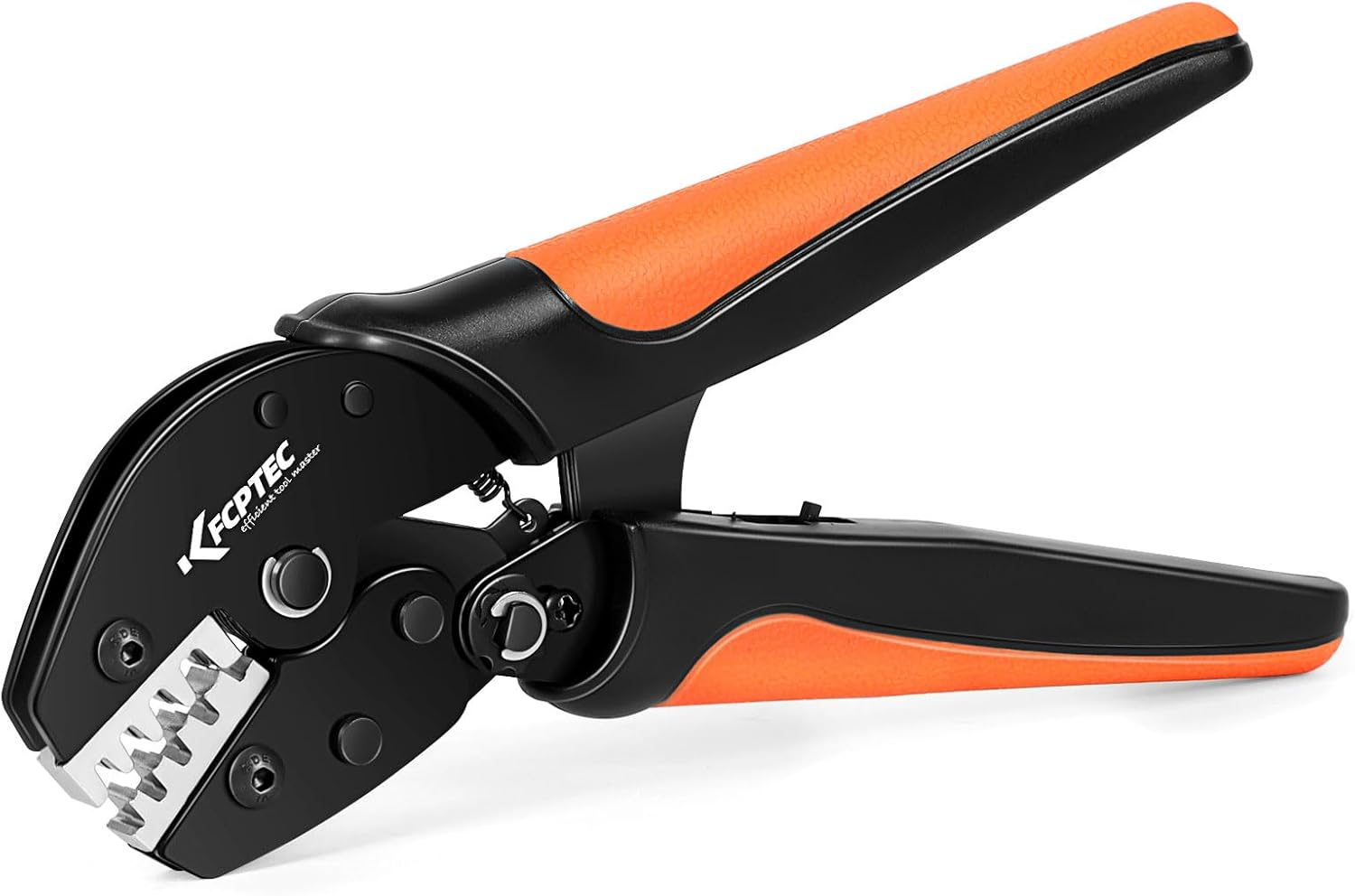

Efficient Performance – Consistent Crimps for Multiple Connector Types

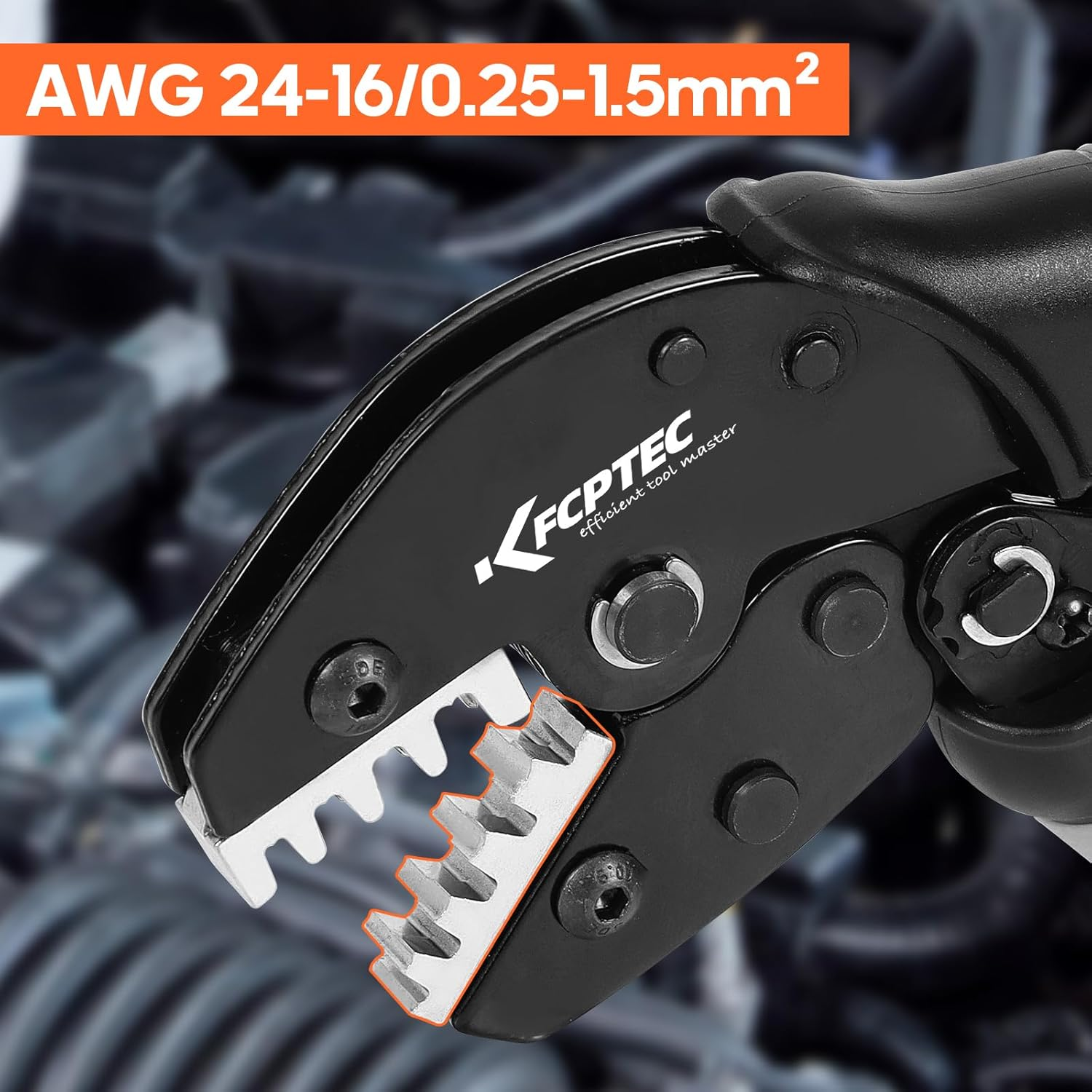

This crimping tool features a precision ratchet mechanism and wire-cut EDM-processed dies to provide consistent and reliable crimp results. Compatible with Dupont, Molex, JST, TE, EPC, PCIe, and SATA connectors, it supports 0.25–1.5mm² (AWG 24–16) wires, making it suitable for electronic assembly, PC wiring, electrical maintenance, and various DIY applications.

Precision 4-Slot Crimping Layout

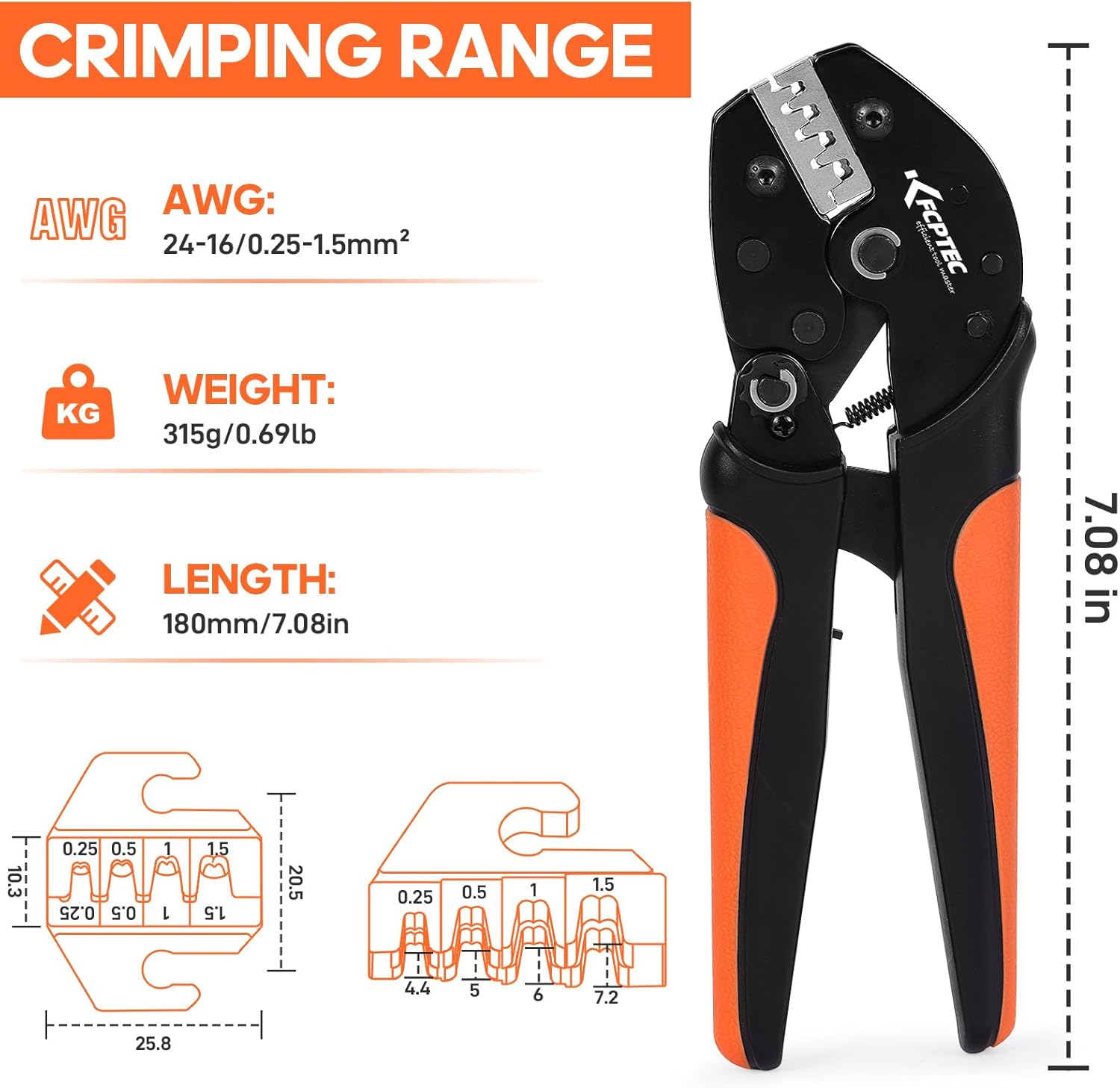

The die set includes 0.25 / 0.5 / 1.0 / 1.5 mm² crimping cavities, each EDM-processed to deliver accurate and consistent crimp geometry:

• 0.25 mm² cavity: approx. 4.4 mm forming width
• 0.5 mm² cavity: approx. 5.0 mm forming width
• 1.0 mm² cavity: approx. 6.0 mm forming width
• 1.5 mm² cavity: approx. 7.2 mm forming width

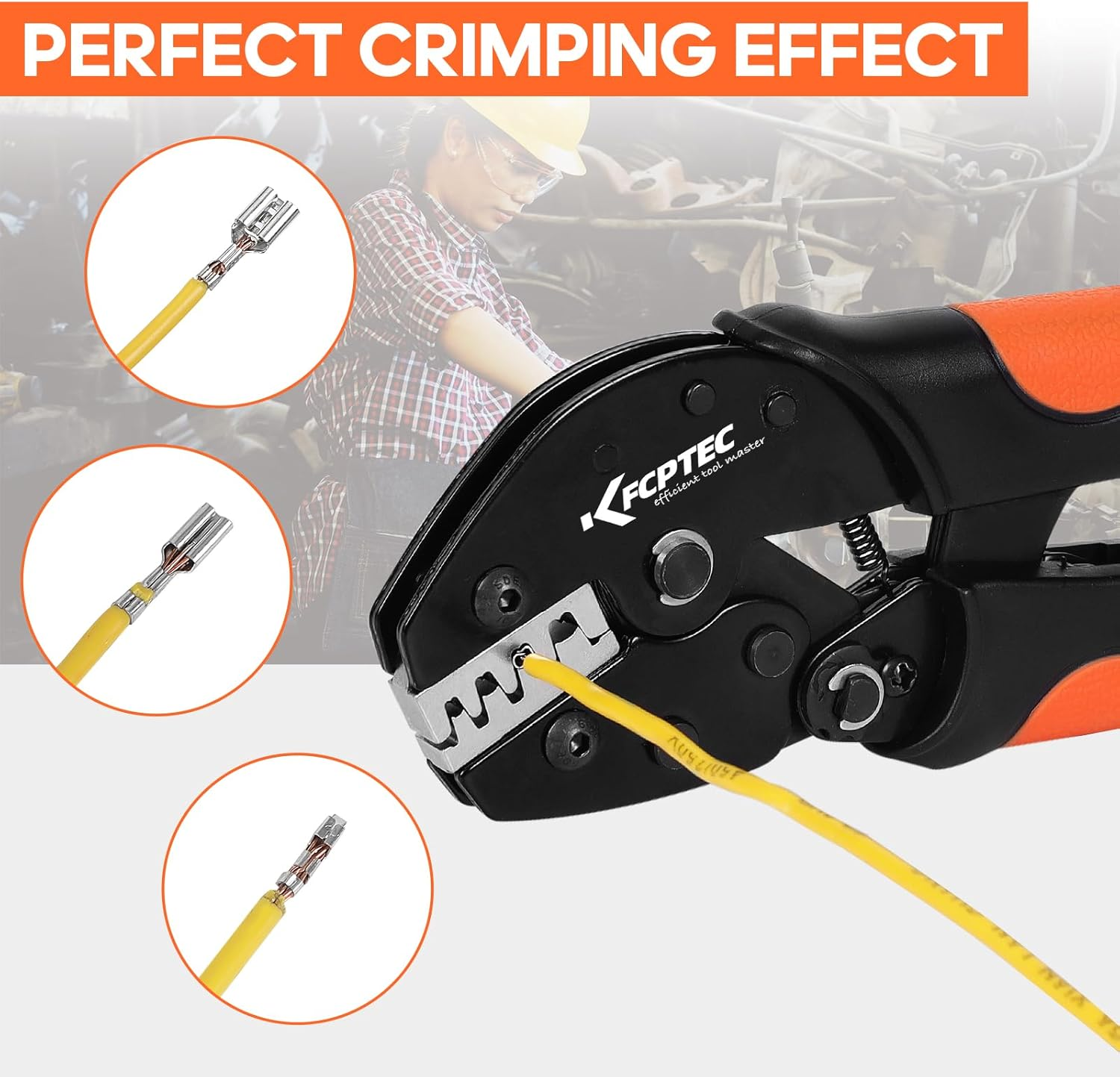

With an overall die size of 25.8 × 20.5 mm, the compact profile is ideal for fine wires, signal cables, and small electronic terminals, ensuring uniform, reliable, and well-shaped crimps.

Wide Application – From Daily Use to Professional Work

• PC power connectors: PCIe / SATA
• Electronic assembly and repair
• Automotive electrical wiring
• Drone and RC model building
• Home appliance maintenance
• Electrical installation and DIY projects

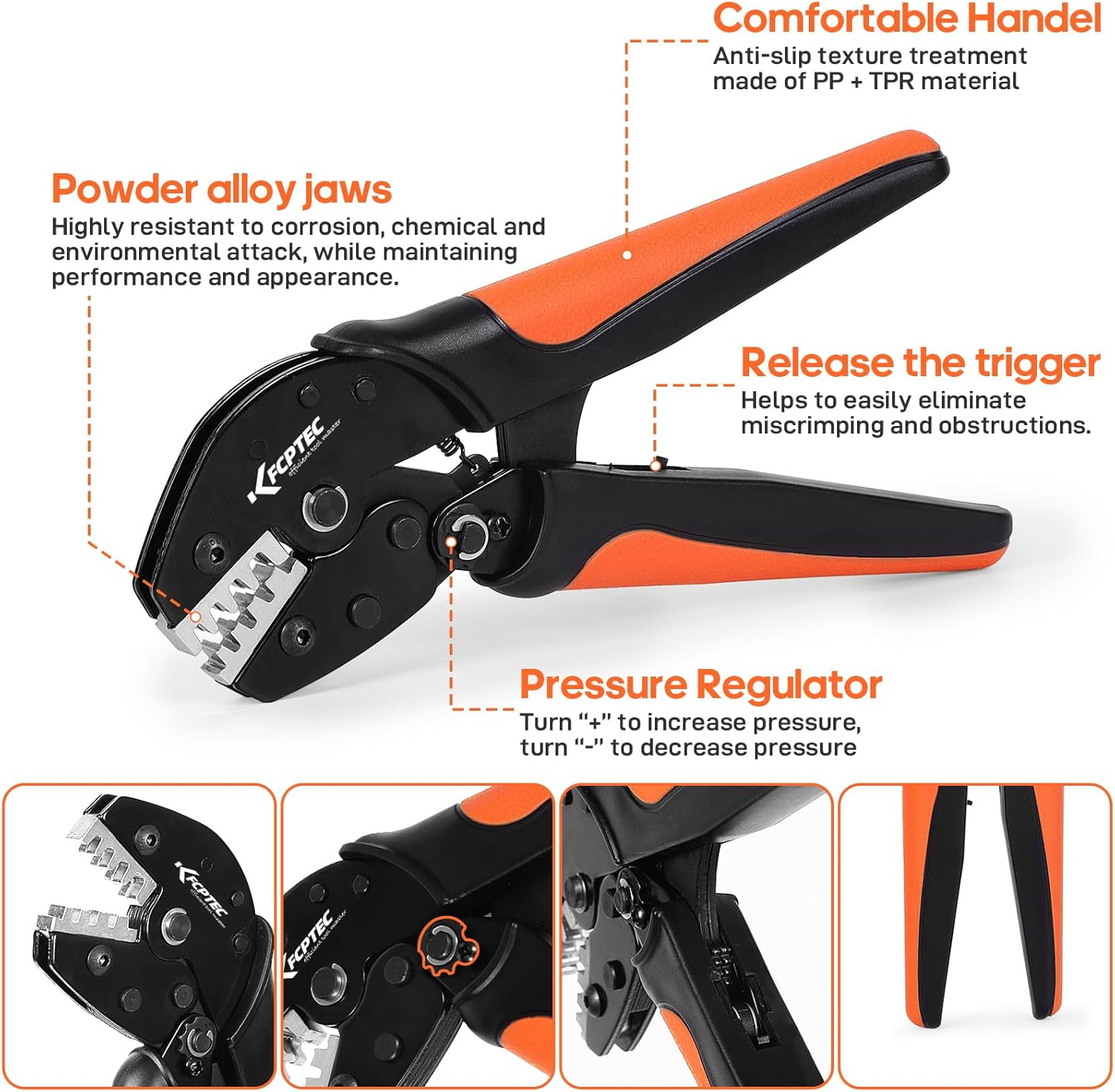

This tool is lightweight and portable at approximately 280 g, allowing smooth one-hand operation and convenient use across on-site tasks, outdoor installations, and equipment maintenance. The powder-metallurgy jaws provide strong wear resistance and structural stability, maintaining reliable crimp accuracy even during long-term or frequent operation. Its enhanced leverage design reduces the force required for crimping, helping minimize hand fatigue and improving efficiency during repetitive or extended tasks. Additionally, the reinforced auto-adjusting ratchet applies suitable pressure based on terminal size and includes a safety-release feature, ensuring smoother, safer, and more controlled operation throughout the crimping process.
