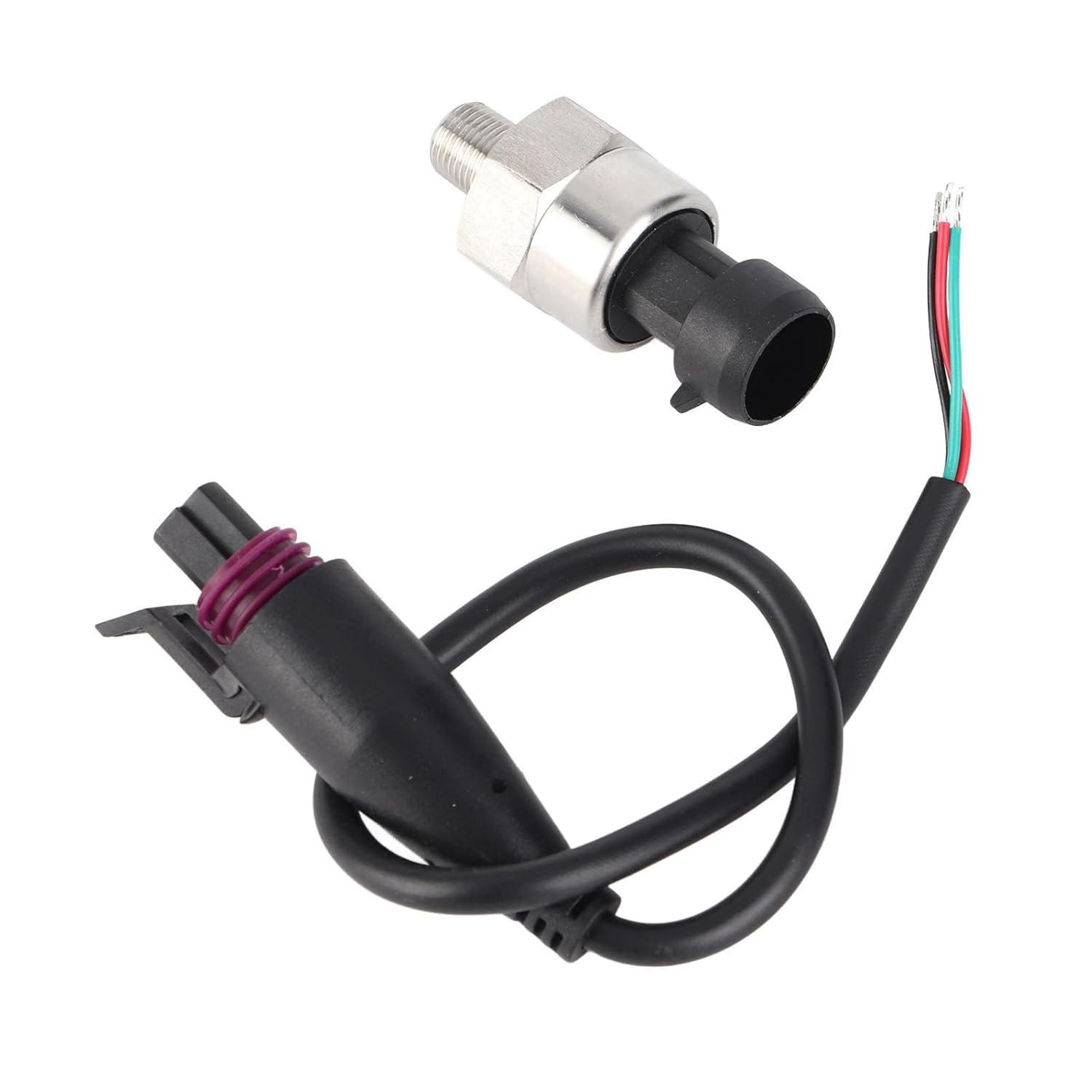

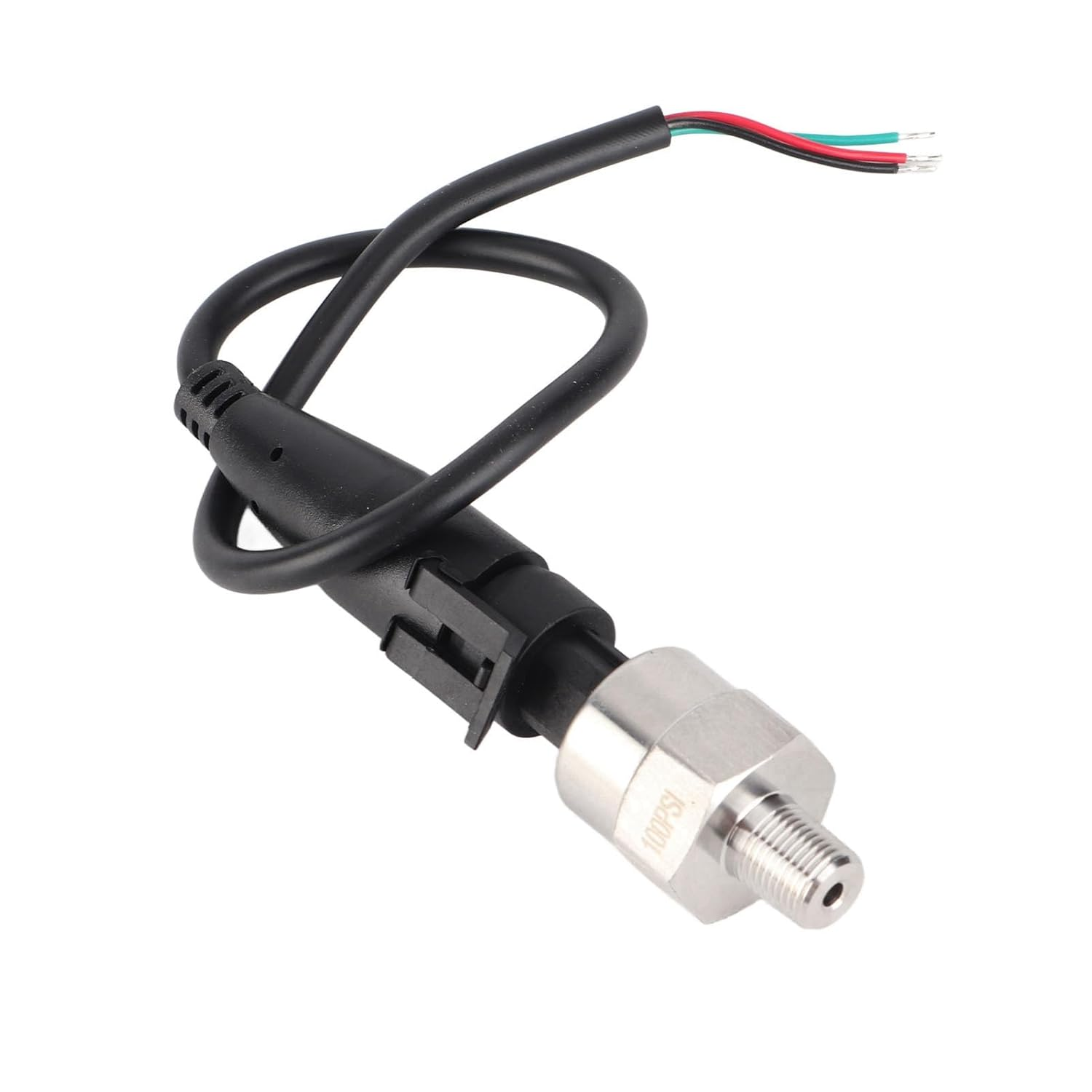

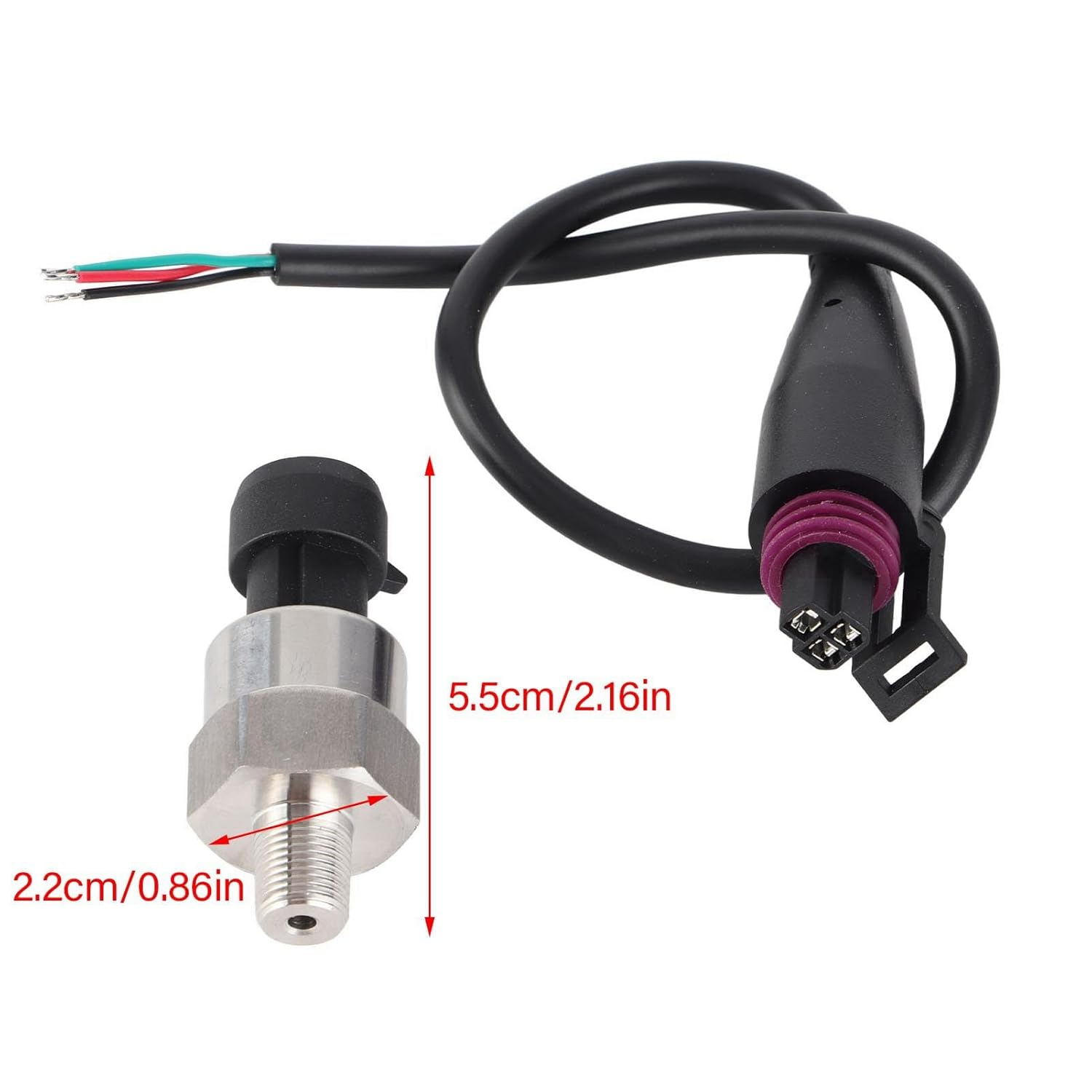

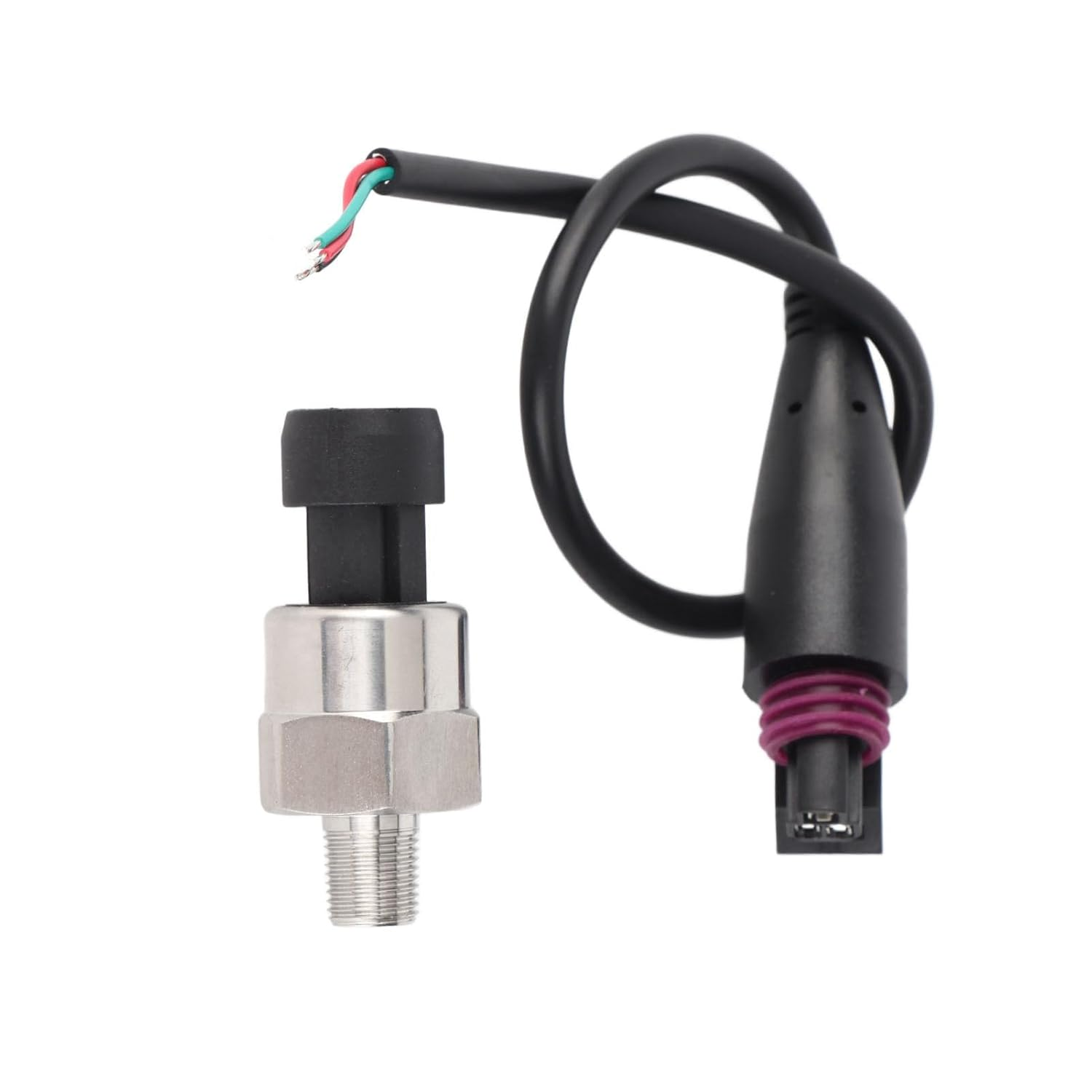

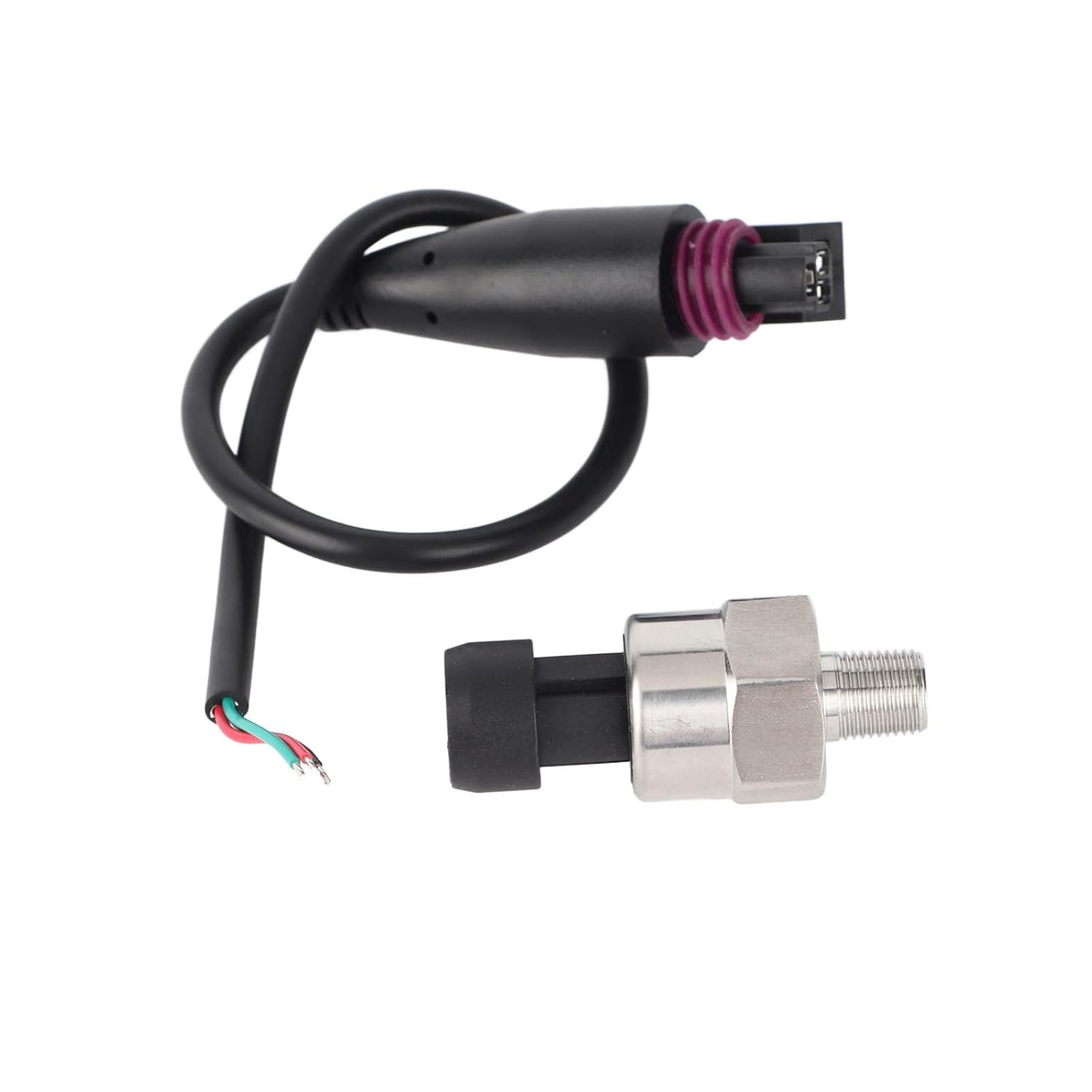

Pressure Transducer Sender Sensor with Connector - 1/8 Inch 27 NPT Thread Stainless Steel Pressure Sensor for Oil, Fuel, Air, Water (100PSI)
Pressure Transducer Sender Sensor with Connector - 1/8 Inch 27 NPT Thread Stainless Steel Pressure Sensor for Oil, Fuel, Air, Water (100PSI)
Brand: Hyuduo
A$16.60
-
A$23.65
Availability:
-
Select Styles for Availability
Shop with confidence
- It's an advance pressure transducer than traditional mechanical pressure transducer.Plug and play for fuel, oil, air, water pressure inputs, can be used in oil tank, gas tank, etc.
- ±2%FS small output error, including nonlinear, hysteresis error and repeatability, full temperature range
- Light weight and small size, convenient to install and operate
- It has complete voltage protection function
- Works for oil, fuel, , gas, water, air pressure, can be used in oil tank, gas tank, tank etc
Product Description
Pressure Transducer Sender Sensor
Pressure Transducer Sender Sensor with Connector - 1/8 Inch 27 NPT Thread Stainless Steel Pressure Sensor for Oil, Fuel, Air, Water (100PSI)
Features
Works for oil, fuel, , gas, water, air pressure, can be used in oil tank, gas tank, tank etc
It's an advance pressure transducer than traditional mechanical pressure transducer.Plug and play for fuel, oil, air, water pressure inputs, can be used in oil tank, gas tank, etc.
±2%FS small output error, including nonlinear, hysteresis error and repeatability, full temperature range
Multi-angle display
Details
Specifications:
Material: Stainless steel
Voltage: DC 5V
Pressure: 30 psi, 100 psi, 150 psi, 200 psi, 300 psi, 500 psi (Optional)
Thread Type: 1/8" NPT
30 psi
Input: 0-30 psi
Output: 0.5V~4.5V linear voltage output. 0 psi outputs 0.5V, 15psi outputs 2.5V, 30 psi outputs 4.5V.
Accuracy: within 2% of reading (full scale).
Thread: 1/8"-27 NPT.
Wiring Connector: Water sealed . Mating connector is included.
Wiring: Red for +5V; Black for ground; Blue for signal output.
100 psi
Input: 0-100 psi
Output: 0.5V~4.5V linear voltage output. 0 psi outputs 0.5V, 50 psi outputs 2.5V, 100 psi outputs 4.5V.
Accuracy: within 2% of reading (full scale).
Thread: 1/8"-27 NPT
Wiring Connector: Water sealed . Mating connector and wire harness (pigtail) is included.
Wiring: Red for +5V; Black for ground; Blue for signal output.
150 psi
Input: 0-150 psi
Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 75 psi outputs 2.5V, 150 psi outputs 4.5V
Accuracy: +/-0.5%FS
Thread: 1/8" NPT
Wiring: Red for +5V; Black for ground; Green for signal output
Overload Capacity: 2-4 times of rated pressure
Working Temperature: -40℃~+120℃
Compensation Temperature: 0℃~+80℃
Protection Class: IP67
Pressure Medium: Oil, gas and water which is compatible with 316L stainless steel
Load : ≤(supply power-6.5V/0.02A)Ω
Long-term Stability: Less than 0.1%FS/year
Temperature Effect on Zero: Typical:0.02%FS/℃; Maximum:0.05%FS/℃
Temperature Effect on Sensitivity: Typical: 0.02%FS/℃; Maximum: 0.05%FS/℃
Package Includes:
1 x Pressure Transducer (With cable)
- Item Model Number: Hyuduongz019ugpo-02
- Size Name: 100PSI
- Country of origin: China
- Package Dimensions: 14 x 10 x 2 cm; 65 Grams
- Style Name: 100PSI
- Manufacturer: Hyuduo
