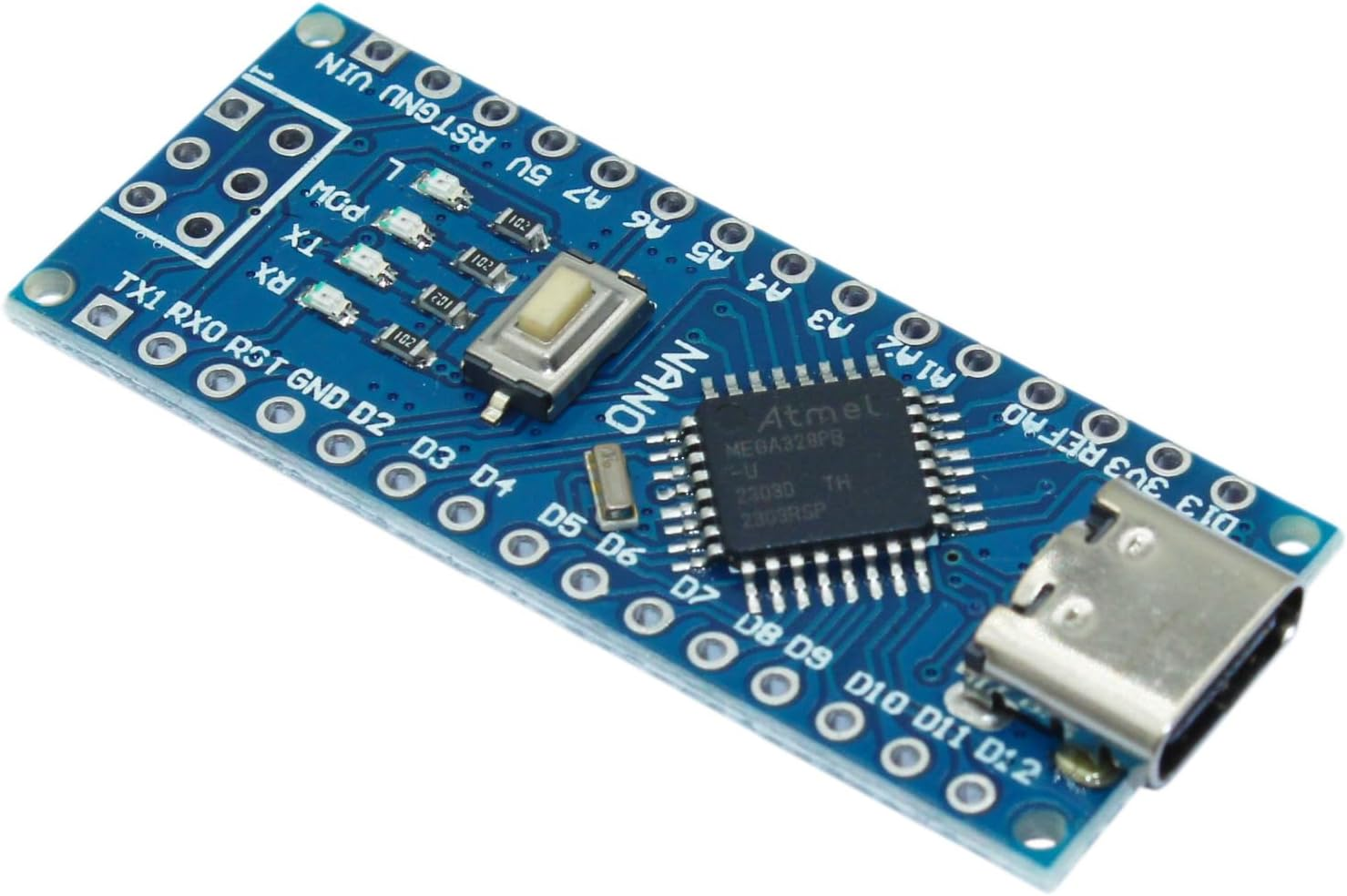

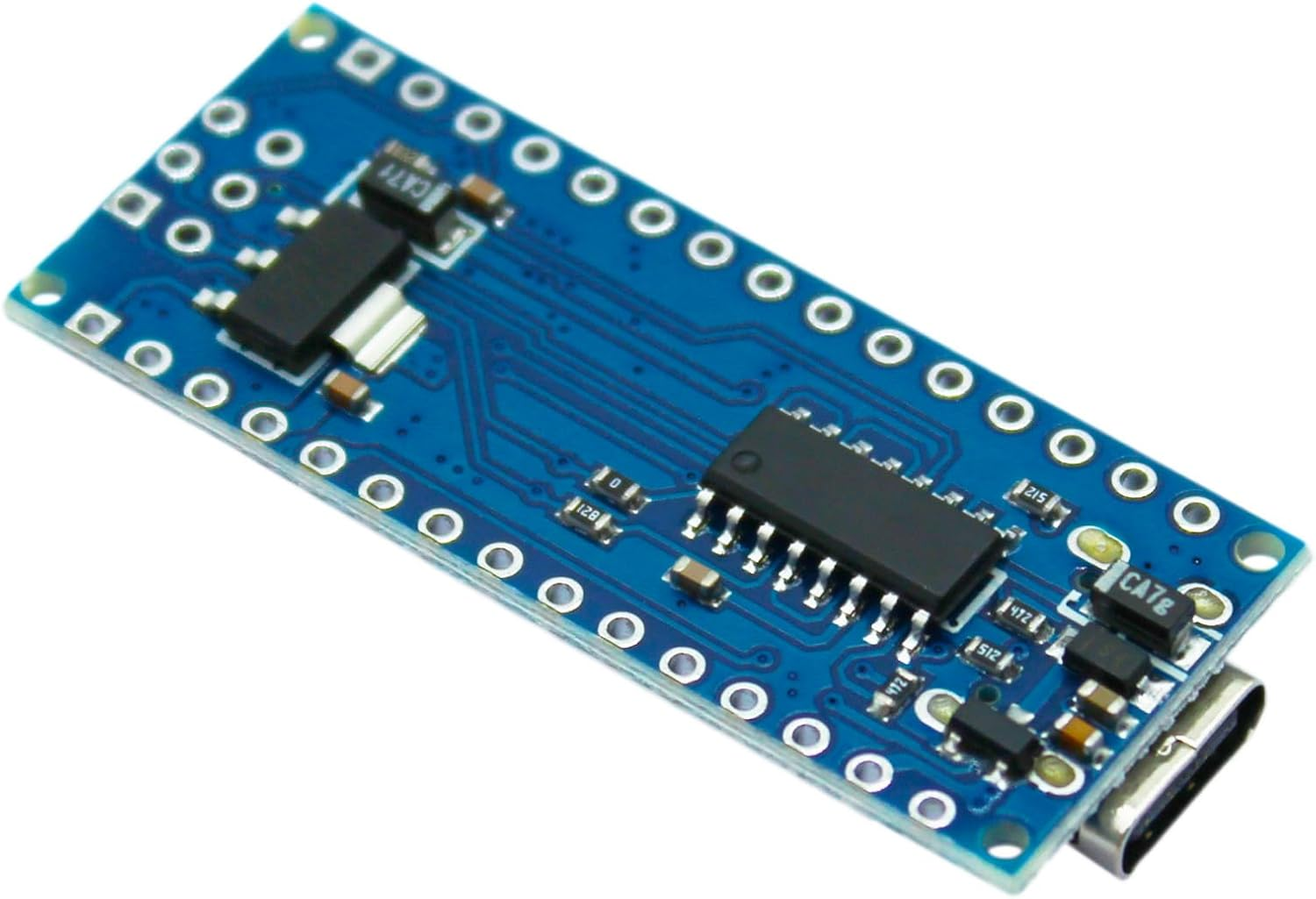

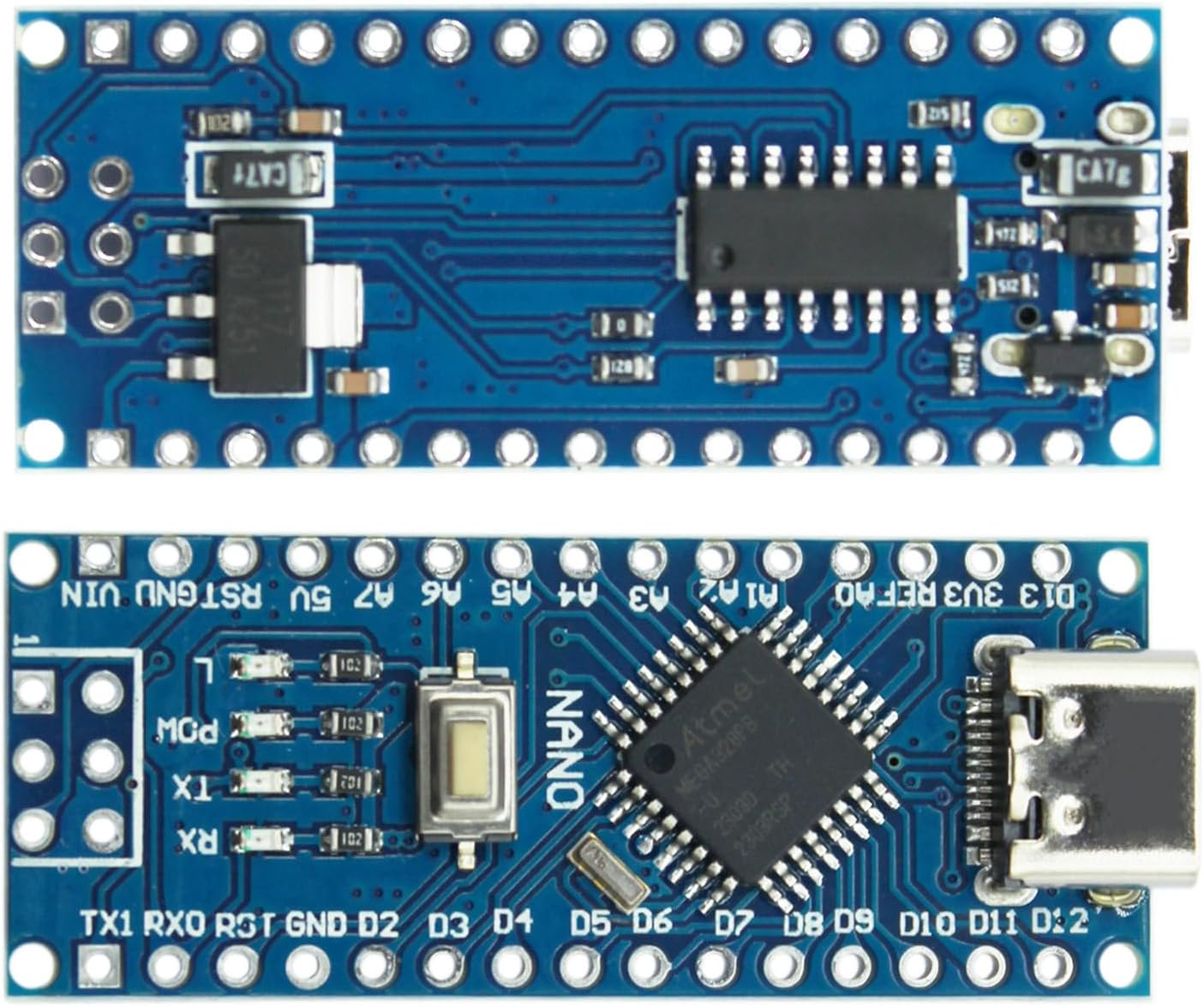

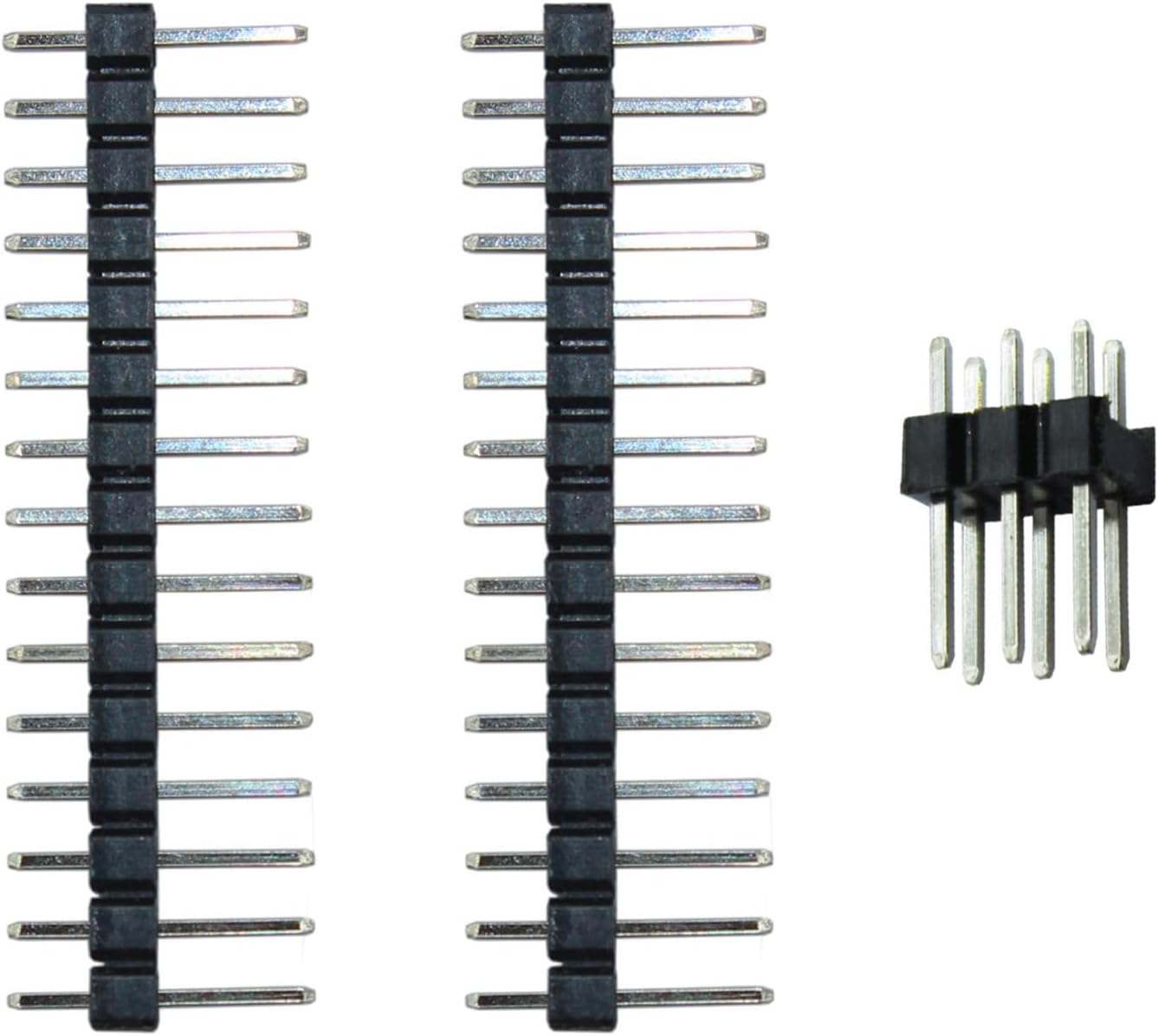

DIGISHUO 2Pcs Nano V3.0 Atmega328P CH340G | 5V 16M Type-C Port Module| Micro Controller Board Development Board with PIN Headers Pin Unsoldered

DIGISHUO 2Pcs Nano V3.0 Atmega328P CH340G | 5V 16M Type-C Port Module| Micro Controller Board Development Board with PIN Headers Pin Unsoldered

Brand: DIGISHUO
5.0
A$9.15 - A$16.70
Colour Name
Availability:
  • Select Styles for Availability

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • ※Experience the power of ATmega+328P & CH340 chips - faster, more reliable, and easier to use than FT232. Download the driver for hassle-free installation.
  • ※Get the best of both worlds with our Nano Board - it's small, complete, and breadboard-friendly, with more analog input pins and onboard +5V AREF jumper than Diecimila/Duemilanove.
  • ※Maximize your breadboard space with Nano's pin layout - it works well with the Mini or the Basic Stamp, and has TX, RX, ATN, GND on one top, power and ground on the other.
  • ※Power your projects the way you want - Nano can be powered via Type-C USB connection, 7-12V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27).
  • ※Type-C Port Module| Uses the CH340G instead of the FTDI FT232RL IC which can improve the transfer speed, increase the stability in windows and solve the issues with FTDI drivers bricking non-original chips, ATMEGA328P offers even more programming and data memory space.

Product Description

Specification：

  • CH340G Replace FT232RL
  • Operating Voltage(logic level):5V
  • 8 analog inputs ports:A0 ~ A7
  • 14 Digital input / output ports:TX,RX,D2 ~ D13
  • 6 PWM ports:D3, D5, D6, D9, D10, D11
  • 1 pairs of TTL level serial transceiver ports RX / TX
  • Using Atmel Atmega328P-AU MCU
  • Support USB download and Power
  • external 5V ~ 12V DC power supply
  • power supply by 9V battery

Microcontroller

  • ATmega328P – 8 bit AVR family microcontroller.

Reset button

  • The button can resets the microcontroller.

FTDI USB Chip

  • The FTDI FT232RL chip on the Nano is only powered if the board is being powered over USB.

Package included：

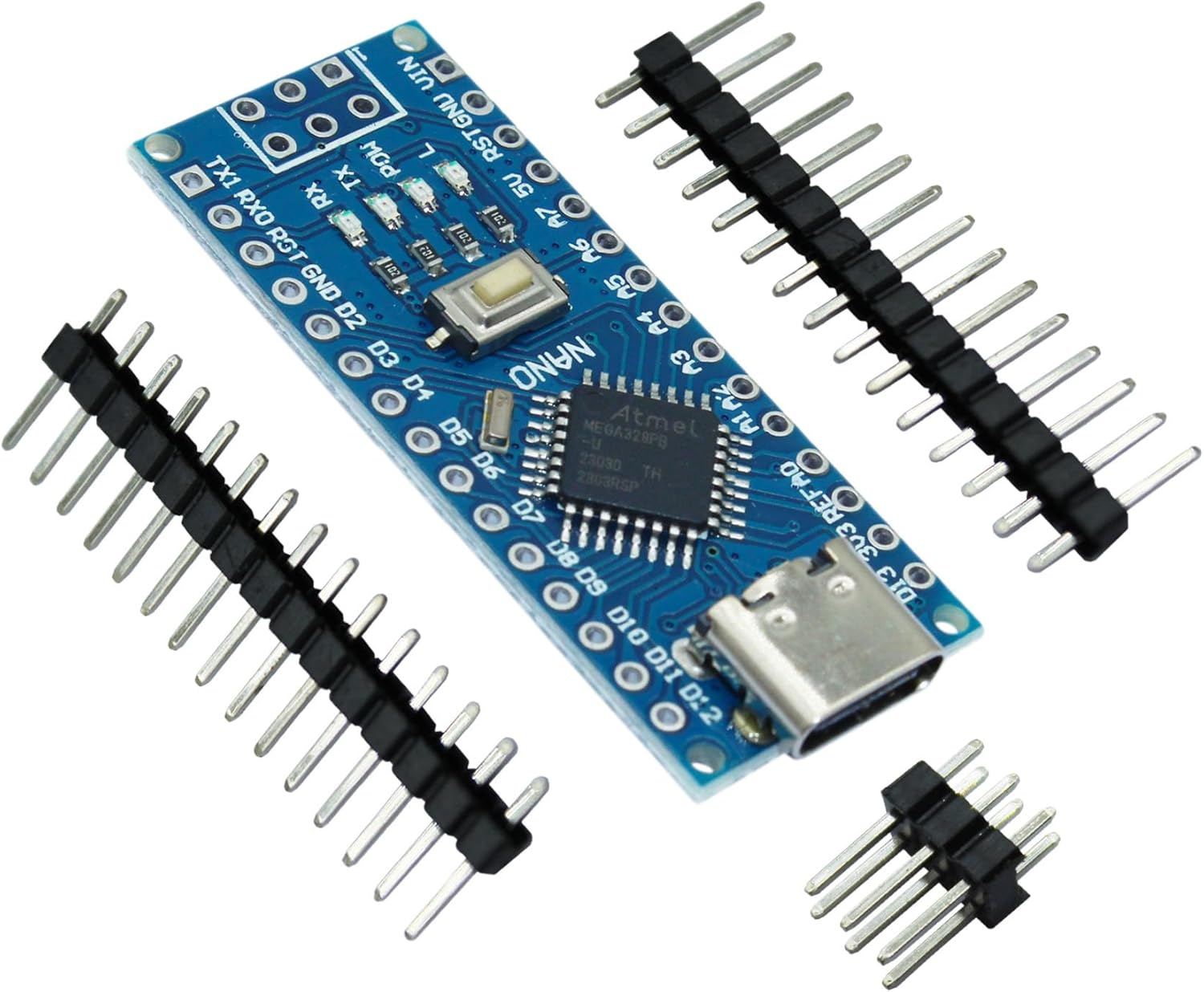

  • 2Pcs Nano V3.0 ATmega328P CH340G Controller Board( Type-C USB Port Module)
  • Item Model Number: Nano V3.0 ATmega328P CH340G
  • Part Number: A156N
  • Total USB ports: 2
  • Operating System: Windows 7, Windows 8
  • Mounting Hardware: VHS
  • Colour Name: 2Pcs Type-C Port Module
  • Batteries Required: No
  • Brand: DIGISHUO
  • Compatible Devices: Personal Computer, Laptop, Tablet, Smartphone
  • Connector Type: USB
  • Item Weight: 30 g
  • Manufacturer: DIGISHUO
  • Ram Memory Technology: SRAM
  • Processor Count: 1
  • Model: Nano V3.0 ATmega328P CH340G
  • Model Name: Nano V3.0
  • Processor Brand: Atmel
  • Package Dimensions: 10.2 x 10.1 x 2.2 cm; 30 Grams
  • Country/Region of origin: China
  • Number of items: 2
