DIGISHUO 7" HDMI IPS LCD Touch Display 1024 * 600 Screen+Dedicated Holder +HDMI Connector+Speakers Kit for Raspberry Pi 4B 3B 2B | PC Supports Windows 10/8.1/8/7

DIGISHUO 7" HDMI IPS LCD Touch Display 1024 * 600 Screen+Dedicated Holder +HDMI Connector+Speakers Kit for Raspberry Pi 4B 3B 2B | PC Supports Windows 10/8.1/8/7

Brand: DIGISHUO
5.0
A$58.90 - A$142.40
Availability:
  • Select Styles for Availability

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

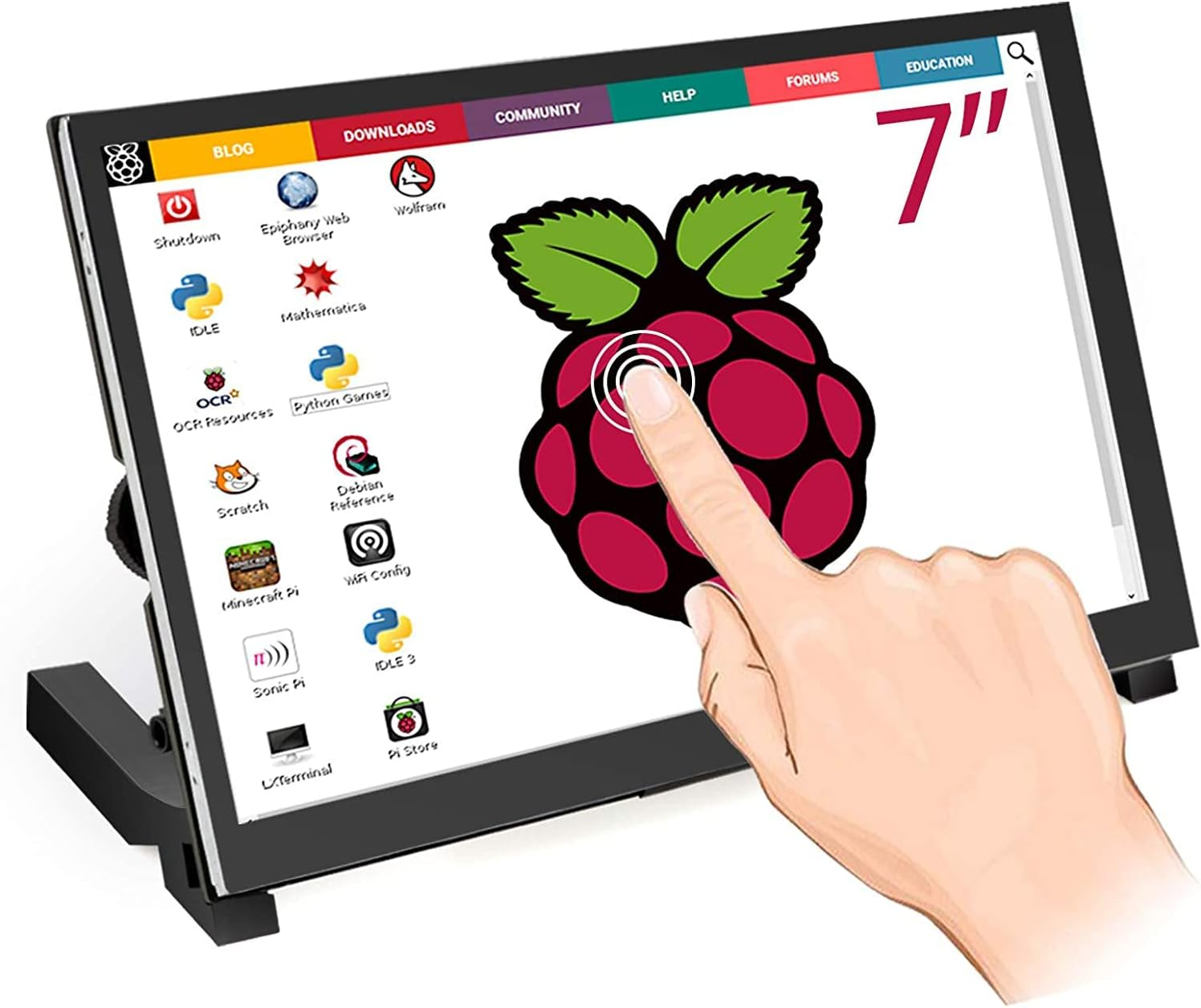

  • 【Mini Screen for Raspberry Pi】7 inch mini monitor, support 1024*600 resolution, IPS screen help keep colors consistent at a wide viewing angle.

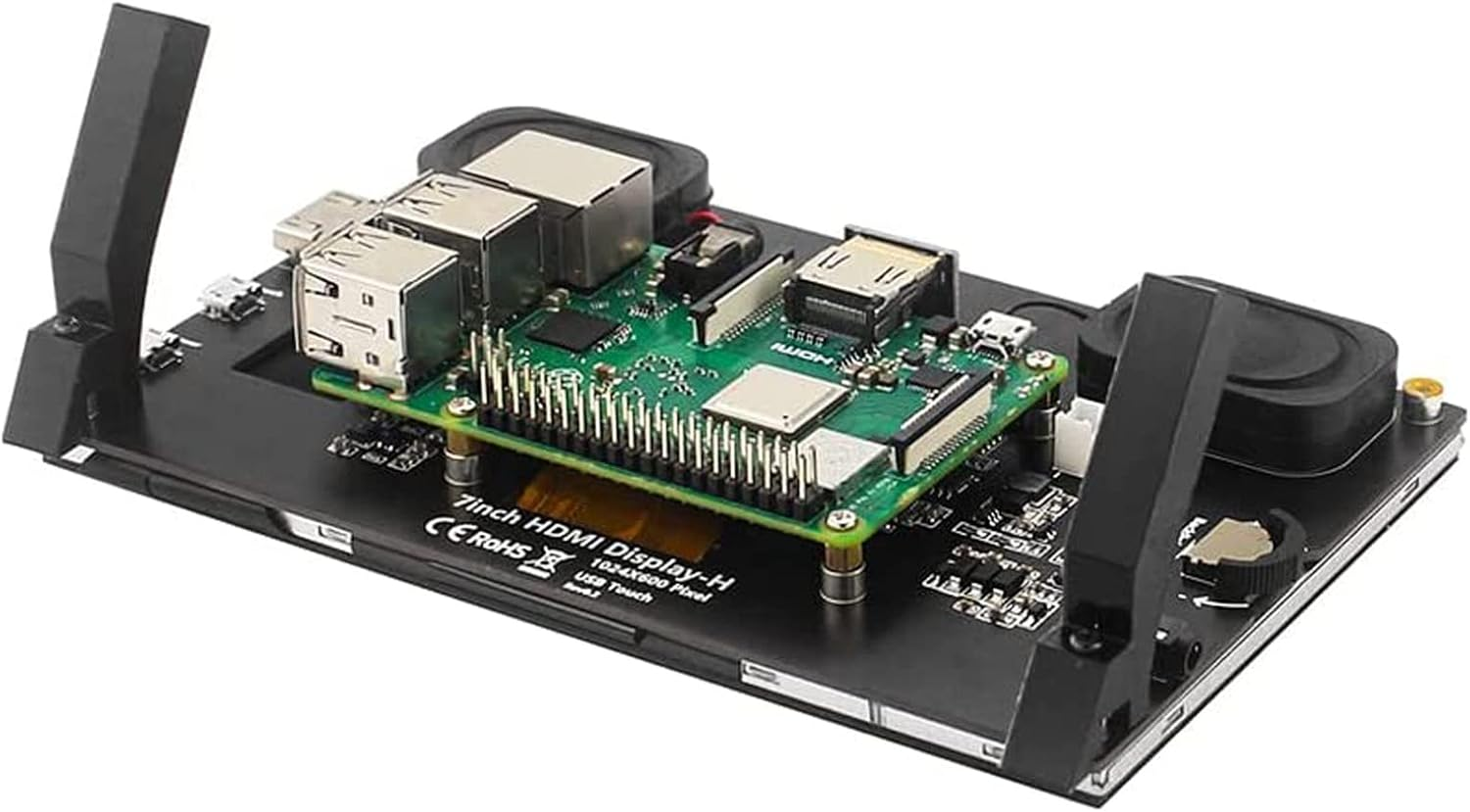

  • 【Neat & Tidy Connection】With the accessories included in the box, you can easily mount your Raspberry Pi on the back of the monitor. Comes with customized HDMI & USB connectors for Raspberry Pi 4, no more tangled cables jutting out from sides of monitor. 4 holes that hidden on the corners of backside can help you to mount the monitor to your DIY projects.
  • 【USB Touch Screen】Simply connect the screen to device via HDMI interface and power the USB touch port to achieve touch function and no need to install any driver, just plug and play! When used as a computer monitor, supports Win10/8/7, 5-point touch. When worked with Raspberry Pi, supports Raspbian, Ubuntu, and single touch.
  • 【Support Speaker, Brightness & Volume Adjustment】Backlight& Volume can be adjusted as you need. Comes with 2 audio speakers which help to enhances your audiovisual experiences.
  • 【Small Portable Monitor】Broadly you can use it with as a Raspberry Pi 4/3/2 screen, small monitor for Win PC, mini gaming monitor, etc.

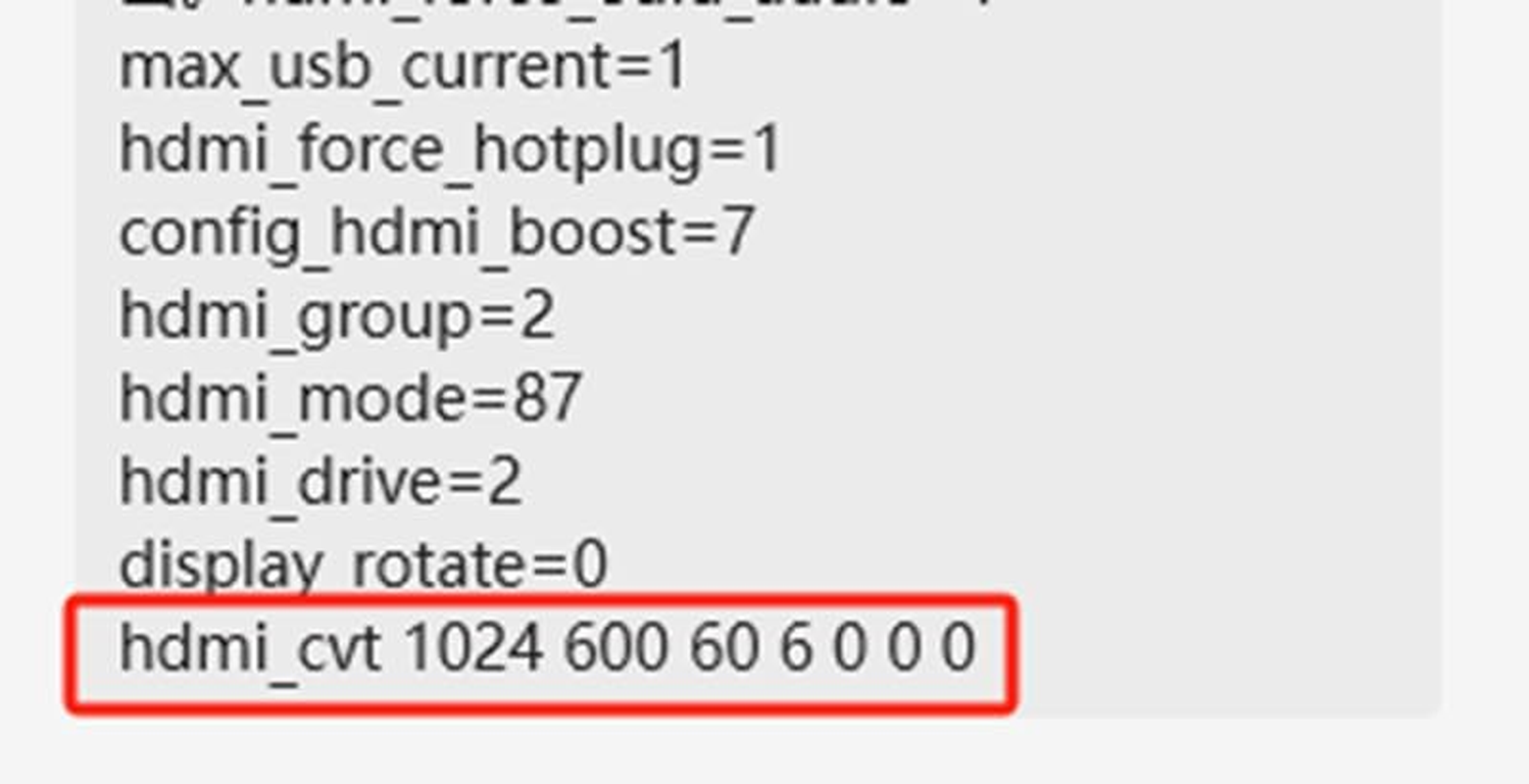

  • Note: Open the "config. txt" file in the root directory of the SD card on the computer, add the following content at the end of the file, save it, and exit as second photo show: hdmi_cvt 1024 600 60 6 0 0 0

Product Description

Note

When working with Raspberry Pi 4, please comment out by adding # in the front of "dtoverlay = vc4-fkms-V3D" or delete this line directly in the config.txt file.

Size 7" Inch
LCD type IPS
Touch screen type GPIO
Touch type capacitive touch screen
Resolution 1024*600
Width to height ratio 4:3
Backlit Control Support
  • The 7 inch small touchscreen monitor supports high resolution of 1024x600 and capacitive touch screen, plug & play, no driver needed.
  • IPS screen with larger visible angle and more clear display performance.
  • It supports manual backlight control, backlight switch can be turn off to lower power consumption.
  • Broadly you can apply it to mini PCs (Raspberry Pi/BB Black/Banana Pi), desktop PC and game consoles.

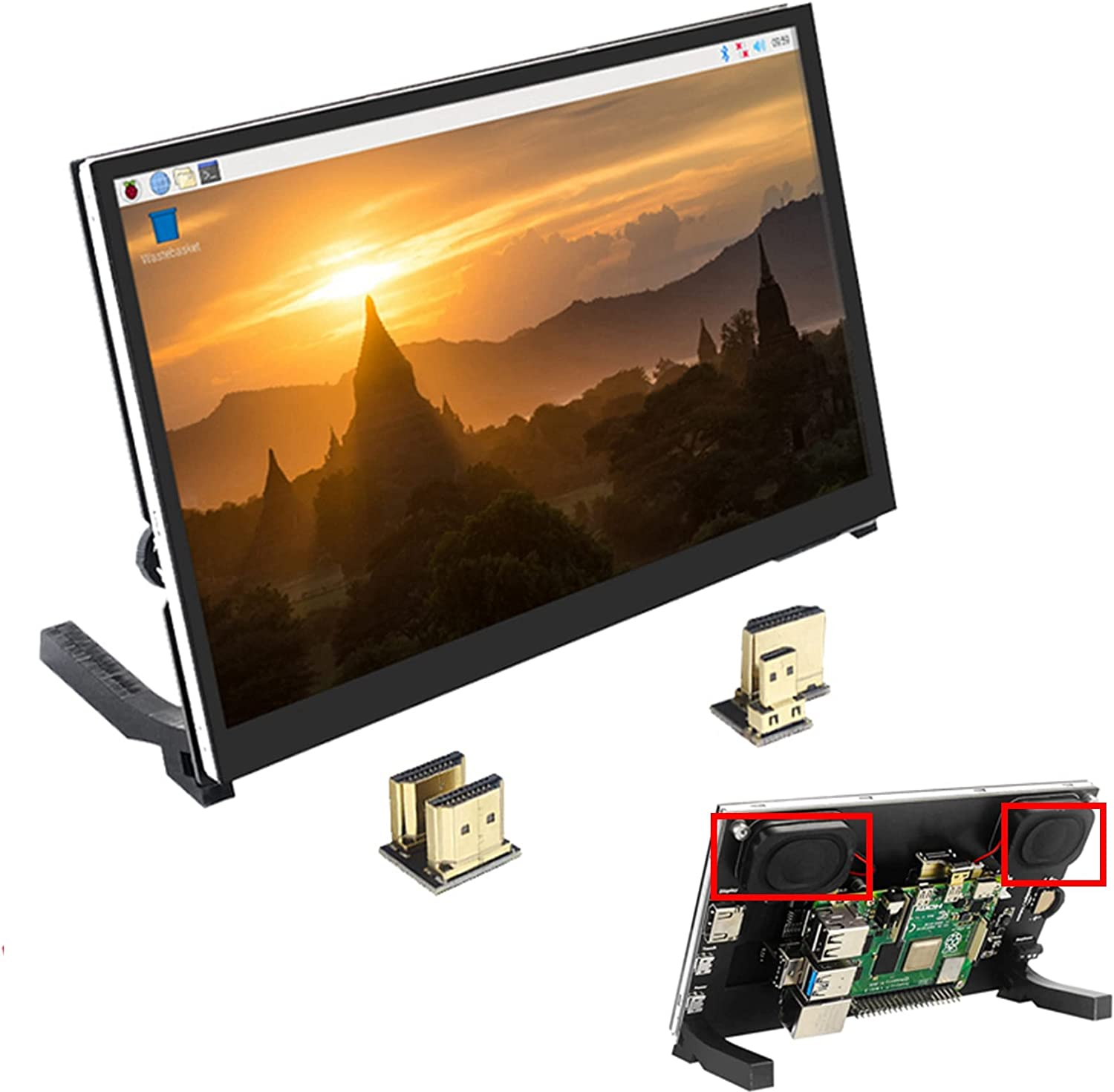

  • Comes with customized HDMI & USB connectors for Raspberry Pi 4, no more tangled cables jutting out from sides of monitor.
  • Large viewing angle, fast response time, full color display. Could provide the driver for Raspberry Pi 4B 3B+ 2B B+
  • Supports any revision of Raspberry Pi and working perfect for Raspberry Pi B+/2B Raspberry Pi 4B/3B
  • 1Pcs 7 Inch Monitor
  • 1Pcs USB to Micro USB Connector (for RPI 4B)
  • 1Pcs HDMI to Micro HDMI Connector (for RPI 4B)
  • 4Pcs M2.5 Screws (to mount RPI)
  • 4Pcs Small Copper Pillars (to support RPI)
  • 1Pcs USB to Micro USB Cable (for PC)
  • 1Pcs HDMI to HDMI Cable (for PC)
  • 2Pcs Pro Stand & 2 x M3 Screws (to mount Stand)

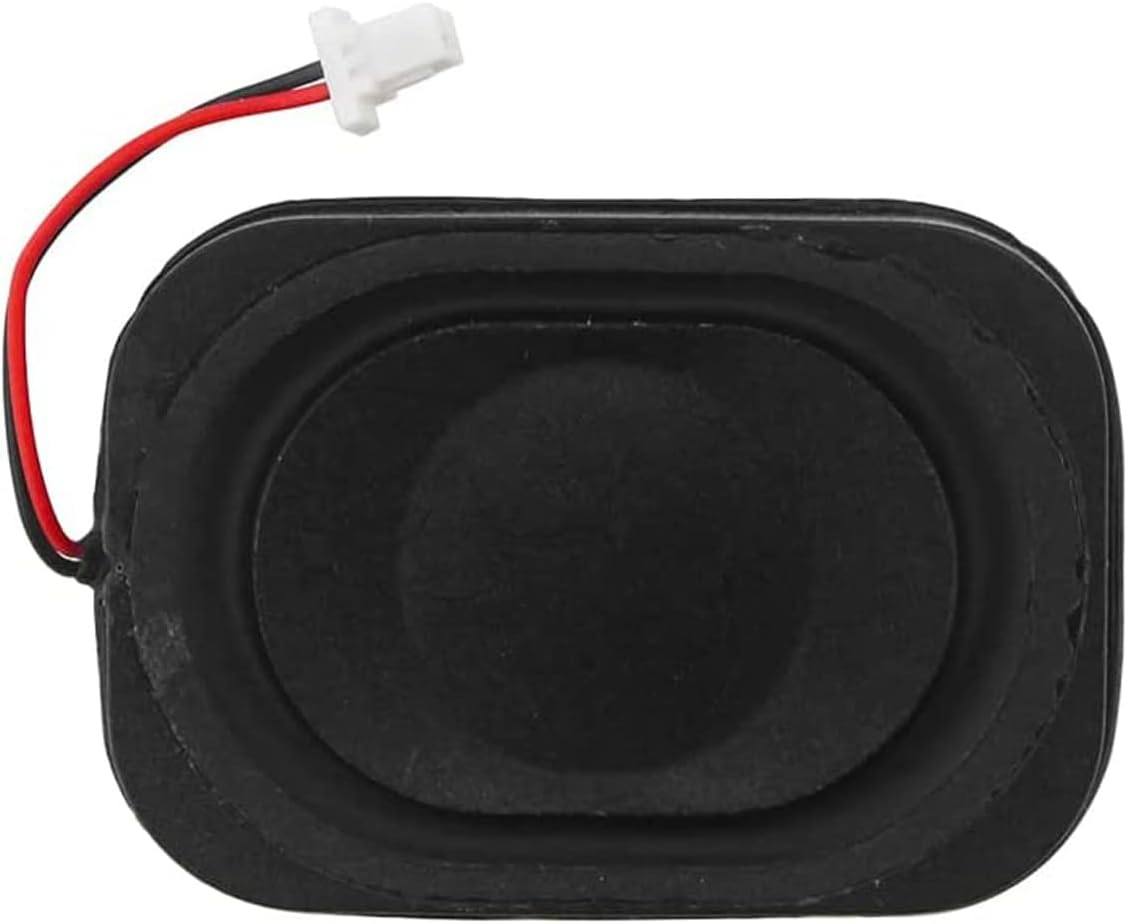

  • 2Pcs Speakers
  • 1Pcs User Manual
  • Screen Resolution: 1024x600
  • Country/Region of origin: China
  • Viewing angle: 178 Degrees
  • Colour Screen: Yes
  • Special Features: Portable IPDS
  • Size Name: 7" IPS 1024*600 Touch Screen+Case+Speaker
  • Brand: DIGISHUO
  • Aspect Ratio: 4:3
  • Model Name: LCD Touch Display
  • Hardware Interface: HDMI
  • Package Dimensions: 25.7 x 22.7 x 7 cm; 530 Grams
  • Manufacturer: DIGISHUO
  • Item Model Number: 7" HDMI IPS
  • Mounting type: Desk Mount
  • Batteries Required: No
  • Refresh rate: 60 Hz
  • Connector Type: HDMI, Micro USB, USB
  • Item Weight: 530 g
  • Standing screen display size: 7 Inches
  • Model: 7" HDMI IPS
  • Resolution: 1024 x 600 Pixels
  • Part Number: A134EE
  • Display Type: LCD
  • Total USB ports: 1
  • Number of items: 1
  • Mounting Hardware: monitor
  • Scanner Resolution: SVGA Wide
  • Maximum vertical resolution: 600 Pixels
  • Actual viewing angle: 178 Degrees
  • Voltage: 5 Volts (DC)
  • Display Technology: LCD
