Load Cell Weighing Sensor, High Accuracy Metal Load Cell Tension and Compression Force Sensor Load Cell Alloy Steel 1000Kg Measuring Weight for Scale(1000Kg)

Load Cell Weighing Sensor, High Accuracy Metal Load Cell Tension and Compression Force Sensor Load Cell Alloy Steel 1000Kg Measuring Weight for Scale(1000Kg)

Brand: EHGCCAD
5.0
A$139.80
Availability:
  • Select Styles for Availability

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

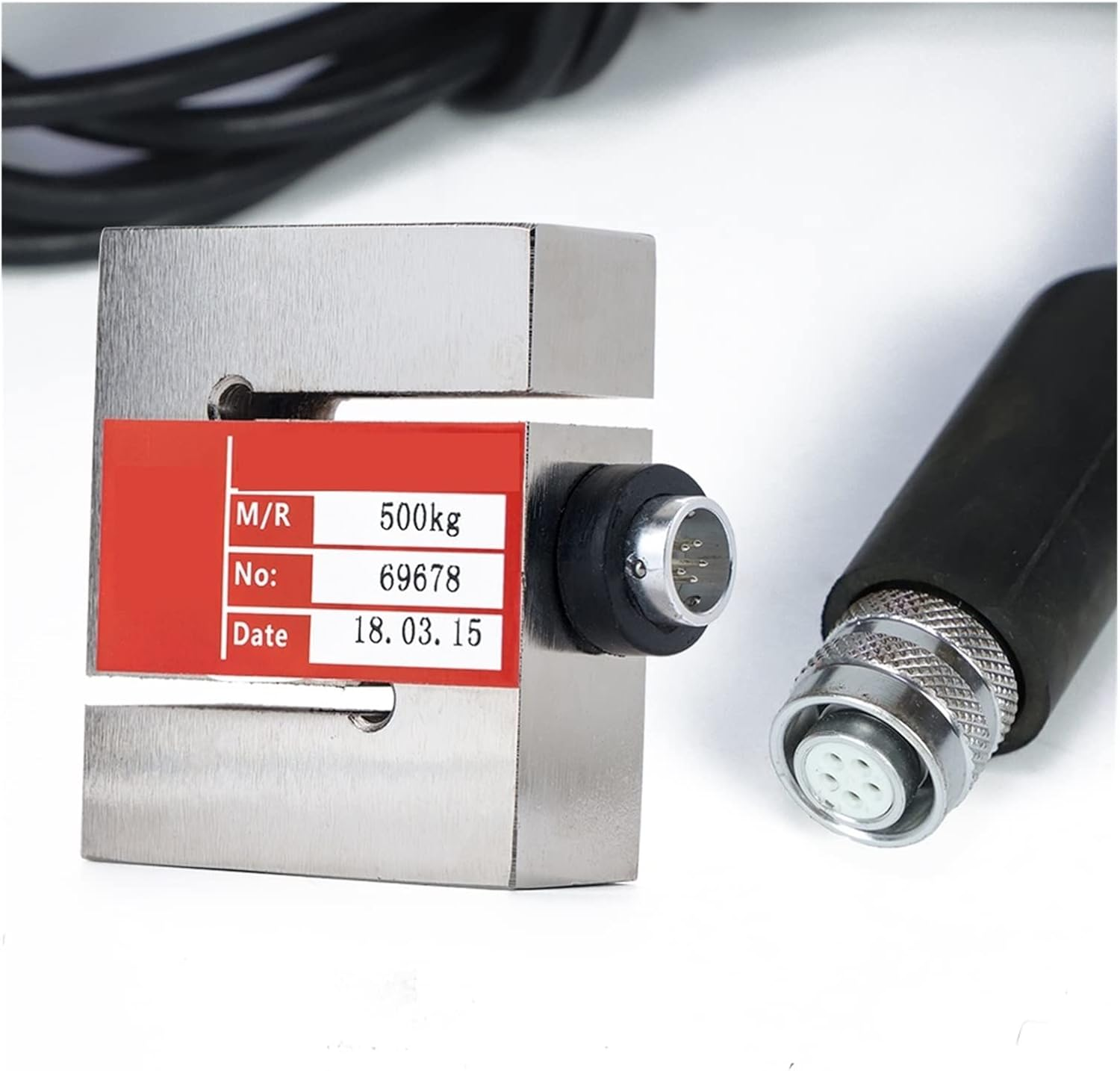

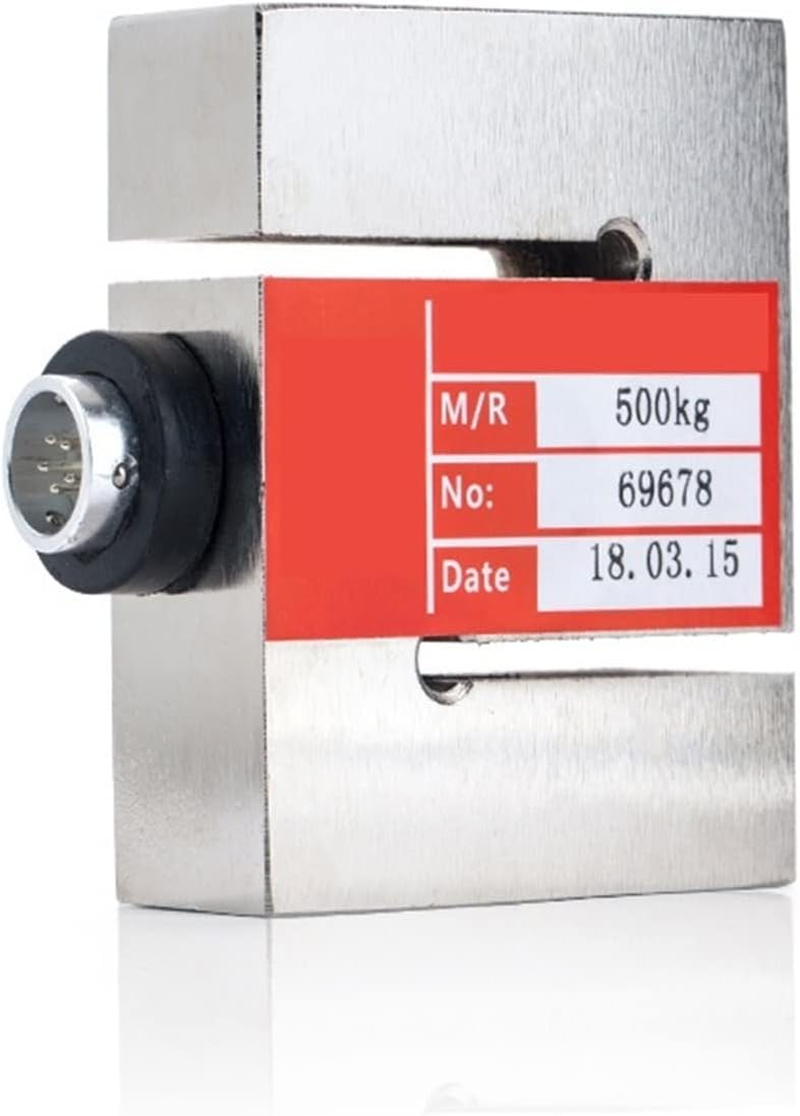

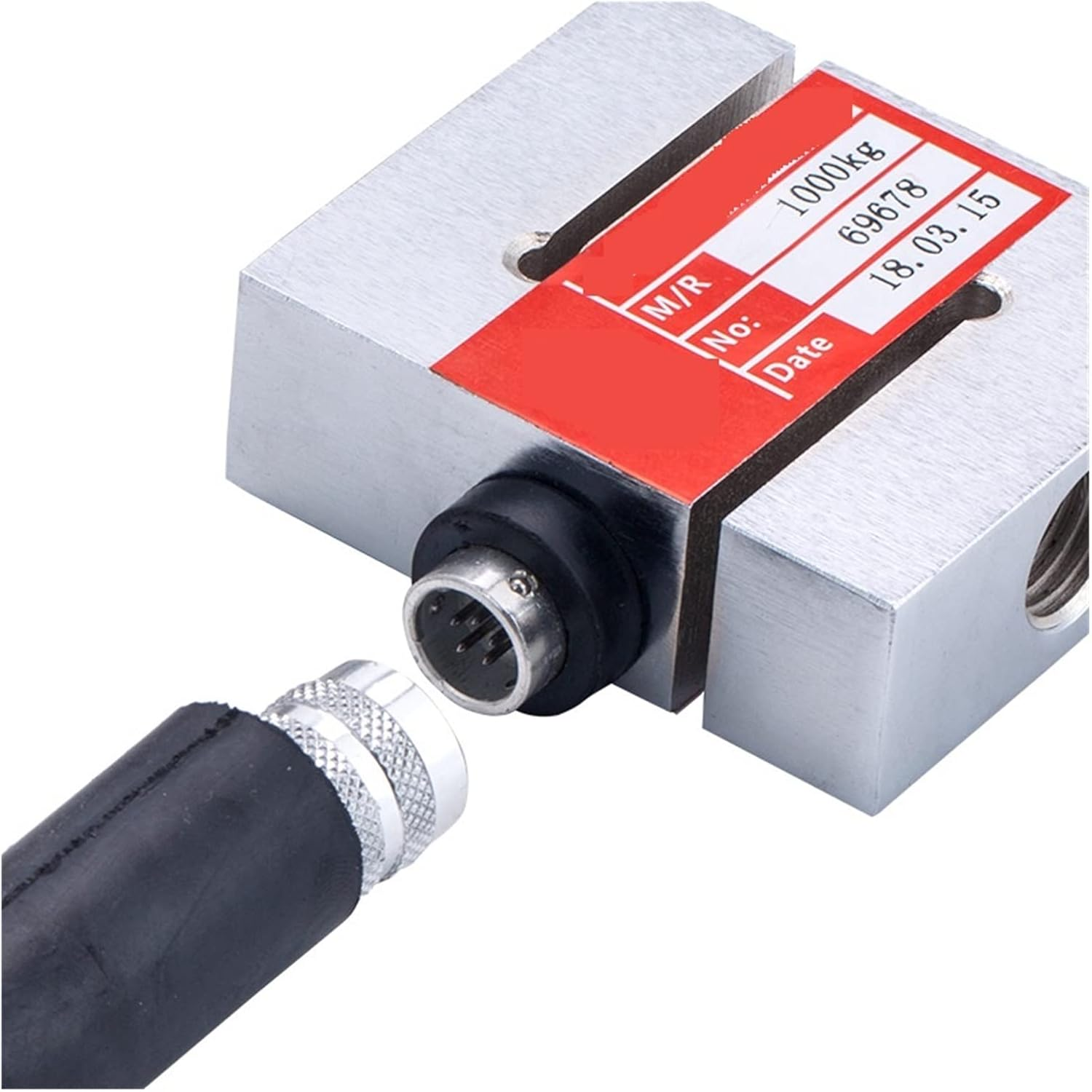

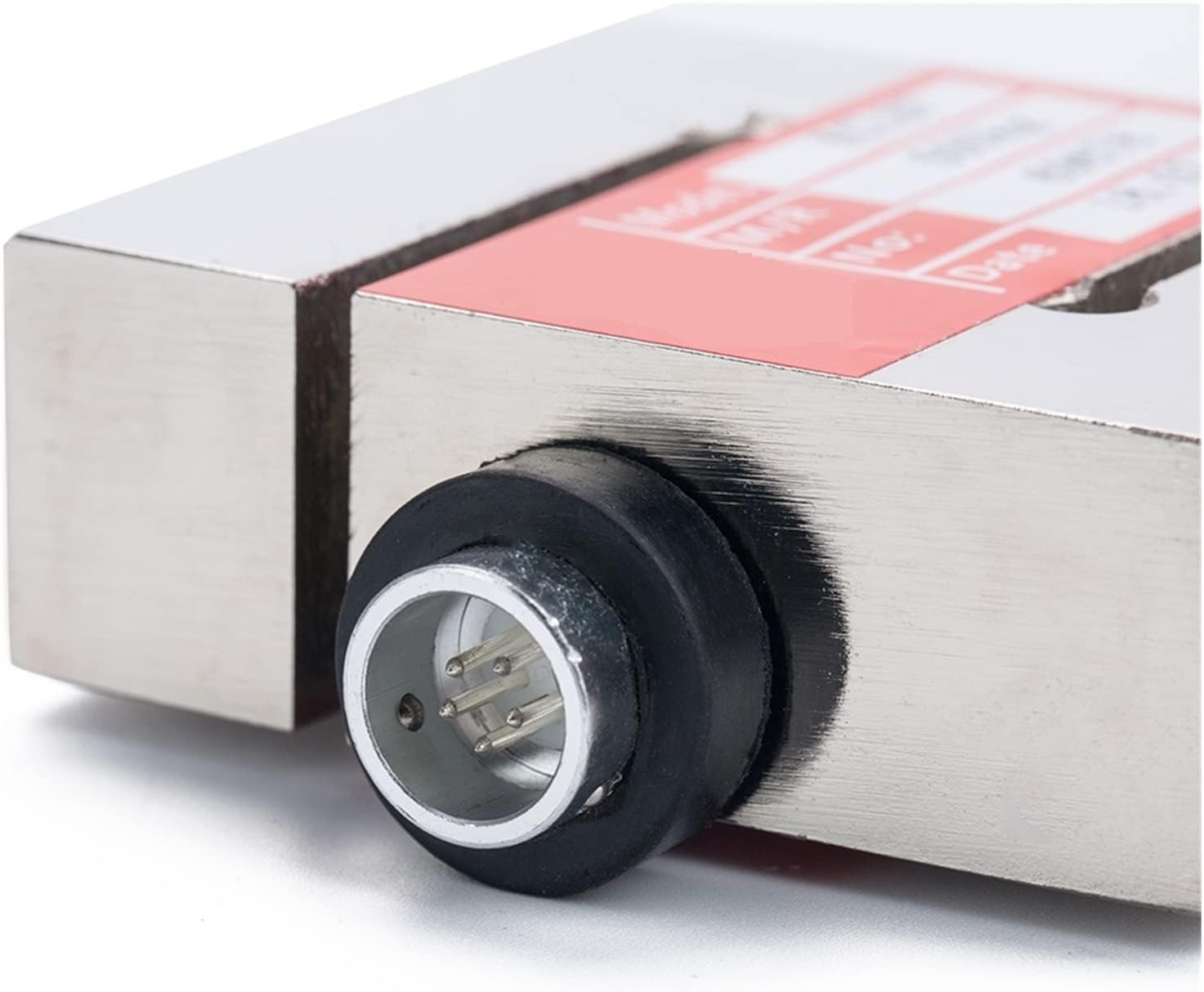

  • -S type Aviation type load cell,tension and Compression.Good output symmetry,compact structure,simple to install,full range of capacities. Suitable for electronic scale, crane scale, hopper scale and various special scales.
  • -Precise and stable. Easy installation.
  • -Capacity:100kg 200kg 300kg 500kg 1000kg 2000kg 3000kg
  • -Suitable for mixing station, batching machine, asphalt station, etc.
  • -Safe and anti-explosive product, can be used in bad environment and hazardous areas

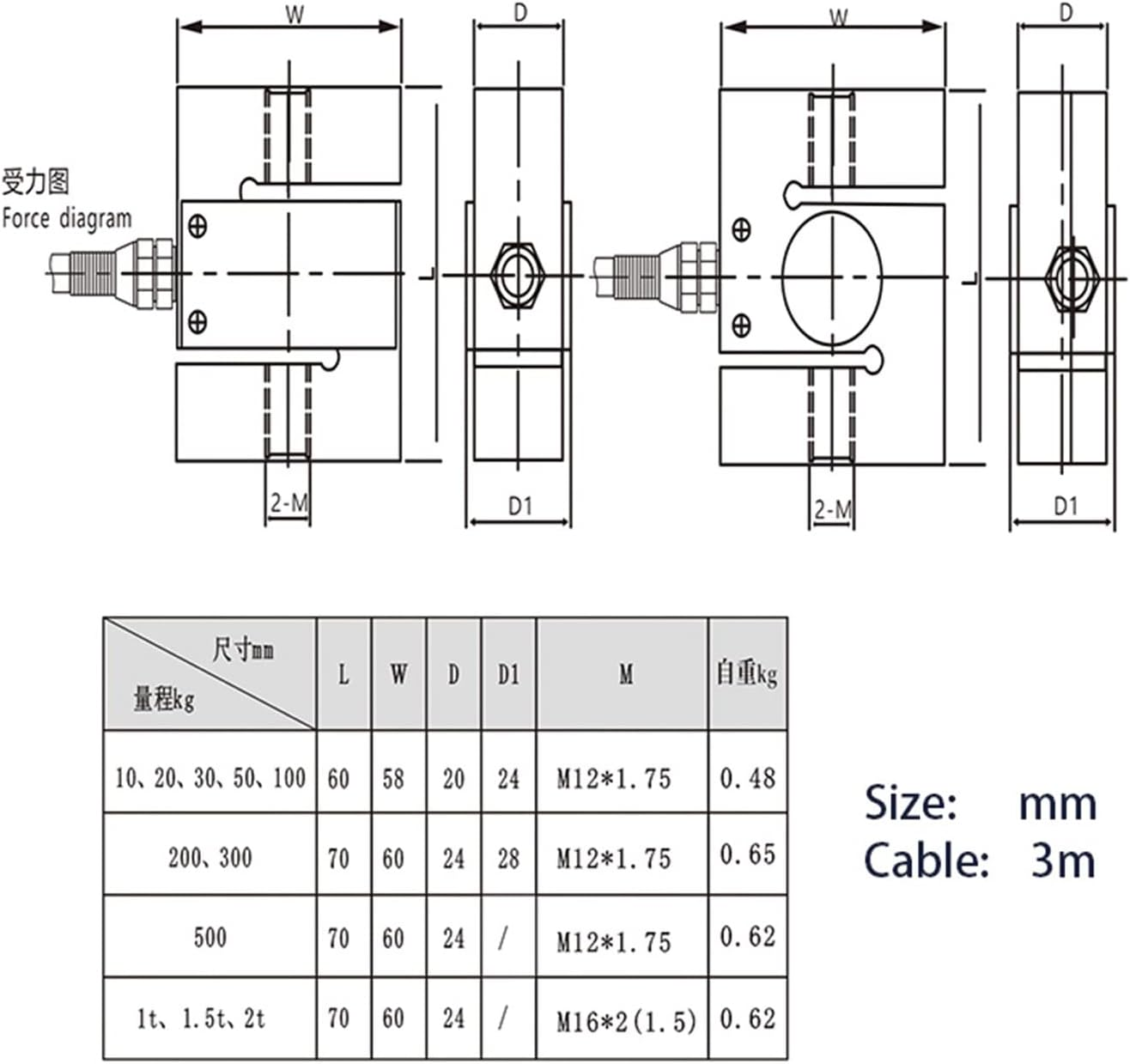

Specifications:
Capacity:300kg 500kg 1000kg 1500kg 2000kg
Capacity 20-2000kg
Zero Balance ±1%F.S
Rated output 2.0±0.004mv/v
Input resistance 380±20
Accuracy Class C2
Output resistance 350±5
Non-linearity 0.02%F.S
Safe overload150%F.S
Hysteresis 0.03%F.S
Ultimate overload 300%F.S
Creep in 30 minutes0.02%F.S
Excitation voltage10V AC/DC
Temperature effect span 0.015%F.S/10
Max excitation voltage 15V AC/DC
Temperature effect zero 0.02%F.S/10
Insulation Resistance 500M
Compensated temperature-10~+40
Environmental protection IP67
Operating temperature-30~+65
Material Alloy Steel

  • Item Model Number: 3256802399786505
  • Part Number: 3256802399786505
  • Item Package Quantity: 1
  • Colour: Silver
  • Country of origin: China
  • Number Of Pieces: 1
  • Item Weight: 10 g
  • Manufacturer: EHGCCAD
  • Package Dimensions: 2.54 x 2.54 x 2.54 cm; 10 Grams
  • Size: 1000KG
