1. Y.
2. 2 Position of the 5 -port solenoid air valve.
3. Good stamp, sure and to use.
4. Compact size, easy to assemble and disassemble.
5. Stable performance, long shelf life.
Specification:
Characteristics:
and .
2 position of 5 ports solenoid air valve.
Good seal, safe and to use.
Compact size, easy to assemble and disassemble.
Stable performance, long shelf life.
Specification:

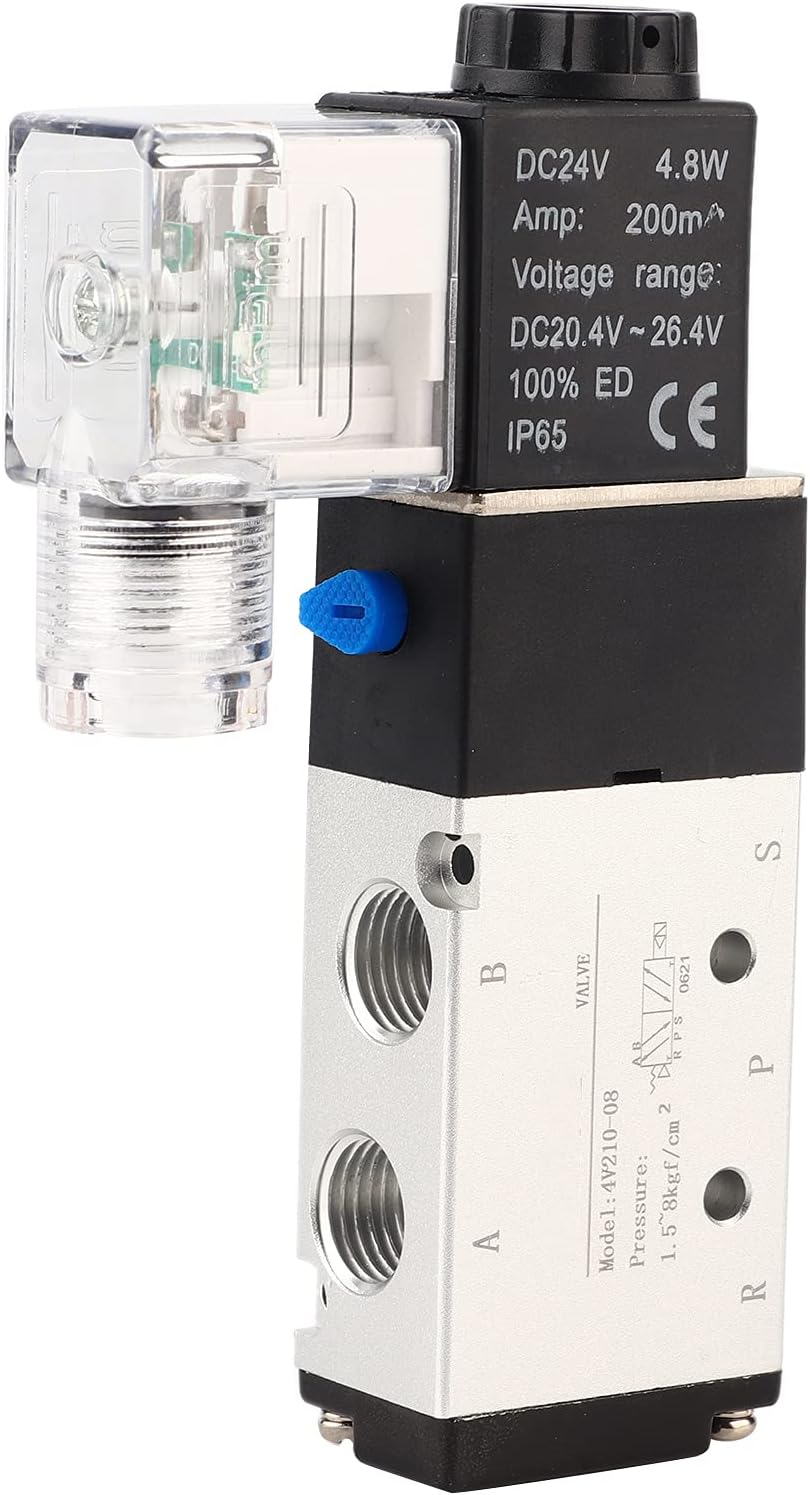

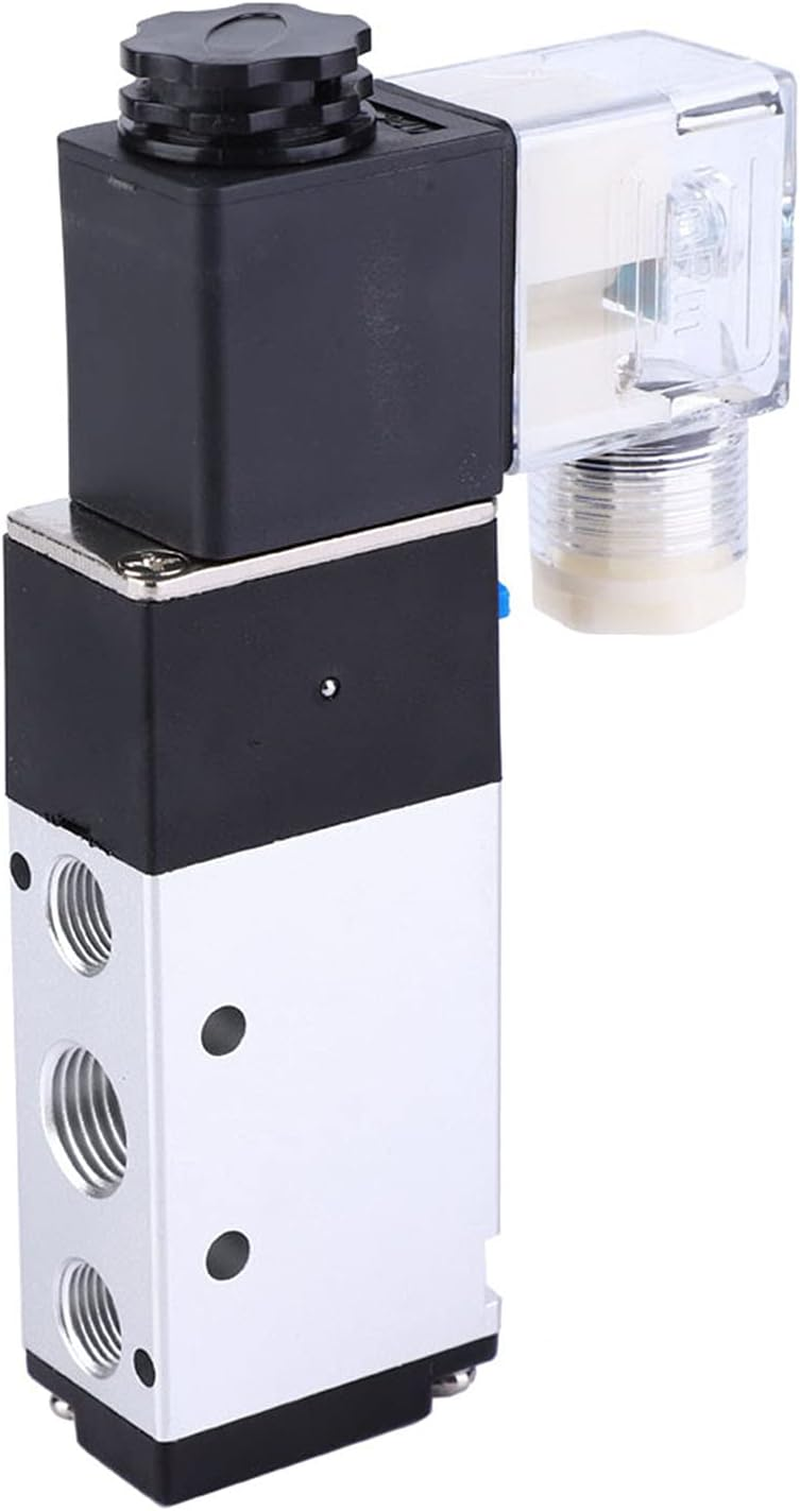

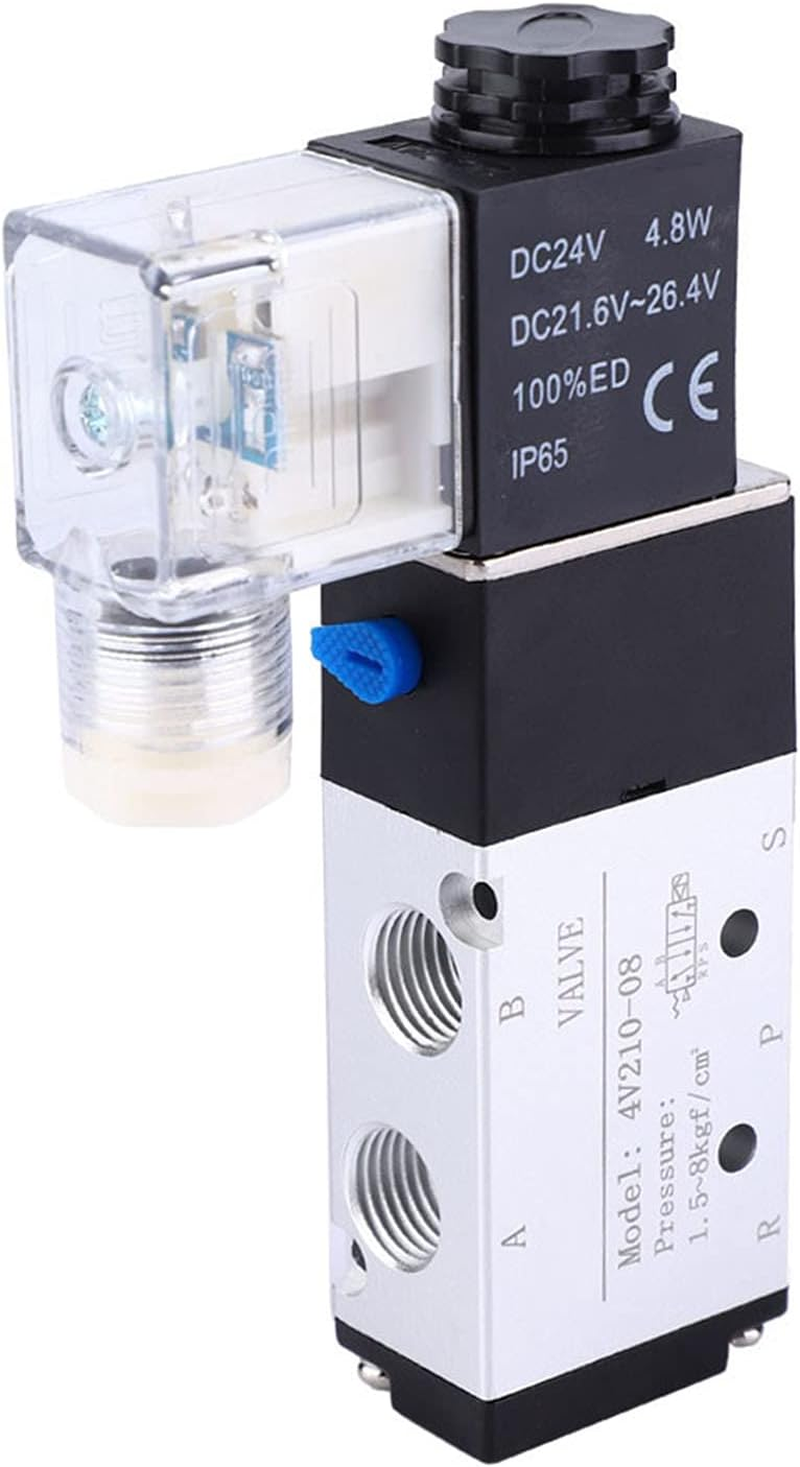

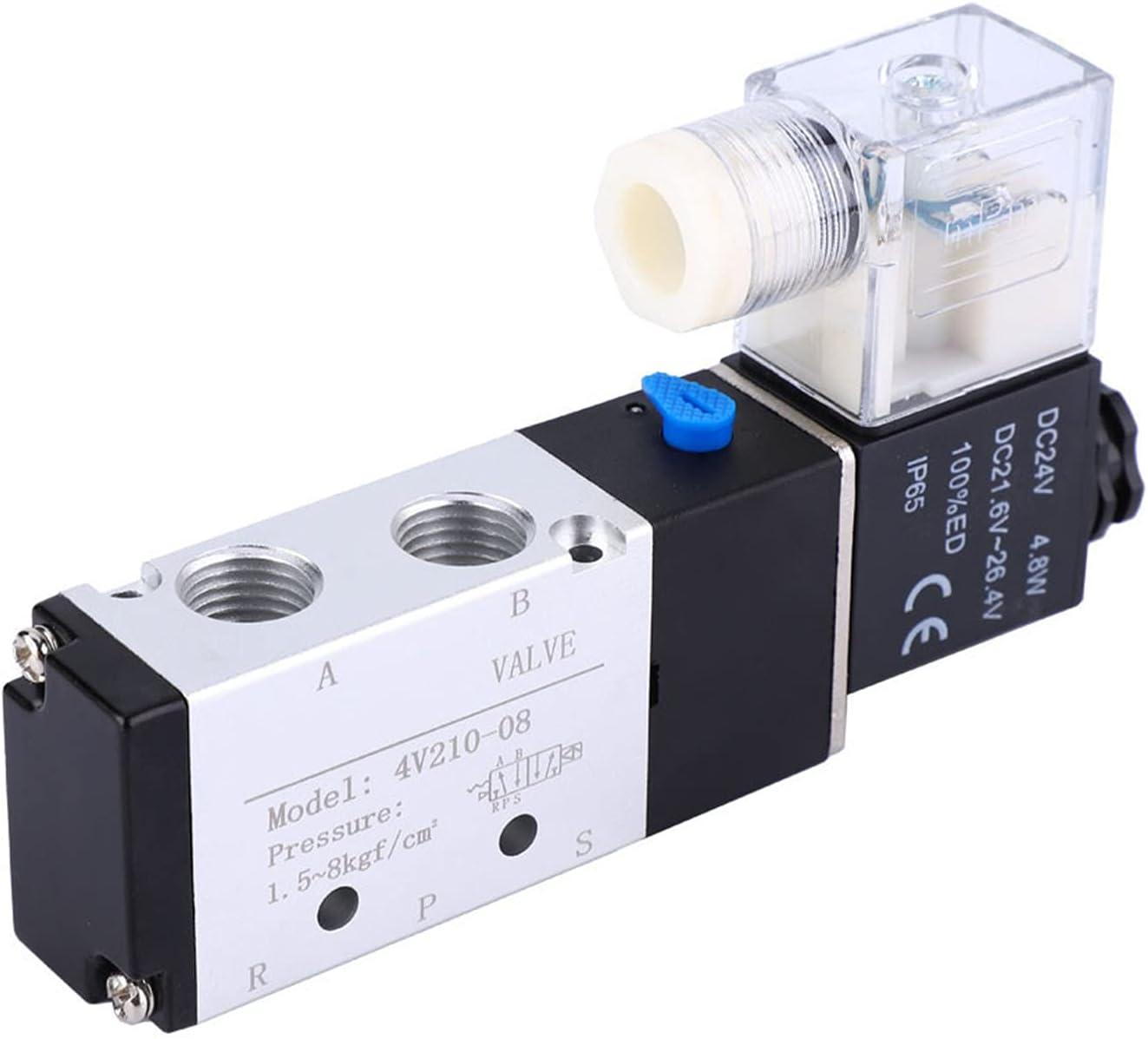

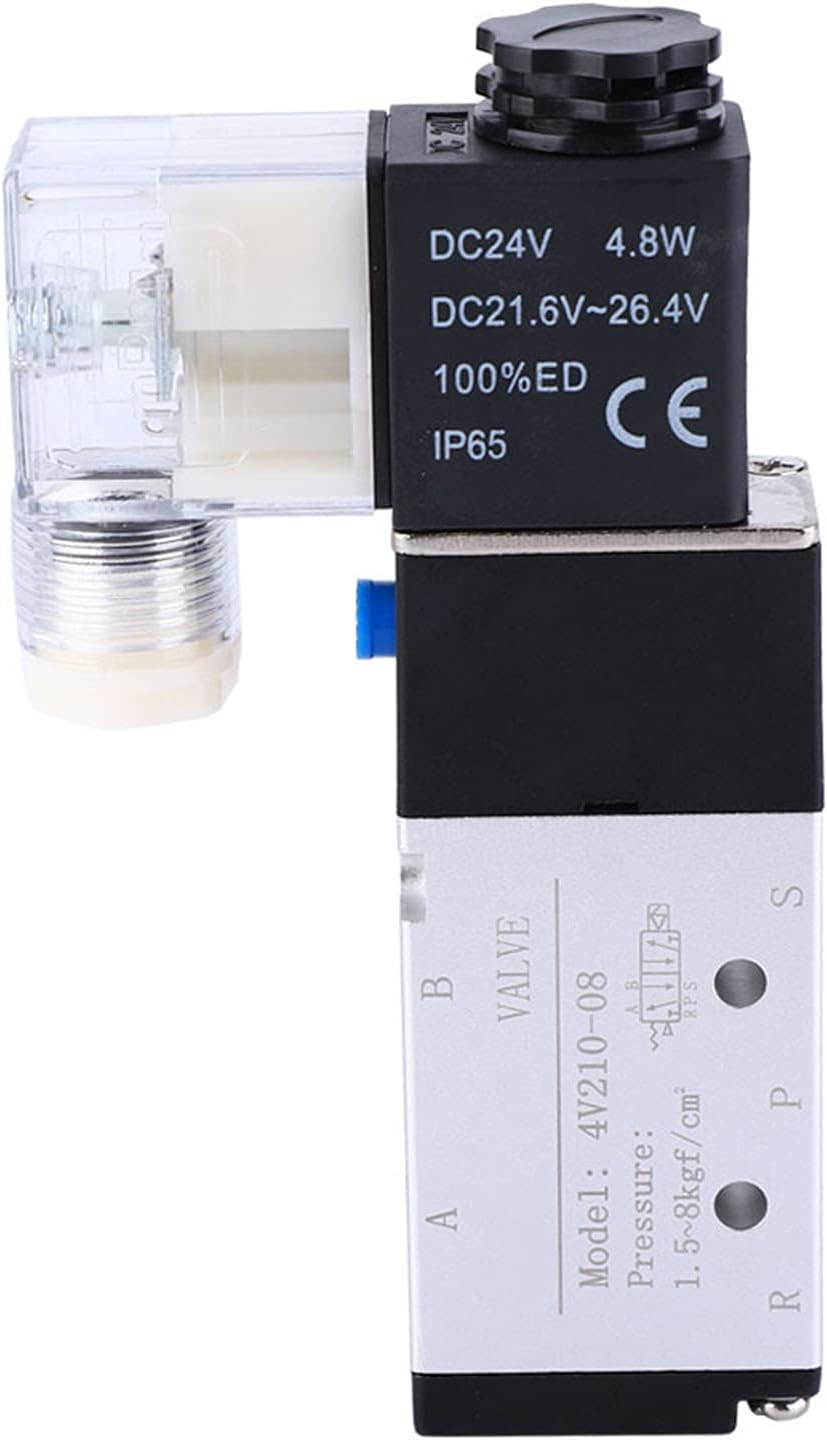

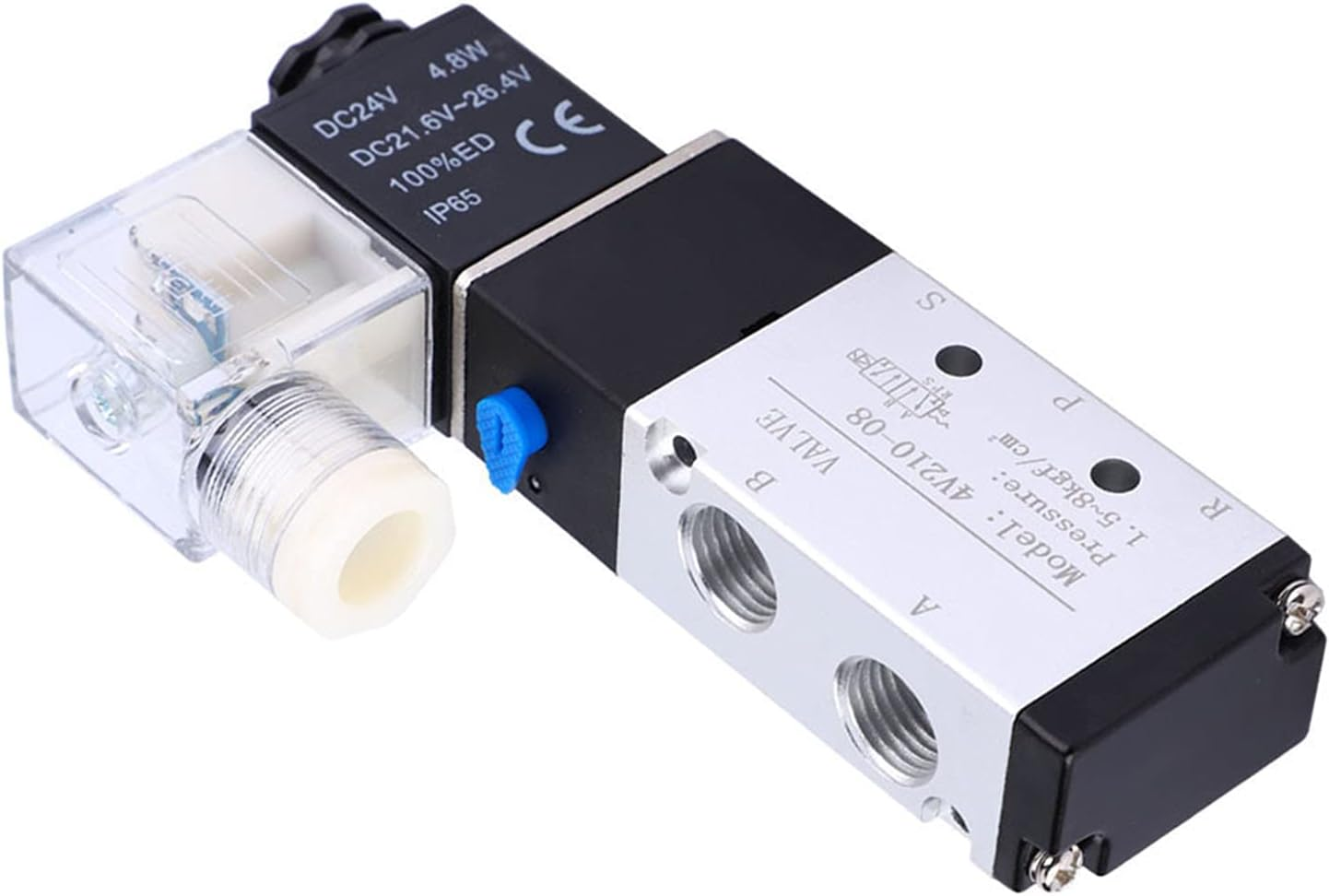

Model: 4v210-08
Use fluid: air (filtered through the 40 microns screen)
Action mode: internal guide mode
Lubrication: no need
Use pressure: 1.5-8.0kgf/cm2
Maximum pressure: 10.5kgf/cm2
Working temperature: 5 ~ 50 ℃
Voltage range: +15% -25%
Energy consumption: AC: 5.4VA, DC: 2.5W
Isolation: Class F.
Useful life: approximately 10 million times under normal use
Maximum action time: 0.05 seconds
Class: IP65 (DIN40050)
Voltage: 12V/24V (optional) DC
Instructions:
1. Check the components before use, whether they are damaged during transport, then install and use them.
2. When installing, pay attention to the gas address and if the nozzle is correct.
3. When installing, pay special attention to whether the voltage meets the requirements, the entire purification of the machine, it is recommended to use manual device purification and then ignition purification.
4. Please pay attention to dust prevention and suggest installing the in the escape port.
5. When connecting the pipe, pay attention to the winding windpage to not exceed the end of the tooth and pay attention to the elimination of the pipe joints, the metal particles in the pipe, the dust and the oil pollution.
Packaging list:
1 x Solenoid air valve
Note:
in mind that the new type and old type of this product will be sent randomly and sure you don't care before ordering.
