500V 32A MCB Solar Photovoltaic DC Combiner Box, Overvoltage and Protection Circuit Breaker with Transparent Cover IP65 Rated (With Cable and PV Connector)

500V 32A MCB Solar Photovoltaic DC Combiner Box, Overvoltage and Protection Circuit Breaker with Transparent Cover IP65 Rated (With Cable and PV Connector)

Brand: Spacnana
5.0
A$31.90 - A$32.05
Availability:
  • Select Styles for Availability

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • Great in Design: Equipped with the DC module to maximize the protection of photovoltaic DC disconnector, and the transparent cover is also convenient for checking the status of the circuit breaker.

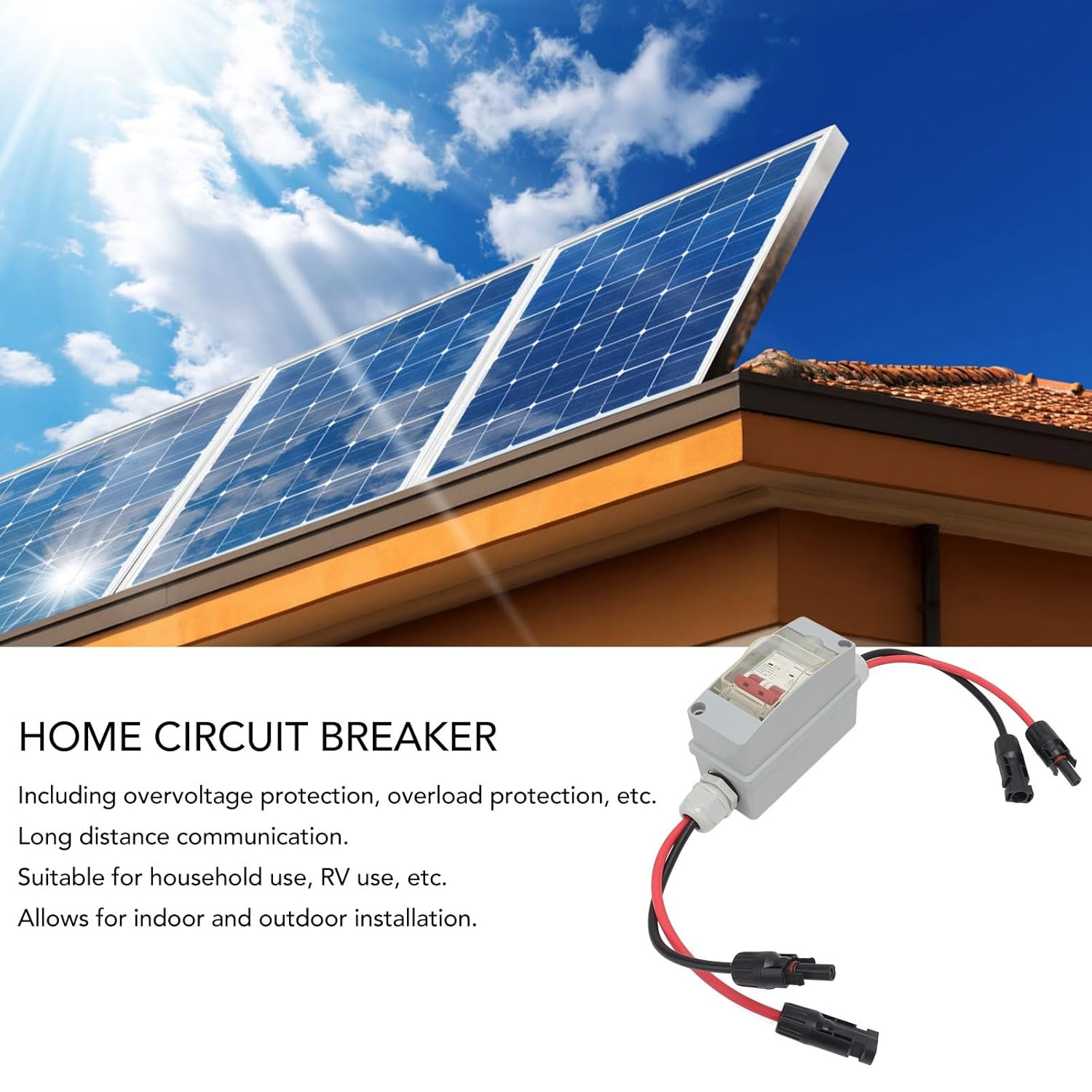

  • Safe Protection: Includes overvoltage protection, overload and protection functions, which can provide long distance communication and extend the working life of the solar system.
  • The Reliability: The disconnector is allowed to be installed indoors and outdoors, with built in DC switchgear, which can be effectively protected in severe weather and environment.
  • Extensive Using: Applicable to photovoltaic solar panel grid connected system and solar off grid system solar power generation system. Also for household, RV, etc.

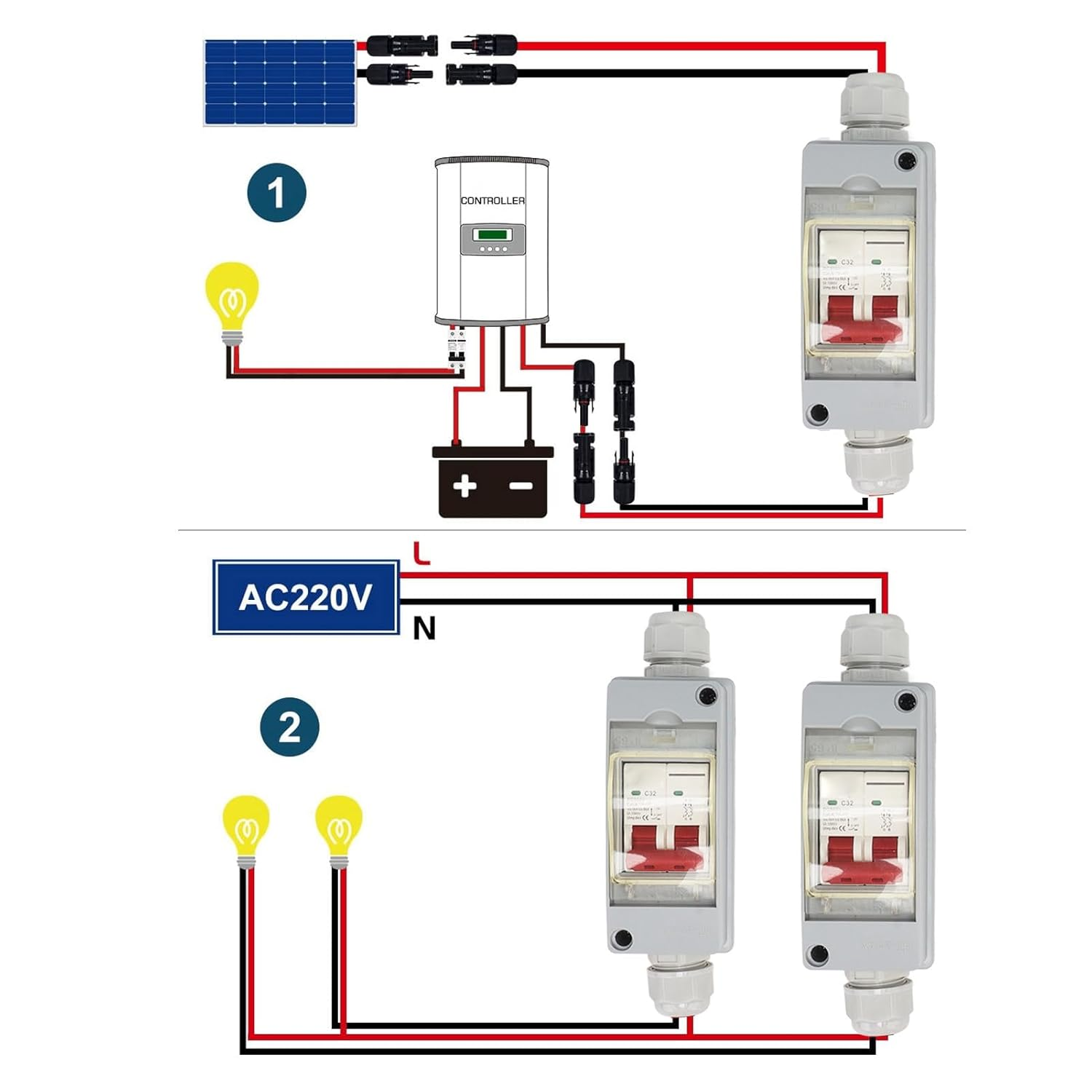

  • Easy to Install: 500V solar photovoltaic DC combiner box, installed between the solar panel and the solar inverter, can achieve and safer installation, plug and play.

Product Description

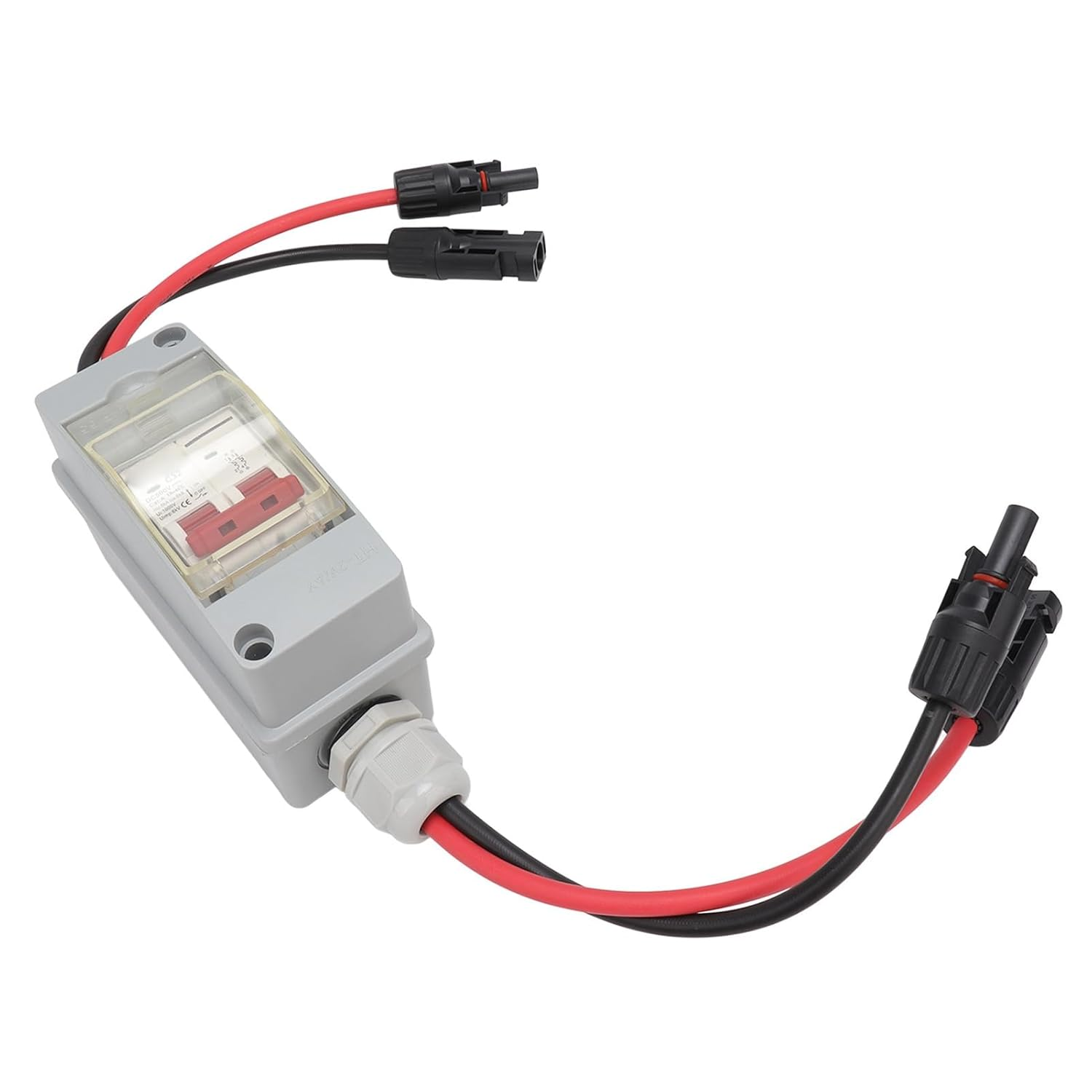

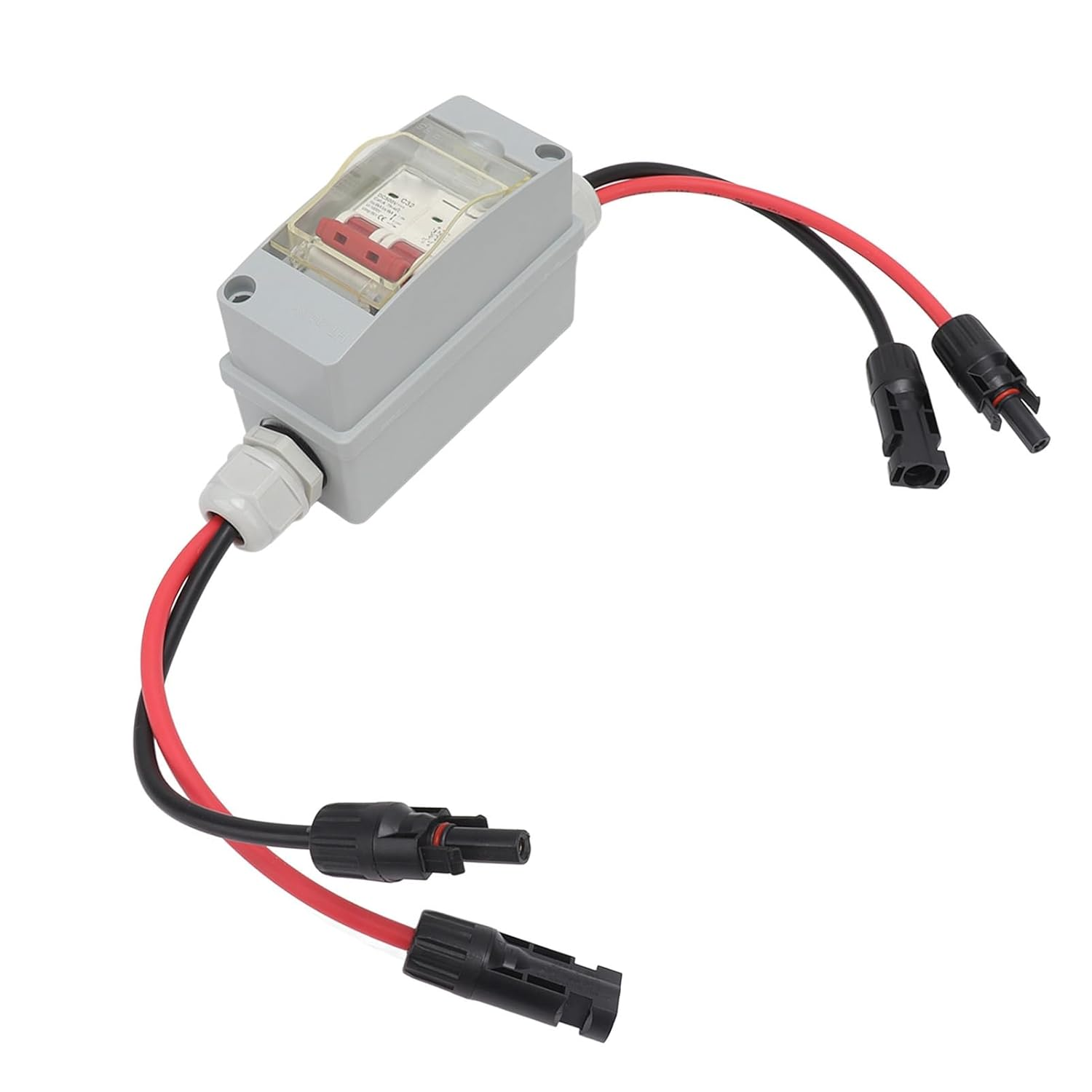

Spacnana 500V 32A MCB Solar Photovoltaic DC Combiner Box, Overvoltage and Protection Circuit Breaker with Transparent Cover IP65 Rated (with Cable and PV Connector)


Extensive Using: Applicable to photovoltaic solar panel grid connected system and solar off grid system solar power generation system. Also for household, RV, etc.


Safe Protection: Includes overvoltage protection, overload and protection functions, which can provide long distance communication and extend the working life of the solar system.


Great in Design: Equipped with the DC module to maximize the protection of photovoltaic DC disconnector, and the transparent cover is also convenient for checking the status of the circuit breaker.


Specification:


Item Type: Circuit Breaker


Model: LQX C32.2


Material: Polycarbonate, ABS


Input: 1 String


Output: 1 String


Maximum Voltage: 500V


Maximum DC Short Circuit Input Current Isc: 32A, replaceable.


Protection Grade: IP65


Product Size: Approx. 120 x 55 x 90mm / 4.72 x 2.17 x 3.54in


Cable Inlet: M20 6mm*2


Output Cable Gland: M20 6mm*2


Rated Insulation Voltage Ui: 500V


Rated Current Le: 32A


Maximum Working Voltage Ucpv: 500V


Rated Working Voltage: 500V



packing list:


1 xCircuit Breaker


1 x User Manual


or

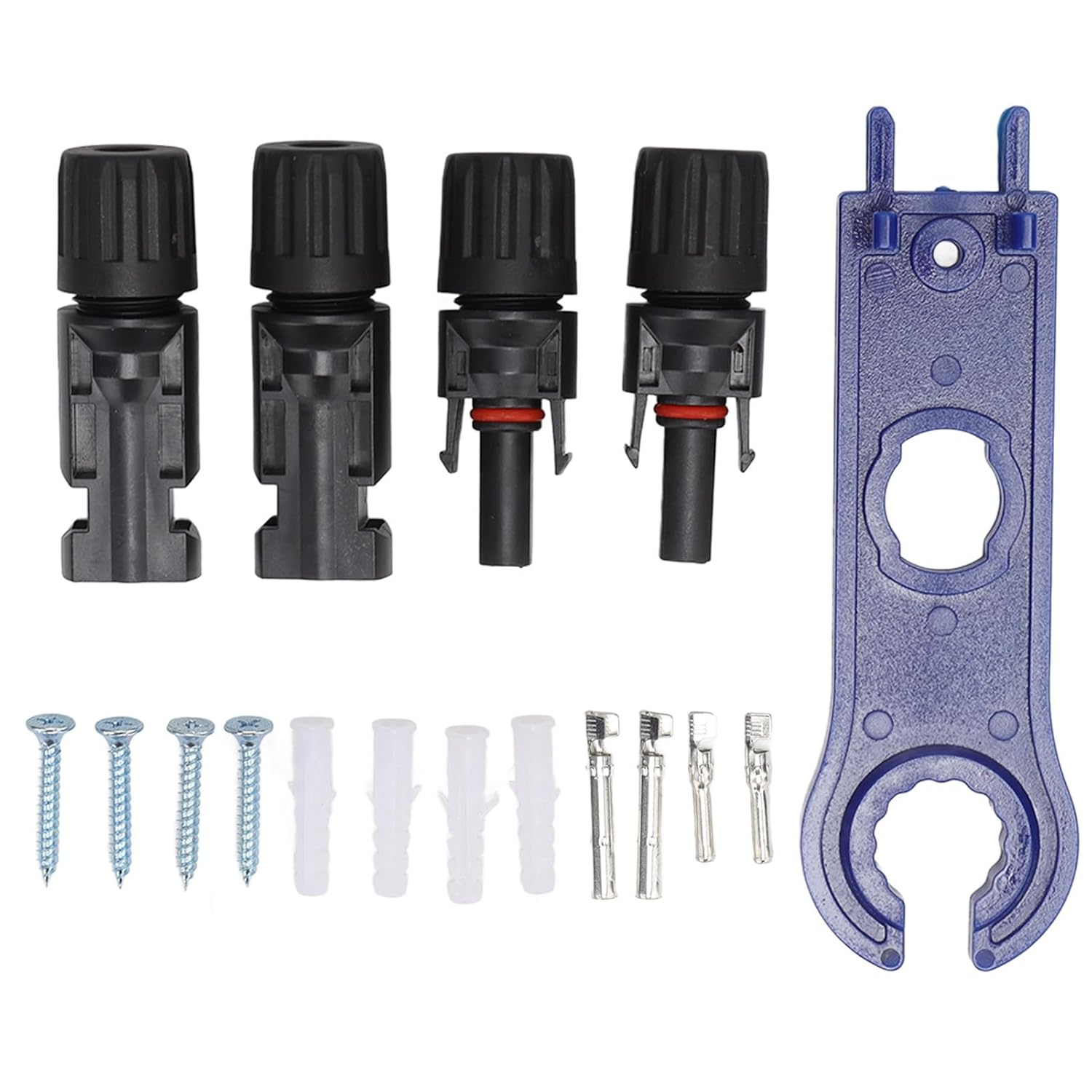

1 x Circuit Breaker


4 x Connector (2pcs male connector, 2pcs female connector)


4 x Core


4 x Screw


4 x Wall Plug


1 x PV Wrench


1 x User Manual

  • Item Model Number: Spacnana6ok3fdvp0e-12
  • Size Name: With Cable and PV Connector
  • Language: English
  • Country of origin: China
  • Package Dimensions: 30 x 10 x 10 cm; 584 Grams
  • Style Name: With Cable and PV Connector
  • Manufacturer: Spacnana
