Water Level Meter
Product Features:
-Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.
-IP67 waterproof and dustproof grade
-Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.
-With curved glass (with anti-fogging function)
-With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)).
Technical Data:

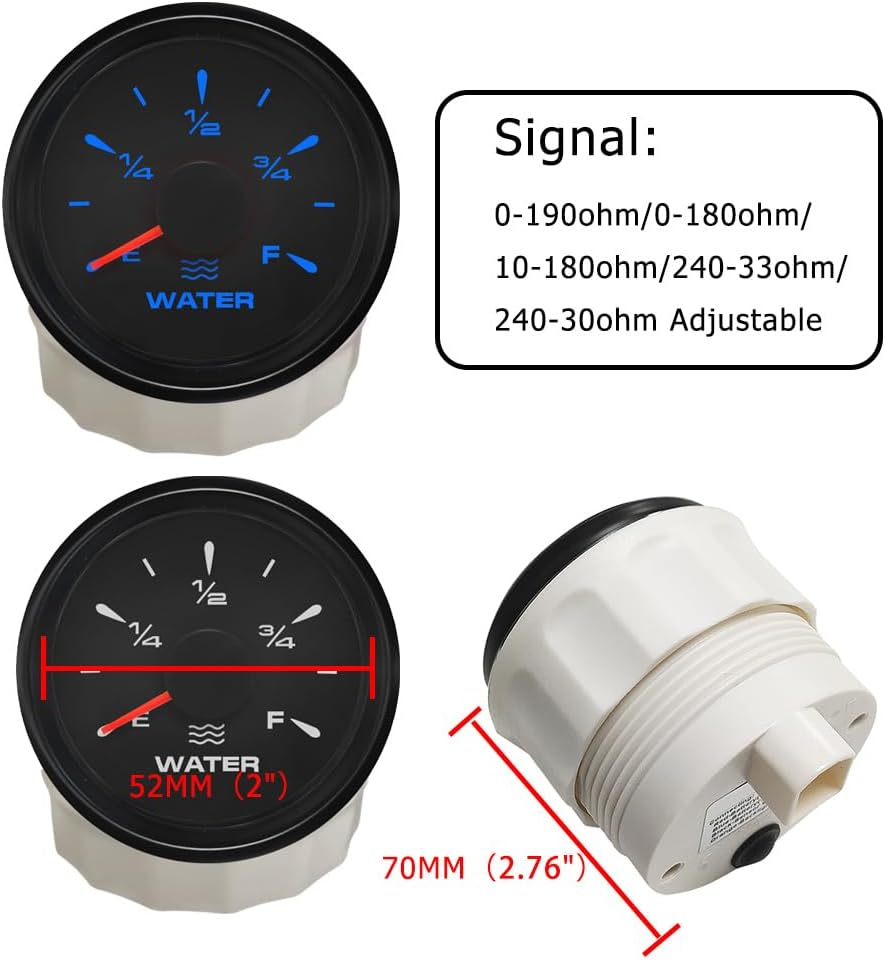

-Fixing dimension: 52mm(2")
-Indicating Range: E-1/4-1/2-3/4-F
-Signal: 0-190ohm 240-33ohm Signal Adjustable
-Working Voltage: 9-32V(12V/24V)

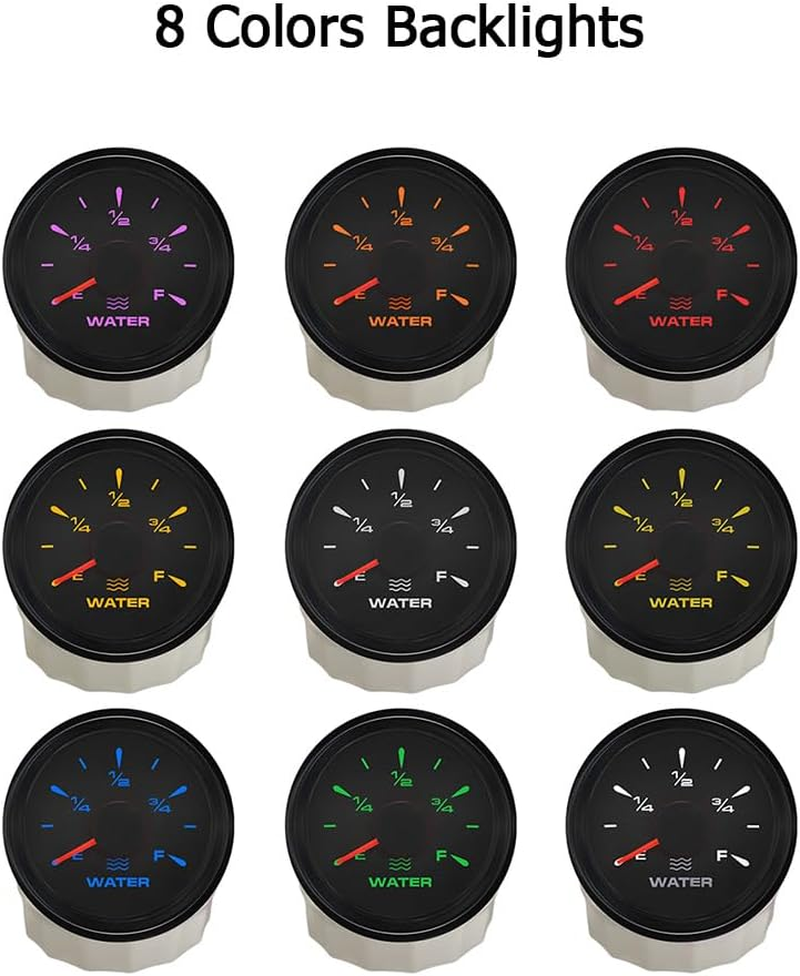

-Backlight: 8 colors
Package Includes:
1x Water Level Gauge
1x Cable
1x Manual
Water Level Sender
Product Features:
-Suitable for truck, generators/genset, bus and marine field
-Widely used in fuel, water, kerosene and chemical tanks
-OEM quality, widely used on automotive and marine OEMs
-Reed switch, steady output signal
-Simple and strong structure , Advanced corrosion resistance
-Long using life, anti-vibration,anti-explosion
-High quality fuel and water level sensor
-Economical level sensing solution, long service lifespan
-Without limitation of environment,length can be customized

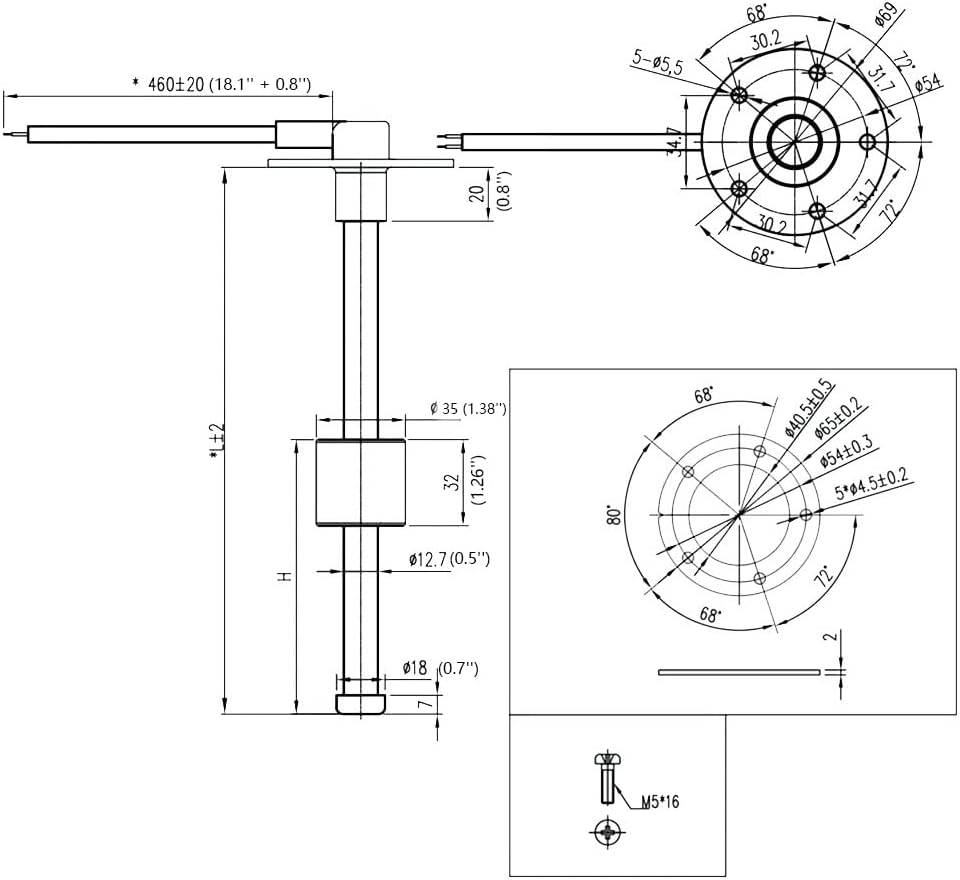

Product Specifications:
-Material: 304 stainless steel

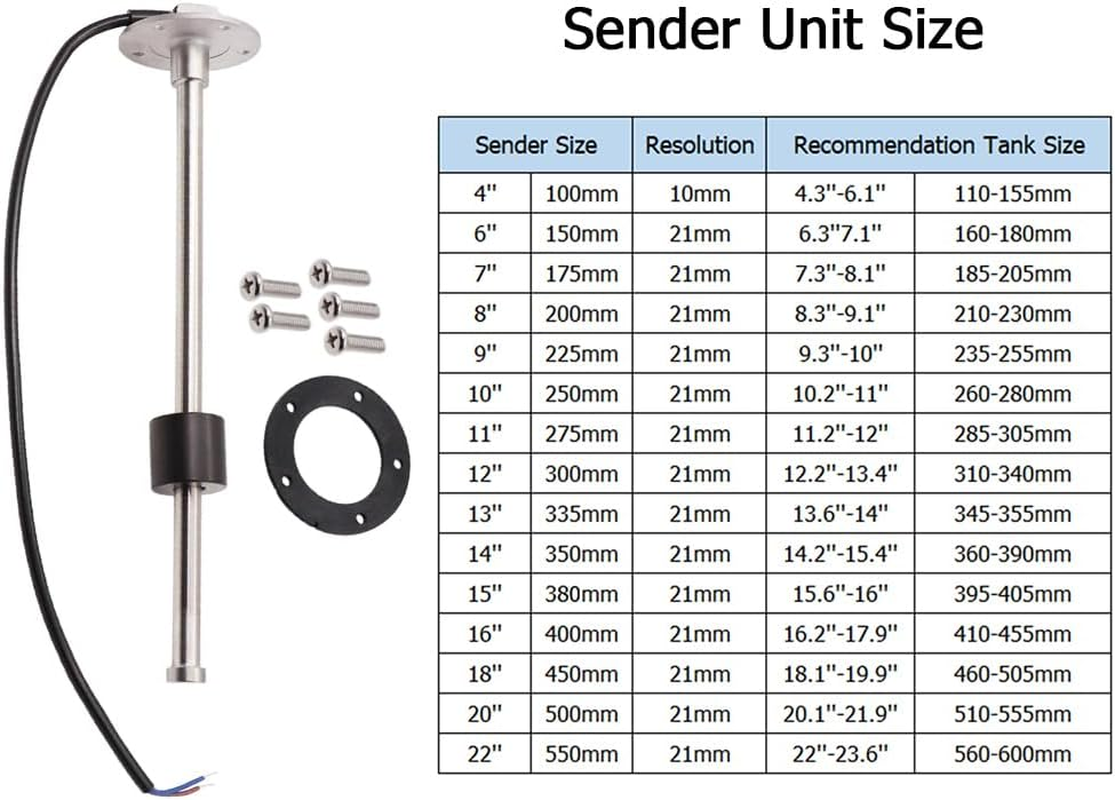

-Length range: 150mm
-Assembly: SAE standard 5 holes
-Mounting: 5 pieces of M5 screws and 2 mm thick gasket
-Rated current for alarm switch: 500mA
-Output signal: 0-190ohm
-Resolution range: 21mm
-Operating temperatures: - 40 to 85°C
-Protection rank: IP67
Package Includes:
1x Level Sensor
1x Gasket
5x M5 Screws
