ELING Waterproof 2 in 1 Dual Gauge Water Level Holding Tank Level Alarm 9-32V for RV Vessels Yachts (WH, Black+Black)
ELING Waterproof 2 in 1 Dual Gauge Water Level Holding Tank Level Alarm 9-32V for RV Vessels Yachts (WH, Black+Black)
Brand: ELING
A$55.65
Colour Name
Availability:
-
Select Styles for Availability
Shop with confidence
- Suitable for all Marine Boats/Truck/Bus/Motor Home/Hot Rod/Generators
- 52mm diameter Two in One Gauge show with easy installation
- Reverse polarity protection and anti-fogging performance
- Working Voltage:12V/24V
- IP66 Waterproof
Product Description
Product Features
- Suitable for all kinds of cars, boats, limousine
- High Resolution View under sunshine
- Reverse polarity protection and anti-fogging performance
- IP66 Waterproof
Product Introduction

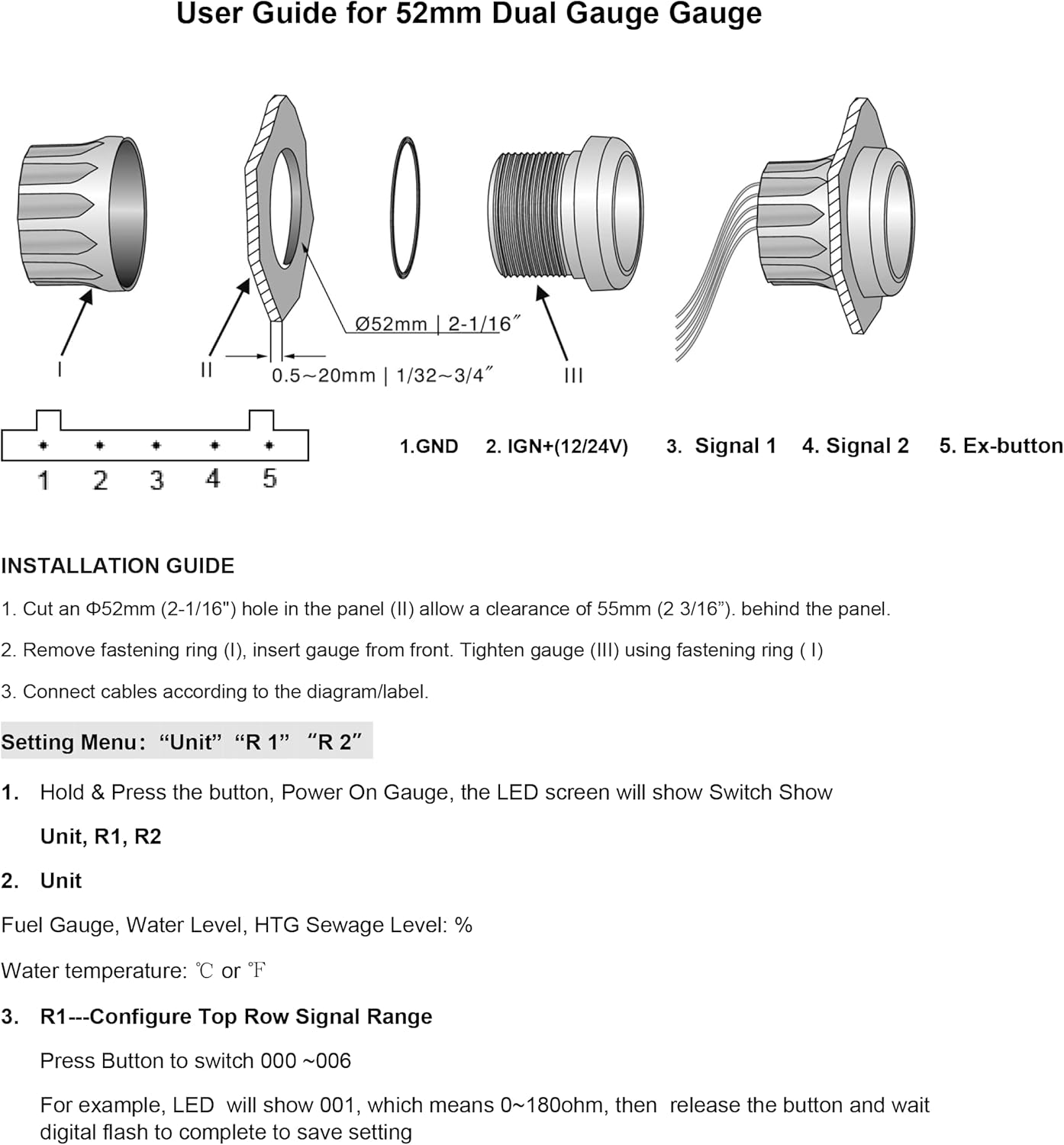

How to install it ?
- Cut an 52mm (2 1/16") hole in the panel and allow a clearance of 55mm (2 3/16”) behind the panel to fit the gauge.
- Put the gauge in the hole and screw down.

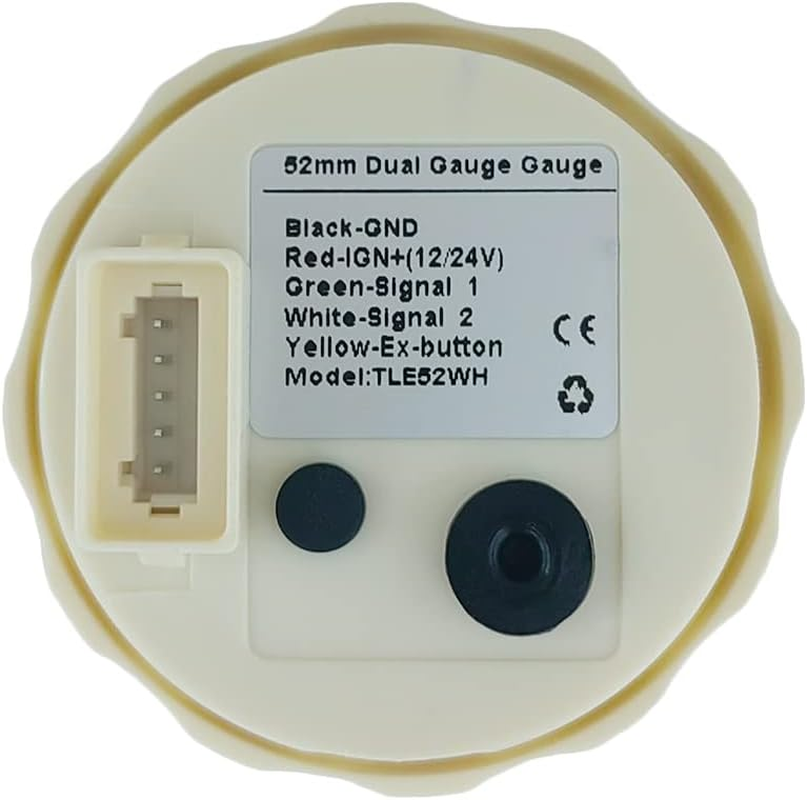

How to connect wires?
Black wire:Power Negative.
Red wire: Power Positive.
Green wire:Signal 1.
White wire:Signal 2.
Yellow wire: External Button.
Please note: 2 in 1 multi-function gauge can be connected to 12VDC and 24VDC power directly.
Why does water level meter not work?
- Water level meter cannot work well. Because its signal don't match the signal of water level sensor.
- Confirm your water level meter signal firstly.

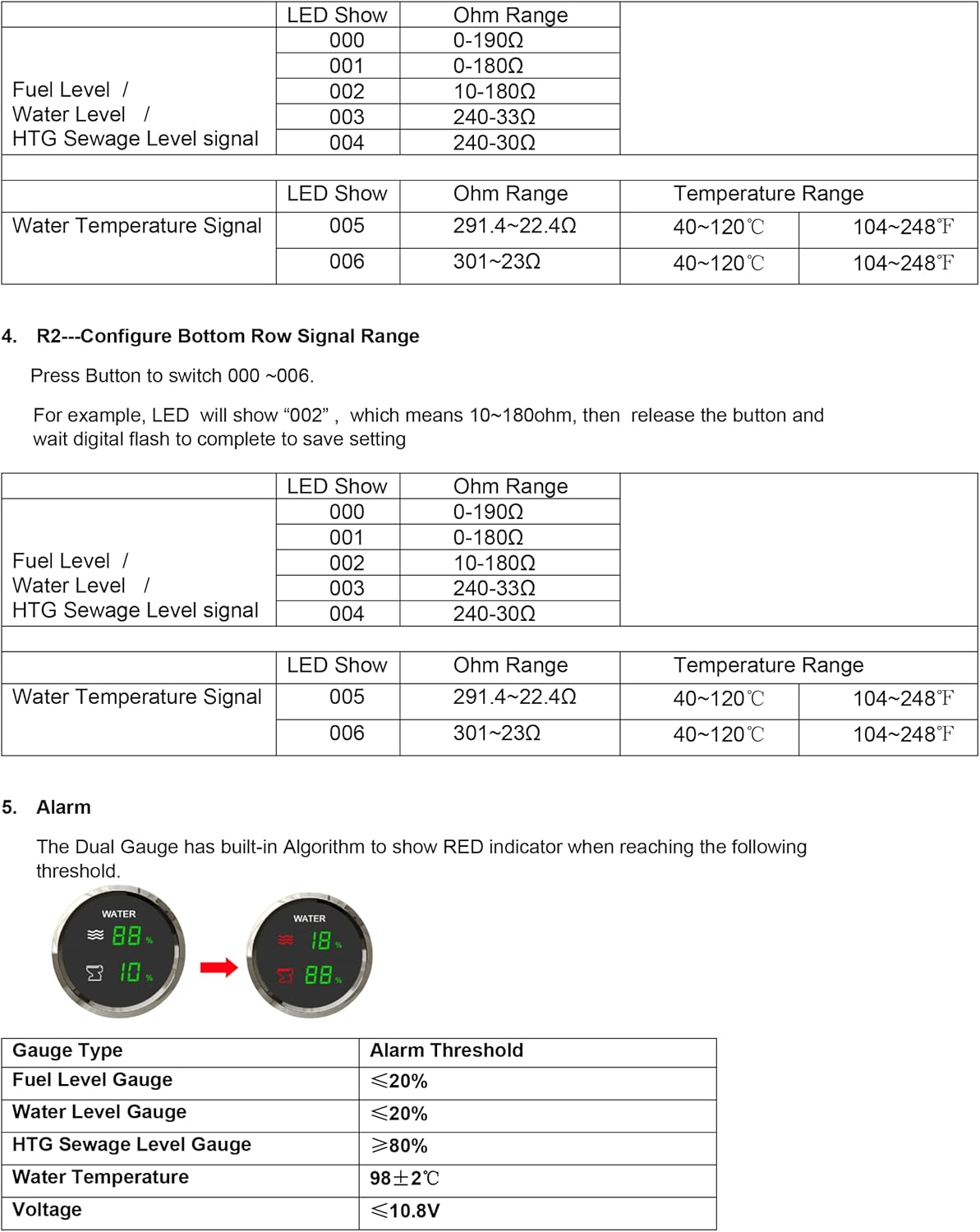

Technical Data
| Fixing dimension | 52mm(2") |
| Working Voltage | 9-32V(12V/24V) |
| Holding tank indicating range | 0-100% |
| Water level indicating range | 0-100% |
| Water level signal | Programmable Input Resistance Ohm Signal to adapt water sensor 0-190Ω, 0-180Ω, 10-180Ω, 240-33Ω, 240-30Ω |
| Holding tank level signal | Programmable Input Resistance Ohm Signal to adapt holding tank level sensor 0-190Ω, 0-180Ω, 10-180Ω, 240-33Ω, 240-30Ω |
| Water level alarm threshold | ≤20% |
| Holding tank alarm threshold | ≥80% |
| Operation mode | LCD display, stepper motor |
Recommend 0-190ohm water level sensor
- 150mm ASIN NO. B07FF9KHLJ
- 175mm ASIN NO. B07FM2S471
- 200mm ASIN NO. B07FMF3XH5
- 225mm ASIN NO. B07FMFXH71
- 250 mm ASIN NO. B07FM4VX6D
- 275 mm ASIN NO. B07FLYQ74Z
- 300 mm ASIN NO. B07FM4VKM5
- 335 mm ASIN NO. B07FM2VB4F
- 450 mm ASIN NO.B07FLZSN9T
- 500 mm ASIN NO. B07FLZSTTK

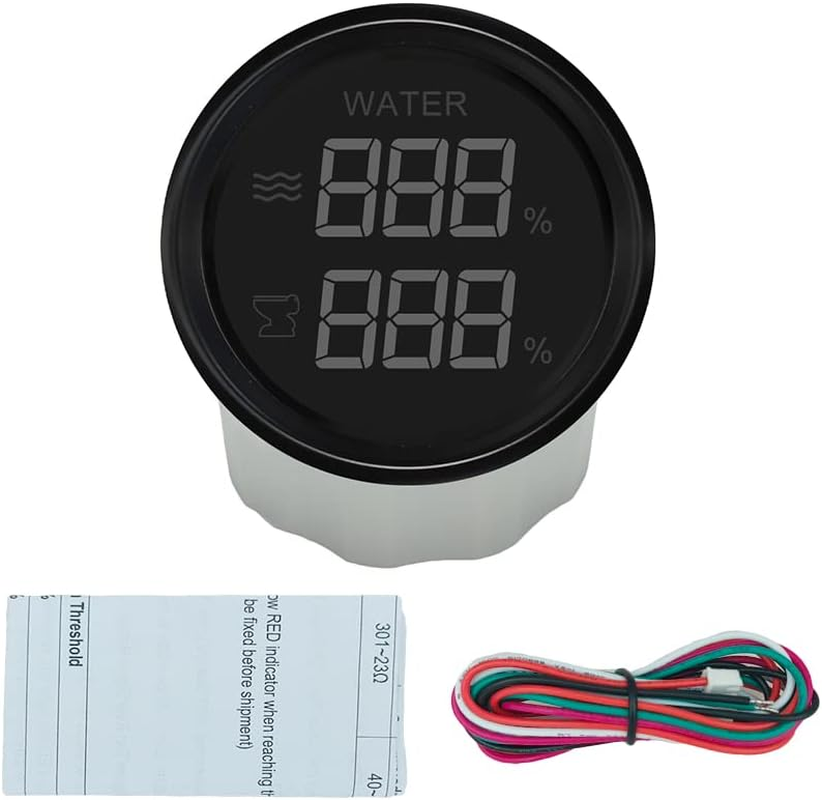

Package Includes
1 x 2 in 1 multi-function gauge
1 x multi-plug socket
1 x Installation Instruction
- Size Name: WH
- Colour Name: black+black
- Manufacturer reference: ELINGTLE52
- Brand: ELING
- Manufacturer Part Number: ELINGTLE52
- Item Weight: 200 g
- Product dimensions: 5.2 x 5.2 x 5.5 cm; 200 Grams
- Manufacturer: ELING
