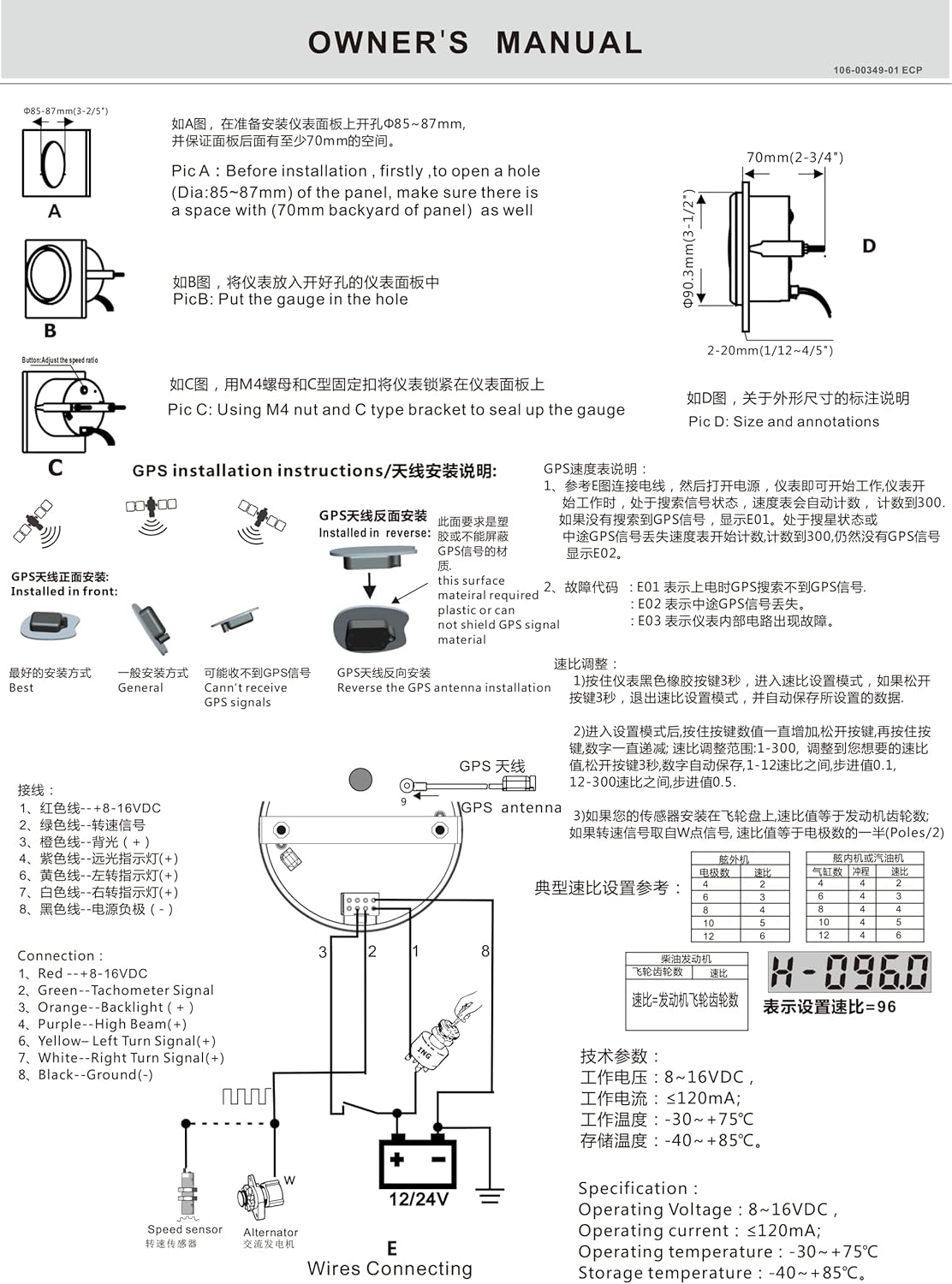

How to install it ?

-Cut an 85mm (3 3/8") hole in the panel and allow a clearance of 70mm (2 3/4”) behind the panel to fit the gauge.

- Put the gauge in the hole.

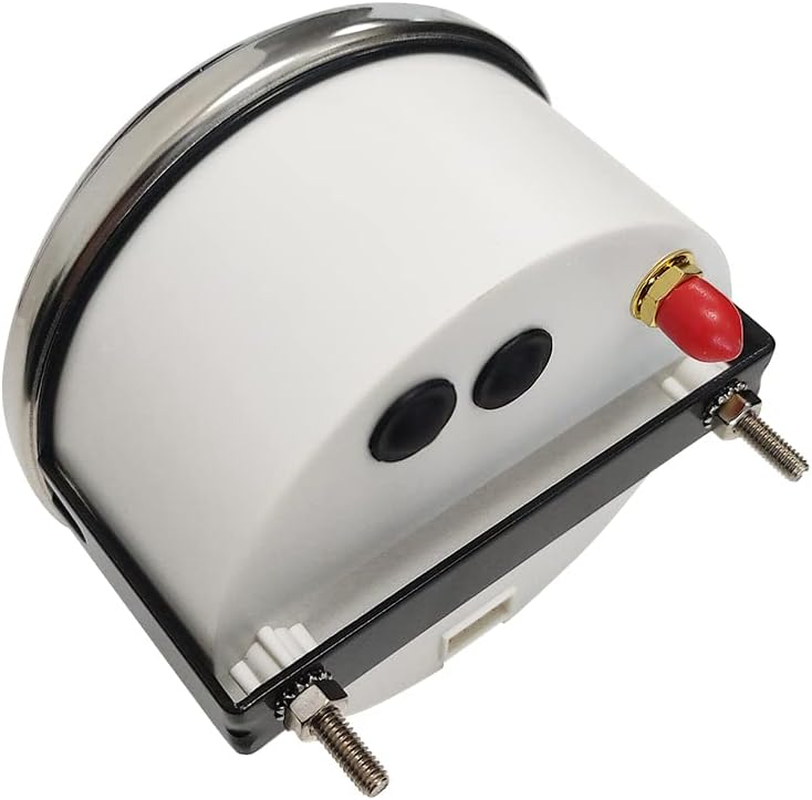

- Using M4 nut and C type bracket to seal up the gauge.

- For the GPS antenna, you should securely fasten it in the flat position, black side upwards, preferably outside (or inside front windscreen) so that it has a clear view of the sky to pick up satellite signal. Connect the antenna cable to socket in the back of the gauge. And do not cut cable.

GPS Speedometer keeps counting ?

- After installation in the first time, GPS speedometer needs to search for signal, that's the reason that LCD counts numbers all the time.

- After getting signal, LCD will come back to 0.It is normal.

Why Don't get RPM signal ?

Tachometer sometimes cannot get signal by ignition system. So, I suggest Tacho sensor signal. It is more stable.ASIN NO. is B0BFWHM4QY or B0BFWCJ1FJ

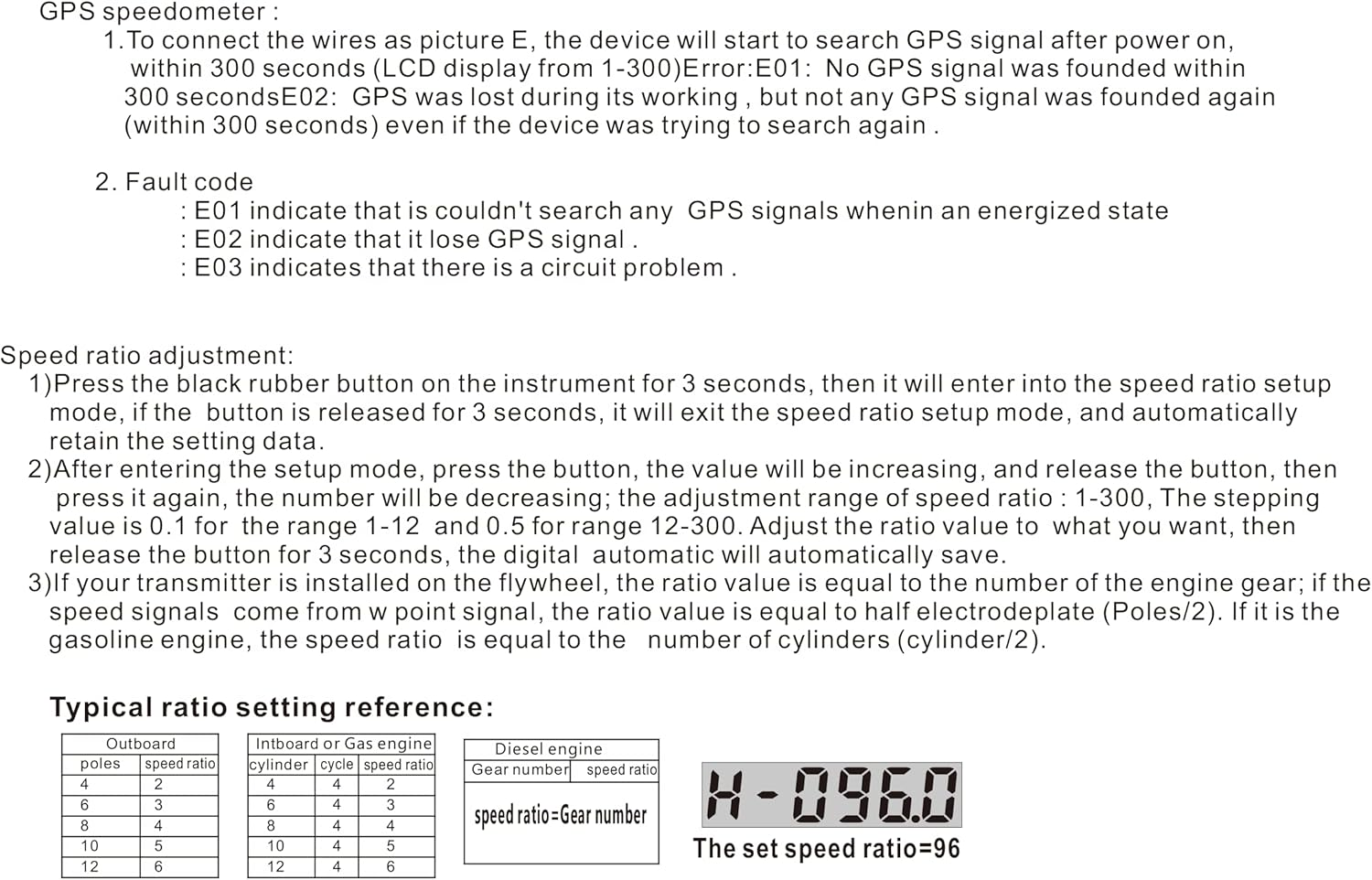

How to setting Tach RPM Ratio ?

1. Turn on the power supply first.

2. Press and hold the mode button for 3 seconds to enter the setting speed ratio mode. then adjust speed ratio from 1-300 according to your request.

3. After setting, Data is automatically saved.

4. Please note: If your sensor is installed on the flying wheel panel, the RPM ratio is equal to the number of gears of the engine; If the speed signal takes from W-Terminal, the RPM ratio is equal to the half of the number of poles.

5. Normally, When the engine is at idle state, tachometer shows 600-800rpm that means speed ratio is correct. If not, you can turn down or turn up speed ratio to check RPM difference.

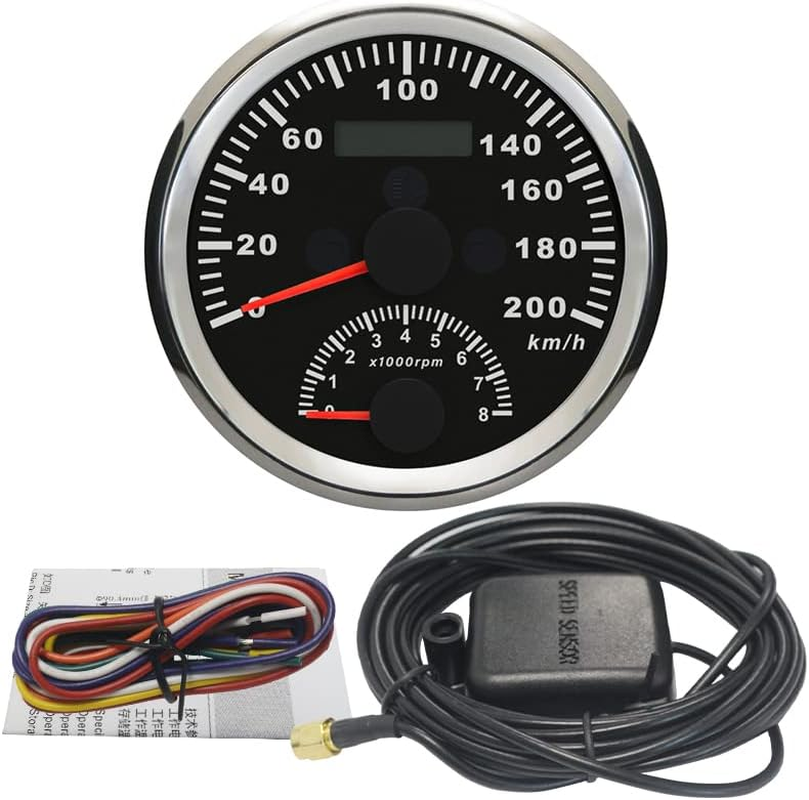

Package Includes

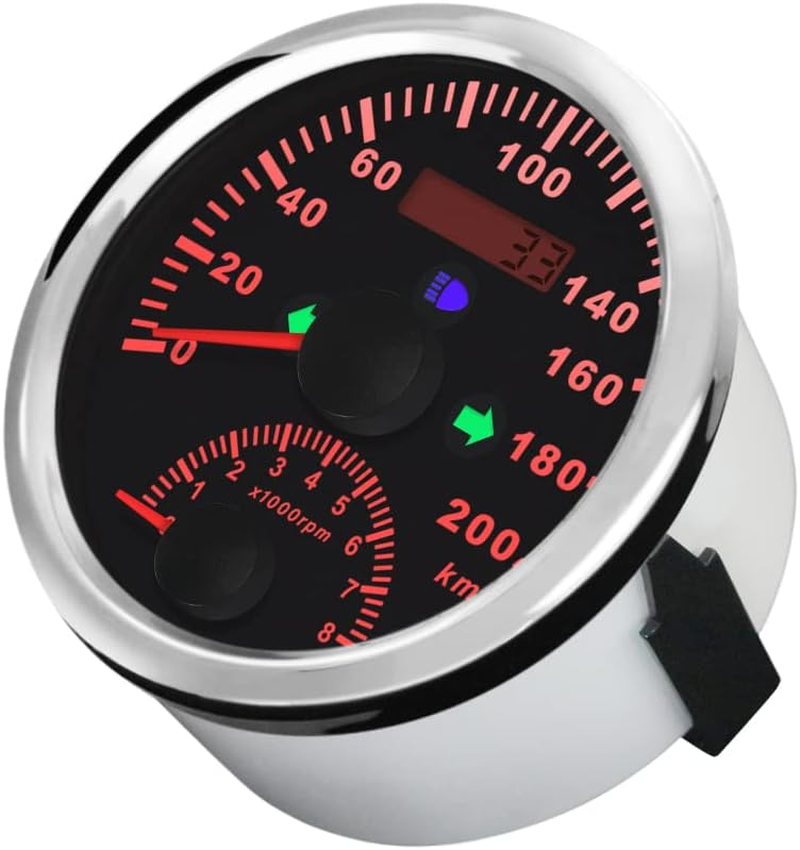

1x GPS Speedometer with tachometer

1x GPS Speed Sensor

1x Multi-plug socket

1x Installation Instruction
