Trailer Vision 50A Anderson Connector Cover - 50Amp Anderson Plug Mounting Kit Assembly with LED Power Indicator - UV Insulated Protection for RV, Trucks, Solar, Marine, Mobile, Industrial (50A Blue)

Trailer Vision 50A Anderson Connector Cover - 50Amp Anderson Plug Mounting Kit Assembly with LED Power Indicator - UV Insulated Protection for RV, Trucks, Solar, Marine, Mobile, Industrial (50A Blue)

Brand: Trailer Vision
3.6
A$25.15
Availability:
  • Select Styles for Availability

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • Top mount cover with locking device and rear rubber weather seals for 50a anderson connector or any 50amp Anderson type plug. It is brilliantly designed for safety and protection of power connectors and ensures that the mating power connectors are locked in place by the unique locking tab system for any mobile environments.
  • The surface mount hard cover is ideal for high-end charging systems such as 4wd vehicles, trailers, yachts, motorhomes, trucks, buses, camper vans, UTV, RV, marine or industrial OEM applications. It ensures regulated power for DC charge line, solar feeds, fridges, gadgets, and other appliances.
  • Has a dust proof spring loaded opening cover and rubber seals at the rear where your wires come through. Includes all fixtures and fittings to install the Anderson plug mount to your vehicle.
  • Retractable access cover with spring lock that is insulated and UV insulated protection that can withstand to any mobile environment. The Anderson plug mount suits most brands of 50a Anderson connectors. The LED power indicator shows when power is on.
  • 100% Australian owned, designed and patented. Complies with the Australian Standard AS 41775-2004. The Anderson connector 50 amp is purchased separately.

Product Description

TRAILER VISION

A Trusted Australian Brand Established in 1988 Providing Unique Power Connector Accessories

Our vision is our commitment to road safety, innovation, and quality of our technologies.

The great architecture of the Trailer Vision product range stems from our most important asset – our people who are skilled in the art of making innovative creations and pride themselves on the Trailer Vision name.

Today, Trailer Vision has secured worldwide patents and designs for its creative ideas in the automotive field and has continued research and development projects in the interests of road safety.

Trailer Vision's Anderson connector covers keep the dirt and grime out of your Anderson Connector when not in use and protect it from the harmful effects of the sun.

Multiple Uses. Reliable safe connection for:

* Campers and Caravans

* Trailers and Trucks

* Charging Auxiliary Batteries

* Solar Panels

* Marine Equipment

* Industrial Applications

* 4WD Vehicle

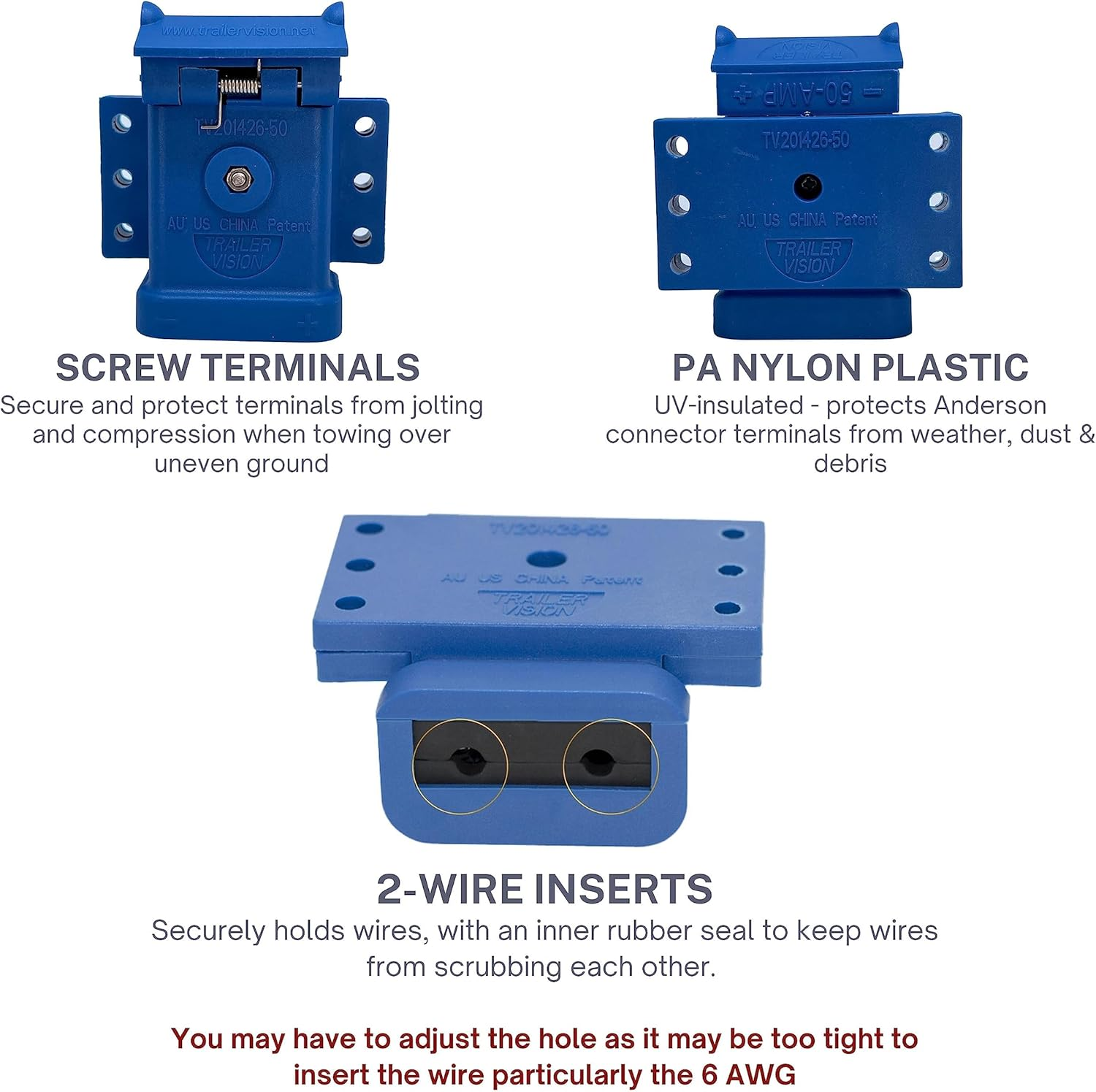

Rear Weather Seals

The Rubber seals at the back of the housing assembly fit tightly around the protruding wires.

It may be necessary to slightly modify the holes in the rubber if the wire used is slightly larger than the precut holes.

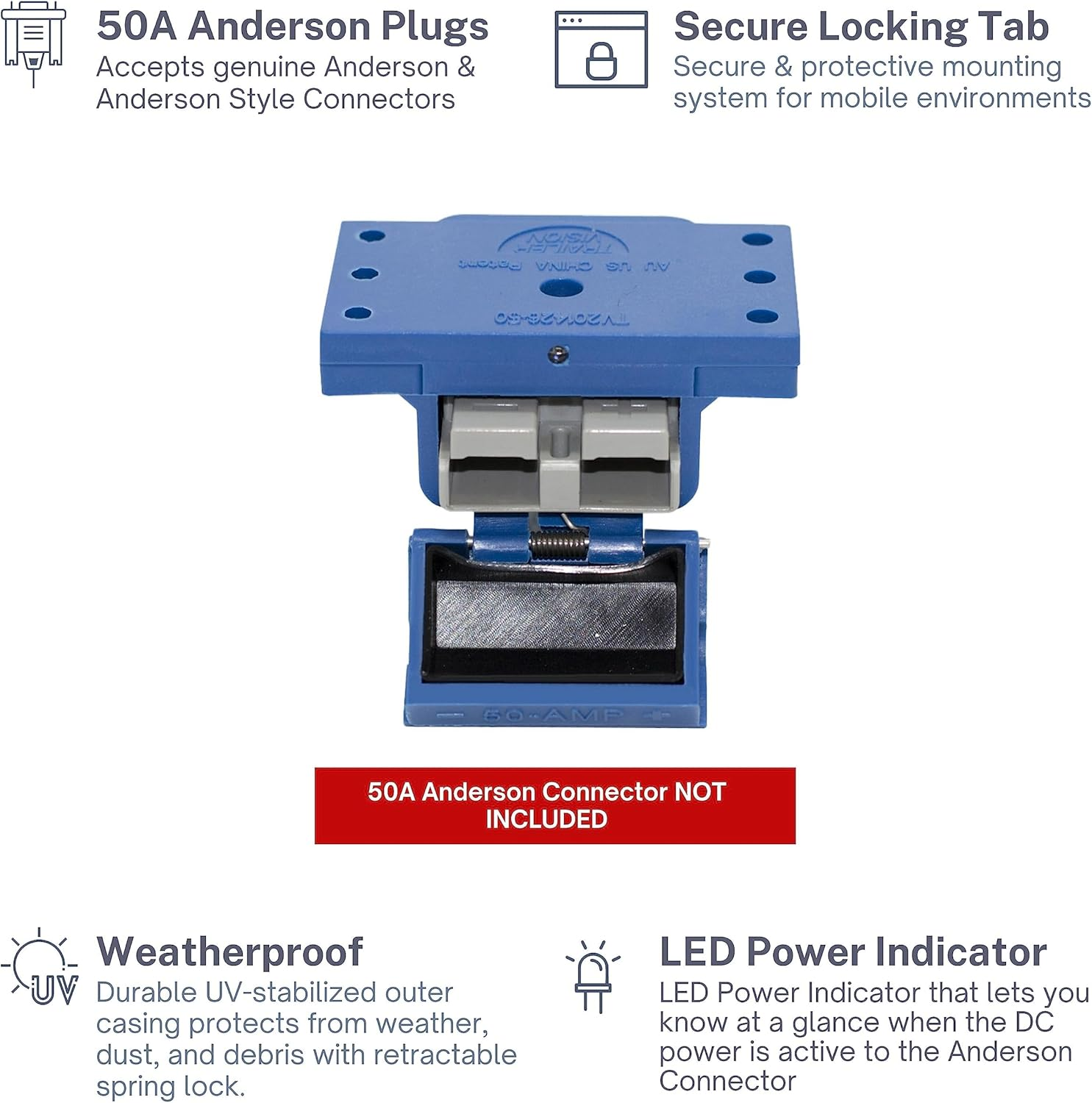

LED Power Indicator

A simple to connect LED Power Indicator that lets you know at a glance when the DC power is active to the Anderson Connector

***50A Anderson Power Connector not included

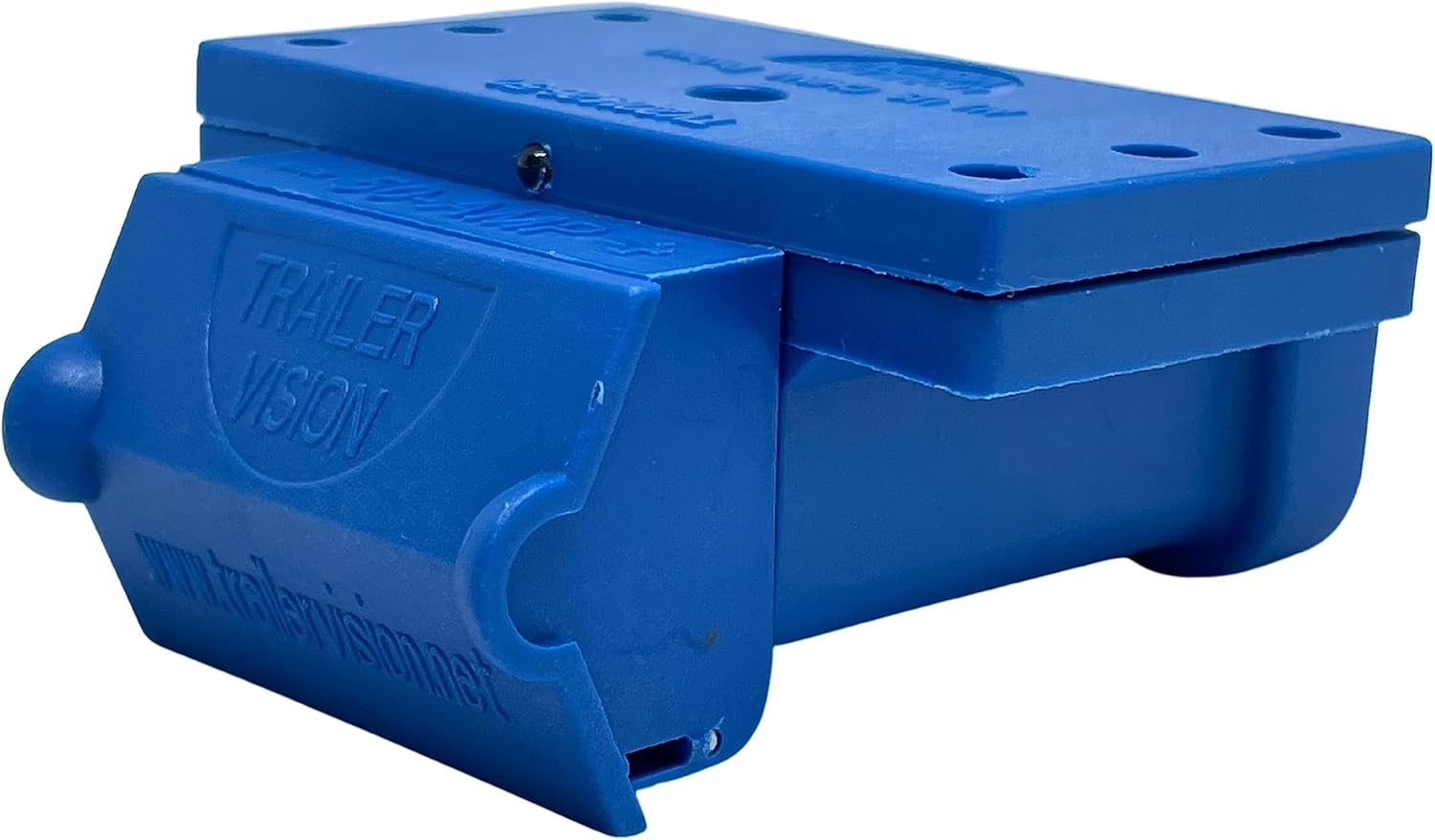

Durable Surface Mount Casing

The housing assembly fits tightly around the Anderson connector protecting it against dust and grime.

Retractable cover with spring tab locking system.

50 Amp Anderson Connector Protective Cover

  • Accepts genuine SB 50 Anderson & 50A Anderson Style Connectors
  • Compatible voltage is from 12v to 24v & fits 12-6AWG wire (2.9 to 4.7mm diameter).

120 Amp Anderson Connector Protective Cover

  • Accepts genuine SB 120 Anderson & 120A Anderson Style Connectors
  • Compatible voltage is from 12v to 36v & fits 6 to 2AWG wire (4.7 to7.4mm diameter).

175 Amp Anderson Connector Protective Cover

  • Accepts genuine SB175 Anderson & 175A Anderson Style Connectors
  • Compatible voltage is from 12v to 36v & fits 6 to 1/0 AWG wire (7.4 to 9.4mm diameter).

350 Amp Anderson Connector Protective Cover

  • Accepts genuine SB350 Anderson & 350A Anderson Style Connectors
  • Compatible voltage is from 12v to 48v & fits 1/0 to 4/0AWG wire (9.4 to 22.6mm diameter).

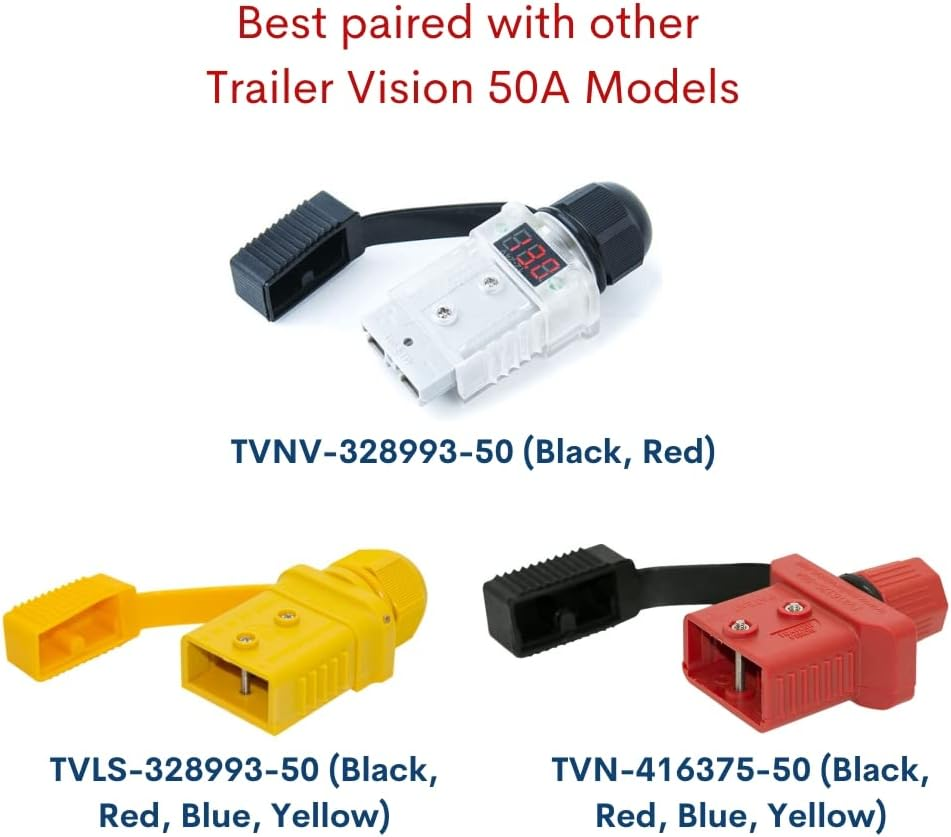

Try also our TVN-201426-50SC Model

Compatible with genuine SB50 50A connectors. Includes:

  • 50A Black Cover
  • Genuine Trailer Vision 50A Connector

How to Assemble the Anderson Connector Cover

Step 1

To assemble, solder, or clamp wiring with LED, positive - RED and negative - BLACK leads to Anderson connector contacts. Please connector into the bottom assembly, clamp rubber covers over the wiring for UV and moisture protection. Place top cover over the bottom assembly and screw clamp assemblies together.

Step 2

Install cover assembly securely with 4 stainless steel screws provided.

Step 3

Push the locking tab into the mating connector. The front cover will clamp down on the locking tab of the mating connector preventing both connectors from separating.

The Anderson Connector assembly comes with all necessary components including:

  • The Housing Assembly
  • LED Power Indicator
  • 4 x Stainless Steel Mounting Screws
  • 1 x Stainless Steel Screw for Securing the Anderson Connector
  • 2 x Locking Tabs
  • Assembly Information on Back of Packaging

Using TVN-201426-120 and TVN-349380-120 to protect 120A Anderson Connectors

  • Item Model Number: SB 50 Anderson Connector Cover - Blue
  • Amperage: 50 Amps
  • Bulb Type: LED
  • Brand: Trailer Vision
  • Manufacturer Part Number: TV-201426-50
  • Item Weight: 105 g
  • Voltage: 12 Volts
  • Model: Trailer Vision 50A Anderson Plug Cover Assembly
  • Manufacturer: Trailer Vision
  • Is discontinued by manufacturer: No

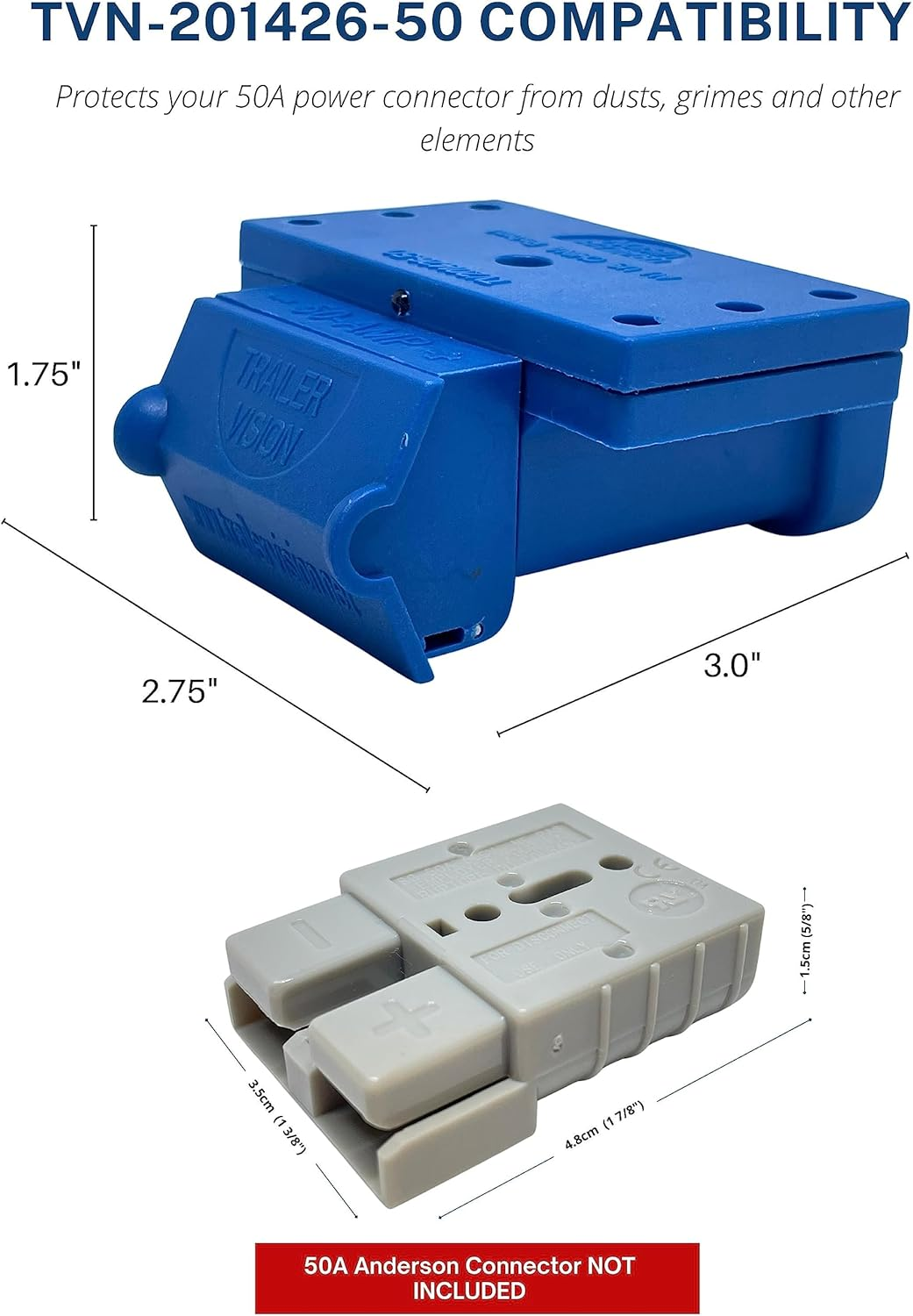

  • Product dimensions: 19.05 x 17.78 x 7.62 cm; 105 Grams
  • Size: 50A Blue Cover
