GEYA Delay off Single Function Time Relay 1 Output 16A Electronic Power off Timer Delay Relay(Grt8-B1,Ac230V)

GEYA Delay off Single Function Time Relay 1 Output 16A Electronic Power off Timer Delay Relay(Grt8-B1,Ac230V)

Brand: GEYA
5.0
A$28.15 - A$37.05
Availability:
  • Select Styles for Availability

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • High Cost Performance:Delay can be set directly through the panel knob,convenient and intuitive.

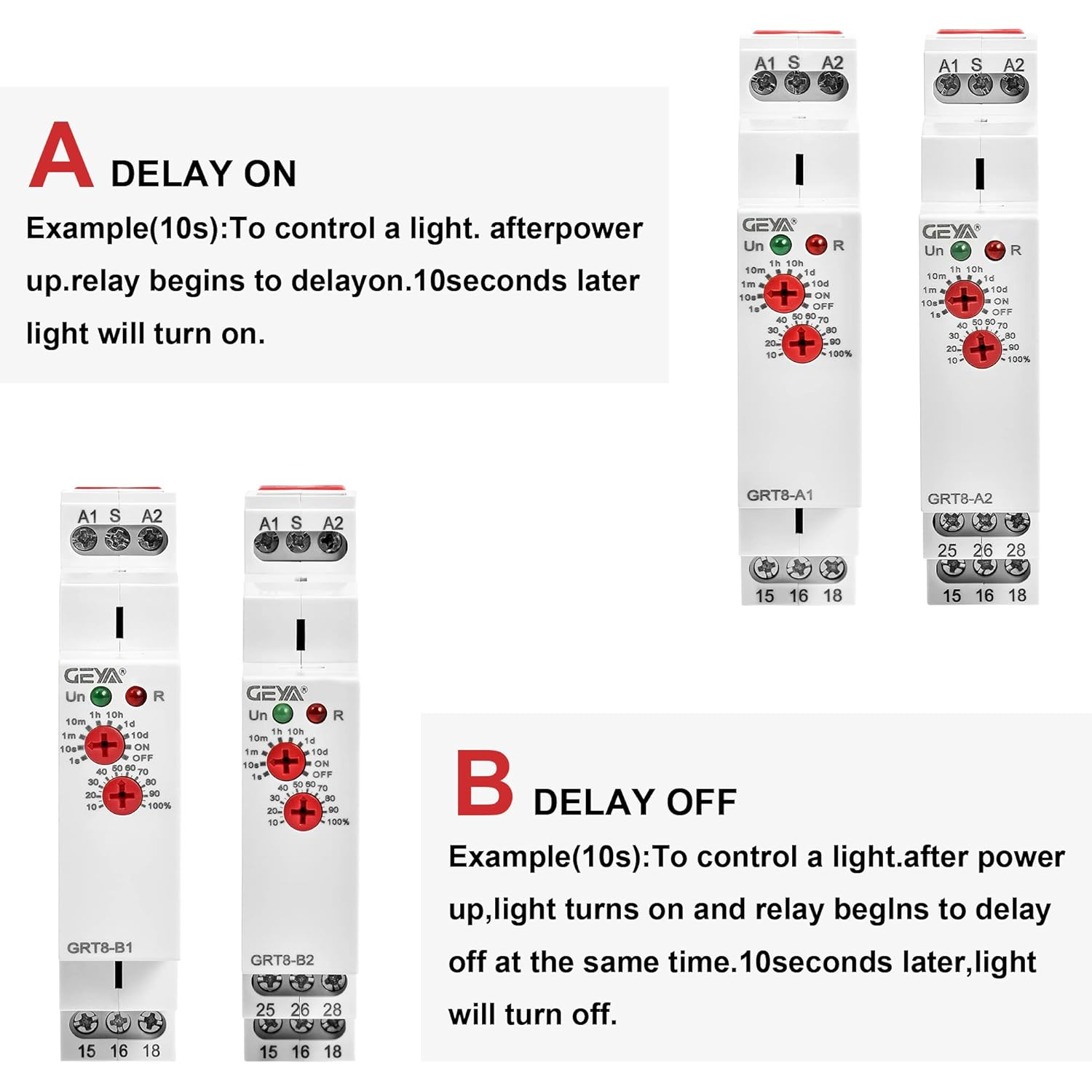

  • Function Mode:It has two optional modes, A Delay ON or B Delay OFF.

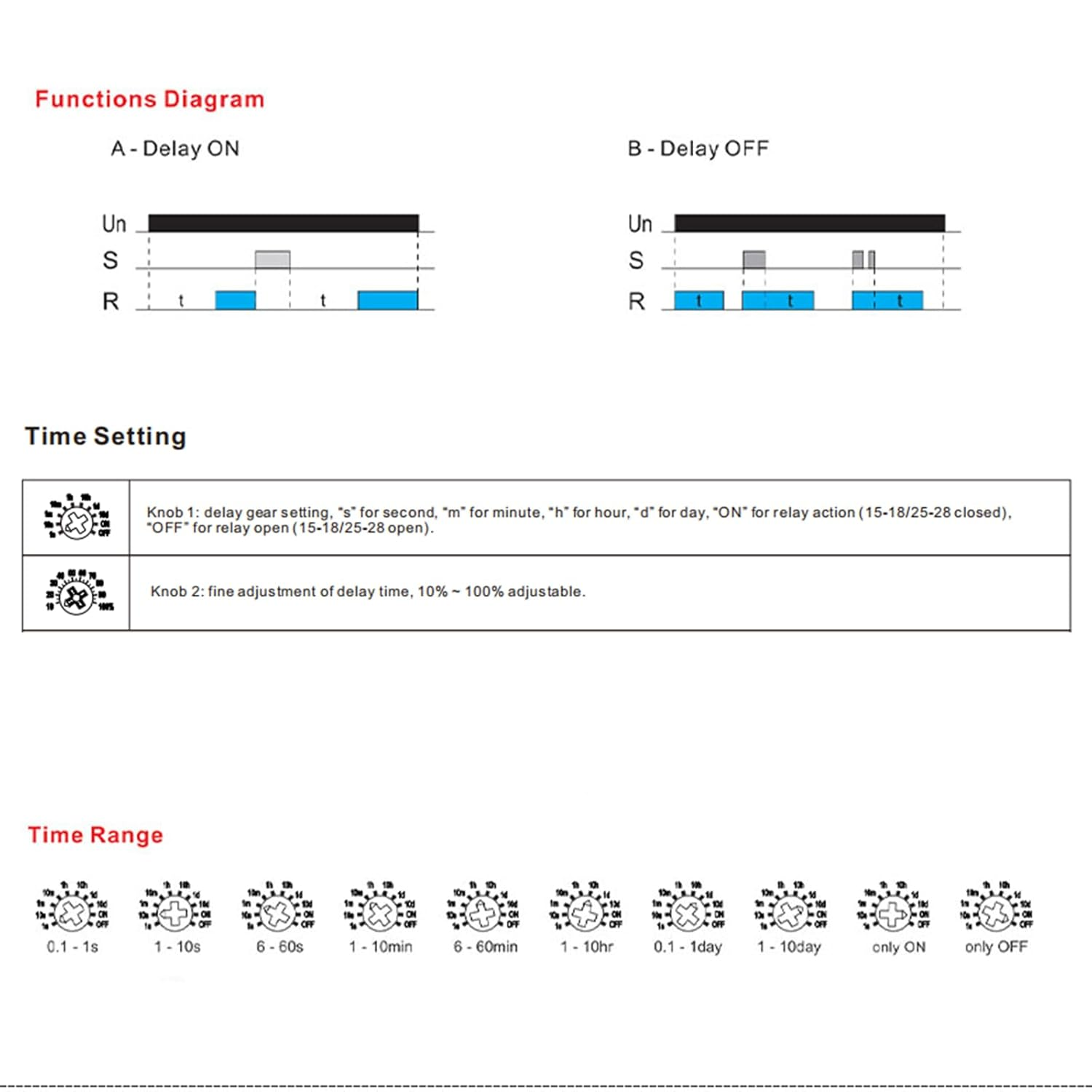

  • The Principle Of Use:Function can be controlled by supply voltage or time scale control input.Time scale 0.1s - 10days divided into 10ranges.(0.1-1s,1-10s,6-60s,1-10min,6-60min,1-10hr,0.1-1day,1-10day,only ON,only OFF).

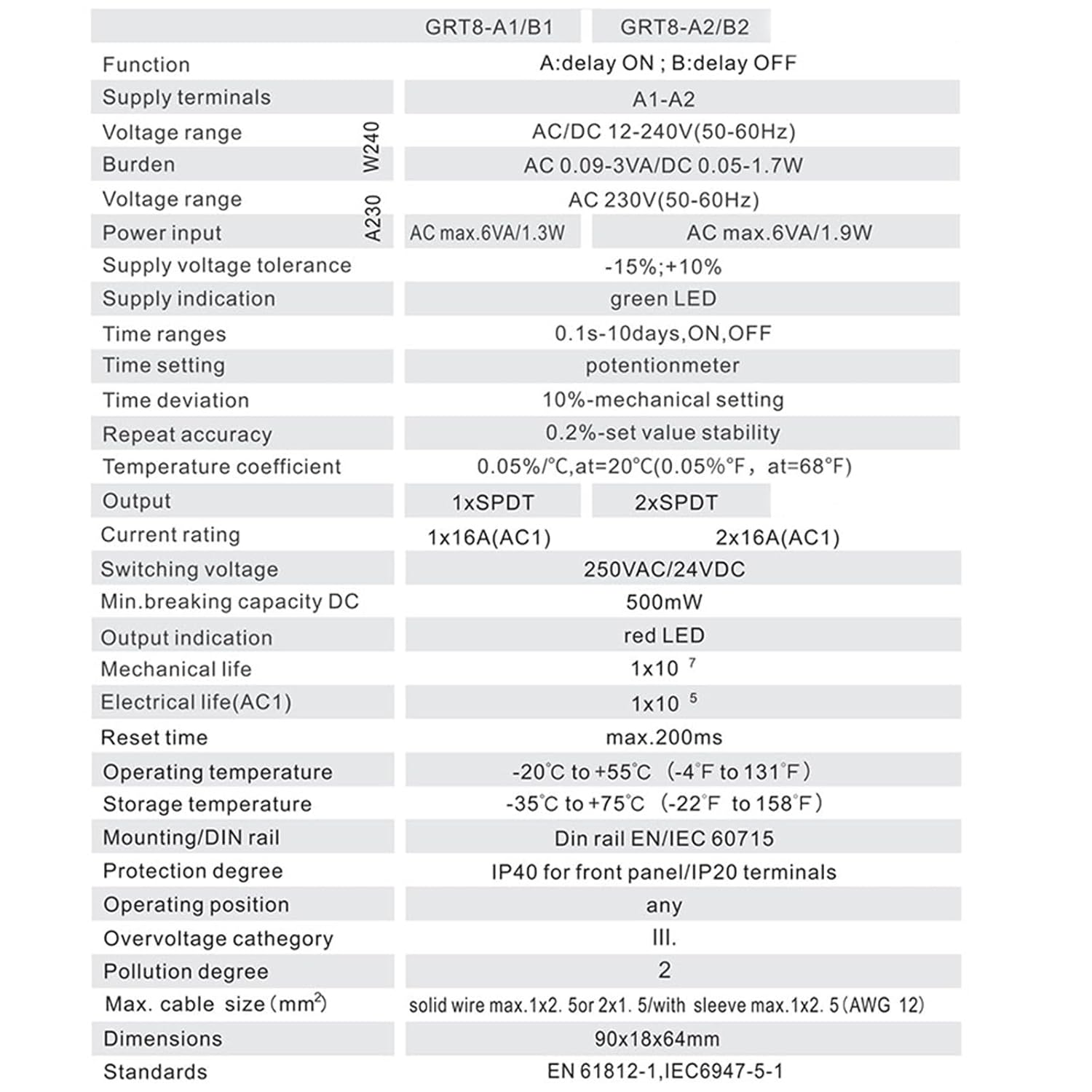

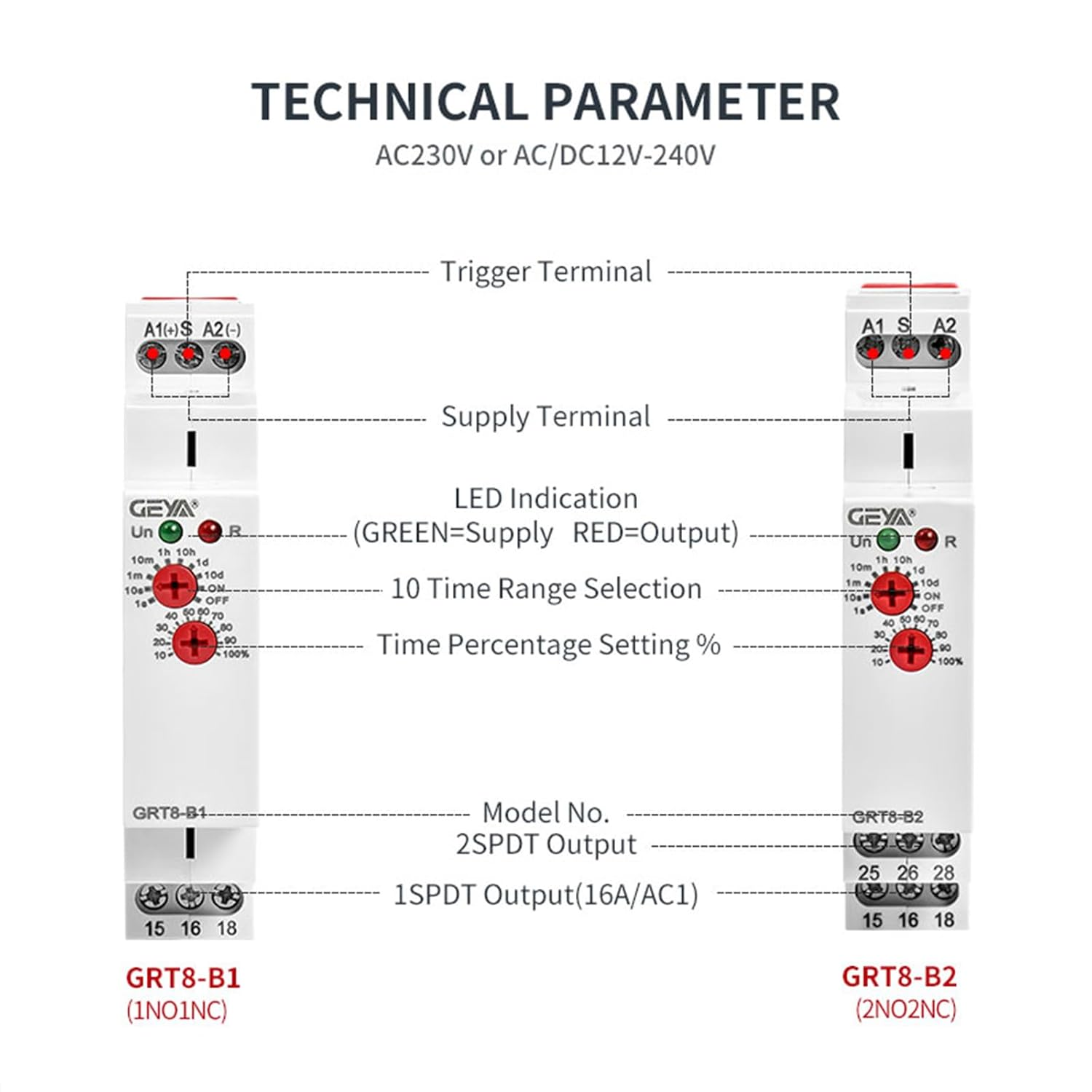

  • Support wide range voltage: AC/DC12-240V or AC230V.Output contact: 1SPDT(1NO1NC) or 2SPDT(2NO2NC).Relay status is indicated by LED.
  • 1-MODULE,DIN rail mounting.Ultra-small size,only 18mm width,35mm rail mounting.

Single-function time relay Applications Suitable for applications where function and time requirements are know. Time switch,possible to be used for pump decay time after switching heating off , switching of fans. Feature Single-function relay with possibility of time setting by a potentiometer. Choice of 2 functions, Model A:Delay ON,Model B:Delay OFF. Time scale 0.1 s - 10 days divided into 10 ranges. Relay status is indicated by LED. 1-MODULE,DIN rail mounting.

  • Item Model Number: GRT8-B1 A230
  • Size Name: GRT8-B1,AC230V
  • Country of origin: China
  • Package Dimensions: 9.2 x 7.4 x 2.7 cm; 70 Grams
  • Manufacturer: ZHEJIANG GEYA ELECTRICAL CO.,LTD
