Made of stainless steel 304, strong and corrosion resistant.
Coverage area: no wind or breeze under the condition of a nozzle 1-3 meters height cover about 1-2 square feet.
Screen: nozzle inlet is equipped with stainless steel Screen.
Pattern: solid cone / conical.
When the liquid in the 2-10bar pressure is medium, the pressure reaches 10-20bar, the atomization particle is about 50um, 20bar can reach the suspended fog.The greater the pressure, the better atomization effect, the maximum pressure 50-70bar.
The normal spray angle is 60-80 degrees.
Widely used in humidification cooling, dust cooling, fog test, artificial fog, atomized fuel, evaporation, cleaning and , and landscape fog and so on.
Specification:
Material: 304 Stainless Steel

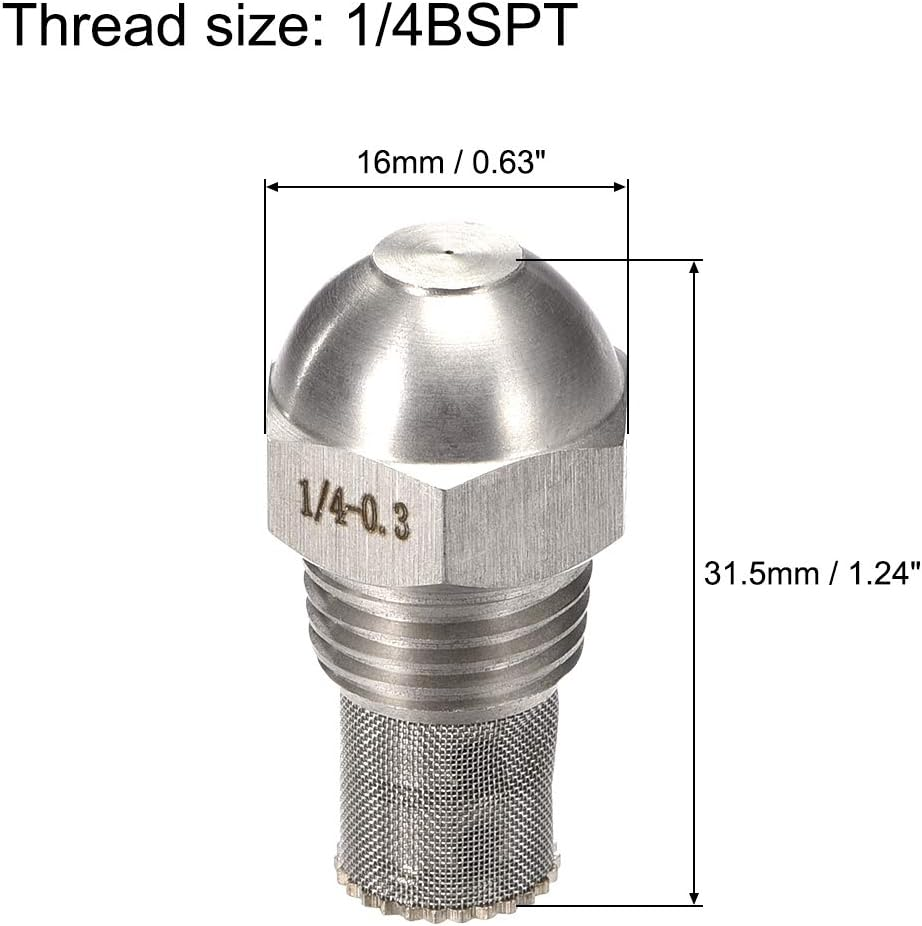

Thread size: 1/4BSPT
Orifice Diameter: 0.3mm / 0.012"
Total Size: 16mm x 31.5mm / 0.63" x 1.24" (Hex.Width*H)
Package Content:
1 x Misting Nozzle
