2230 Extension NGFF A+E-Key Male to NVME M-key Female Adapter for Laptop Mainboard SSD 2280

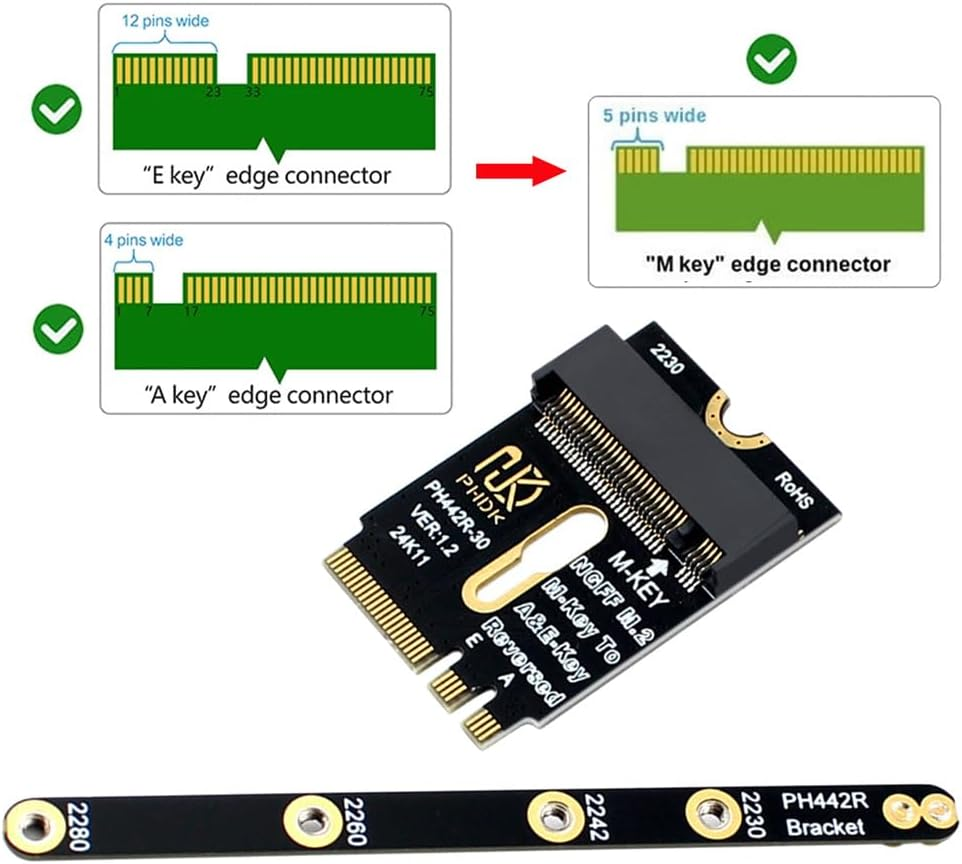

M.2 Key A+E: This key type is primarily used for wireless communication modules, such as Wi-Fi and Bluetooth cards. It features a single notch and supports PCIe and USB interfaces.
M.2 Key M: Key M is the most versatile key type, supporting a wide range of functionalities, including storage devices, graphics cards, and other expansion cards. It has five or six notches and supports PCIe interfaces.

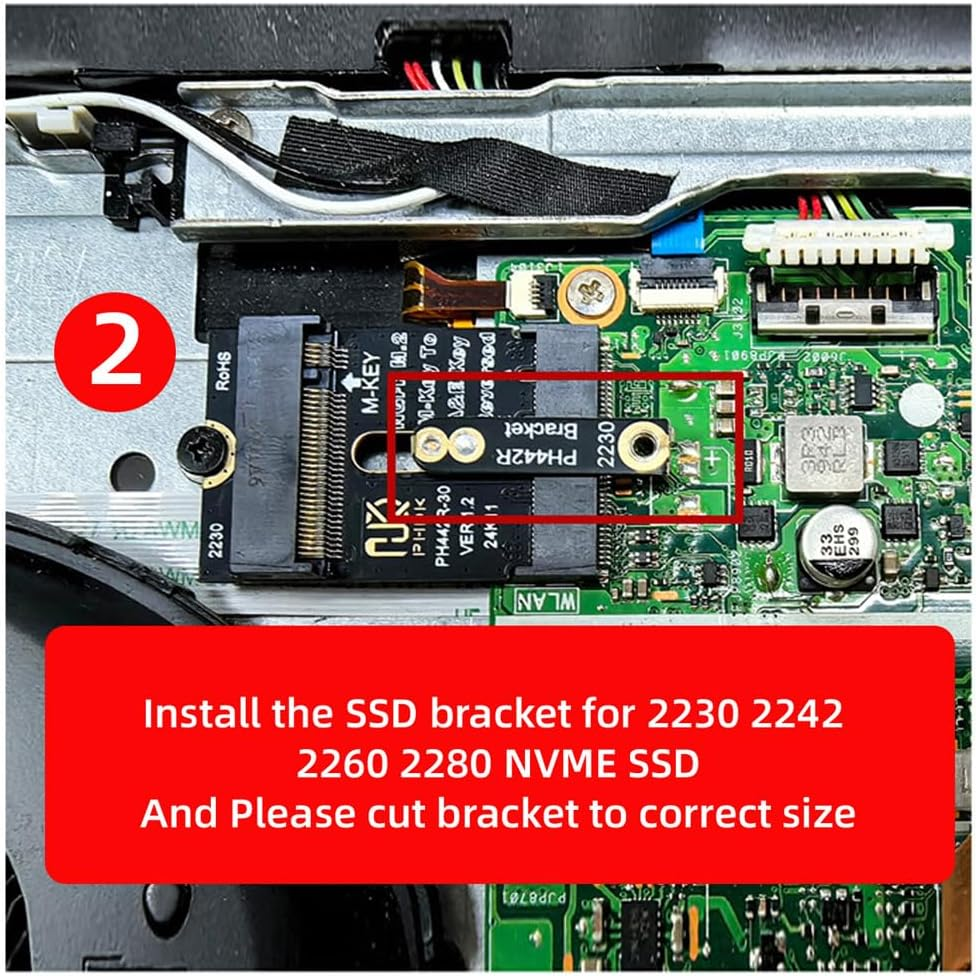

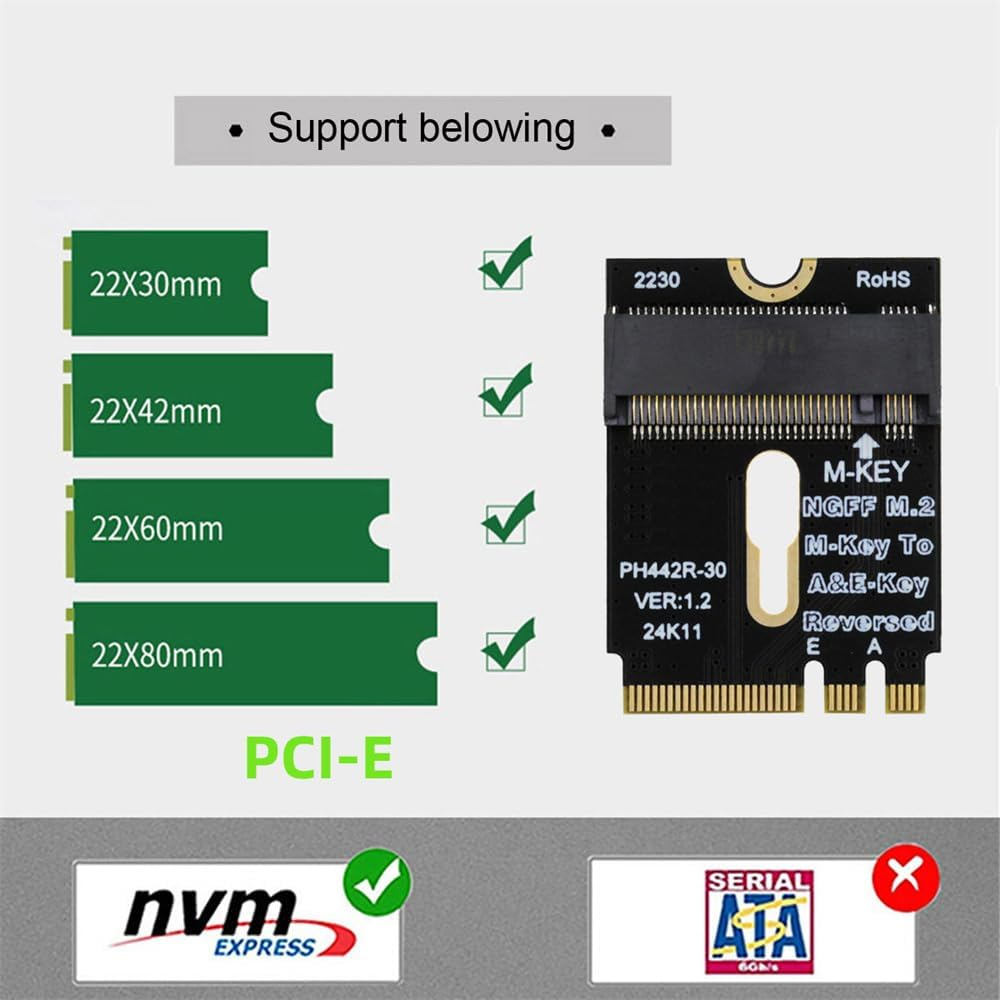

Support NGFF M.2 NVME key M 2230/2242/2260/2280 card-to-key A + E 2230; Support for Windows 8/10/11.(Note: SSD are not included.)
Does not support SATA B+M-Key, M.2 PCIe AHCI SSDs, M.2 PCIe devices such as WiFi and capture cards, mSATA SSDs, and non-M.2 form factor SSDs.

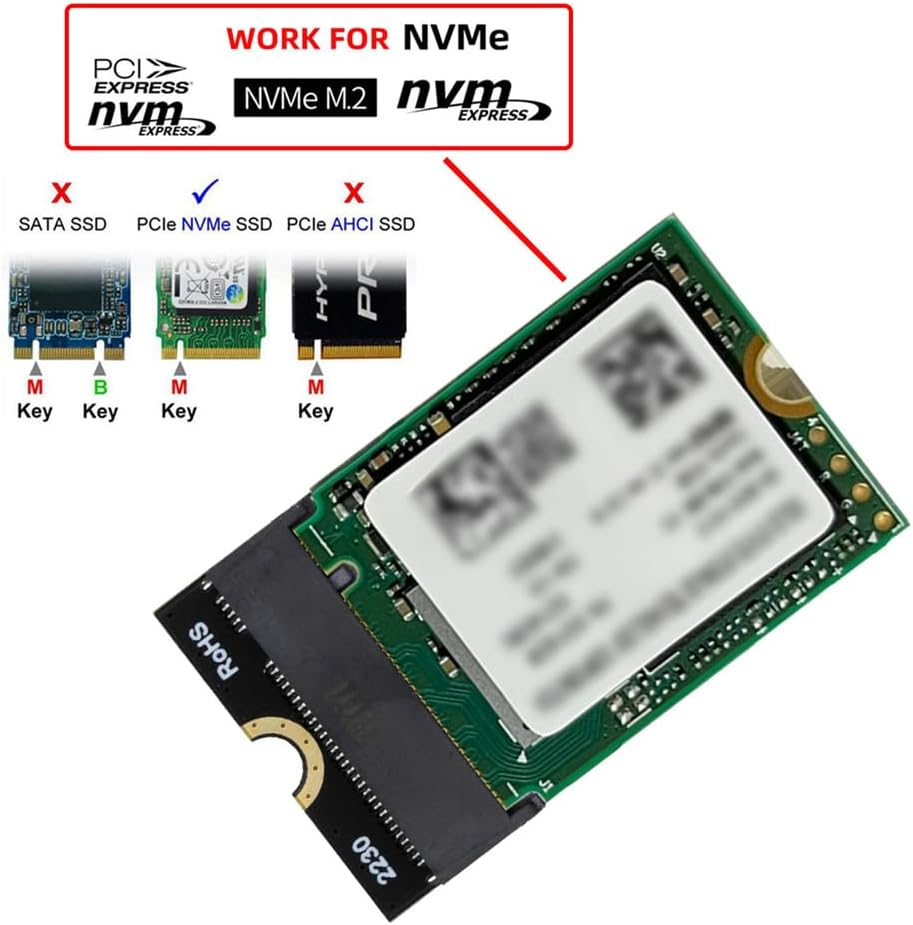

The product included two PCBA; Supports PCI-E 4.0 & NVME Data transfer rate up to 64Gbps; Support PCI-E NVME M-key SSD extension only, It can't work for B+M-key SATA SSD.

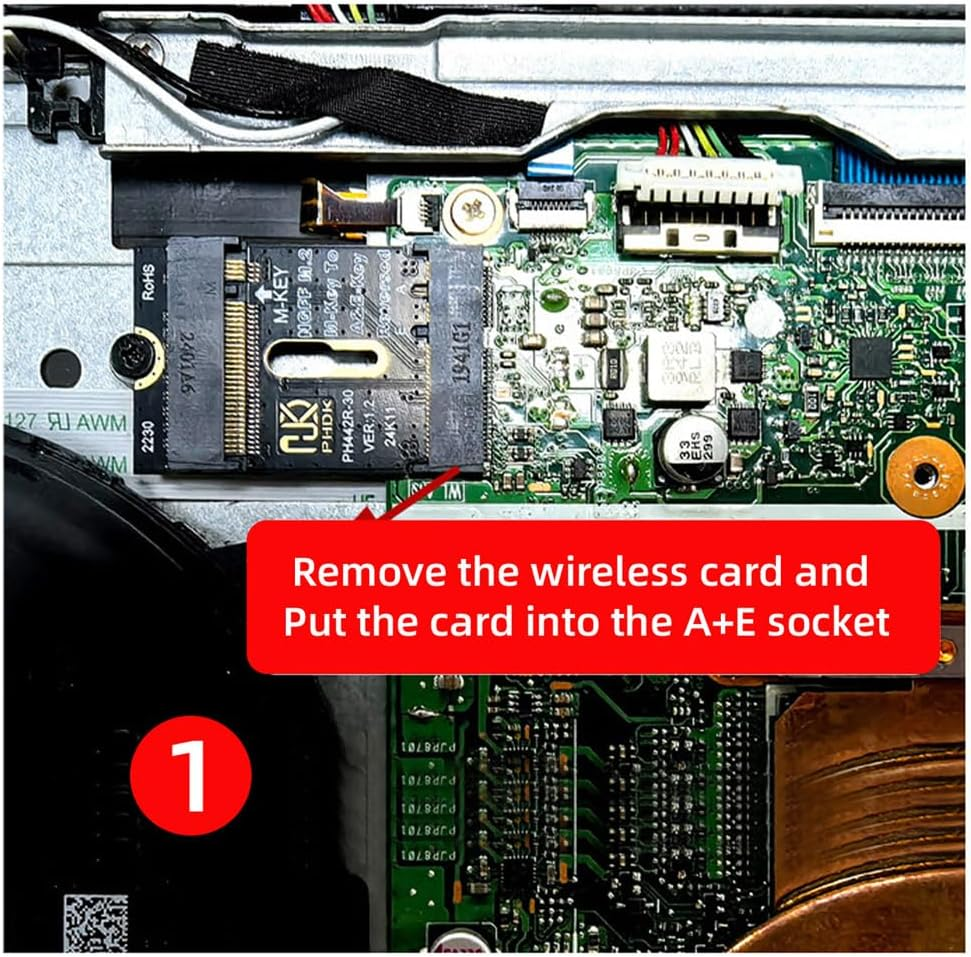

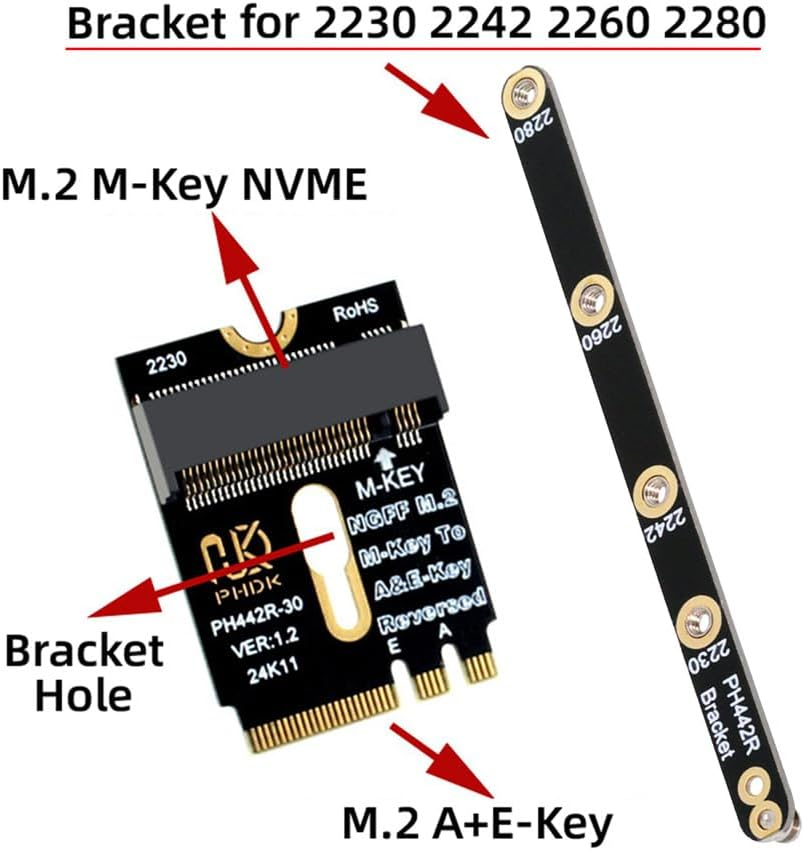

NGFF M.2 Key-M to Key A+E Extension adapter NGFF M-Key to A+E Adapter Card Board, Extend the NVME from 2230 A+E socket to NVME 2230/2240/2260/2280.
